Square D™

UHTRS223A - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, UG, 200 A, up to 600 VAC single phase 3W

Category Miscellaneous

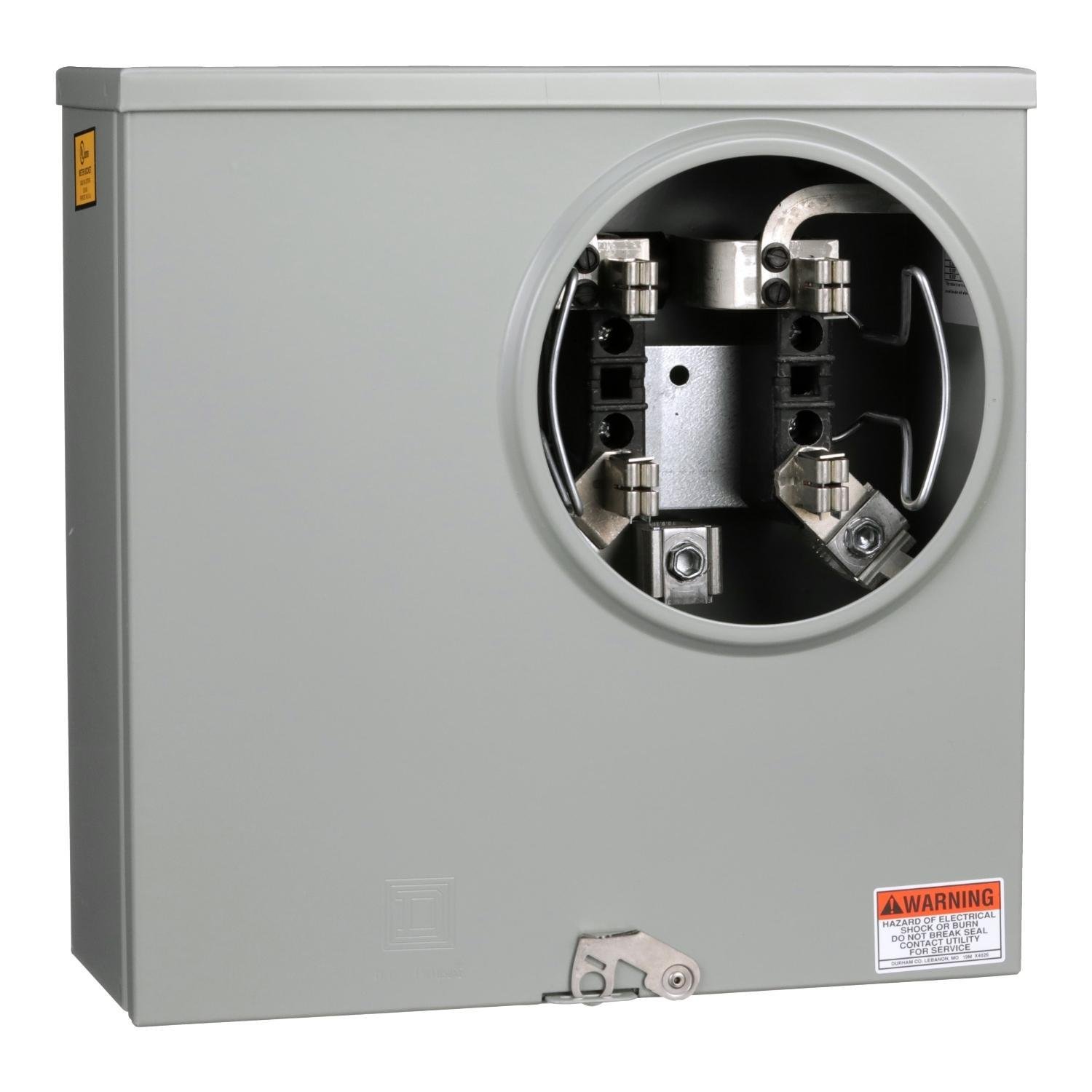

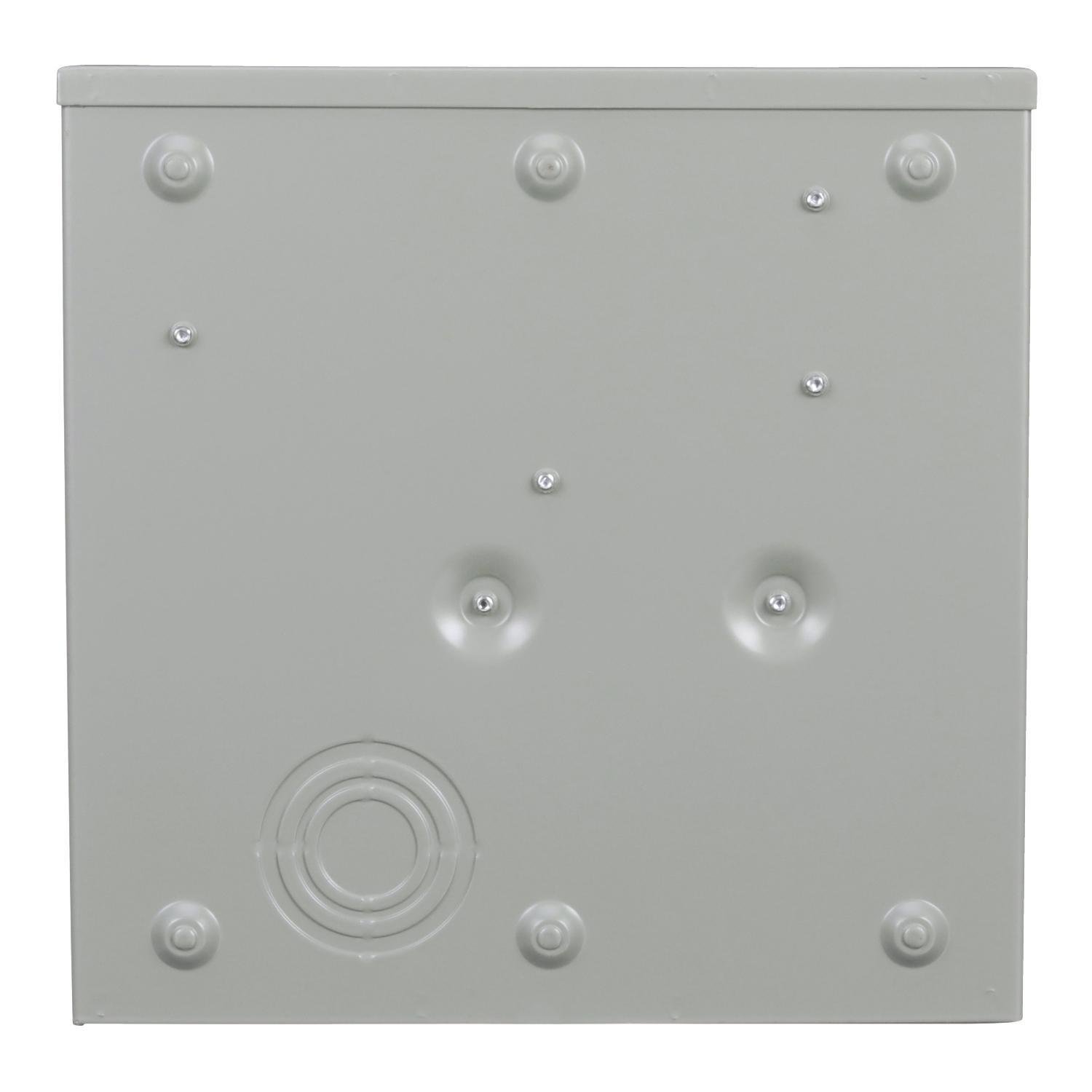

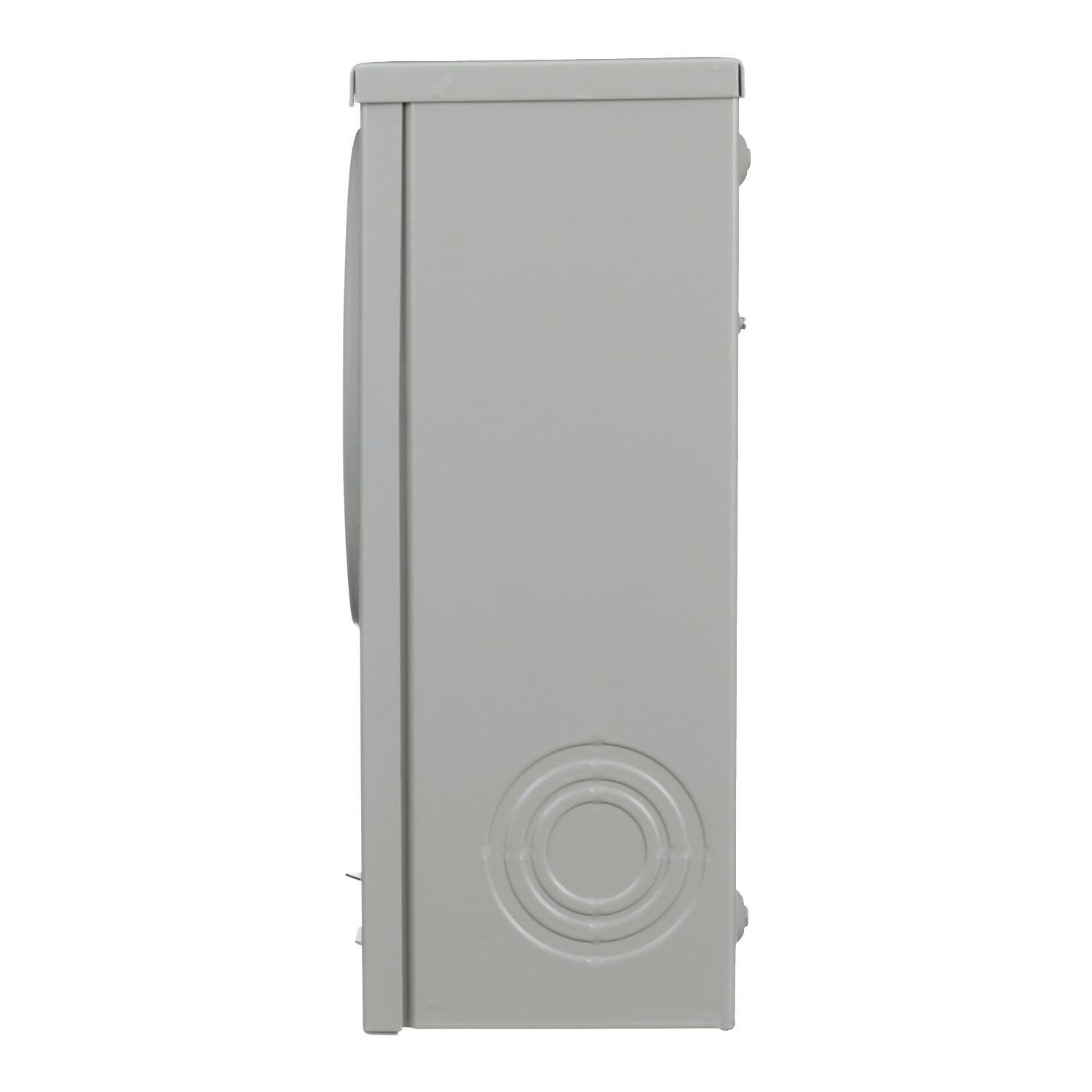

Picture of UHTRS223A - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, UG, 200 A, up to 600 VAC single phase 3W Picture of UHTRS223A - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, UG, 200 A, up to 600 VAC single phase 3W
Picture of UHTRS223A - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, UG, 200 A, up to 600 VAC single phase 3W Picture of UHTRS223A - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, UG, 200 A, up to 600 VAC single phase 3W
Picture of UHTRS223A - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, UG, 200 A, up to 600 VAC single phase 3W Picture of UHTRS223A - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, UG, 200 A, up to 600 VAC single phase 3W
Picture of UHTRS223A - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, UG, 200 A, up to 600 VAC single phase 3W Picture of UHTRS223A - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, UG, 200 A, up to 600 VAC single phase 3W
Picture of UHTRS223A - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, UG, 200 A, up to 600 VAC single phase 3W Picture of UHTRS223A - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, UG, 200 A, up to 600 VAC single phase 3W
Square D™

UHTRS223A - Individual meter socket, ringless socket, horn bypass, 4 jaws no release, UG, 200 A, up to 600 VAC single phase 3W

Item Code: 1012593
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref UHTRS223A

Document
Call for Availability
Add to Favorites
Compare

Description

Individual Meter Sockets are available for single or three phase with a 600 VAC maximum. These individual meter sockets can be with and without horn or lever bypass. The sockets have a 10 kA short circuit current rating as standard but could have a higher rating with utility approval. Units are supplied with a bonded neutral. Units are supplied with a hub opening in top end wall which requires the use of a bolt on hub or a closing plate. This ringless meter socket has four jaws with a horn bypass and without jaw release. This meter socket is for single phase 3 wire systems up to 600 VAC. This meter socket has a 200 A rating. This unit can be for a feed from an underground service. This unit has a NEMA 3R surface mounting enclosure that is 13.00 inches tall, 13.00 inches wide and 4.94 inches deep. The main lugs, the load lugs and the neutral lug will accept one 8 AWG to 2/0 AWG copper or aluminum wire. The ground will accept 14 AWG to 2 AWG copper or aluminum wire. This individual meter socket is UL Listed.

Specifications

Weight

14.2

Width

13.47

Length

13.47

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/UHTRS223A/UHTRS223A.spin

AD All Features

Square D meter sockets provide rainproof protection for senstive electrical equipment

AD Alternative Part Number

8085635

AD Brand (Description)

Square D™

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Specification Sheet

AD EAN

0785901911685

AD Gtin

00785901911685

AD IDEA Index ID

8085635

AD Invoice Description

SOCKET MTR 600VAC 200A 1 NEMA 3R/2R UGND

AD Item Features 01

Square D meter sockets provide rainproof protection for senstive electrical equipment

AD Item Features 02

For single family residential construction

AD Item Features 03

CSED allows for the meter socket to integrate with the load center into one compact design

AD Keywords

Meter-Pak UHTRS223A 3-Wire Individual Meter Socket With Horn Bypass, 600 V AC, 200 A, 1 Phase, NEMA 3R Enclosure ; Schneider Electric ; Square D ; UHTRS223A ; UHTRS223A ; 785901911685 ; Meter Sockets - Single Position

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

13.4700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

14.2000

AD Package Weight UOM

LB

AD Package Width

13.4700

AD Package Width UOM

IN

AD Part Number Keywords

UHTRS223A ; 8085635 ; 785901911685 ; 78590191168 ; 00785901911685 ; 0785901911685

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Hex Lug

Spec 11 Attribute

Type

Spec 11 Attribute Value

3-Wire Individual

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

1/0 AWG to 350 kcmil, 14 to 2 AWG Al/Cu

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

13 x 13

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Underground

Spec 6 Attribute

Hub Type

Spec 6 Attribute Value

Solid top

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Bolt-On/Wall

Spec 8 Attribute

Number of Jaws

Spec 8 Attribute Value

4

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
