Square D

UT2R2122B - Meter socket, horizontal ganged, ringless socket, 205A, 2 position, 4 jaws, 600 VAC max, overhead/underground, no bypass

Category Ganged Meter Sockets

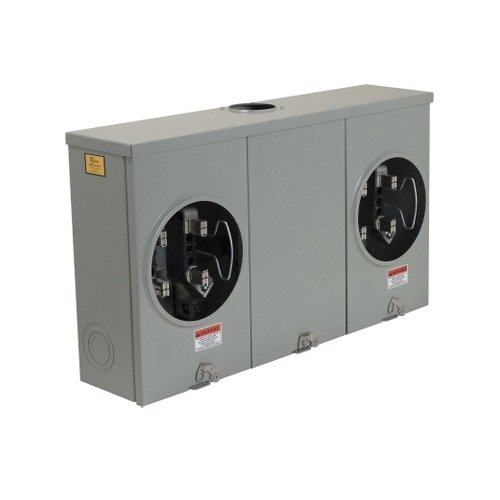

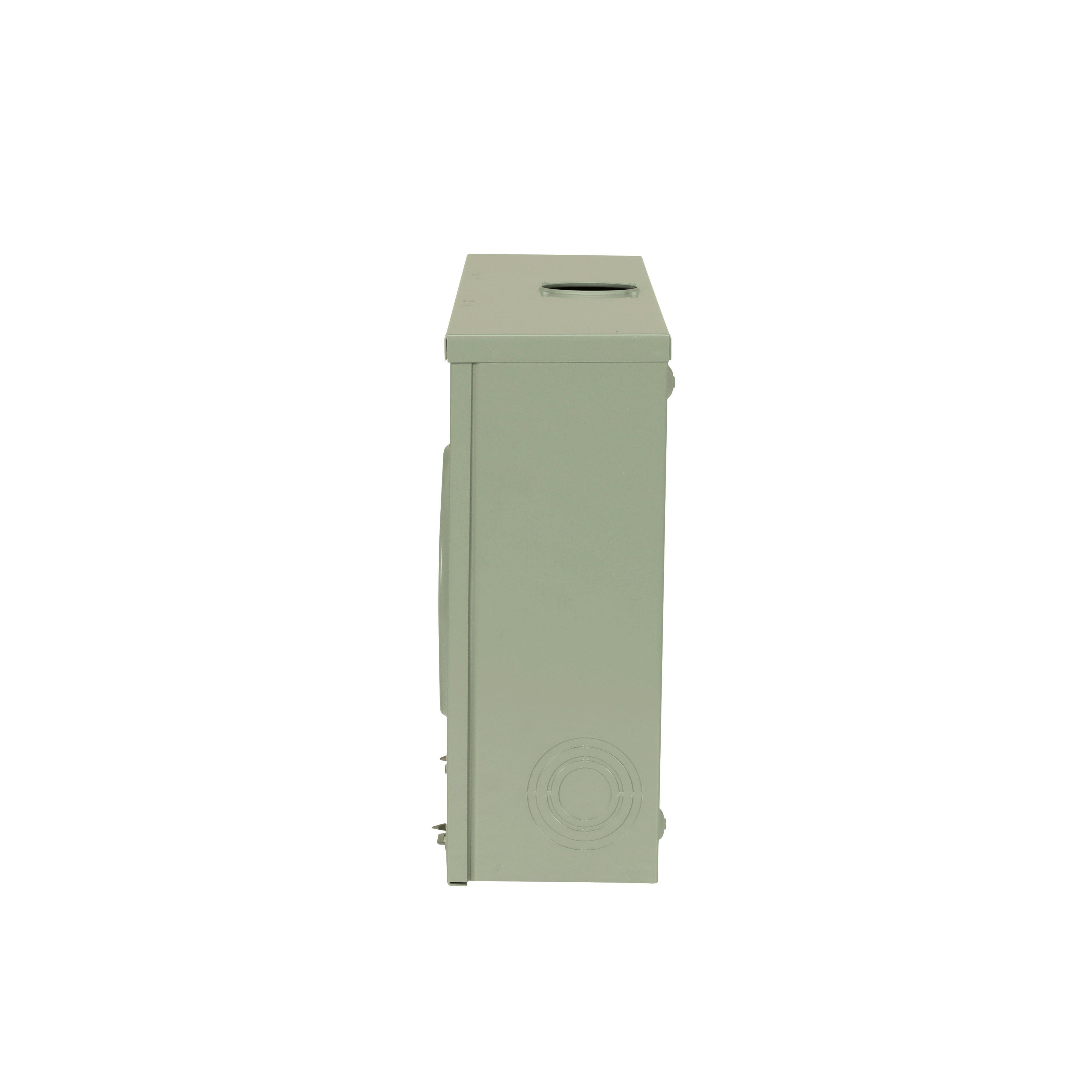

Picture of UT2R2122B - Meter socket, horizontal ganged, ringless socket, 205A, 2 position, 4 jaws, 600 VAC max, overhead/underground, no bypass Picture of UT2R2122B - Meter socket, horizontal ganged, ringless socket, 205A, 2 position, 4 jaws, 600 VAC max, overhead/underground, no bypass
Picture of UT2R2122B - Meter socket, horizontal ganged, ringless socket, 205A, 2 position, 4 jaws, 600 VAC max, overhead/underground, no bypass Picture of UT2R2122B - Meter socket, horizontal ganged, ringless socket, 205A, 2 position, 4 jaws, 600 VAC max, overhead/underground, no bypass
Picture of UT2R2122B - Meter socket, horizontal ganged, ringless socket, 205A, 2 position, 4 jaws, 600 VAC max, overhead/underground, no bypass Picture of UT2R2122B - Meter socket, horizontal ganged, ringless socket, 205A, 2 position, 4 jaws, 600 VAC max, overhead/underground, no bypass
Square D

UT2R2122B - Meter socket, horizontal ganged, ringless socket, 205A, 2 position, 4 jaws, 600 VAC max, overhead/underground, no bypass

Item Code: 623538
Category Ganged Meter Sockets
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref UT2R2122B

Document
Call for Availability
Add to Favorites
Compare

Description

Square D™ Horizontal Ganged Meter Sockets are single phase power distribution panels used in residential applications. These meter sockets are NEMA 3R enclosures that are supplied with ground lugs and top endwall hub opening. This requires the use of a bolt on hub or closing plate. Horizontal Ganged Meter Sockets are 600 VAC and main lugs only. This product is a ringless type with no bypass, underground or overhead service feed, and has 2 positions. It also is rated at 200A with 4 jaws. When using the interior option, this product comes with main lugs rated at 205A. UL Listed rated.

Specifications

Weight

27.24

Height

6.5

Width

14.86

Length

24.77

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SOCKET MTR 600VAC 200A 1 NEMA 3R

AD Item Features 01

This Series A meter compartment has two ringless four jaw sockets in a NEMA Type 3R enclosure

AD Item Features 02

It is a single phase, three wire design rated for 600VAC and 205A

AD Item Features 03

Suitable for use as service entrance equipment, it accepts either overhead or underground feeds

AD Item Features 04

Schneider Electric empowers all to make the most of energy and resources, bridging progress and sustainability for all

AD Manufacturer (Description)

Schneider Electric

AD Package Height

6.5000

AD Package Height UOM

IN

AD Package Length

24.7700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

2437.5000

AD Package Volume UOM

cu-in

AD Package Weight

27.2400

AD Package Weight UOM

LB

AD Package Width

14.8600

AD Package Width UOM

IN

Brand

Square D

Category

GANGED METER SOCKETS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Type

Spec 10 Attribute Value

2-Position Ganged Horizontal

Spec 11 Attribute

Voltage Rating

Spec 11 Attribute UOM

V AC

Spec 11 Attribute Value

600

Spec 12 Attribute

Wire Size

Spec 12 Attribute Value

6 AWG to 250 kcmil, 8 to 2/0 AWG Al/Cu

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 3R

Spec 4 Attribute

Feed Type

Spec 4 Attribute Value

Overhead/Underground

Spec 5 Attribute

Hub Type

Spec 5 Attribute Value

A ACP Closing Plate

Spec 6 Attribute

Number of Jaws

Spec 6 Attribute Value

4

Spec 7 Attribute

PHASE

Spec 7 Attribute Value

1

Spec 8 Attribute

Series

Spec 8 Attribute Value

UT Series

Spec 9 Attribute

Terminal Type

Spec 9 Attribute Value

Ground Lug
