Square D

UTH4330T - Individual meter socket, ringless socket, lever bypass, 4 jaws no release, OH, UG, 320 A, up to 600 VAC single phase 3W

Category Miscellaneous

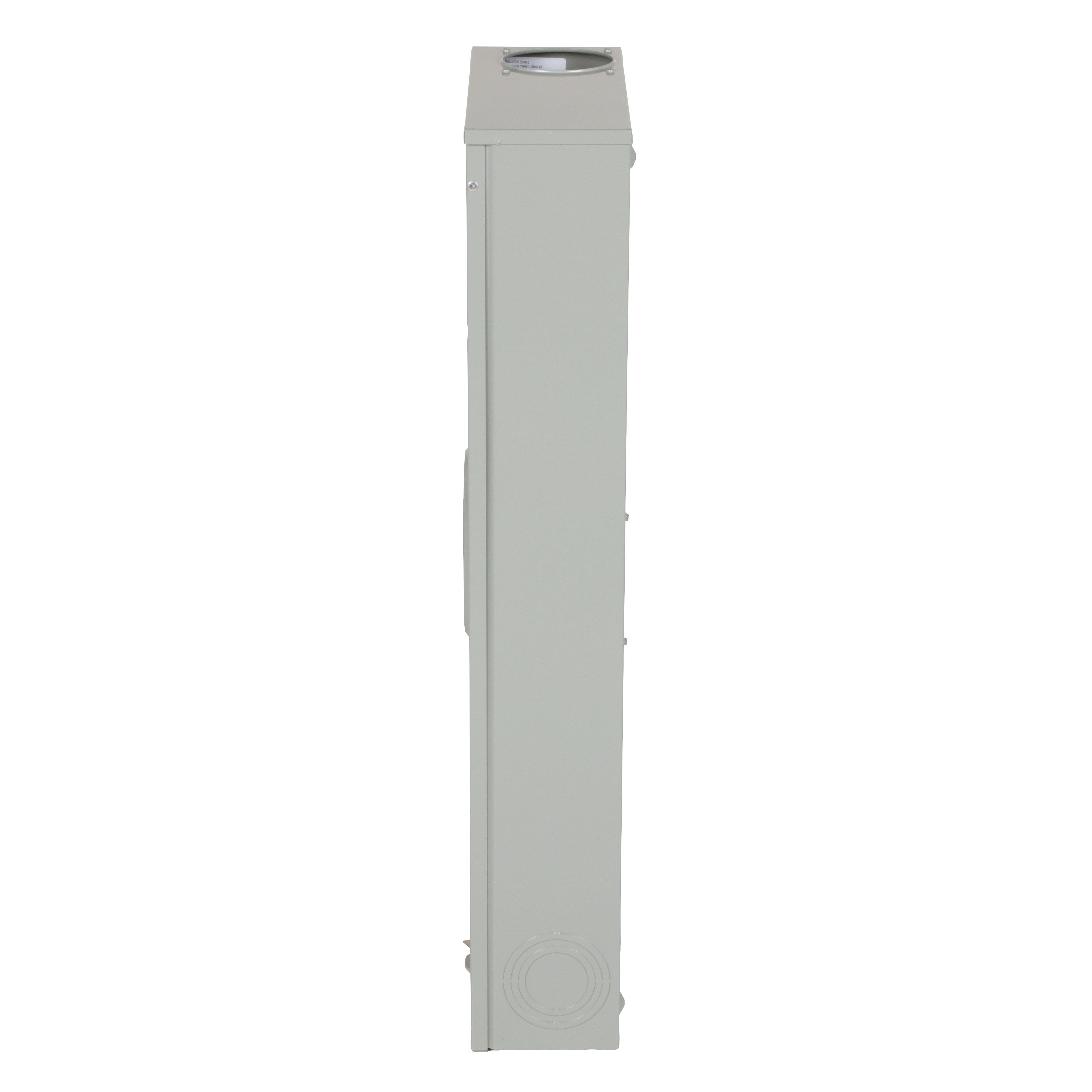

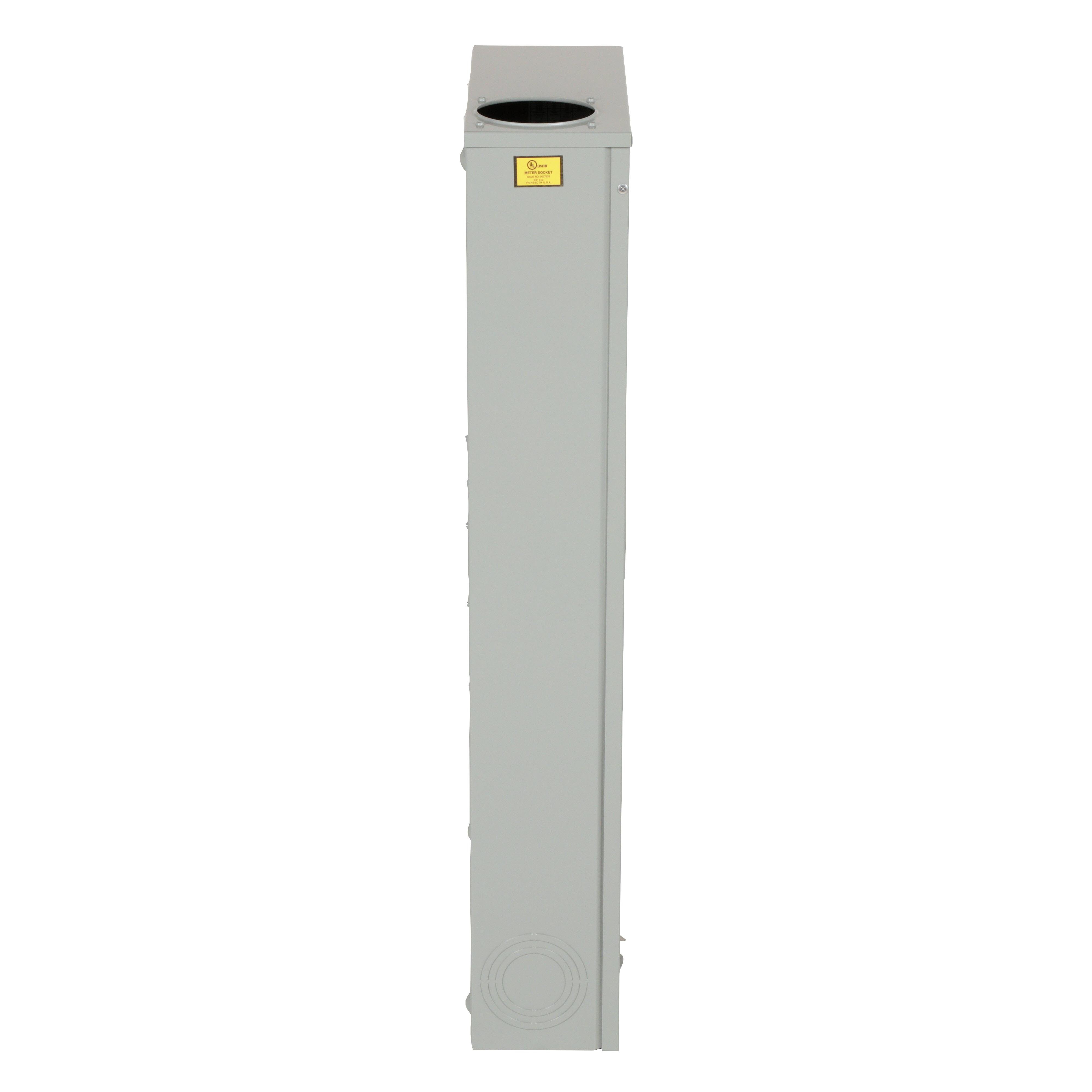

Picture of UTH4330T - Individual meter socket, ringless socket, lever bypass, 4 jaws no release, OH, UG, 320 A, up to 600 VAC single phase 3W Picture of UTH4330T - Individual meter socket, ringless socket, lever bypass, 4 jaws no release, OH, UG, 320 A, up to 600 VAC single phase 3W
Picture of UTH4330T - Individual meter socket, ringless socket, lever bypass, 4 jaws no release, OH, UG, 320 A, up to 600 VAC single phase 3W Picture of UTH4330T - Individual meter socket, ringless socket, lever bypass, 4 jaws no release, OH, UG, 320 A, up to 600 VAC single phase 3W
Picture of UTH4330T - Individual meter socket, ringless socket, lever bypass, 4 jaws no release, OH, UG, 320 A, up to 600 VAC single phase 3W Picture of UTH4330T - Individual meter socket, ringless socket, lever bypass, 4 jaws no release, OH, UG, 320 A, up to 600 VAC single phase 3W
Square D

UTH4330T - Individual meter socket, ringless socket, lever bypass, 4 jaws no release, OH, UG, 320 A, up to 600 VAC single phase 3W

Item Code: 573547
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref UTH4330T

Document
Call for Availability
Add to Favorites
Compare

Description

Individual Meter Sockets are available for single or three phase with a 600 VAC maximum. These individual meter sockets can be with and without horn or lever bypass. The sockets have a 10 kA short circuit current rating as standard but could have a higher rating with utility approval. Units are supplied with a bonded neutral. Units are supplied with a hub opening in top end wall which requires the use of a bolt on hub or a closing plate. This ringless meter socket has four jaws with lever bypass and jaw release. This meter socket is for single phase 3 wire systems up to 600 VAC. This meter socket has a 320 A rating. This unit can be for a feed from an overhead or underground service. This unit has a NEMA 3R surface mounting enclosure that is 36.62 inches tall, 15.00 inches wide and 5.68 inches deep. The main lugs, the load lugs and the neutral lug are for studs only. The ground will accept 14 AWG to 1/0 AWG copper or aluminum wire. This individual meter socket is UL Listed.

Specifications

Weight

38.36

Width

15.65

Length

38.24

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/UTH4330T/UTH4330T.spin

AD All Features

Square D meter sockets provide rainproof protection for senstive electrical equipment

AD Alternative Part Number

8115227

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Specification Sheet

AD EAN

0785901627739

AD Gtin

00785901627739

AD IDEA Index ID

8115227

AD Invoice Description

SOCKET MTR 600VAC 320A 1 NEMA 3R/11R

AD Item Features 01

Square D meter sockets provide rainproof protection for senstive electrical equipment

AD Item Features 02

For single family residential construction

AD Item Features 03

CSED allows for the meter socket to integrate with the load center into one compact design

AD Keywords

Meter-Pak UTH4330T 3-Wire Individual Meter Socket With Lever Bypass, 600 V AC, 320 A, 1 Phase, NEMA 3R Enclosure ; Schneider Electric ; Square D ; UTH4330T ; UTH4330T ; 785901627739 ; Meter Sockets - Single Position

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

38.2400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

38.3600

AD Package Weight UOM

LB

AD Package Width

15.6500

AD Package Width UOM

IN

AD Part Number Keywords

UTH4330T ; 8115227 ; 785901627739 ; 78590162773 ; 00785901627739 ; 0785901627739

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

320

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Stud

Spec 11 Attribute

Type

Spec 11 Attribute Value

3-Wire Individual

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 13 Attribute

Wire Size

Spec 13 Attribute UOM

AWG

Spec 13 Attribute Value

14 to 1/0

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

36.62 in H x 15 in W x 5.68 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Hub Type

Spec 6 Attribute Value

A-L, ACPL Closing Plate

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Bolt-On/Wall

Spec 8 Attribute

Number of Jaws

Spec 8 Attribute Value

4

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
