Square D

UTH7213T - Meter socket, ringless socket, lever bypass, 200 A, 600VAC, 3 phase, 7 jaw, jaw release, OH/UG

Category Miscellaneous

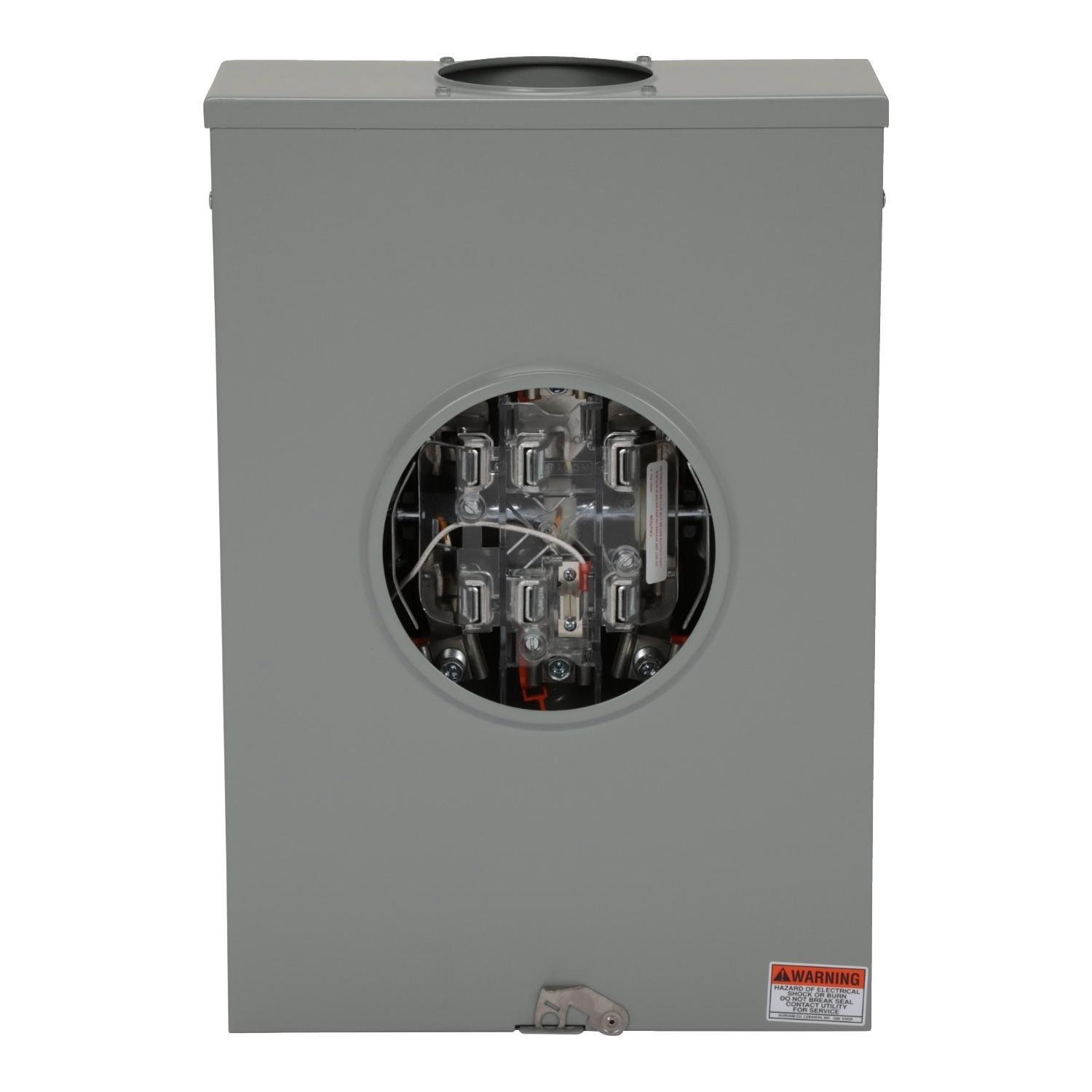

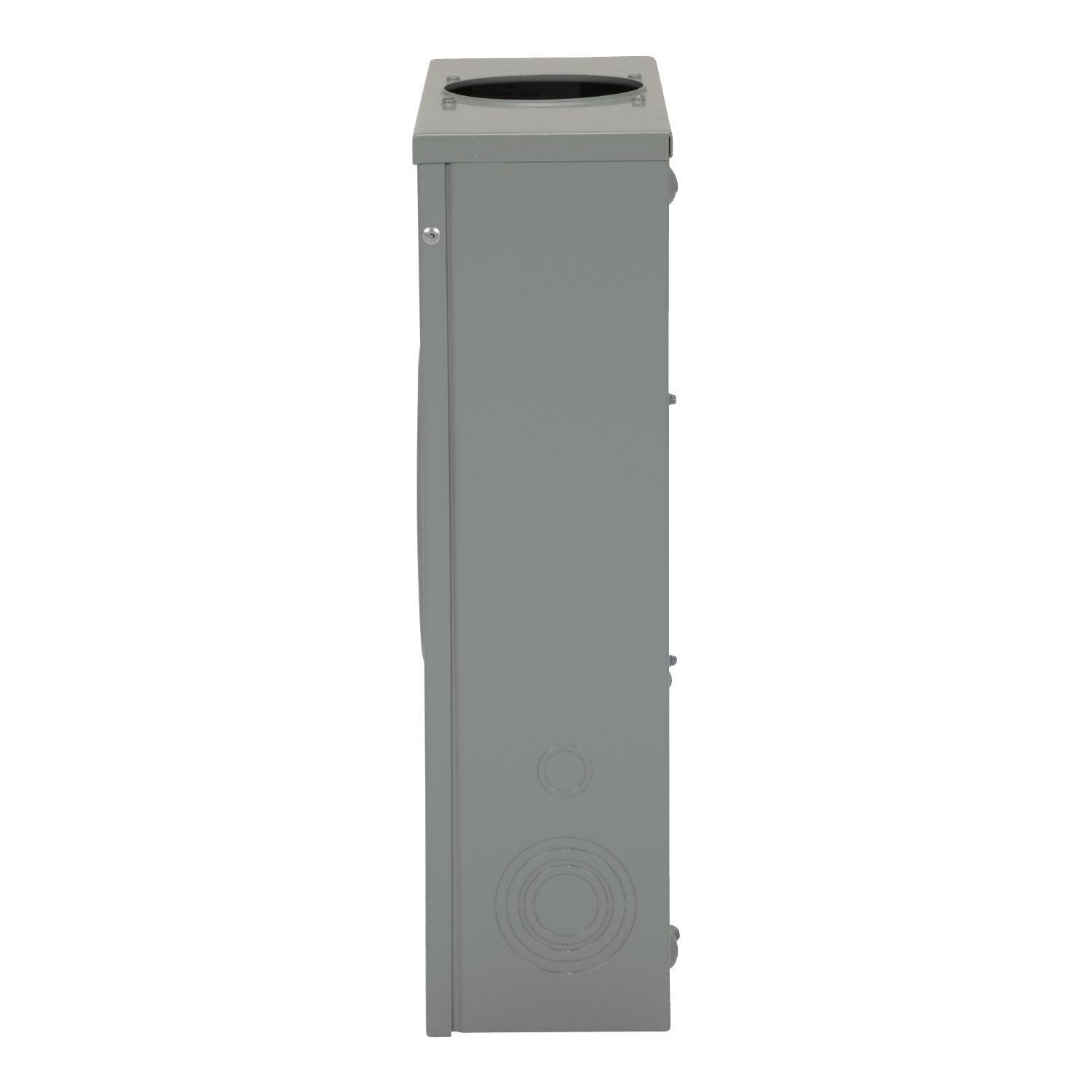

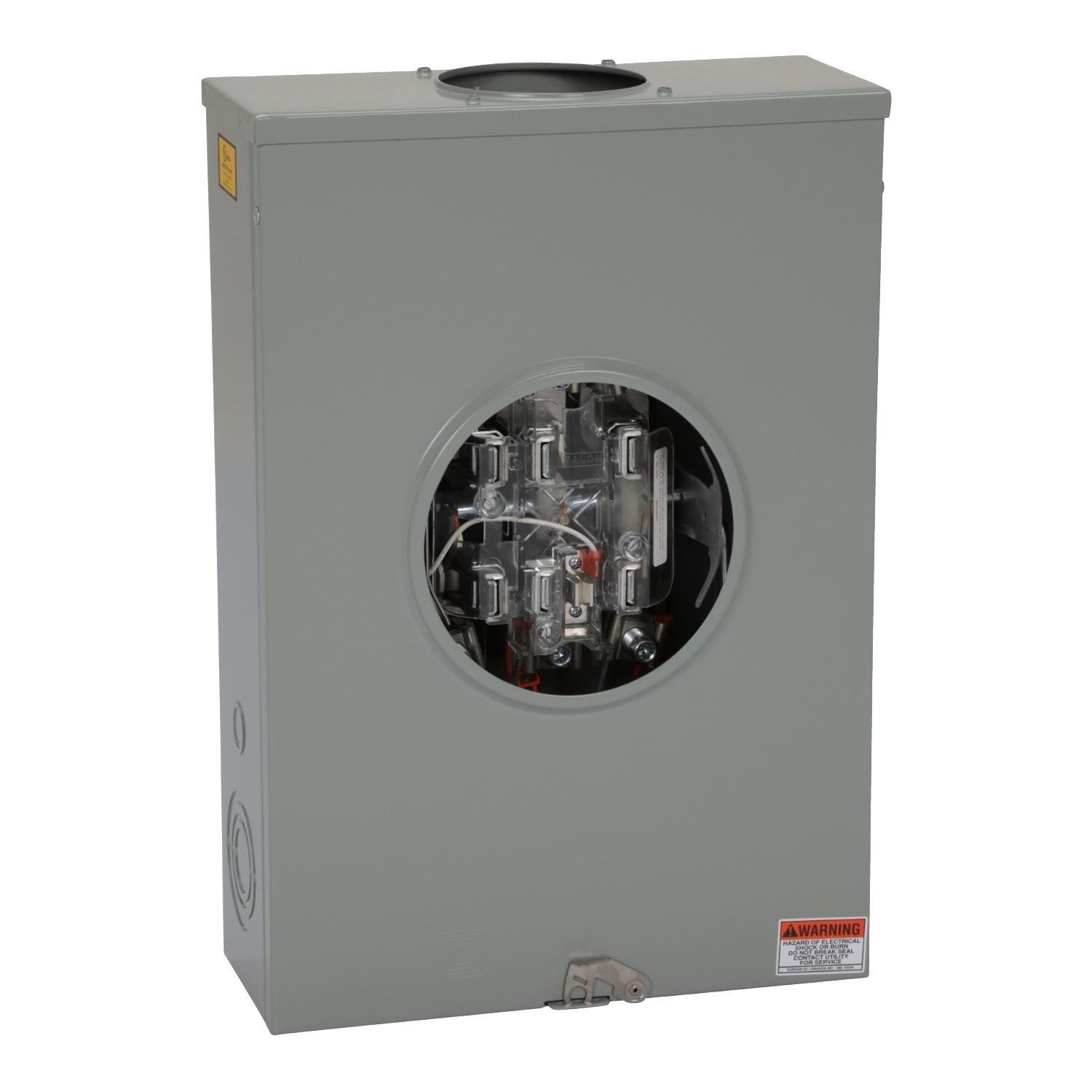

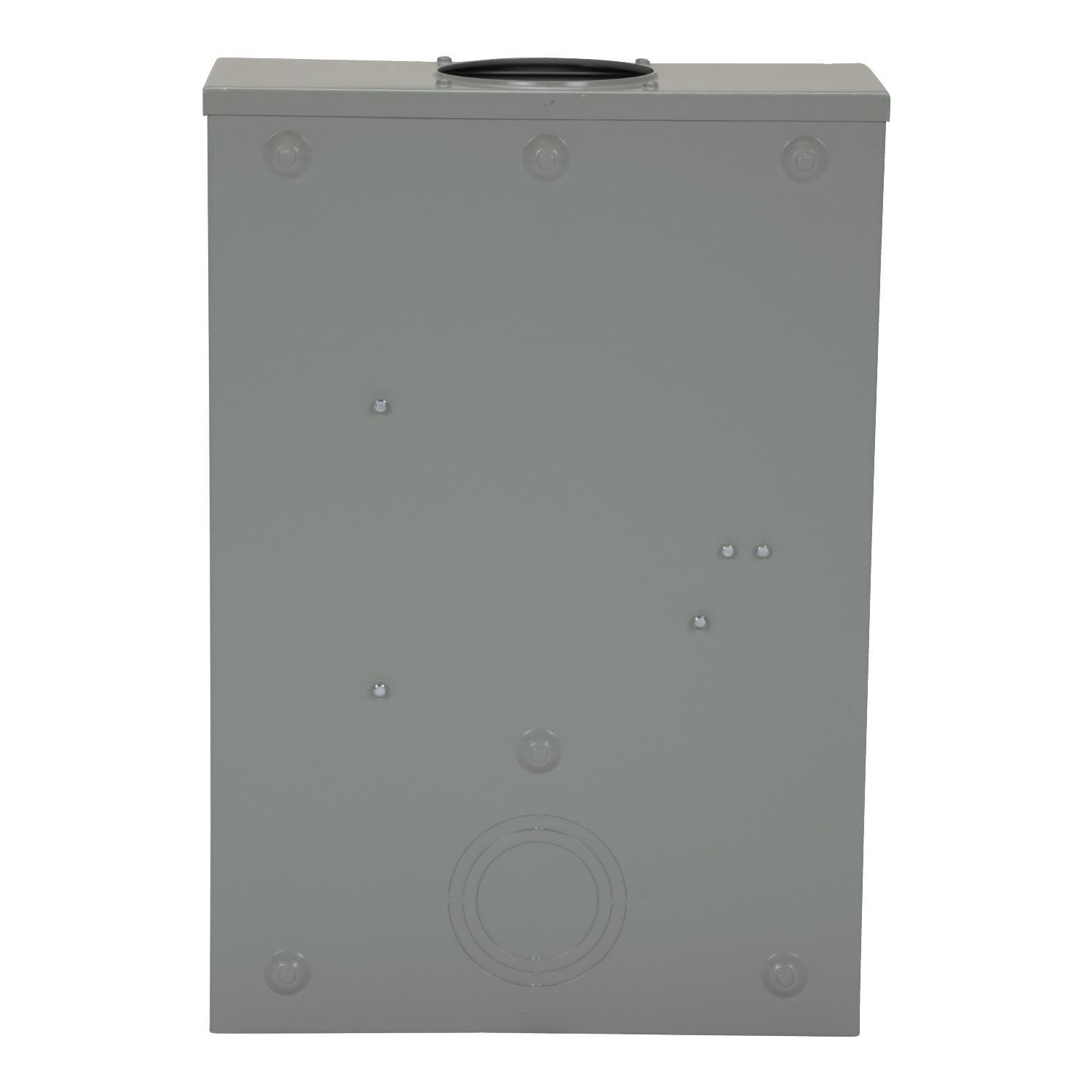

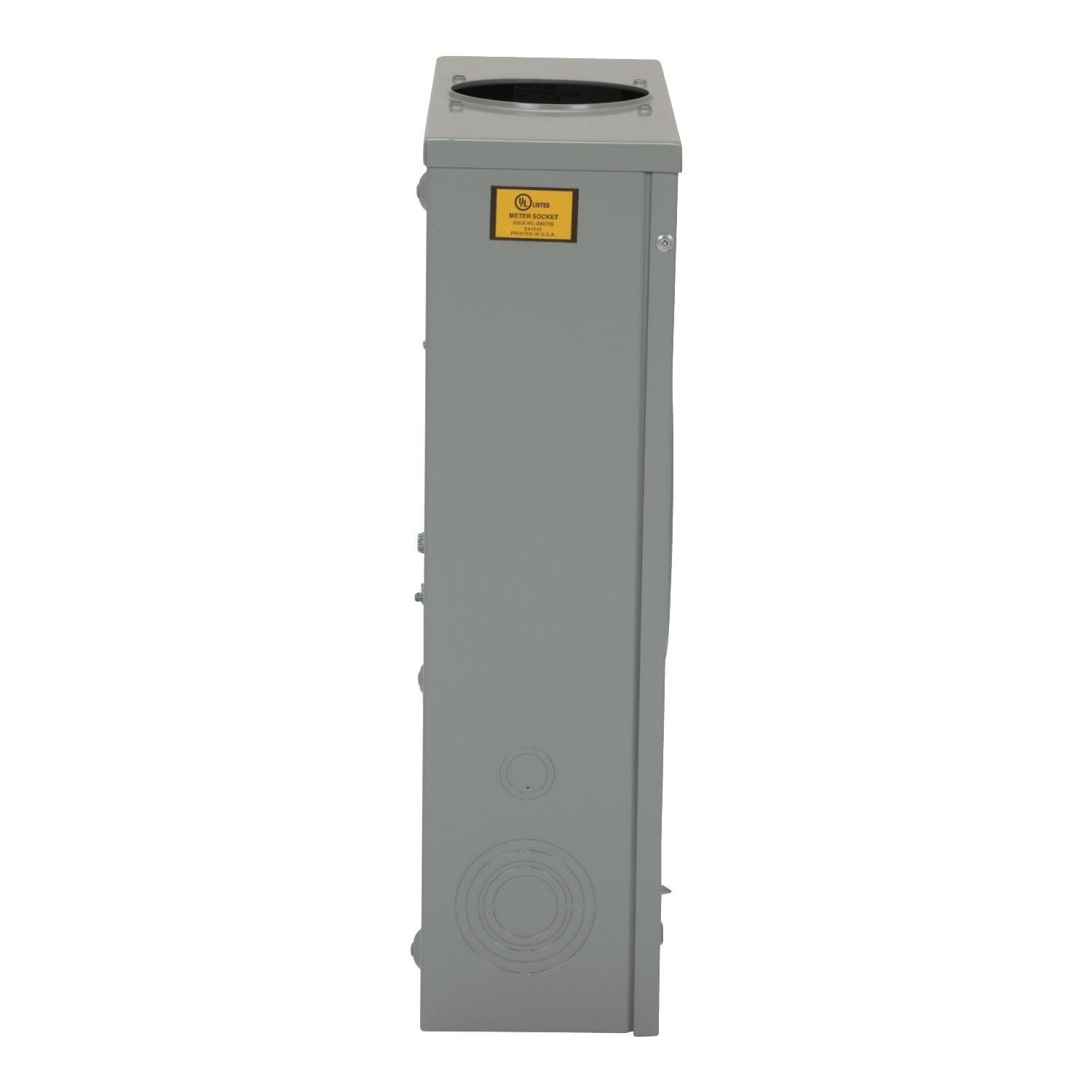

Picture of UTH7213T - Meter socket, ringless socket, lever bypass, 200 A, 600VAC, 3 phase, 7 jaw, jaw release, OH/UG Picture of UTH7213T - Meter socket, ringless socket, lever bypass, 200 A, 600VAC, 3 phase, 7 jaw, jaw release, OH/UG
Picture of UTH7213T - Meter socket, ringless socket, lever bypass, 200 A, 600VAC, 3 phase, 7 jaw, jaw release, OH/UG Picture of UTH7213T - Meter socket, ringless socket, lever bypass, 200 A, 600VAC, 3 phase, 7 jaw, jaw release, OH/UG
Picture of UTH7213T - Meter socket, ringless socket, lever bypass, 200 A, 600VAC, 3 phase, 7 jaw, jaw release, OH/UG Picture of UTH7213T - Meter socket, ringless socket, lever bypass, 200 A, 600VAC, 3 phase, 7 jaw, jaw release, OH/UG
Picture of UTH7213T - Meter socket, ringless socket, lever bypass, 200 A, 600VAC, 3 phase, 7 jaw, jaw release, OH/UG Picture of UTH7213T - Meter socket, ringless socket, lever bypass, 200 A, 600VAC, 3 phase, 7 jaw, jaw release, OH/UG
Picture of UTH7213T - Meter socket, ringless socket, lever bypass, 200 A, 600VAC, 3 phase, 7 jaw, jaw release, OH/UG Picture of UTH7213T - Meter socket, ringless socket, lever bypass, 200 A, 600VAC, 3 phase, 7 jaw, jaw release, OH/UG
Square D

UTH7213T - Meter socket, ringless socket, lever bypass, 200 A, 600VAC, 3 phase, 7 jaw, jaw release, OH/UG

Item Code: 536192
Category Miscellaneous
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref UTH7213T

Document
Call for Availability
Add to Favorites
Compare

Description

Individual Meter Sockets are available for single or three phase with a 600 VAC maximum. These individual meter sockets can be with and without horn or lever bypass. The sockets have a 10 kA short circuit current rating as standard but could have a higher rating with utility approval. Units are supplied with a bonded neutral. Units are supplied with a hub opening in top end wall which requires the use of a bolt on hub or a closing plate. This ringless meter socket has seven jaws with lever bypass and jaw release. This meter socket is for three phase 4 wire systems up to 600 VAC. This meter socket has a 200 A rating. This unit can be for a feed from an overhead or underground service. This unit has a NEMA 3R surface mounting enclosure that is 19.00 inches tall, 13.00 inches wide and 4.94 inches deep. The main lugs, the load lugs and the neutral lug will accept one 6 AWG to 350 kcmil copper or aluminum wire. The ground will accept 14 AWG to 2 AWG copper or aluminum wire. This individual meter socket is UL Listed.

Specifications

Weight

22.74

Width

13.67

Length

20.41

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/UTH7213T/UTH7213T.spin

AD All Features

Type T units are designed for the global market and are the best choice when size and cost are of concern

AD Alternative Part Number

8115210

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Document Caption 1

Specification Sheet

AD EAN

0785901627715

AD Gtin

00785901627715

AD IDEA Index ID

8115210

AD Invoice Description

SOCKET MTR 600VAC 200A 3 NEMA 3R/9R

AD Item Features 01

Type T units are designed for the global market and are the best choice when size and cost are of concern

AD Item Features 02

Protects against accidental shocks through the use of touch-safe terminals

AD Keywords

Meter-Pak UTH7213T 4-Wire Individual Meter Socket With Lever Bypass, 600 V AC, 200 A, 3 Phase, NEMA 3R Enclosure ; Schneider Electric ; Square D ; UTH7213T ; UTH7213T ; 785901627715 ; Meter Sockets - Single Position

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

20.4100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

22.7400

AD Package Weight UOM

LB

AD Package Width

13.6700

AD Package Width UOM

IN

AD Part Number Keywords

UTH7213T ; 8115210 ; 785901627715 ; 78590162771 ; 00785901627715 ; 0785901627715

Brand

Square D

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Lug

Spec 11 Attribute

Type

Spec 11 Attribute Value

4-Wire Individual

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

6 AWG to 350 kcmil, 14 to 2 AWG

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

19 in H x 13 in W x 4.94 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Hub Type

Spec 6 Attribute Value

A-L, ACPL Closing Plate

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Bolt-On/Wall

Spec 8 Attribute

Number of Jaws

Spec 8 Attribute Value

7

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

3
