Square D

UTRS101B - Meter socket, ringless socket, no bypass, 125 A, 600 VAC, 1 phase, 4 jaws, no jaw release, OH/UG

Category Residential Single Meter Sockets

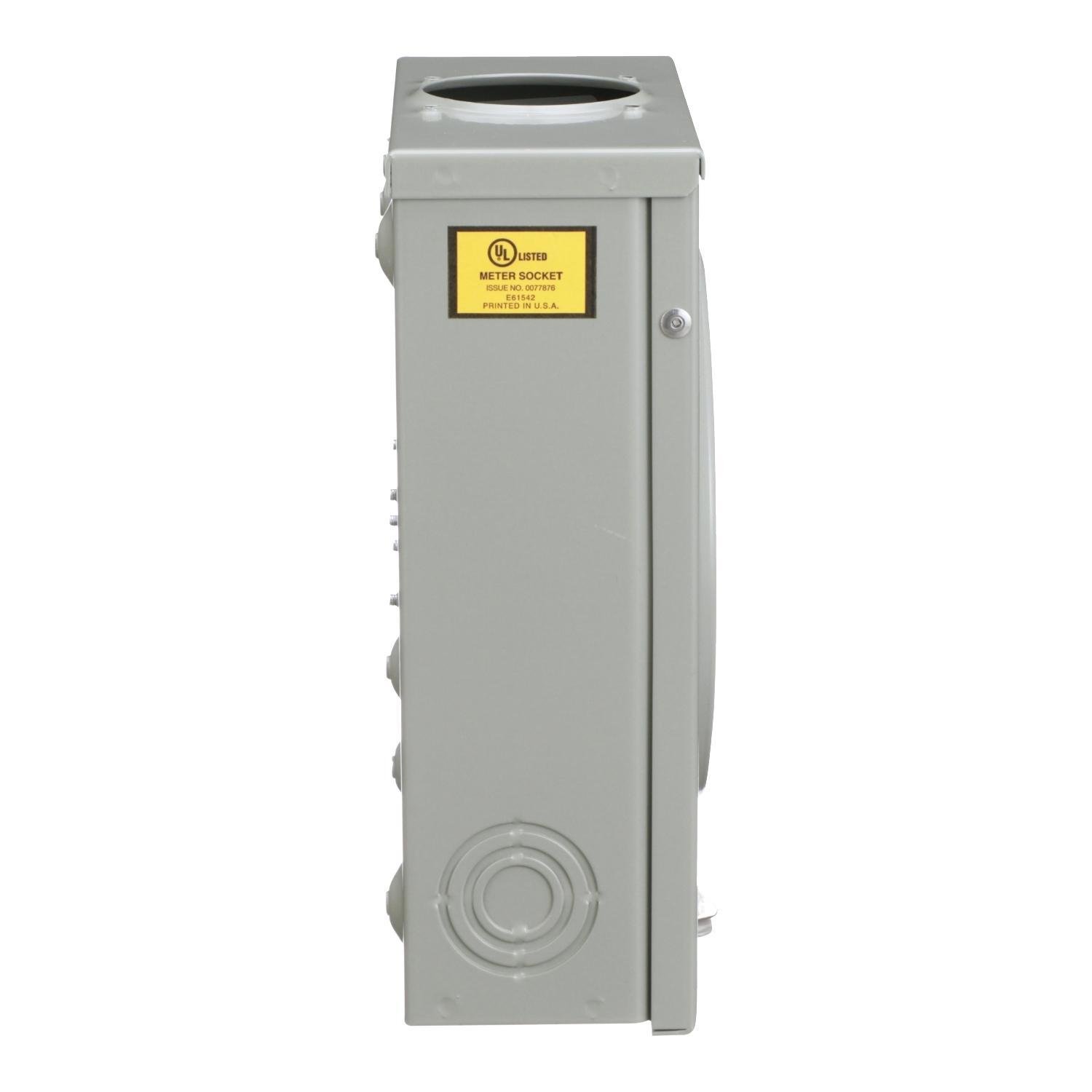

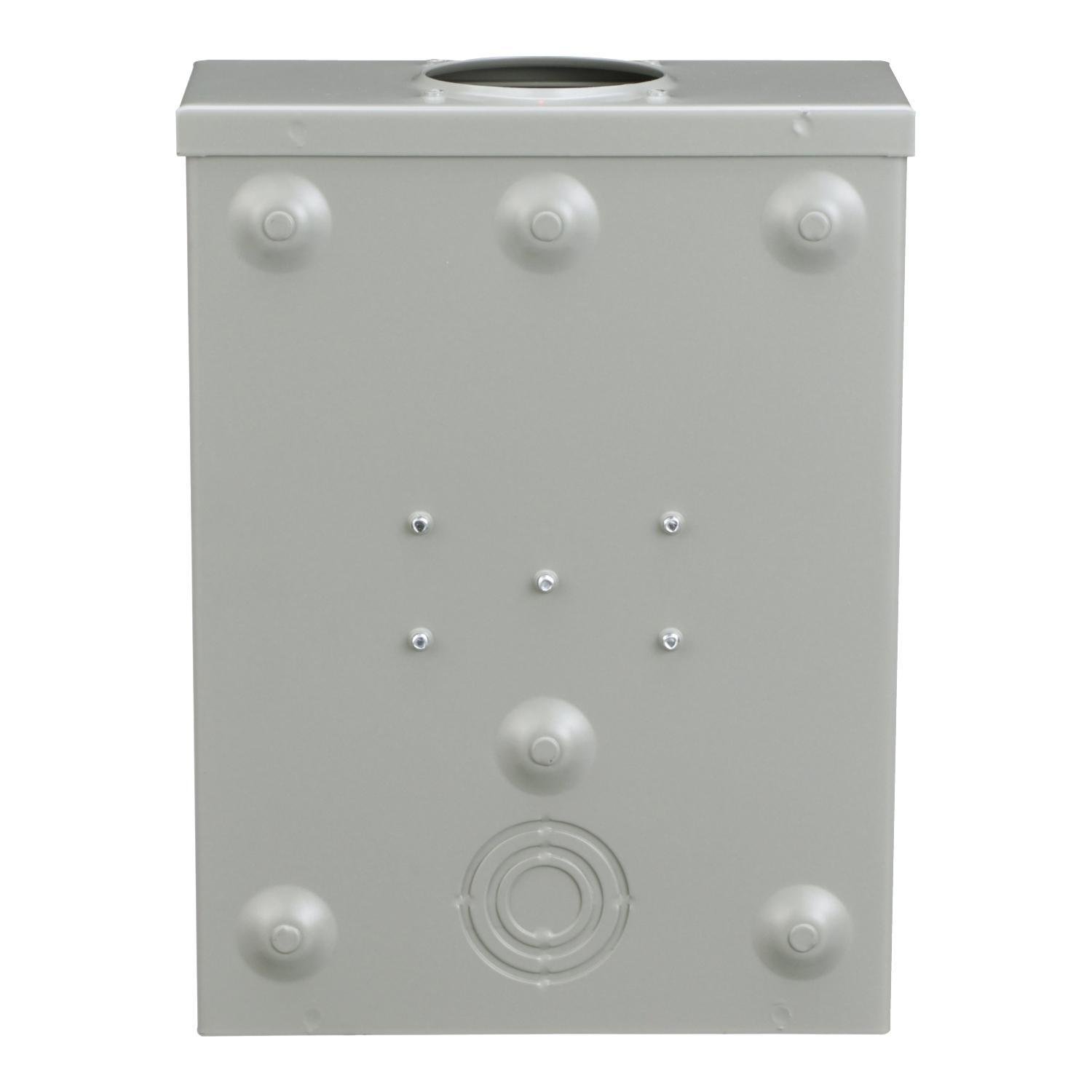

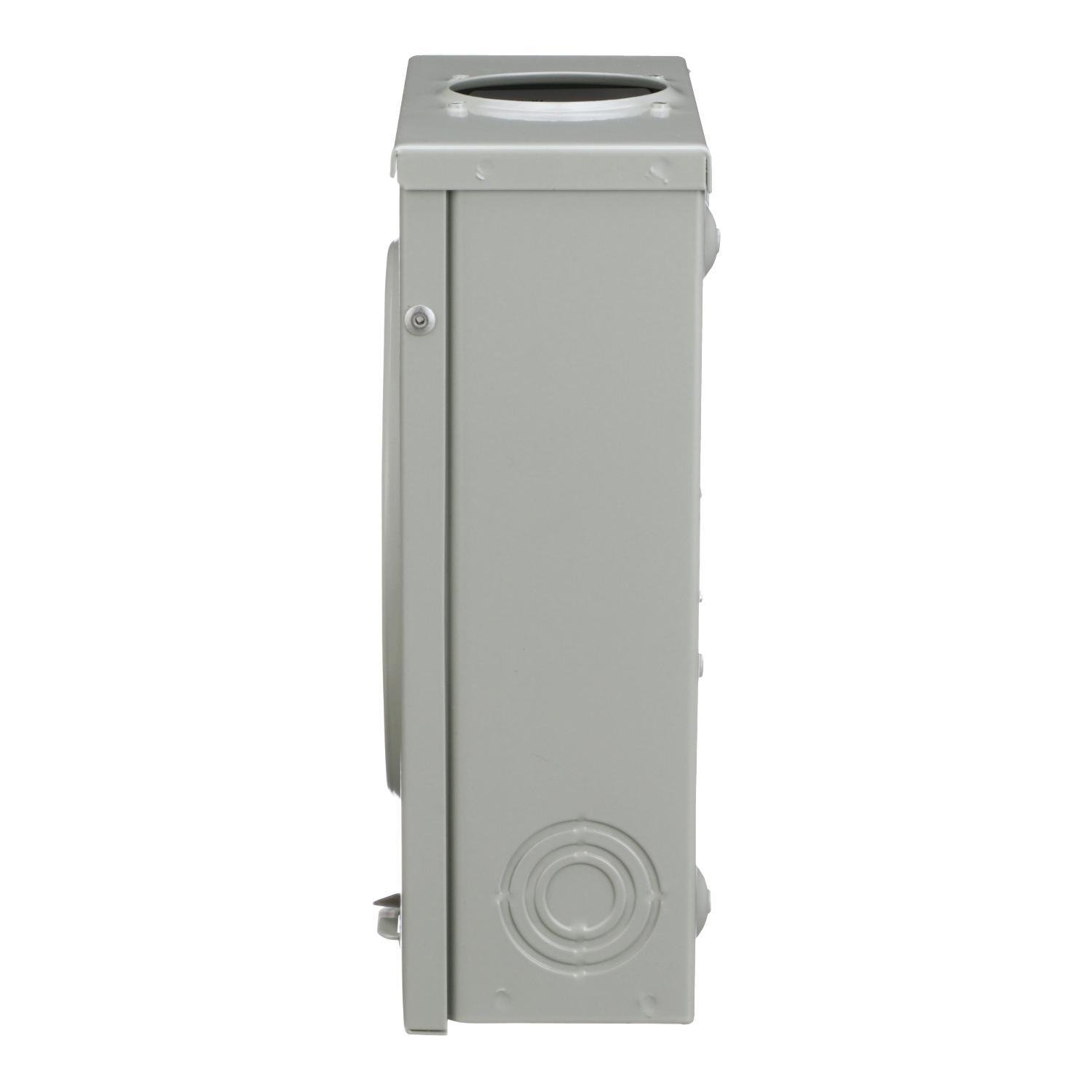

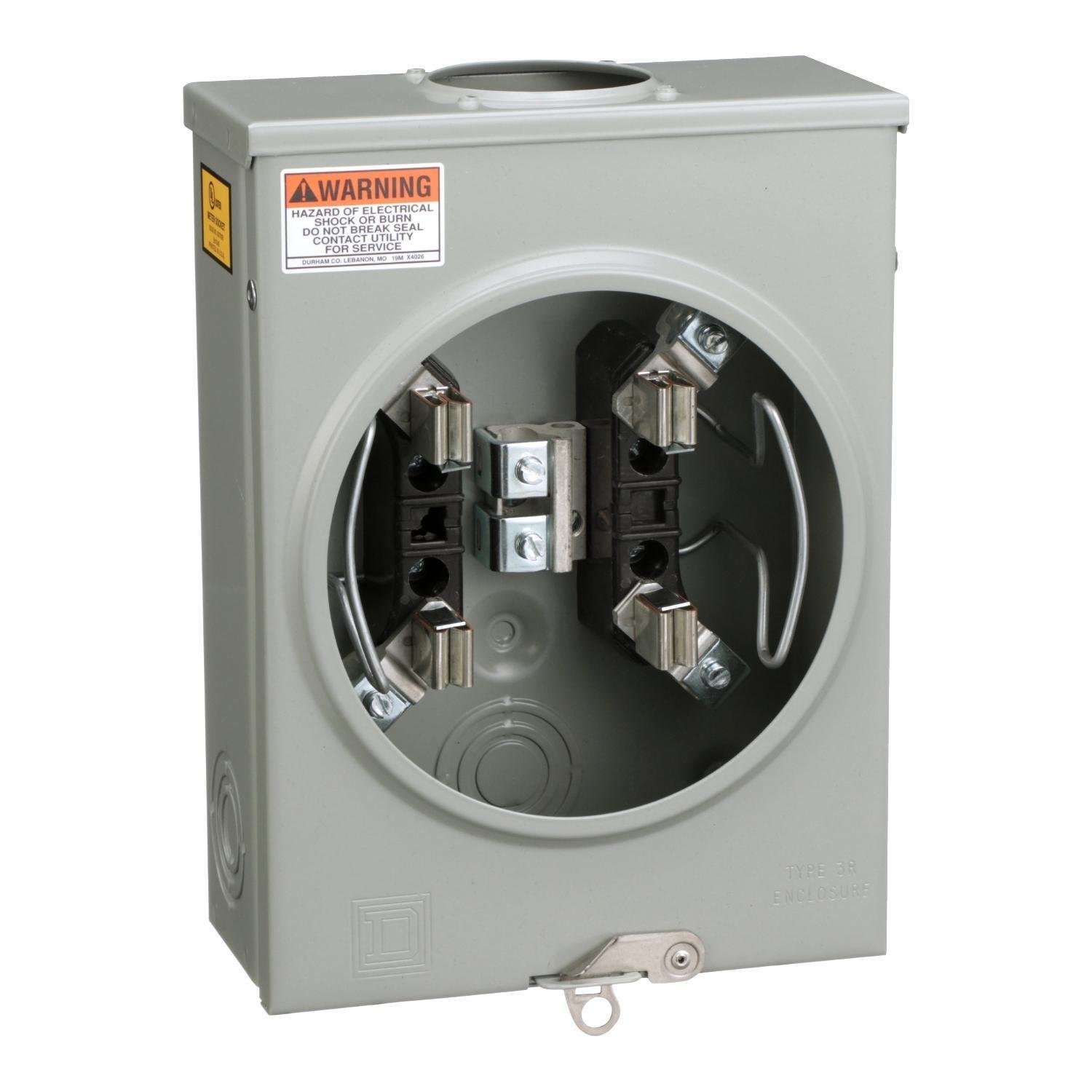

Picture of UTRS101B - Meter socket, ringless socket, no bypass, 125 A, 600 VAC, 1 phase, 4 jaws, no jaw release, OH/UG Picture of UTRS101B - Meter socket, ringless socket, no bypass, 125 A, 600 VAC, 1 phase, 4 jaws, no jaw release, OH/UG
Picture of UTRS101B - Meter socket, ringless socket, no bypass, 125 A, 600 VAC, 1 phase, 4 jaws, no jaw release, OH/UG Picture of UTRS101B - Meter socket, ringless socket, no bypass, 125 A, 600 VAC, 1 phase, 4 jaws, no jaw release, OH/UG
Picture of UTRS101B - Meter socket, ringless socket, no bypass, 125 A, 600 VAC, 1 phase, 4 jaws, no jaw release, OH/UG Picture of UTRS101B - Meter socket, ringless socket, no bypass, 125 A, 600 VAC, 1 phase, 4 jaws, no jaw release, OH/UG
Picture of UTRS101B - Meter socket, ringless socket, no bypass, 125 A, 600 VAC, 1 phase, 4 jaws, no jaw release, OH/UG Picture of UTRS101B - Meter socket, ringless socket, no bypass, 125 A, 600 VAC, 1 phase, 4 jaws, no jaw release, OH/UG
Picture of UTRS101B - Meter socket, ringless socket, no bypass, 125 A, 600 VAC, 1 phase, 4 jaws, no jaw release, OH/UG Picture of UTRS101B - Meter socket, ringless socket, no bypass, 125 A, 600 VAC, 1 phase, 4 jaws, no jaw release, OH/UG
Square D

UTRS101B - Meter socket, ringless socket, no bypass, 125 A, 600 VAC, 1 phase, 4 jaws, no jaw release, OH/UG

Item Code: 808875
Category Residential Single Meter Sockets
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref UTRS101B

Document
Call for Availability
Add to Favorites
Compare

Description

Individual Meter Sockets are available for single or three phase with a 600 VAC maximum. These individual meter sockets can be with and without horn or lever bypass. The sockets have a 10 kA short circuit current rating as standard but could have a higher rating with utility approval. Units are supplied with a bonded neutral. Units are supplied with a hub opening in top end wall which requires the use of a bolt on hub or a closing plate. This ringless meter socket has four jaws with no bypass and without jaw release. This meter socket is for single phase 3 wire systems up to 600 VAC. This meter socket has a 125 A rating. This unit can be for a feed from an overhead or underground service. This unit has a NEMA 3R surface mounting enclosure that is 10.88 inches tall, 8.00 inches wide and 3.50 inches deep. The main lugs, the load lugs and the neutral lug will accept one 8 AWG to 2/0 AWG copper or aluminum wire. The ground will accept 14 AWG to 2 AWG copper or aluminum wire. This individual meter socket is UL Listed.

Specifications

Weight

7

Width

8.62

Length

12.38

AD All Features

Type T units are designed for the global market and are the best choice when size and cost are of concern

AD Application

Residential Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SOCKET MTR 600VAC 125A 1 NEMA 3R OVHD 4

AD Item Features 01

Type T units are designed for the global market and are the best choice when size and cost are of concern

AD Item Features 02

Protects against accidental shocks through the use of touch-safe terminals

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

12.3800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

7.0000

AD Package Weight UOM

LB

AD Package Width

8.6200

AD Package Width UOM

IN

Brand

Square D

Category

RESIDENTIAL SINGLE METER SOCKETS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

125

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Lug

Spec 11 Attribute

Type

Spec 11 Attribute Value

3-Wire Ringless

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 13 Attribute

Wire Size

Spec 13 Attribute UOM

AWG

Spec 13 Attribute Value

8 to 2/0

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Closing Plate (ACP)

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

10-7/8 in H x 8 in W x 3-1/2 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead

Spec 6 Attribute

Hub Type

Spec 6 Attribute Value

Bolted-On

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Wall

Spec 8 Attribute

Number of Jaws

Spec 8 Attribute Value

4

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
