UTRS213B - Individual meter socket, ringless socket, no bypass, 4 jaws no release, OH, UG, 200 A, up to 600 VAC single phase 3W

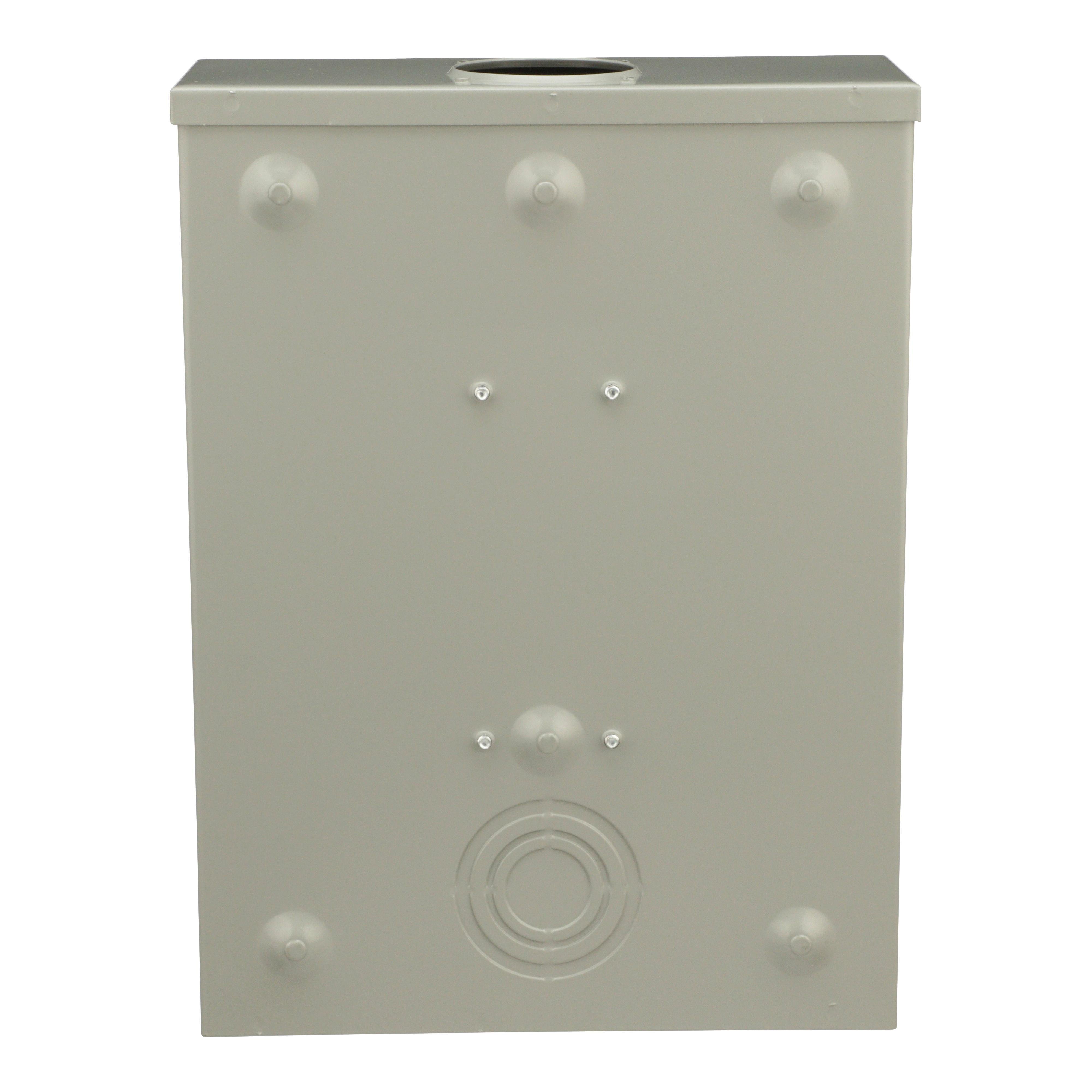

Picture of UTRS213B - Individual meter socket, ringless socket, no bypass, 4 jaws no release, OH, UG, 200 A, up to 600 VAC single phase 3W Picture of UTRS213B - Individual meter socket, ringless socket, no bypass, 4 jaws no release, OH, UG, 200 A, up to 600 VAC single phase 3W
Picture of UTRS213B - Individual meter socket, ringless socket, no bypass, 4 jaws no release, OH, UG, 200 A, up to 600 VAC single phase 3W Picture of UTRS213B - Individual meter socket, ringless socket, no bypass, 4 jaws no release, OH, UG, 200 A, up to 600 VAC single phase 3W

UTRS213B - Individual meter socket, ringless socket, no bypass, 4 jaws no release, OH, UG, 200 A, up to 600 VAC single phase 3W

Item Code: 656418
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref UTRS213B
Call for Availability
Compare

Description

Individual Meter Sockets are available for single or three phase with a 600 VAC maximum. These individual meter sockets can be with and without horn or lever bypass. The sockets have a 10 kA short circuit current rating as standard but could have a higher rating with utility approval. Units are supplied with a bonded neutral. Units are supplied with a hub opening in top end wall which requires the use of a bolt on hub or a closing plate. This ringless meter socket has four jaws with no bypass and without jaw release. This meter socket is for single phase 3 wire systems up to 600 VAC. This meter socket has a 200 A rating. This unit can be for a feed from an overhead or underground service. This unit has a NEMA 3R surface mounting enclosure that is 15.00 inches tall, 11.00 inches wide and 4.38 inches deep. The main lugs, the load lugs and the neutral lug will accept one 1/0 AWG to 350 kcmil copper or aluminum wire. The ground will accept 14 AWG to 2 AWG copper or aluminum wire. This individual meter socket is UL Listed.

Specifications

Weight

12.47

Width

11.39

Length

15.65

AD All Features

Square D meter sockets provide rainproof protection for senstive electrical equipment

AD Application

Residential Applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SOCKET MTR 600VAC 200A 1 NEMA 3R/5R

AD Item Features 01

Square D meter sockets provide rainproof protection for senstive electrical equipment

AD Item Features 02

CSED allows for the meter socket to integrate with the load center into one compact design

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

15.6500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

12.4700

AD Package Weight UOM

LB

AD Package Width

11.3900

AD Package Width UOM

IN

Brand

Square D

Category

RESIDENTIAL SINGLE METER SOCKETS

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

200

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Lug

Spec 11 Attribute

Type

Spec 11 Attribute Value

3-Wire Single

Spec 12 Attribute

Voltage Rating

Spec 12 Attribute UOM

V AC

Spec 12 Attribute Value

600

Spec 13 Attribute

Wire Size

Spec 13 Attribute Value

1/0 AWG to 350 kcmil

Spec 2 Attribute

Cover Type

Spec 2 Attribute Value

Closing Plate (ACP)/Ringless

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

11 in W x 4-3/8 in D x 15 in H

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 3R

Spec 5 Attribute

Feed Type

Spec 5 Attribute Value

Overhead/Underground

Spec 6 Attribute

Hub Type

Spec 6 Attribute Value

Bolted-On

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Wall

Spec 8 Attribute

Number of Jaws

Spec 8 Attribute Value

4

Spec 9 Attribute

PHASE

Spec 9 Attribute Value

1
