V2 - Switch body,TeSys Control,3 poles,40A

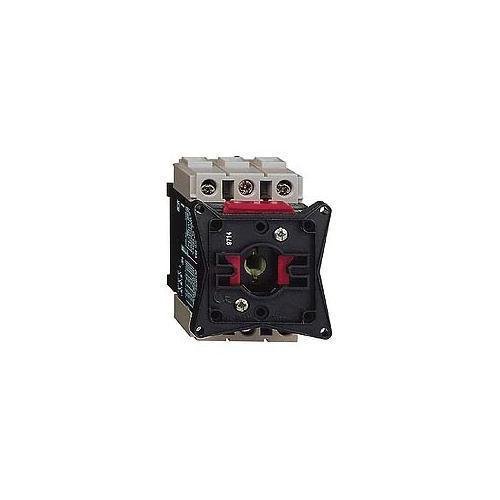

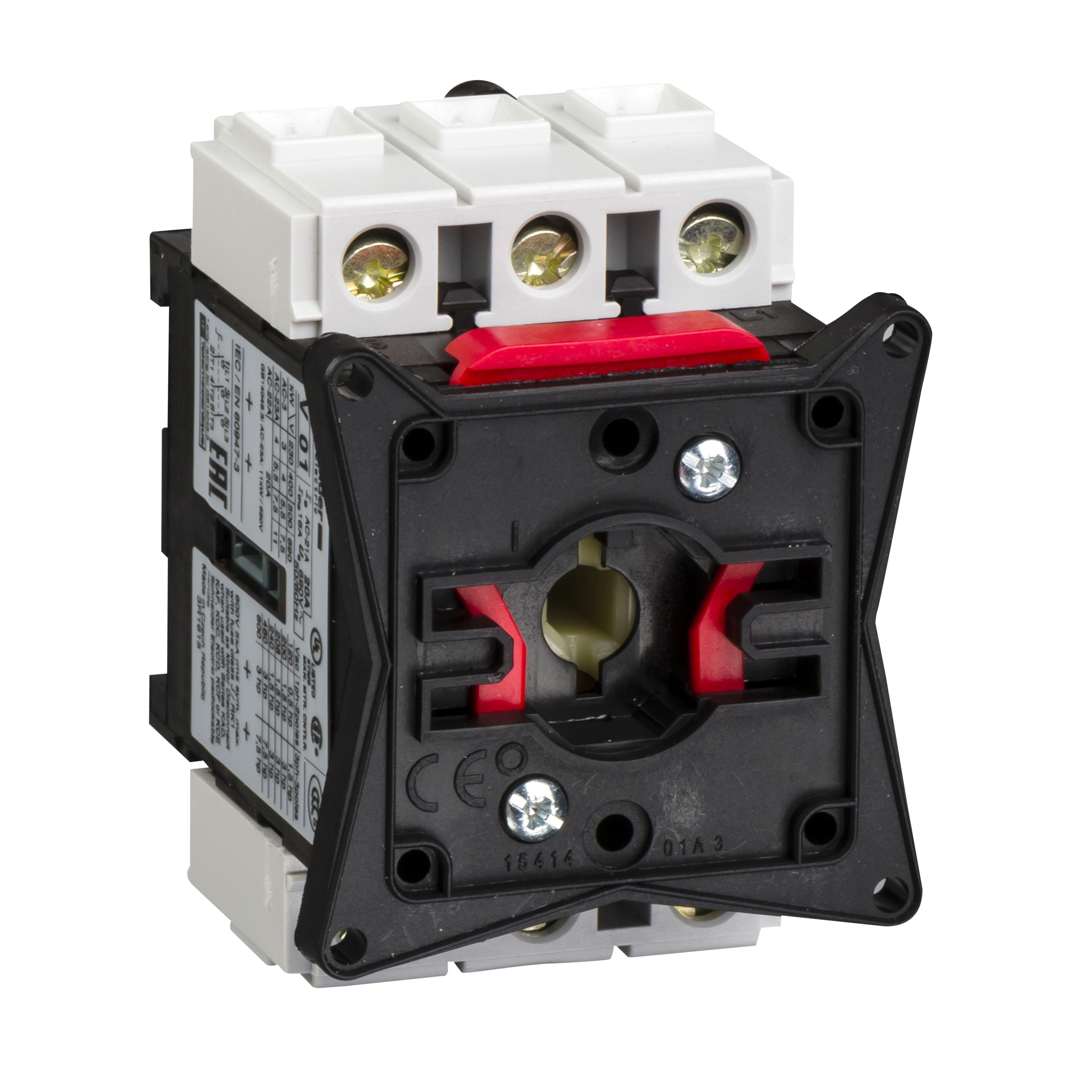

Picture of V2 - Switch body,TeSys Control,3 poles,40A Picture of V2 - Switch body,TeSys Control,3 poles,40A
Picture of V2 - Switch body,TeSys Control,3 poles,40A Picture of V2 - Switch body,TeSys Control,3 poles,40A
Picture of V2 - Switch body,TeSys Control,3 poles,40A Picture of V2 - Switch body,TeSys Control,3 poles,40A

V2 - Switch body,TeSys Control,3 poles,40A

Item Code: 548279
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref V2
Call for Availability
Compare

Description

V2 is a 3-pole switch body for TeSys Vario switch-disconnector from Schneider Electric. Rated 40A 690V, it is used in motor applications up to 15kW@400V AC-23. To be equipped with an handle and extension shaft to form a main or emergency stop switch-disc

Specifications

Weight

0.38

Width

3.31

Length

4.68

Brand

Square D

Category

MANUAL MOTOR SWITCHES & ACCESSORIES

Dimensions

55 mm W x 60 mm D x 74 mm H

Series

V Series

Specifications

690 V AC, 40 A, 50/60 Hz Frequency Rating, Screw Clamp Connection, Plate Symmetrical Rail Mount, 30000 AC/5 to 100000 DC Operating Cycles, -4 to 122 deg F Operating Temperature, 11 kW

Suitable For Use With

SWITCH DISCONNECTOR

Type

High Performance
