Schneider Electric

VCDN20 - Switch disconnector,TeSys Control,for ON/emergency stop,20A(VN20),for mounting on door

Category Manual Motor Switches & Accessories

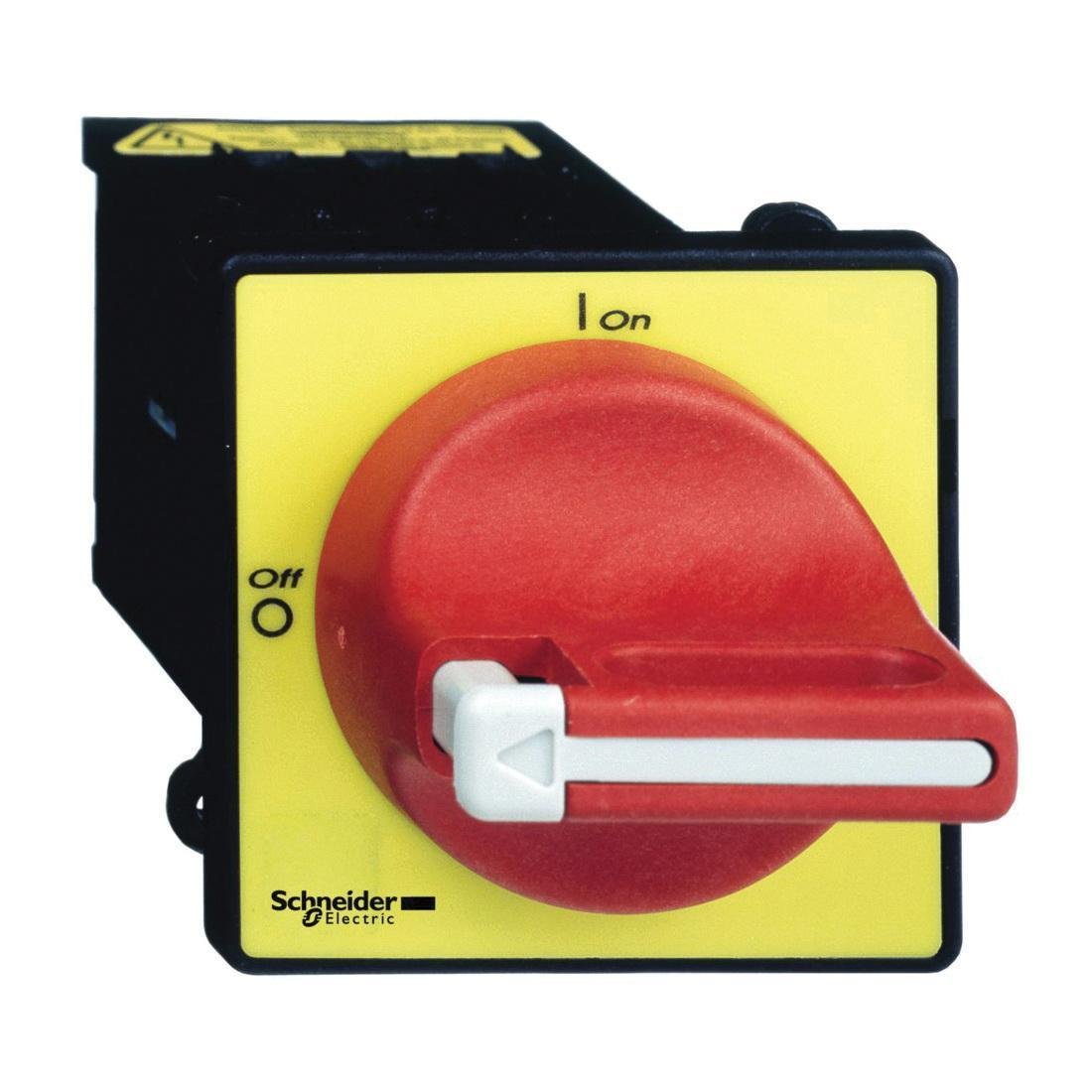

Picture of VCDN20 - Switch disconnector,TeSys Control,for ON/emergency stop,20A(VN20),for mounting on door Picture of VCDN20 - Switch disconnector,TeSys Control,for ON/emergency stop,20A(VN20),for mounting on door
Picture of VCDN20 - Switch disconnector,TeSys Control,for ON/emergency stop,20A(VN20),for mounting on door Picture of VCDN20 - Switch disconnector,TeSys Control,for ON/emergency stop,20A(VN20),for mounting on door
Schneider Electric

VCDN20 - Switch disconnector,TeSys Control,for ON/emergency stop,20A(VN20),for mounting on door

Item Code: 571310
Category Manual Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref VCDN20

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

VCDN20 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 5.5kW@400V AC-23. For enclosure door mounting, it provides a red & yellow operator/yellow plate with IP65 protection. VCDN20 is

Specifications

Weight

0.4

Width

3.31

Length

4.68

AD All Features

Convenient to use with 3 options of padlockable operating handle

AD Application

Main Switch Disconnection Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SWITCH DISC 600VAC 11A 3PH 50/60HZ 3 6KA

AD Item Features 01

Convenient to use with 3 options of padlockable operating handle

AD Item Features 02

Ensure high protection degree under harsh environment

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

4.6800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.4000

AD Package Weight UOM

LB

AD Package Width

3.3100

AD Package Width UOM

IN

Brand

Square D

Category

MANUAL MOTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Padlockable Rotary Handle

Spec 10 Attribute

PHASE

Spec 10 Attribute Value

3

Spec 11 Attribute

Short Circuit Current Rating

Spec 11 Attribute UOM

KA

Spec 11 Attribute Value

6

Spec 12 Attribute

Temperature Rating

Spec 12 Attribute UOM

deg F

Spec 12 Attribute Value

-4 To 122

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Screw clamp

Spec 14 Attribute

Type

Spec 14 Attribute Value

Emergency Stop Standard Main

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

11

Spec 3 Attribute

Color

Spec 3 Attribute Value

Red/yellow

Spec 4 Attribute

Contact Form

Spec 4 Attribute Value

3NO 3 Form A

Spec 5 Attribute

Dimensions

Spec 5 Attribute Value

60 mm W x 60 mm D x 60 mm H

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 1/12/IP20/IP65/Open

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50/60

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Door

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
