Square D

VH321NRB - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 240V, 30A, 3 pole, neutral installed

Category Fusible Heavy Duty Safety Switches

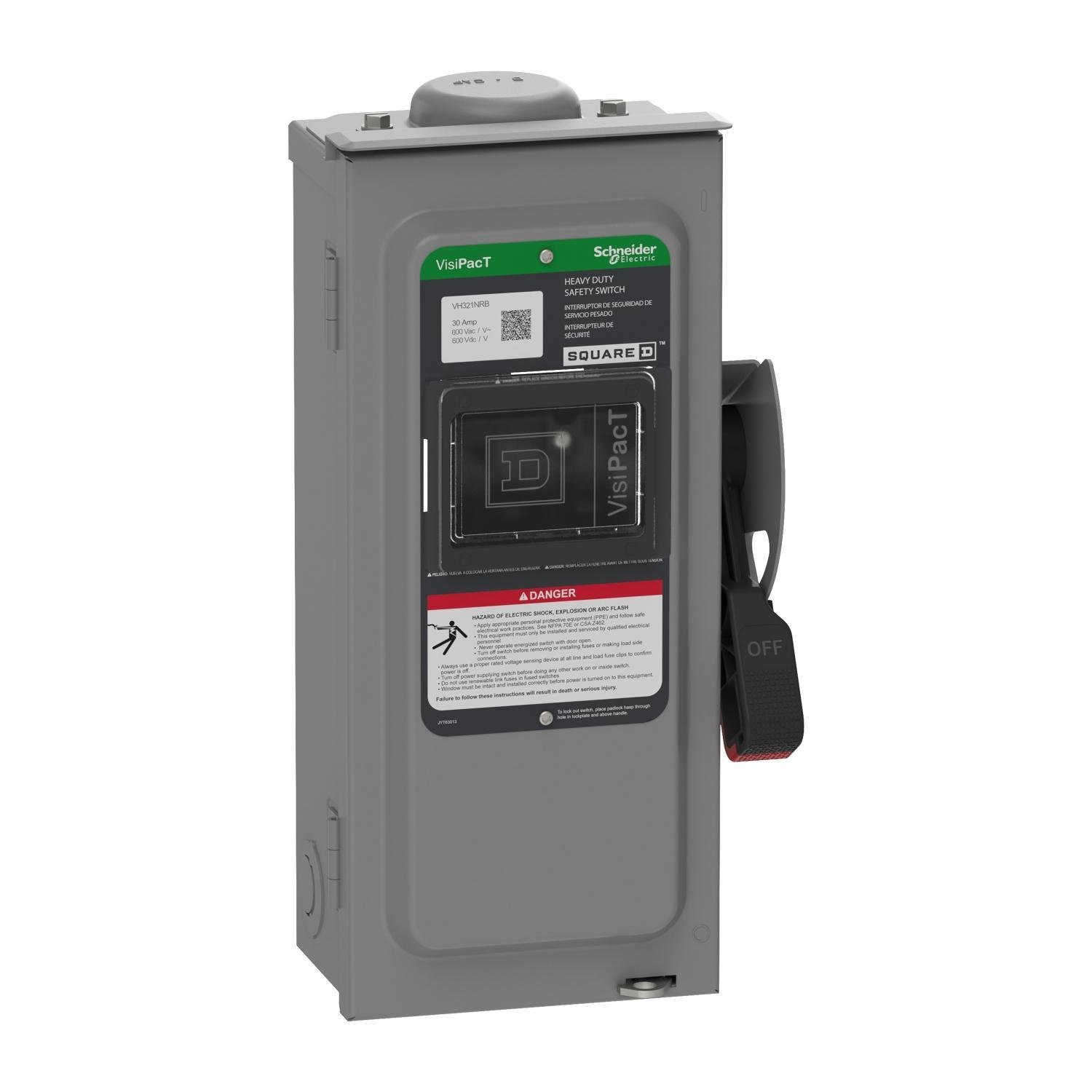

Picture of VH321NRB - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 240V, 30A, 3 pole, neutral installed Picture of VH321NRB - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 240V, 30A, 3 pole, neutral installed
Picture of VH321NRB - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 240V, 30A, 3 pole, neutral installed Picture of VH321NRB - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 240V, 30A, 3 pole, neutral installed
Picture of VH321NRB - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 240V, 30A, 3 pole, neutral installed Picture of VH321NRB - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 240V, 30A, 3 pole, neutral installed
Picture of VH321NRB - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 240V, 30A, 3 pole, neutral installed Picture of VH321NRB - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 240V, 30A, 3 pole, neutral installed
Picture of VH321NRB - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 240V, 30A, 3 pole, neutral installed Picture of VH321NRB - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 240V, 30A, 3 pole, neutral installed
Square D

VH321NRB - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 240V, 30A, 3 pole, neutral installed

Item Code: 1191145
Category Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref VH321NRB

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 30A with a voltage 240 VAC and 250 VDC. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This switch is Type 3R rated with a galvannealed steel enclosure and comes with factory installed viewing window. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses, unit is surface mounted. The safety switch has a 4-wire configuration with 3 poles and one solid neutral that is factory installed. The disconnect comes with standard lugs that are not grounded but equipment grounding kits can be used make lugs grounded. The wire range for this switch is AWG 12...AWG 6 aluminium and AWG 14...AWG 6 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.

Specifications

Weight

8.8lb

Height

4.95mm

Width

7.43mm

Length

15.48mm

Depth

5.11mm

AD Application

Ideal for all your commercial and industrial needs

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

HD SAF SW 240VAC 250VDC 30A

AD Item Features 01

Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency

AD Item Features 02

Designed to satisfy individual requirements for all customers

AD Item Features 03

Visipact safety switches come with a viewing window for quick visual verification of switch position

AD Item Features 04

QR code allow quick access to critical ratings and other useful product documentation

AD Item Features 05

Red and black handle indicates the ON (red) or OFF (black) condition of the switch

AD Manufacturer (Description)

Schneider Electric

AD Package Height

4.9500

AD Package Height UOM

IN

AD Package Length

15.4800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

8.8000

AD Package Weight UOM

LB

AD Package Width

7.4300

AD Package Width UOM

IN

Brand

Square D

Category

FUSIBLE HEAVY DUTY SAFETY SWITCHES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Material

Spec 10 Attribute Value

Steel

Spec 11 Attribute

Mounting Type

Spec 11 Attribute Value

Surface

Spec 12 Attribute

Number Of Poles

Spec 12 Attribute Value

3

Spec 13 Attribute

Number Of Wires

Spec 13 Attribute Value

4

Spec 14 Attribute

PHASE

Spec 14 Attribute Value

1, 3

Spec 15 Attribute

Short Circuit Current Rating

Spec 15 Attribute UOM

KA

Spec 15 Attribute Value

10, 200

Spec 16 Attribute

Terminal Type

Spec 16 Attribute Value

Lug

Spec 17 Attribute

Type

Spec 17 Attribute Value

Heavy Duty Fusible Disconnect

Spec 18 Attribute

Voltage Rating

Spec 18 Attribute Value

240 V AC/250 V DC

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

30

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

3PST

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

5.00 in H x 6.62 in W x 5.106 in D

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 3R

Spec 6 Attribute

Finish

Spec 6 Attribute Value

Galvannealed

Spec 7 Attribute

Frequency Rating

Spec 7 Attribute UOM

HZ

Spec 7 Attribute Value

50 To 60

Spec 8 Attribute

HORSEPOWER

Spec 8 Attribute UOM

HP

Spec 8 Attribute Value

1.5, 3, 5, 7.5

Spec 9 Attribute

Insulation Type

Spec 9 Attribute Value

Class H/J/K/R
