Square D

VH361RB - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 600V, 30A, 3 pole

Category Fusible Heavy Duty Safety Switches

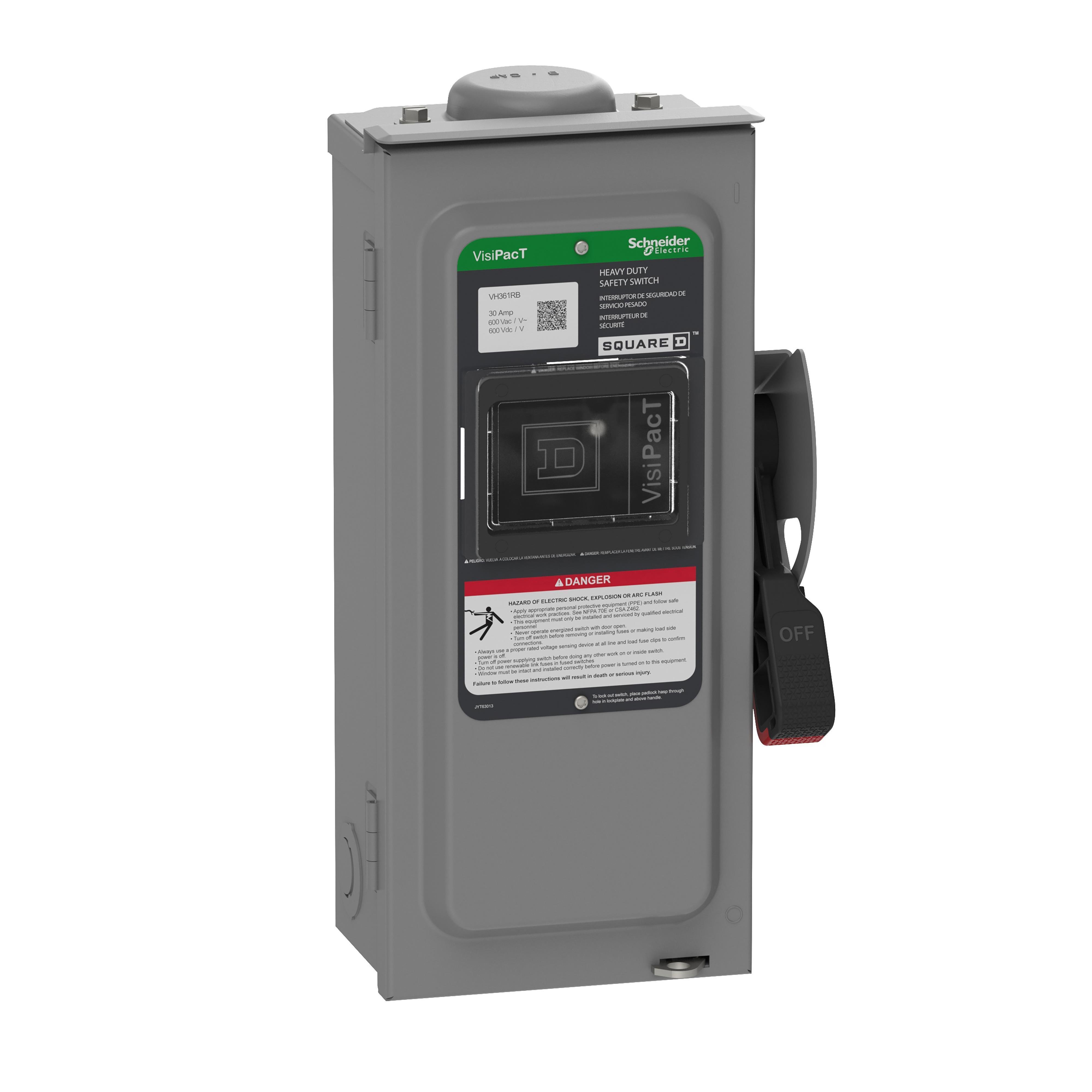

Picture of VH361RB - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 600V, 30A, 3 pole
Square D

VH361RB - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 3R, 600V, 30A, 3 pole

Item Code: 1191157
Category Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref VH361RB

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 30A with a voltage 600 VAC and 600 VDC. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This switch is Type 3R rated with a galvannealed steel enclosure and comes with factory installed viewing window. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses, unit is surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect comes with standard lugs that are not grounded but equipment grounding kits can be used make lugs grounded. The wire range for this switch is AWG 12...AWG 6 aluminium and AWG 14...AWG 6 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.

Specifications

Weight

8.8lb

Height

4.95mm

Width

7.43mm

Length

15.48mm

Depth

5.11mm

Actuator Type

Handle

Amperage Rating

30 A

Brand

Square D

Category

FUSIBLE HEAVY DUTY SAFETY SWITCHES

Contact Form

3PST

Dimensions

5.00 in H x 6.62 in W x 5.106 in D

Enclosure Type

NEMA 3R

Finish

Galvannealed

Frequency Rating

50 to 60 Hz

Horsepower

5, 7.5, 15, 20 hp

Insulation Type

Class H/J/K/R

Material

Steel

Mounting Type

Surface

Number Of Poles

3

Number of Wires

3

Phase

3

Short Circuit Current Rating

10, 200 kA

Terminal Type

Lug

Type

Heavy Duty Fusible Disconnect

Voltage Rating

600 V AC/DC
