Square D

VH362N - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 1, 600V, 60A, 3 pole, neutral installed

Category Fusible Heavy Duty Safety Switches

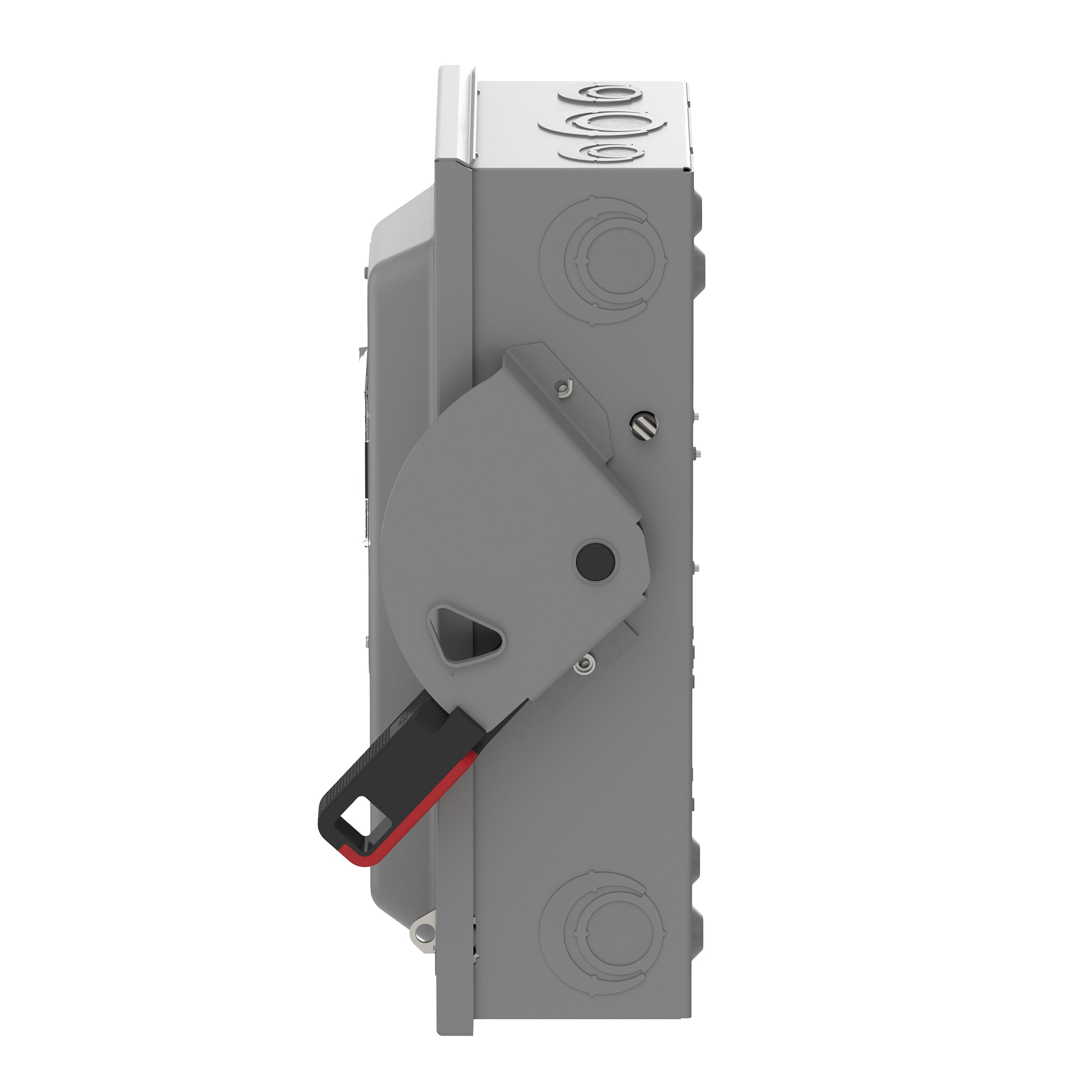

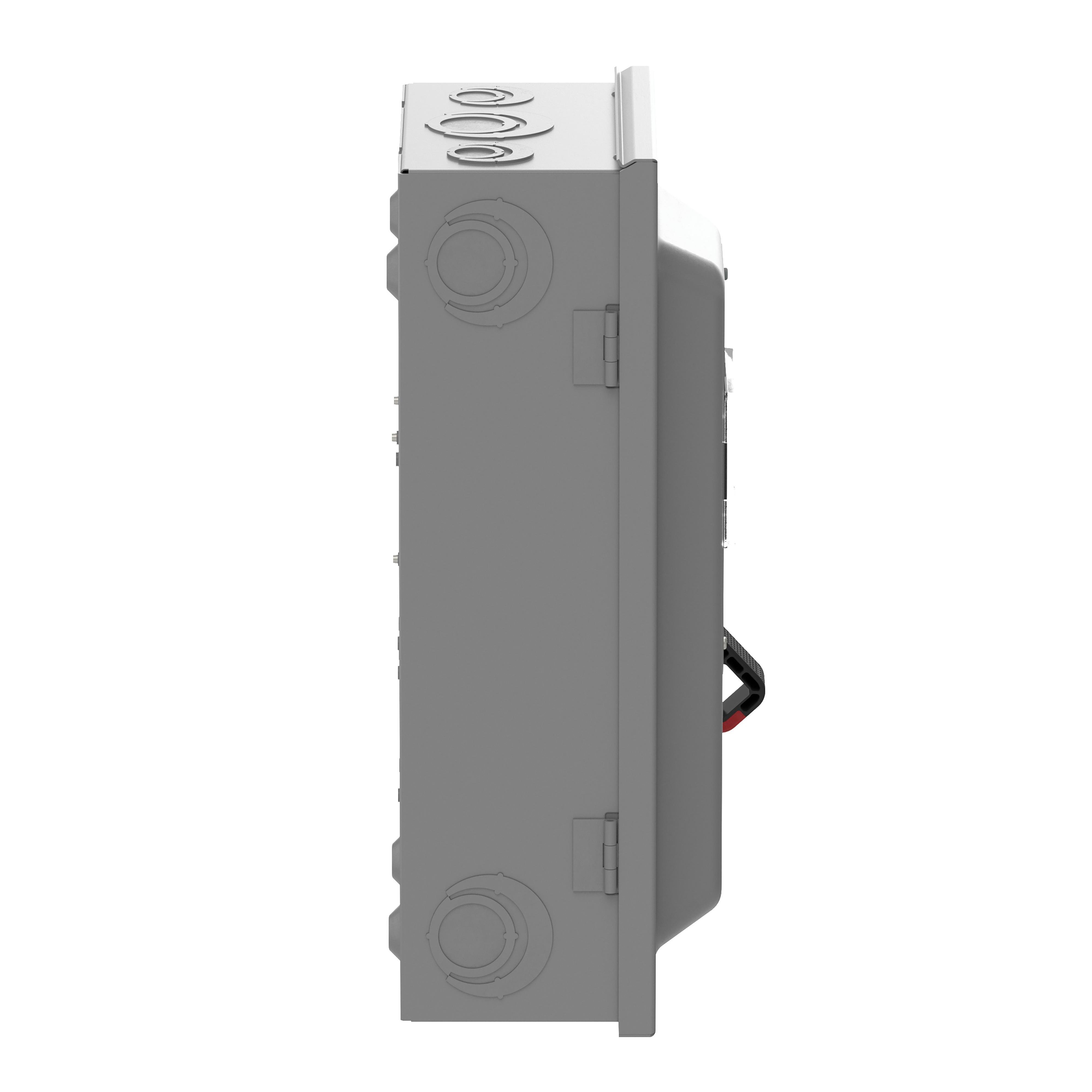

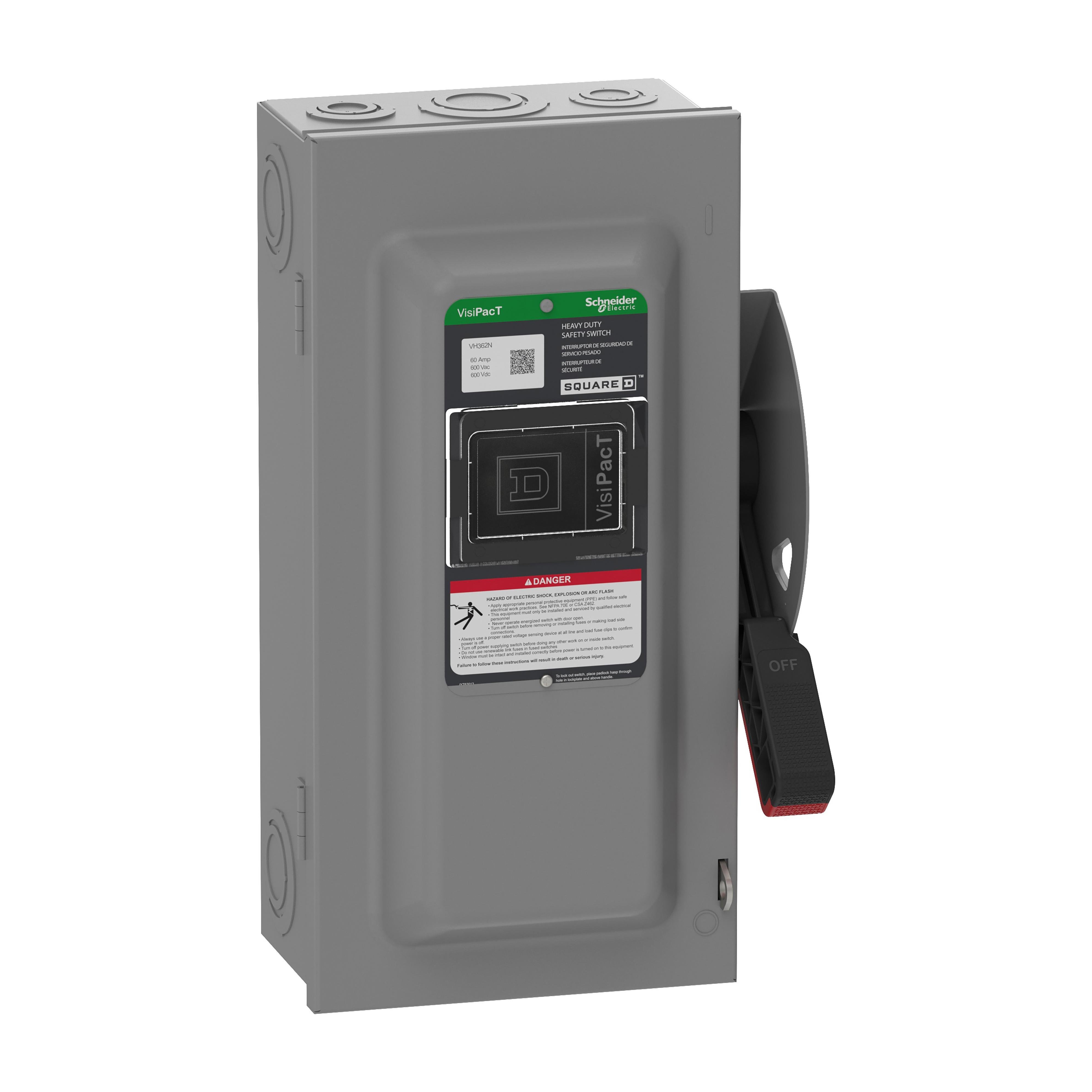

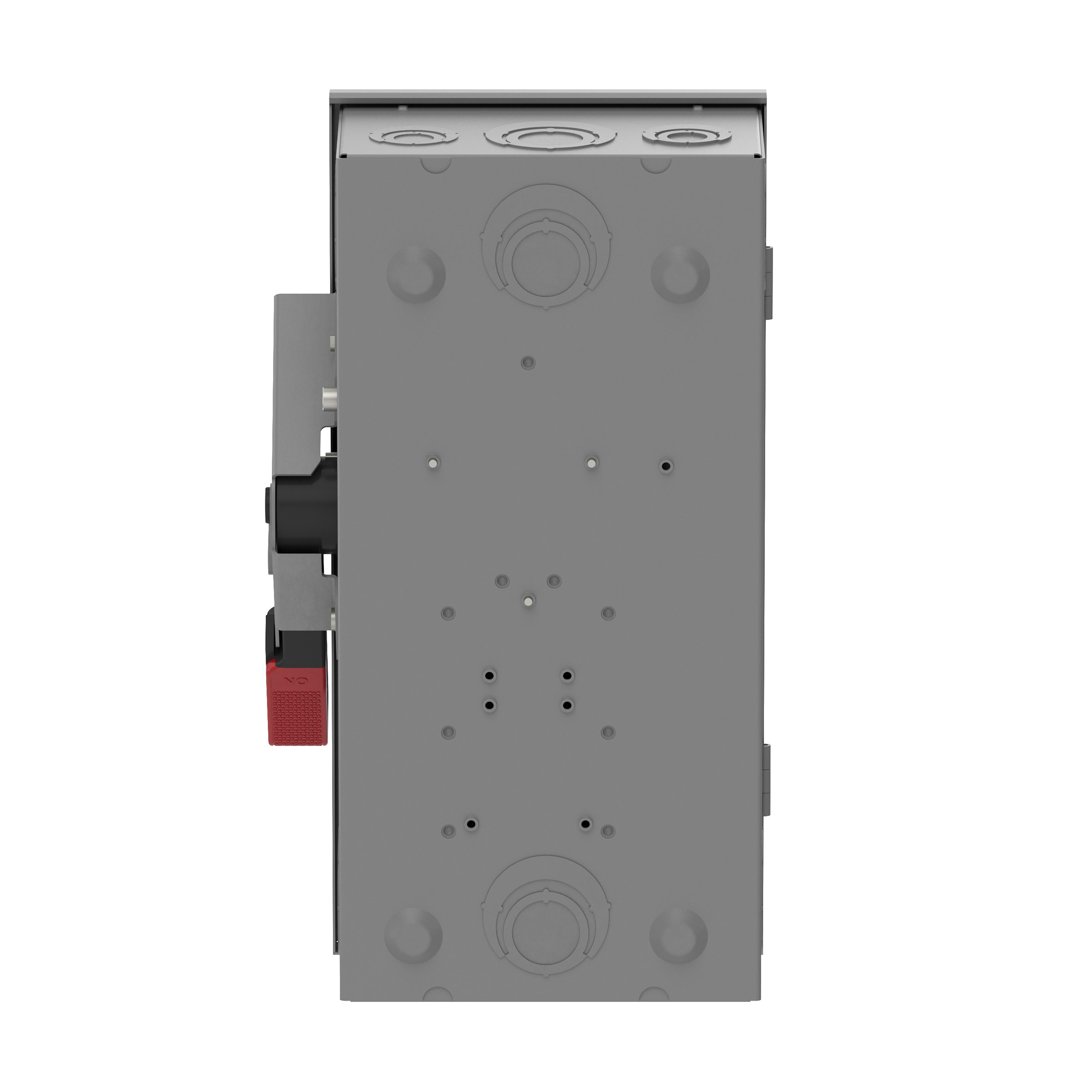

Picture of VH362N - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 1, 600V, 60A, 3 pole, neutral installed Picture of VH362N - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 1, 600V, 60A, 3 pole, neutral installed
Picture of VH362N - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 1, 600V, 60A, 3 pole, neutral installed Picture of VH362N - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 1, 600V, 60A, 3 pole, neutral installed
Picture of VH362N - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 1, 600V, 60A, 3 pole, neutral installed Picture of VH362N - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 1, 600V, 60A, 3 pole, neutral installed
Picture of VH362N - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 1, 600V, 60A, 3 pole, neutral installed Picture of VH362N - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 1, 600V, 60A, 3 pole, neutral installed
Picture of VH362N - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 1, 600V, 60A, 3 pole, neutral installed Picture of VH362N - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 1, 600V, 60A, 3 pole, neutral installed
Square D

VH362N - Safety switch, VisiPacT, heavy duty, fused, viewing window, NEMA 1, 600V, 60A, 3 pole, neutral installed

Item Code: 1191191
Category Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref VH362N

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade fusible heavy duty safety switch that is rated at 60A with a voltage 600 VAC and 600 VDC. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This switch is Type 1 rated with a steel enclosure and comes with factory installed viewing window. The device accepts H,K,R fuse types as shipped and can be field modified for J fuses, unit is surface mounted. The safety switch has a 4-wire configuration with 3 poles and one solid neutral that is factory installed. The disconnect comes with standard lugs that are not grounded but equipment grounding kits can be used make lugs grounded. The wire range for this switch is AWG 12...AWG 3 aluminium and AWG 14...AWG 3 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.

Specifications

Weight

17.6lb

Height

18.57mm

Width

10.28mm

Length

6.93mm

Depth

7.04mm

AD Application

Ideal for all your commercial and industrial needs

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

HD SAF SW 600VAC 600VDC 60A

AD Item Features 01

Viewing window allows visual confirmation of switch state with door closed

AD Item Features 02

Suitable for service entrance when equipped with neutral assembly or equipment grounding kit

AD Item Features 03

Quick make, quick break operating mechanism

AD Item Features 04

Dual cover interlock blocks opening cover if switch is on and switching on if cover is open

AD Item Features 05

Red and black handle indicates the ON (red) or OFF (black) condition of the switch

AD Manufacturer (Description)

Schneider Electric

AD Package Height

18.5700

AD Package Height UOM

IN

AD Package Length

6.9300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

17.6000

AD Package Weight UOM

LB

AD Package Width

10.2800

AD Package Width UOM

IN

Brand

Square D

Category

FUSIBLE HEAVY DUTY SAFETY SWITCHES

Spec 1 Attribute

Actuator Type

Spec 1 Attribute Value

Handle

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Surface

Spec 11 Attribute

Number Of Poles

Spec 11 Attribute Value

3

Spec 12 Attribute

Number Of Wires

Spec 12 Attribute Value

4

Spec 13 Attribute

PHASE

Spec 13 Attribute Value

3

Spec 14 Attribute

Short Circuit Current Rating

Spec 14 Attribute UOM

KA

Spec 14 Attribute Value

10, 200

Spec 15 Attribute

Terminal Type

Spec 15 Attribute Value

Lug

Spec 16 Attribute

Type

Spec 16 Attribute Value

Heavy Duty Fusible Disconnect

Spec 17 Attribute

Voltage Rating

Spec 17 Attribute UOM

V AC/DC

Spec 17 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

60

Spec 3 Attribute

Contact Form

Spec 3 Attribute Value

3PST

Spec 4 Attribute

Dimensions

Spec 4 Attribute Value

18.75 in H x 8.91 in W x 7.04 in D

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

NEMA 1

Spec 6 Attribute

Frequency Rating

Spec 6 Attribute UOM

HZ

Spec 6 Attribute Value

50 To 60

Spec 7 Attribute

HORSEPOWER

Spec 7 Attribute UOM

HP

Spec 7 Attribute Value

15, 30, 50

Spec 8 Attribute

Insulation Type

Spec 8 Attribute Value

Class H/J/K/R

Spec 9 Attribute

Material

Spec 9 Attribute Value

Steel
