Square D

VHU361 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 30A, 3 pole

Category Non-Fusible Heavy Duty Safety Switches

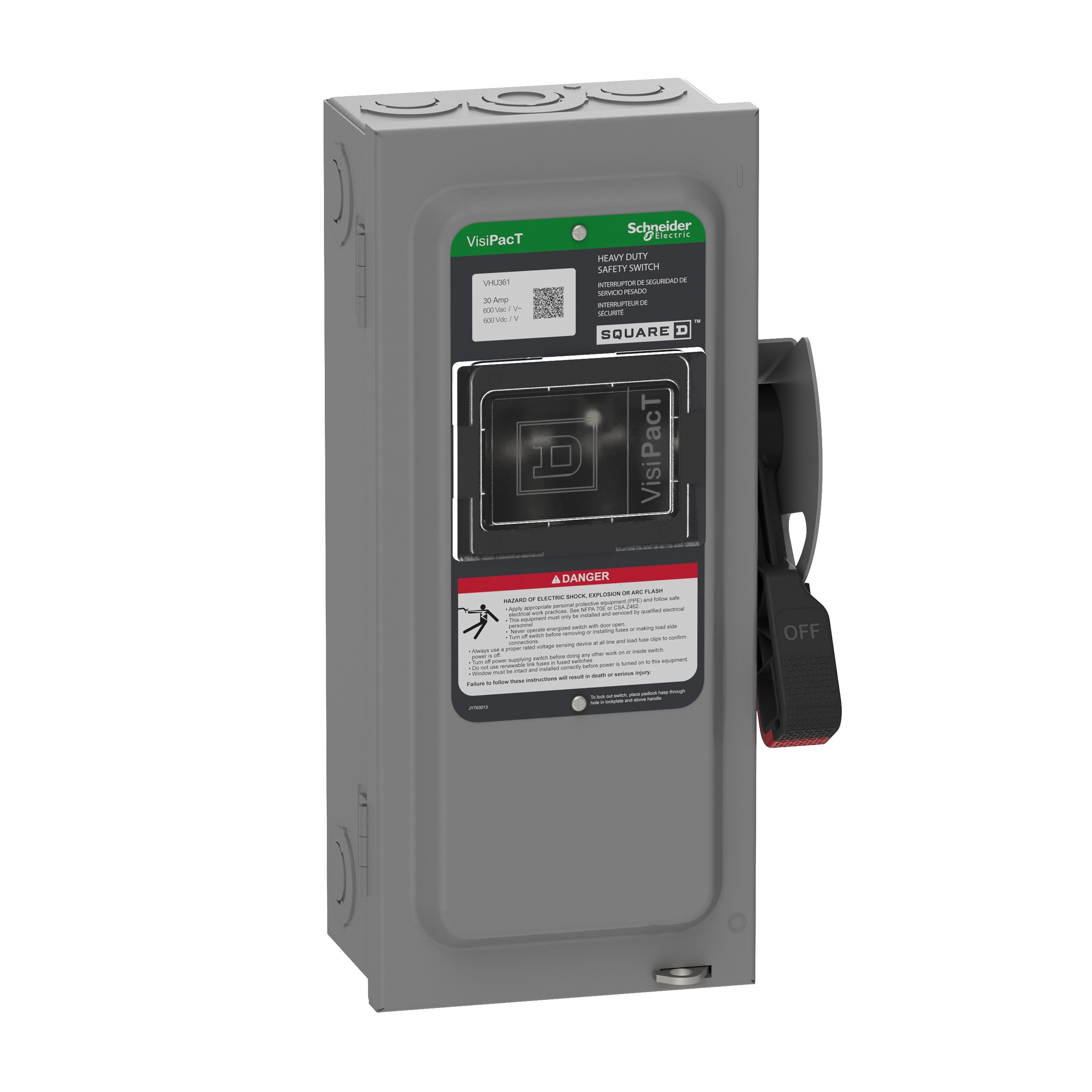

Picture of VHU361 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 30A, 3 pole
Square D

VHU361 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 30A, 3 pole

Item Code: 1191206
Category Non-Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref VHU361

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade non-fusible heavy duty safety switch that is rated at 30A with a voltage 600 VAC and 600 VDC. This short circuit rating for a non-fusible switches is based upon the Square D circuit breakers or Mag-Gard motor circuit protectors chosen as upstream protection This switch is Type 1 rated with a steel enclosure and comes with factory installed viewing window and are surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect does not come with lugs that are grounded and must be done in the field using a grounding kit. The wire range for this switch is AWG 12...AWG 6 aluminium and AWG 14...AWG 6 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.

Specifications

Weight

8.8lb

Height

4.95mm

Width

7.43mm

Length

15.48mm

Depth

5.11mm

Amperage Rating

30 A

Brand

Square D

Category

NON-FUSIBLE HEAVY DUTY SAFETY SWITCHES

Contact Form

3PST

Dimensions

5.00 in H x 6.36 in W x 5.11 in D

Enclosure Type

NEMA 1

Frequency Rating

50 to 60 Hz

Horsepower

5, 7.5, 10, 15, 20, 30 hp

Material

Steel

Mounting Type

Surface

Number Of Poles

3

Number of Wires

3

Phase

1, 3

Terminal Type

Lug

Type

Heavy Duty Non-Fusible Disconnect

Voltage Rating

600 V AC/DC
