Square D

VHU362 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 60A, 3 pole

Category Non-Fusible Heavy Duty Safety Switches

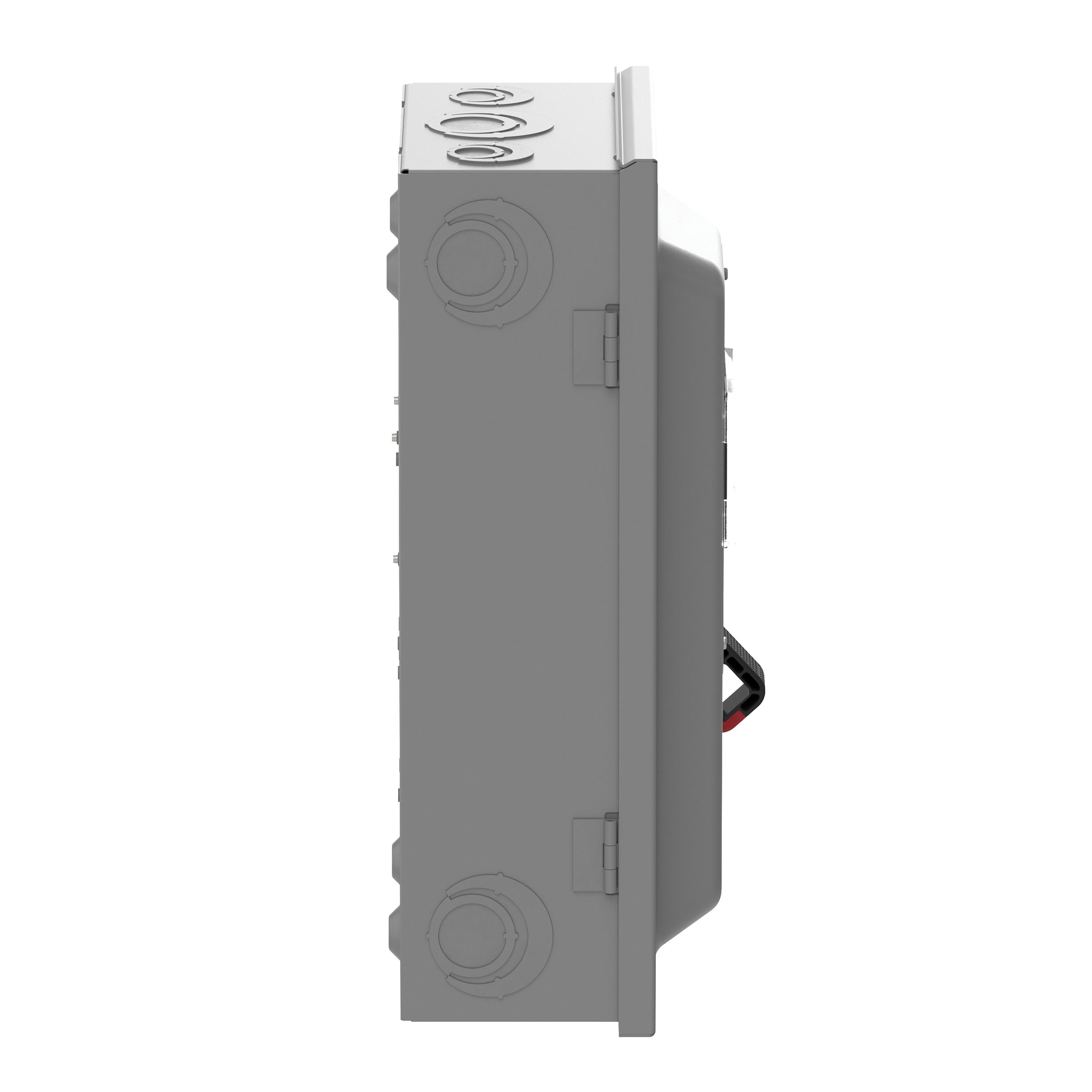

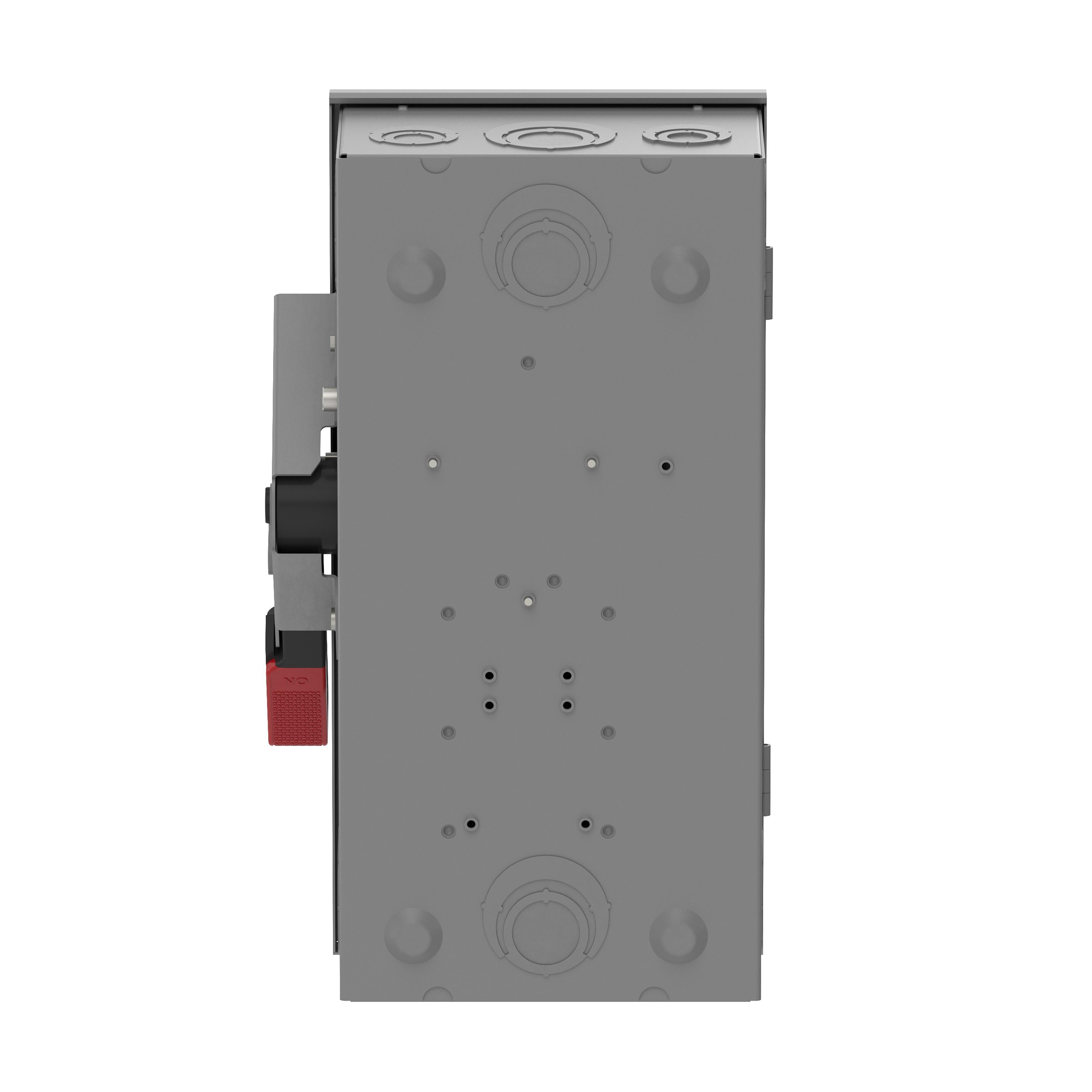

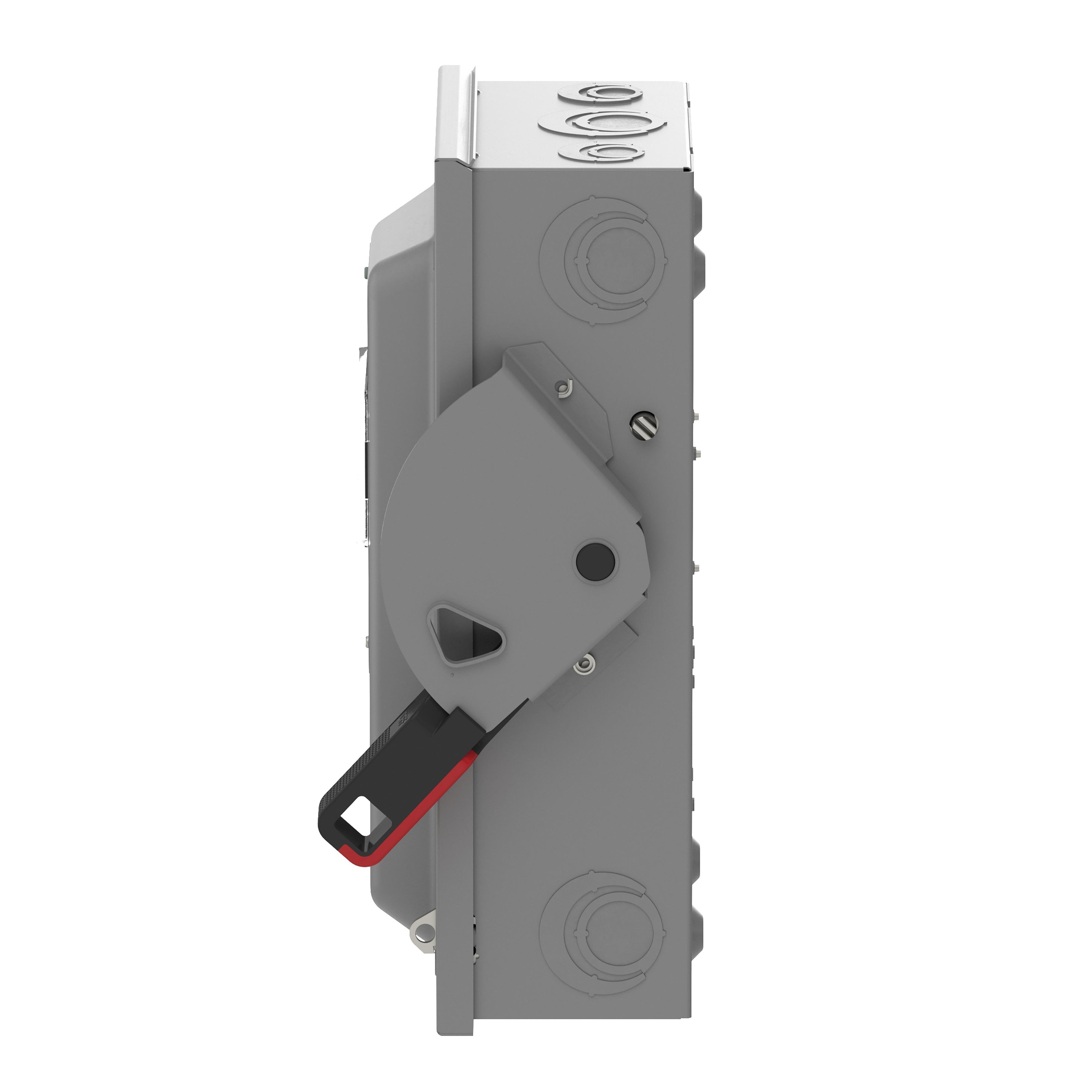

Picture of VHU362 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 60A, 3 pole Picture of VHU362 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 60A, 3 pole
Picture of VHU362 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 60A, 3 pole Picture of VHU362 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 60A, 3 pole
Picture of VHU362 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 60A, 3 pole Picture of VHU362 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 60A, 3 pole
Picture of VHU362 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 60A, 3 pole Picture of VHU362 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 60A, 3 pole
Square D

VHU362 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 60A, 3 pole

Item Code: 1191208
Category Non-Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref VHU362

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade non-fusible heavy duty safety switch that is rated at 60A with a voltage 600 VAC and 600 VDC. This short circuit rating for a non-fusible switches is based upon the Square D circuit breakers or Mag-Gard motor circuit protectors chosen as upstream protection This switch is Type 1 rated with a steel enclosure and comes with factory installed viewing window and are surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect does not come with lugs that are grounded and must be done in the field using a grounding kit. The wire range for this switch is AWG 12...AWG 3 aluminium and AWG 14...AWG 3 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.

Specifications

Weight

14.77lb

Height

18.57mm

Width

10.72mm

Length

19.62mm

Depth

7.04mm

AD Application

For Heavy application

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

HD SAF SW 600VAC 600VDC 60A

AD Item Features 01

Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency

AD Item Features 02

Designed to satisfy individual requirements for all customers

AD Item Features 03

Visipact safety switches come with a viewing window for quick visual verification of switch position

AD Item Features 04

Designed to have a mechanical endurance three times greater than NEMA standards

AD Manufacturer (Description)

Schneider Electric

AD Package Height

18.5700

AD Package Height UOM

IN

AD Package Length

19.6200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

14.7700

AD Package Weight UOM

LB

AD Package Width

10.7200

AD Package Width UOM

IN

Brand

Square D

Category

NON-FUSIBLE HEAVY DUTY SAFETY SWITCHES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

60

Spec 10 Attribute

Number Of Wires

Spec 10 Attribute Value

3

Spec 11 Attribute

PHASE

Spec 11 Attribute Value

1, 3

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Lug

Spec 13 Attribute

Type

Spec 13 Attribute Value

Heavy Duty Non-Fusible Disconnect

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC/DC

Spec 14 Attribute Value

600

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

3PST

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

18.75 in H x 8.91 in W x 7.04 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50 To 60

Spec 6 Attribute

HORSEPOWER

Spec 6 Attribute UOM

HP

Spec 6 Attribute Value

10, 20, 25, 30, 50, 60

Spec 7 Attribute

Material

Spec 7 Attribute Value

Steel

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
