Square D

VHU362DSGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 4X, 600V, 60A, 3 pole, ground lugs

Category Non-Fusible Heavy Duty Safety Switches

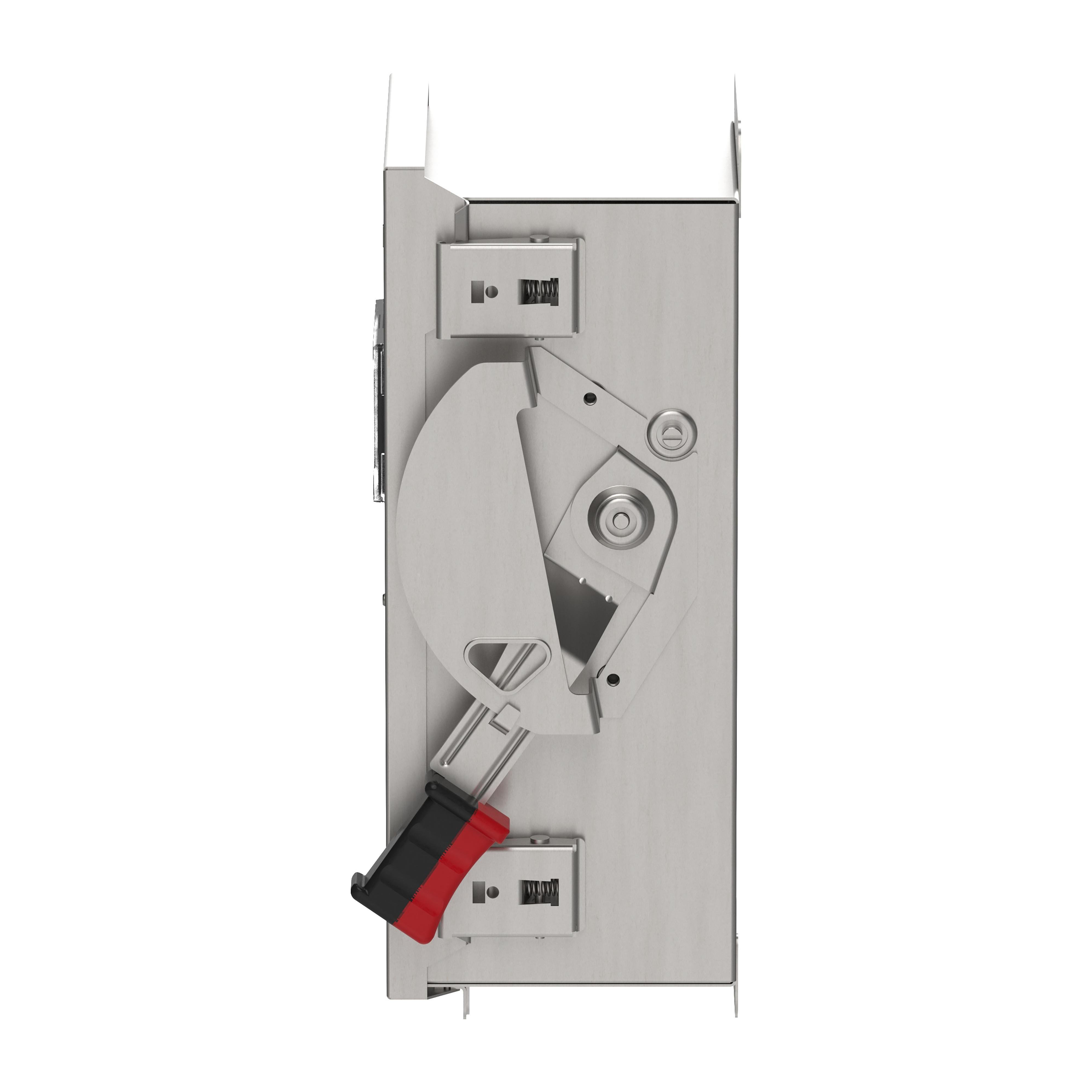

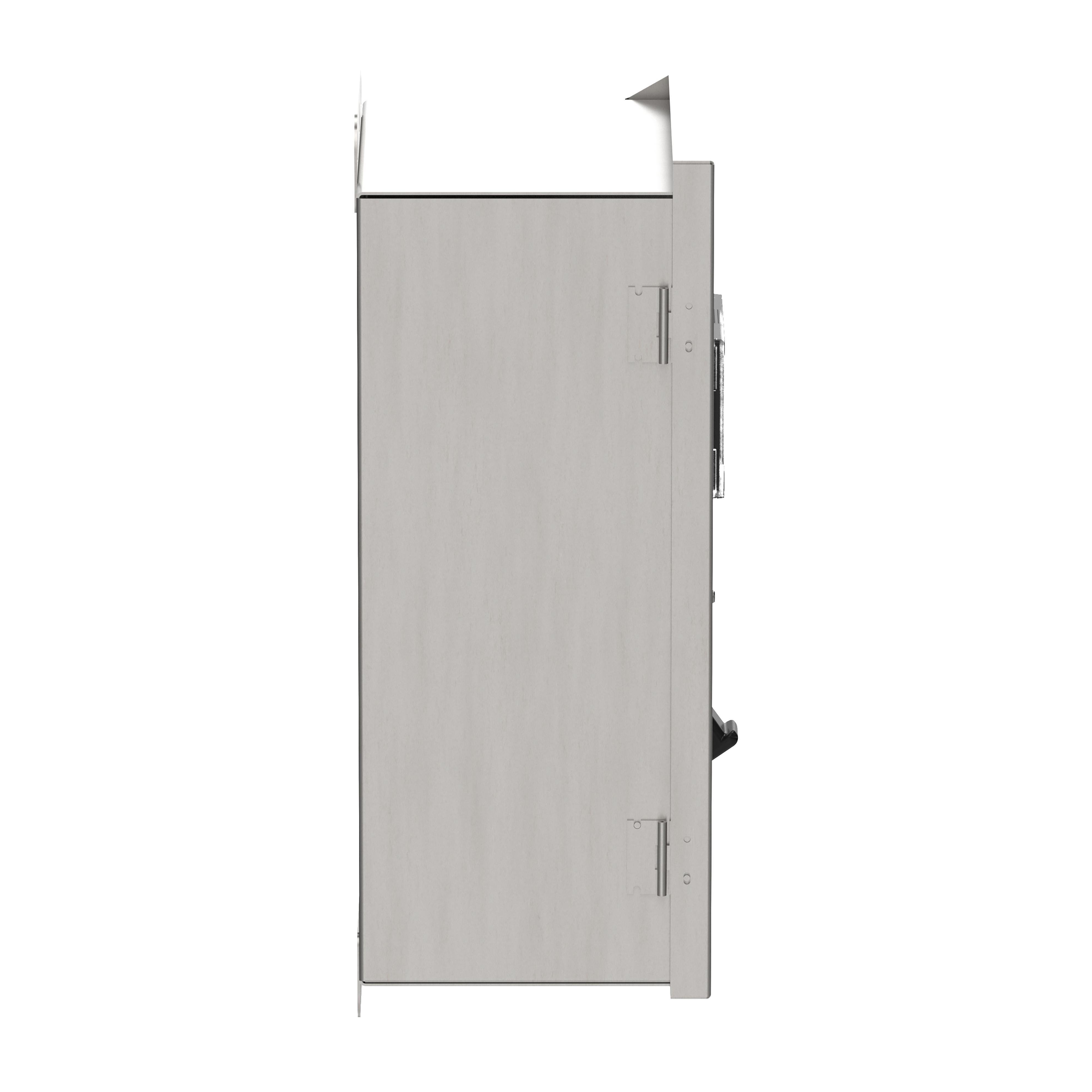

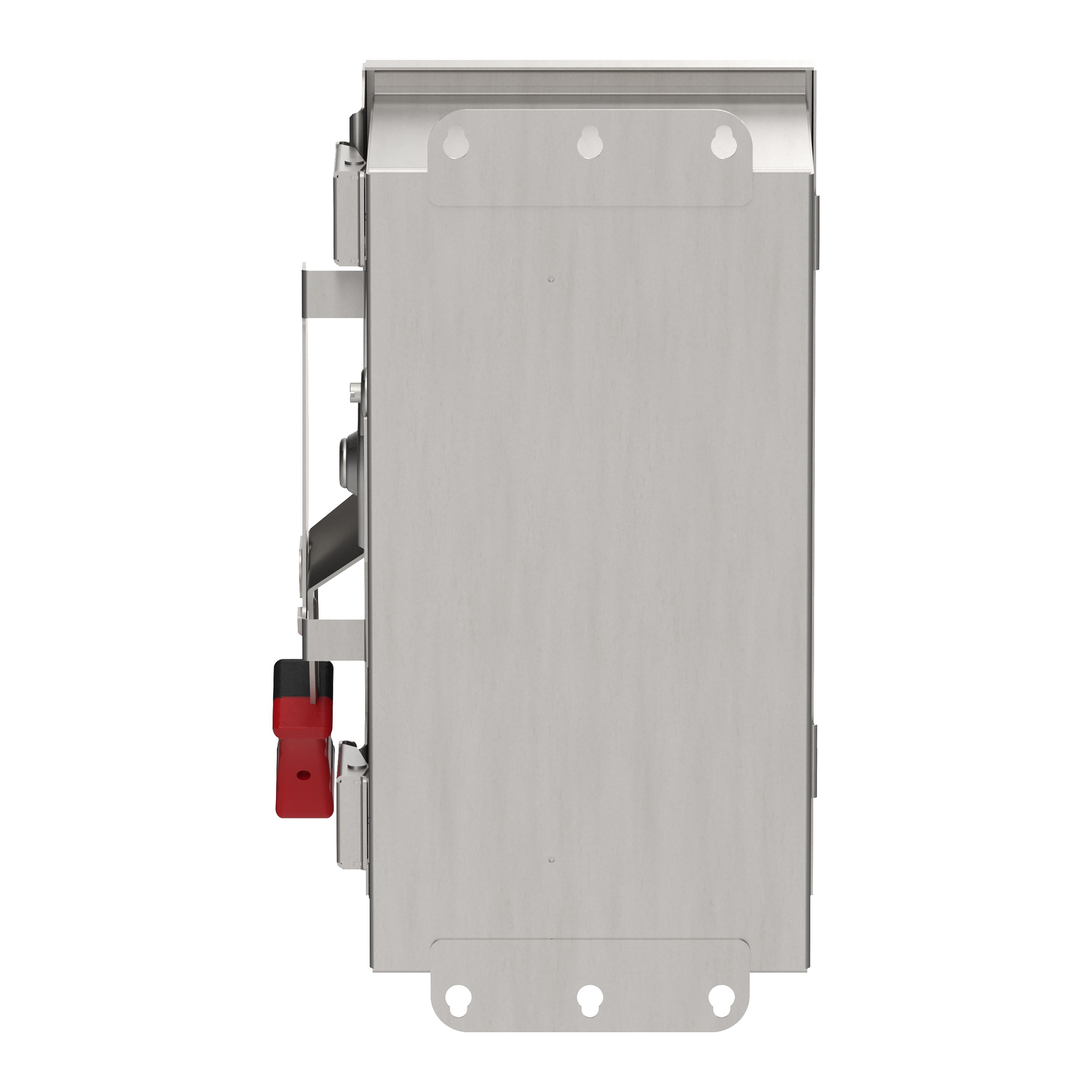

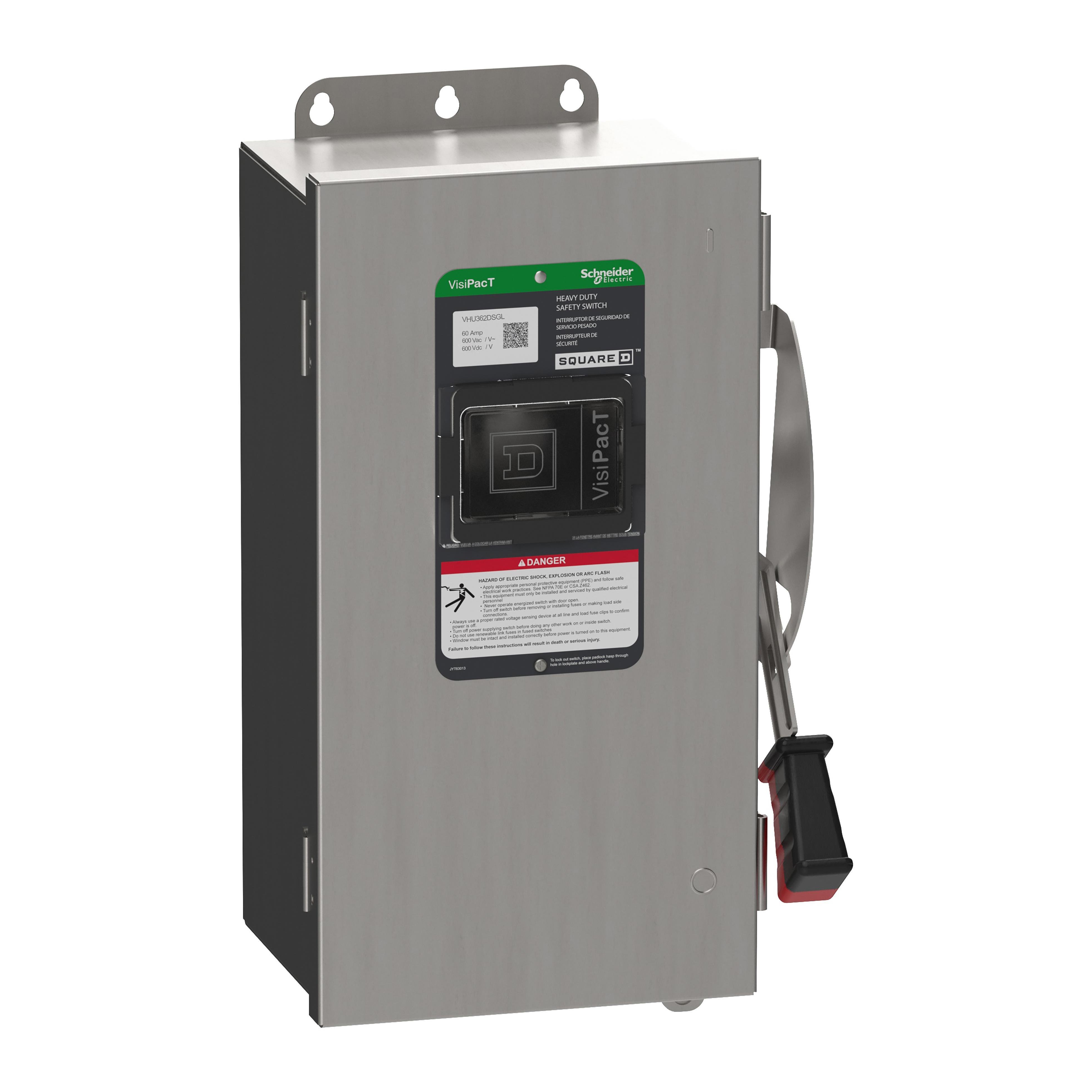

Picture of VHU362DSGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 4X, 600V, 60A, 3 pole, ground lugs Picture of VHU362DSGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 4X, 600V, 60A, 3 pole, ground lugs
Picture of VHU362DSGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 4X, 600V, 60A, 3 pole, ground lugs Picture of VHU362DSGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 4X, 600V, 60A, 3 pole, ground lugs
Picture of VHU362DSGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 4X, 600V, 60A, 3 pole, ground lugs Picture of VHU362DSGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 4X, 600V, 60A, 3 pole, ground lugs
Picture of VHU362DSGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 4X, 600V, 60A, 3 pole, ground lugs Picture of VHU362DSGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 4X, 600V, 60A, 3 pole, ground lugs
Picture of VHU362DSGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 4X, 600V, 60A, 3 pole, ground lugs Picture of VHU362DSGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 4X, 600V, 60A, 3 pole, ground lugs
Square D

VHU362DSGL - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 4X, 600V, 60A, 3 pole, ground lugs

Item Code: 1191249
Category Non-Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref VHU362DSGL

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade non-fusible heavy duty safety switch that is rated at 60A with a voltage 600 VAC and 600 VDC. This short circuit rating for a non-fusible switches is based upon the Square D circuit breakers or Mag-Gard motor circuit protectors chosen as upstream protection This switch is Type 4X rated with a stainless steel enclosure and comes with factory installed viewing window and are surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect comes with factory installed equipment ground lugs. The wire range for this switch is AWG 12...AWG 3 aluminium and AWG 14...AWG 3 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.

Specifications

Weight

20.9lb

Height

7.31mm

Width

10.9mm

Length

18.51mm

Depth

7.26mm

AD Application

For Heavy application

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

HD SAF SW 600VAC 600VDC 60A

AD Item Features 01

Heavy duty switches isolate power in daily activities and provide an effective way to interrupt power in an emergency

AD Item Features 02

Designed to satisfy individual requirements for all customers

AD Item Features 03

Visipact safety switches come with a viewing window for quick visual verification of switch position

AD Item Features 04

Designed to have a mechanical endurance three times greater than NEMA standards

AD Manufacturer (Description)

Schneider Electric

AD Package Height

7.3100

AD Package Height UOM

IN

AD Package Length

18.5100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

20.9000

AD Package Weight UOM

LB

AD Package Width

10.9000

AD Package Width UOM

IN

Brand

Square D

Category

NON-FUSIBLE HEAVY DUTY SAFETY SWITCHES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

60

Spec 10 Attribute

Number Of Wires

Spec 10 Attribute Value

3

Spec 11 Attribute

PHASE

Spec 11 Attribute Value

1, 3

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Lug

Spec 13 Attribute

Type

Spec 13 Attribute Value

Heavy Duty Non-Fusible Disconnect

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC/DC

Spec 14 Attribute Value

600

Spec 2 Attribute

Contact Form

Spec 2 Attribute Value

3PST

Spec 3 Attribute

Dimensions

Spec 3 Attribute Value

7.37 in H x 8.92 in W x 7.26 in D

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 4X

Spec 5 Attribute

Frequency Rating

Spec 5 Attribute UOM

HZ

Spec 5 Attribute Value

50 To 60

Spec 6 Attribute

HORSEPOWER

Spec 6 Attribute UOM

HP

Spec 6 Attribute Value

10, 20, 25, 30, 50, 60

Spec 7 Attribute

Material

Spec 7 Attribute Value

304 Stainless Steel

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Surface

Spec 9 Attribute

Number Of Poles

Spec 9 Attribute Value

3
