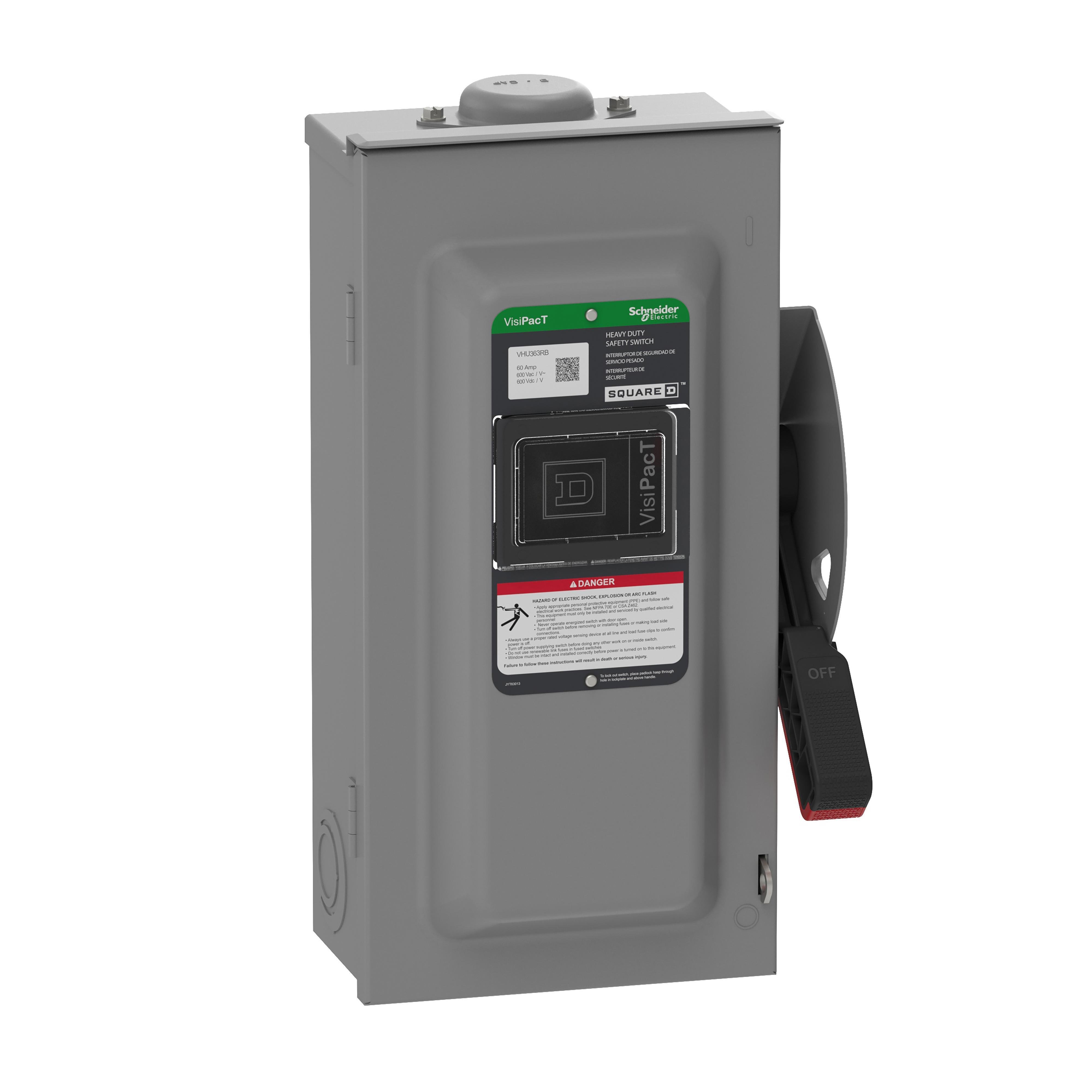

VHU363RB - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 3R, 600V, 100A, 3 pole

Category Non-Fusible Heavy Duty Safety Switches

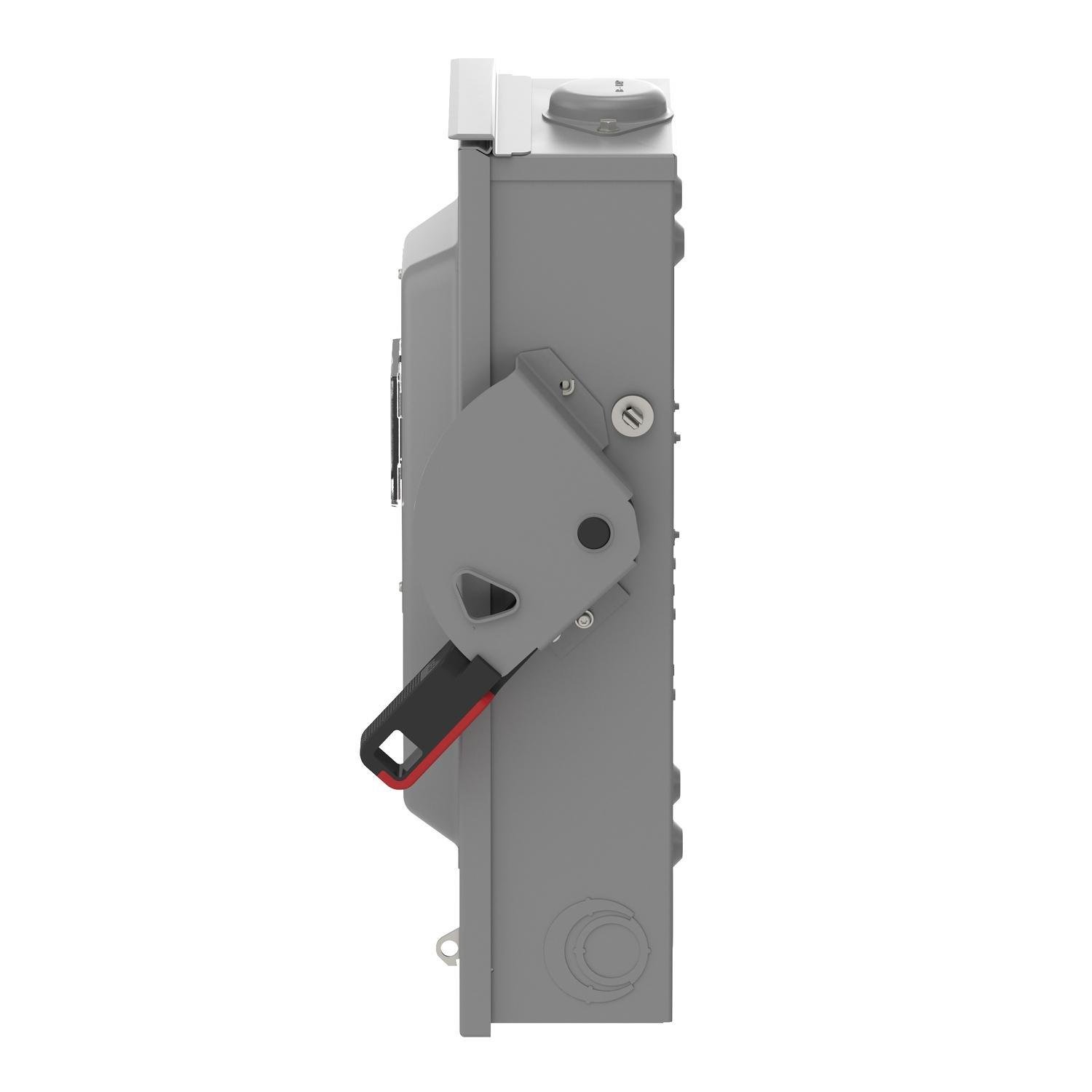

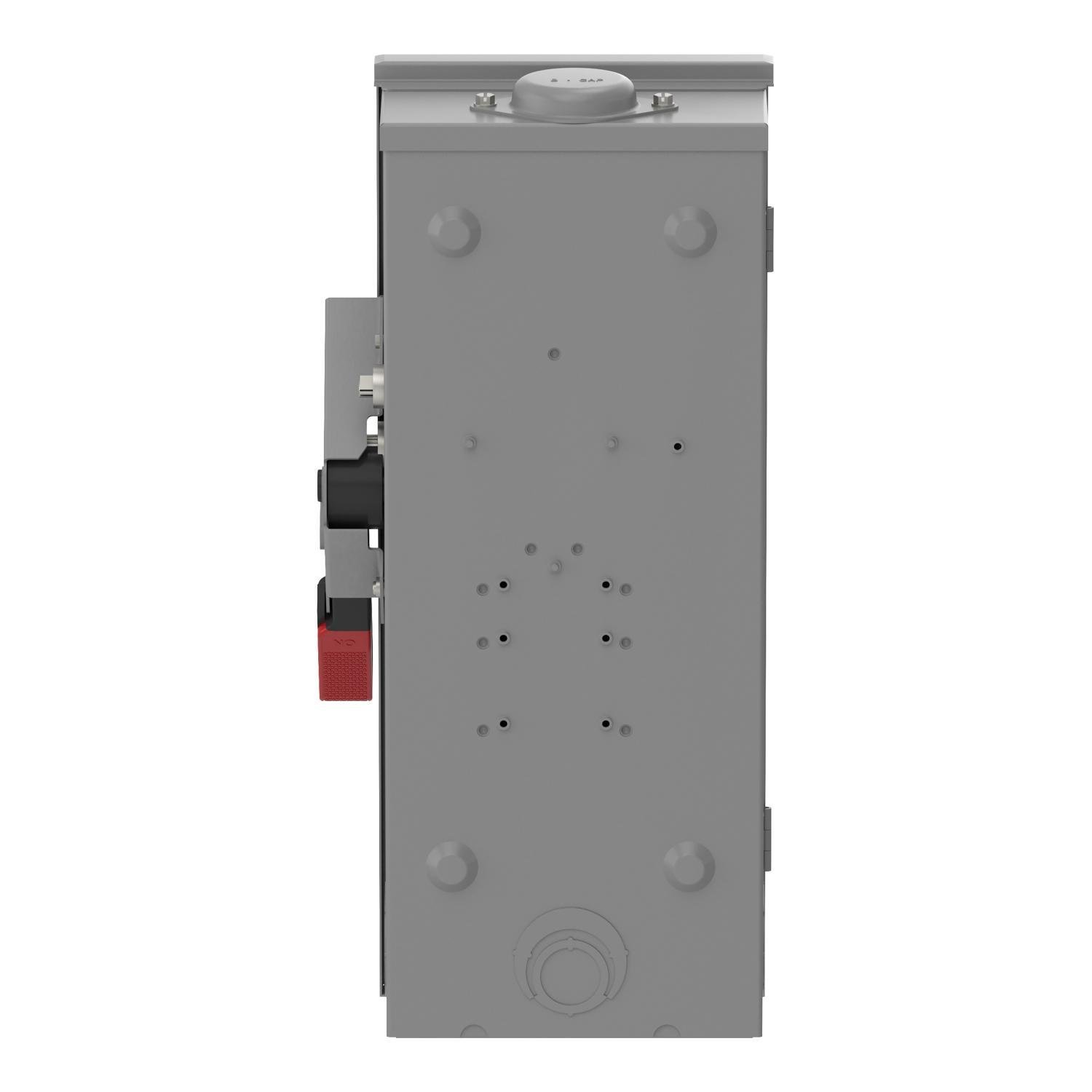

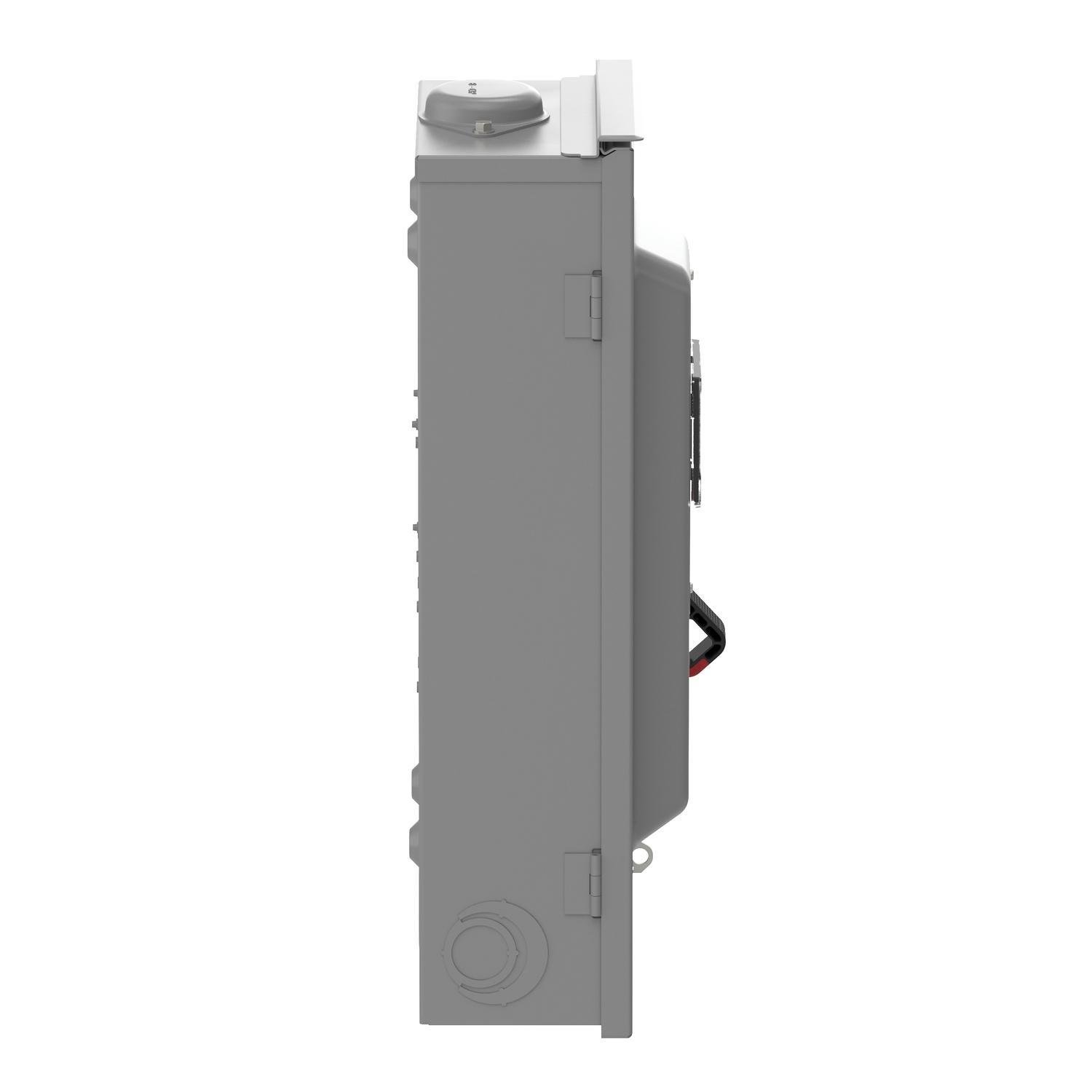

Picture of VHU363RB - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 3R, 600V, 100A, 3 pole
Square D

VHU363RB - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 3R, 600V, 100A, 3 pole

Item Code: 1191214
Category Non-Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref VHU363RB

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade non-fusible heavy duty safety switch that is rated at 100A with a voltage 600 VAC and 600 VDC. This short circuit rating for a non-fusible switches is based upon the Square D circuit breakers or Mag-Gard motor circuit protectors chosen as upstream protection This switch is Type 3R rated with a galvannealed steel enclosure and comes with factory installed viewing window and are surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect does not come with lugs that are grounded and must be done in the field using a grounding kit. The wire range for this switch is AWG 12...AWG 1/0 aluminium and AWG 14...AWG 1/0 copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.

Specifications

Weight

19.8lb

Height

22.41mm

Width

10.28mm

Length

6.93mm

Depth

7.02mm

Amperage Rating

100 A

Brand

Square D

Category

NON-FUSIBLE HEAVY DUTY SAFETY SWITCHES

Contact Form

3PST

Dimensions

22.62 in H x 9.08 in W x 7.019 in D

Enclosure Type

NEMA 3R

Finish

Galvannealed

Frequency Rating

50 to 60 Hz

Horsepower

20, 40, 50, 75,100 hp

Material

Steel

Mounting Type

Surface

Number Of Poles

3

Number of Wires

3

Phase

1, 3

Terminal Type

Lug

Type

Heavy Duty Non-Fusible Disconnect

Voltage Rating

600 V AC/DC
