Square D

VHU364 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 200A, 3 pole

Category Non-Fusible Heavy Duty Safety Switches

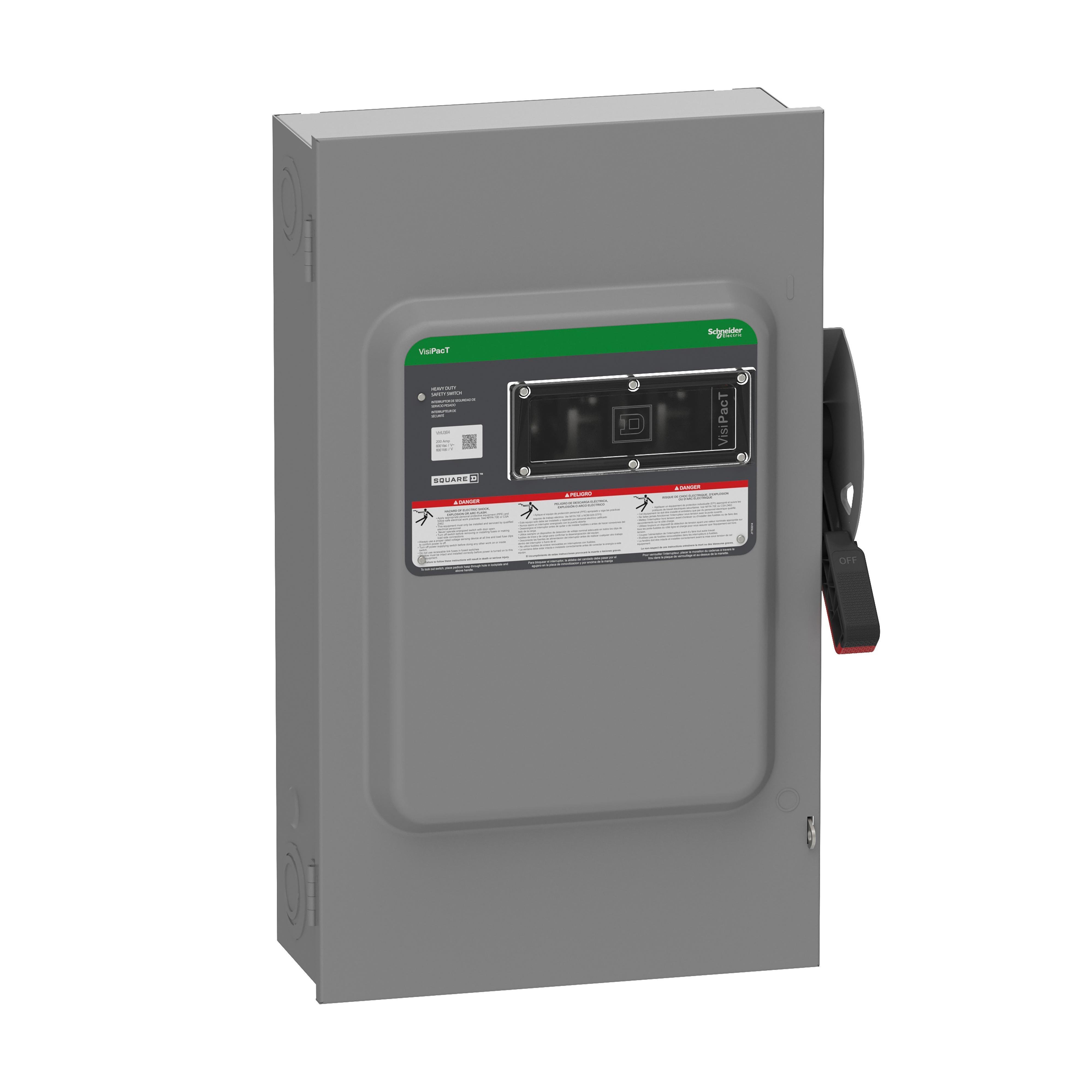

Picture of VHU364 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 200A, 3 pole
Square D

VHU364 - Safety switch, VisiPacT, heavy duty, unfused, viewing window, NEMA 1, 600V, 200A, 3 pole

Item Code: 1191210
Category Non-Fusible Heavy Duty Safety Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref VHU364

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Call for Availability
Add to Favorites
Compare

Description

Schneider Electric's Square D heavy duty safety switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard making it ideal for all your commercial and industrial needs. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock, and a color coded indicator handle. This three blade non-fusible heavy duty safety switch that is rated at 200A with a voltage 600 VAC and 600 VDC. This short circuit rating for a non-fusible switches is based upon the Square D circuit breakers or Mag-Gard motor circuit protectors chosen as upstream protection This switch is Type 1 rated with a steel enclosure and comes with factory installed viewing window and are surface mounted. The safety switch has a 3-wire configuration of 3 poles but a solid neutral can be installed in the field using solid neutral kit. The disconnect does not come with lugs that are grounded and must be done in the field using a grounding kit. The wire range for this switch is AWG 6…250 kcmil aluminium and copper. All heavy duty safety switches are tested per UL98 and NEMA KS1 standards and listed in the UL files E2875 and E154828.

Specifications

Weight

54.34lb

Height

19.19mm

Width

8.23mm

Length

29.72mm

Depth

8.6mm

Amperage Rating

200 A

Brand

Square D

Category

NON-FUSIBLE HEAVY DUTY SAFETY SWITCHES

Contact Form

3PST

Dimensions

19.38 in H x 16.61 in W x 8.6 in D

Enclosure Type

NEMA 1

Frequency Rating

50 to 60 Hz

Horsepower

15, 40, 50, 60, 125, 150 hp

Material

Steel

Mounting Type

Surface

Number Of Poles

3

Number of Wires

3

Phase

1, 3

Terminal Type

Lug

Type

Heavy Duty Non-Fusible Disconnect

Voltage Rating

600 V AC/DC
