Schneider Electric

VLS1P040D1S - Disconnect switch, TeSys VLS, additional pole, 40A, for 16A to 40A switch, size 1, door mount

Category Disconnect Motor Switches & Accessories

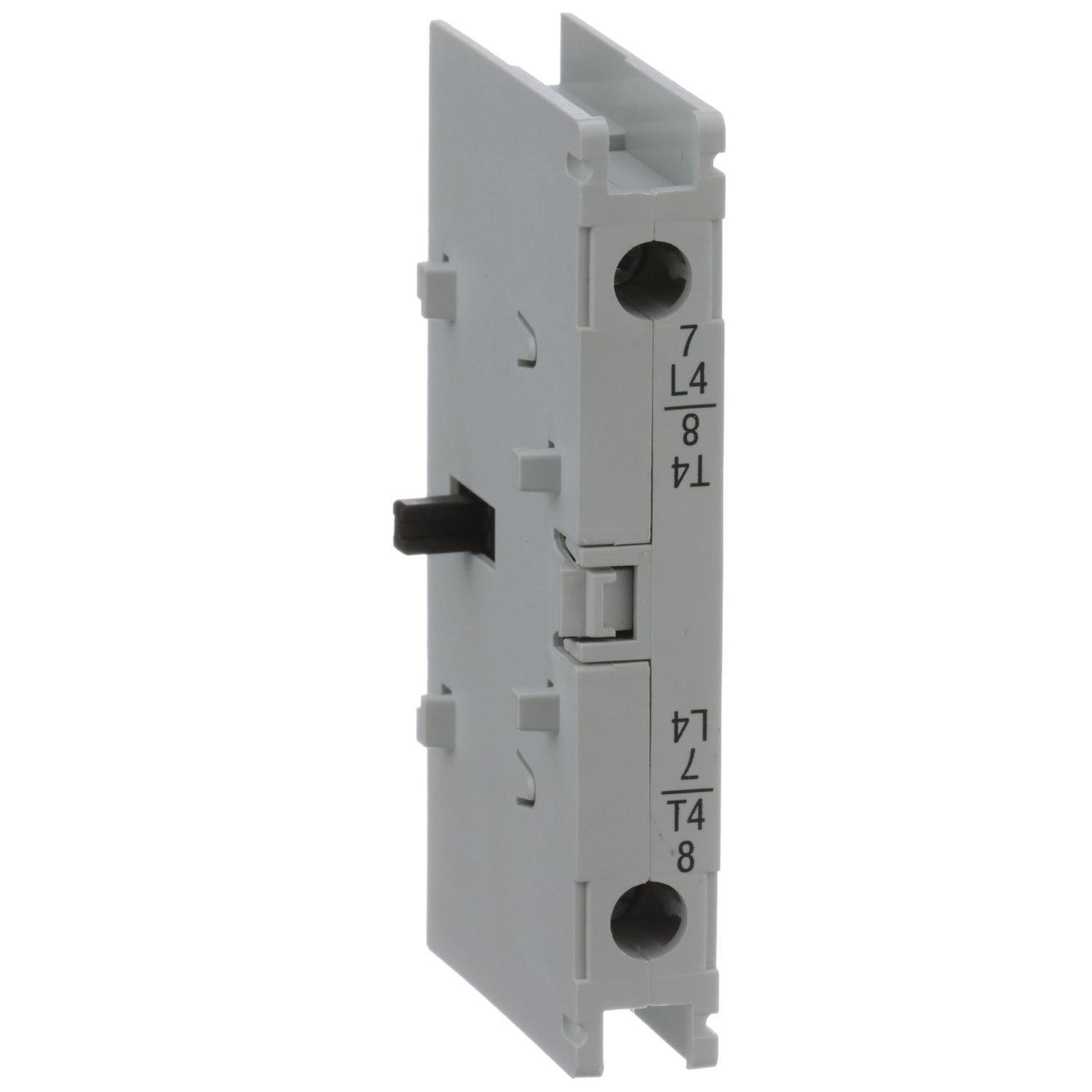

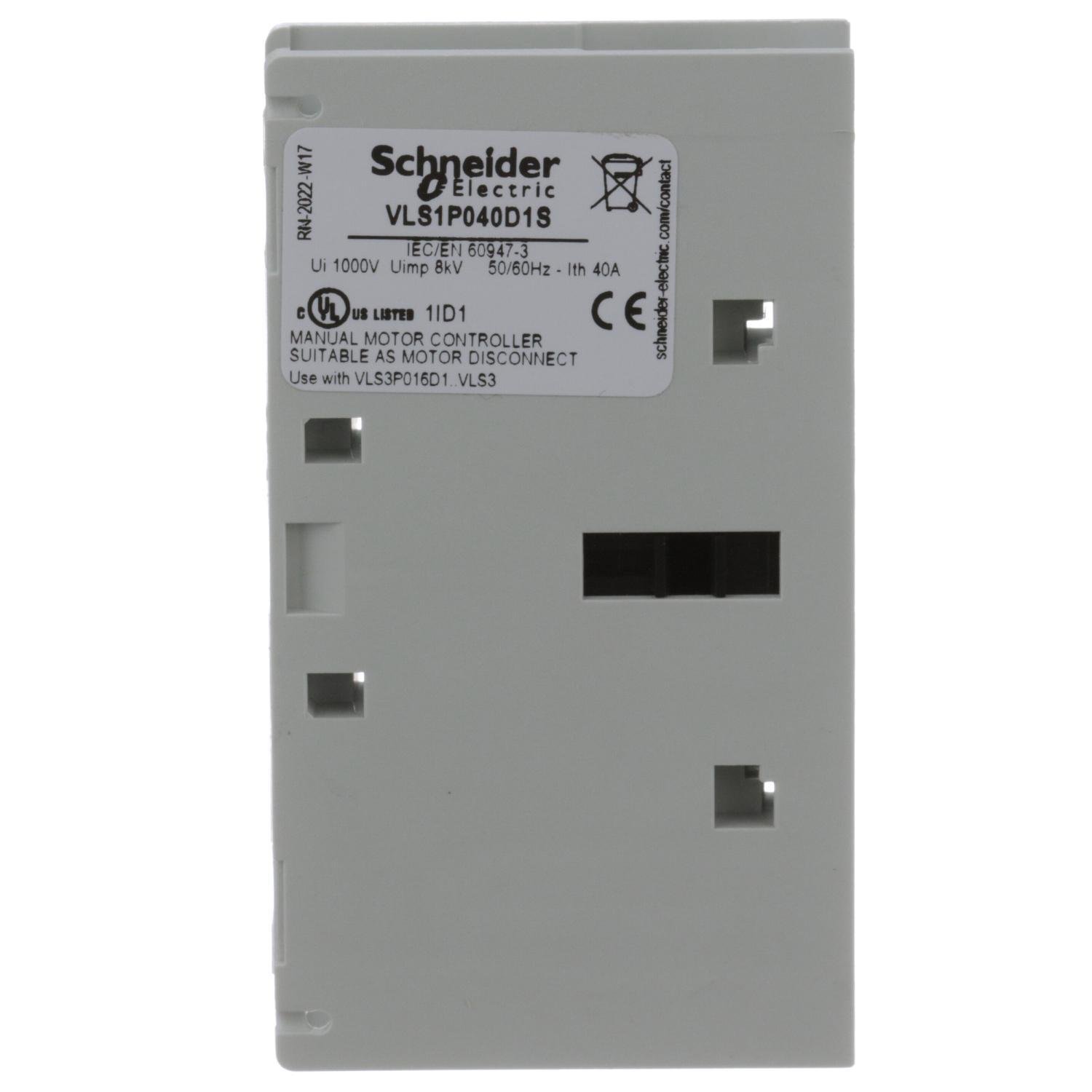

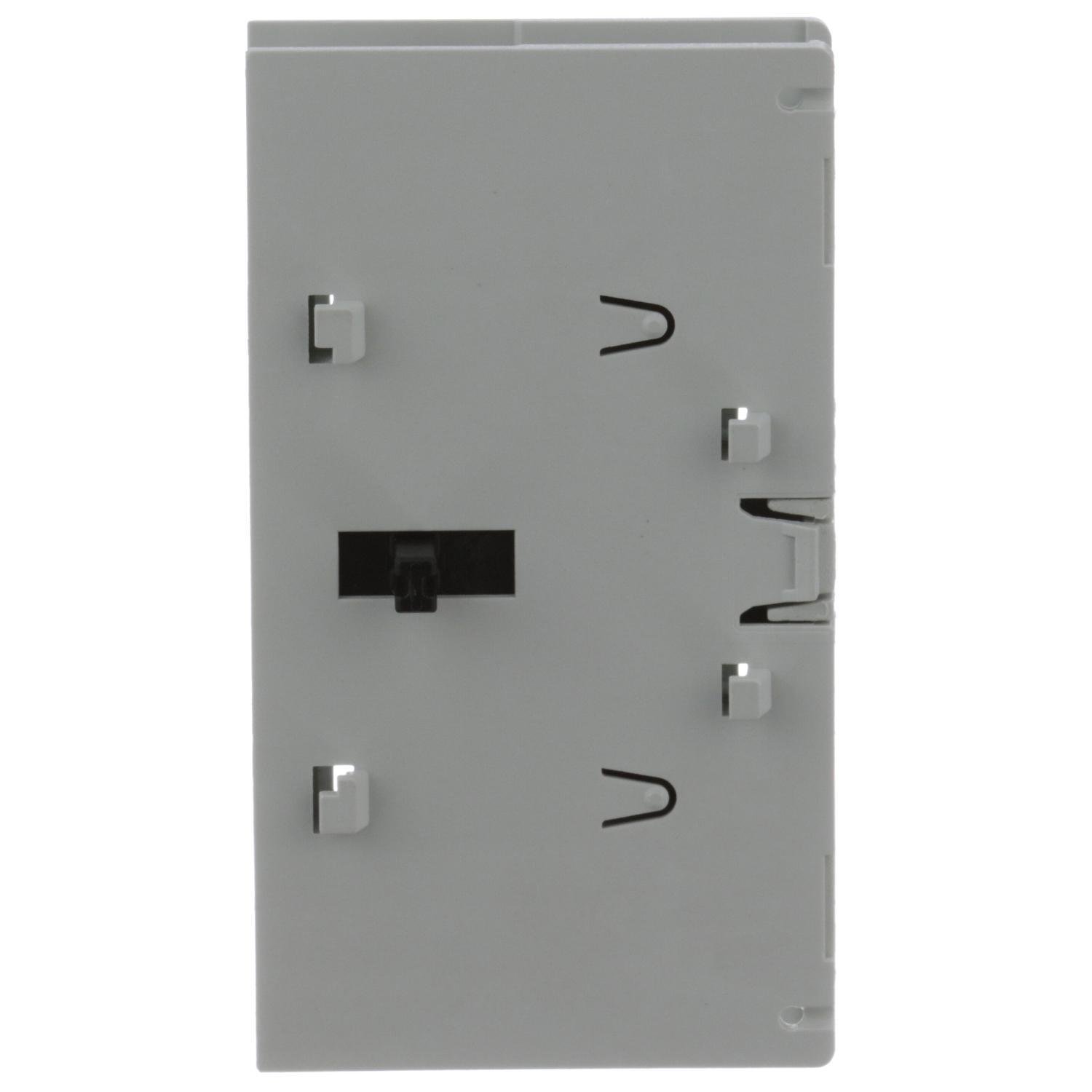

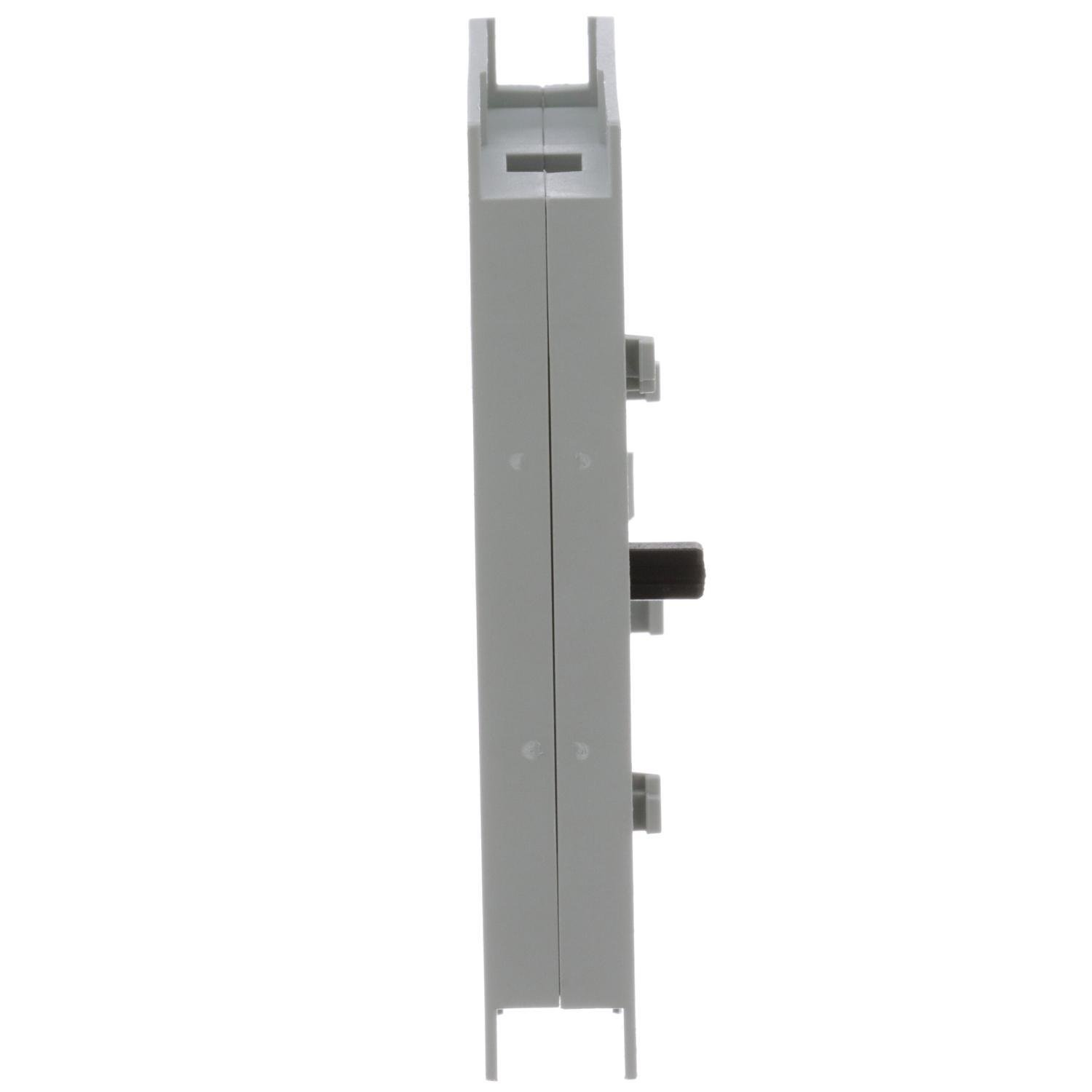

Picture of VLS1P040D1S - Disconnect switch, TeSys VLS, additional pole, 40A, for 16A to 40A switch, size 1, door mount Picture of VLS1P040D1S - Disconnect switch, TeSys VLS, additional pole, 40A, for 16A to 40A switch, size 1, door mount
Picture of VLS1P040D1S - Disconnect switch, TeSys VLS, additional pole, 40A, for 16A to 40A switch, size 1, door mount Picture of VLS1P040D1S - Disconnect switch, TeSys VLS, additional pole, 40A, for 16A to 40A switch, size 1, door mount
Picture of VLS1P040D1S - Disconnect switch, TeSys VLS, additional pole, 40A, for 16A to 40A switch, size 1, door mount Picture of VLS1P040D1S - Disconnect switch, TeSys VLS, additional pole, 40A, for 16A to 40A switch, size 1, door mount
Picture of VLS1P040D1S - Disconnect switch, TeSys VLS, additional pole, 40A, for 16A to 40A switch, size 1, door mount Picture of VLS1P040D1S - Disconnect switch, TeSys VLS, additional pole, 40A, for 16A to 40A switch, size 1, door mount
Picture of VLS1P040D1S - Disconnect switch, TeSys VLS, additional pole, 40A, for 16A to 40A switch, size 1, door mount Picture of VLS1P040D1S - Disconnect switch, TeSys VLS, additional pole, 40A, for 16A to 40A switch, size 1, door mount
Schneider Electric

VLS1P040D1S - Disconnect switch, TeSys VLS, additional pole, 40A, for 16A to 40A switch, size 1, door mount

Item Code: 994657
Category Disconnect Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref VLS1P040D1S

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This fourth pole adder can be added to a VLS3P016R1, VLS3P025R1, VLS3P032R1 or VLS3P040R1 door mount switch. This fourth pole adder for door mounted devices can be mounted on the right or left hand side. This simultaneous closing adder pole has one normally open contact The operational voltage of this fourth pole adder module is 600 Vac 50/60 Hz. This fourth pole adder module has a 40 A current rating. The screw clamp terminals will accept 18 AWG to 6 AWG wire. Fourth pole adder is 3.07 inches tall, 0.47 inches wide and 1.72 inches deep. It weighs 0.09 lbs. This fourth pole adder block is cULus Listed and meets IEC 60947-3 requirements.

Specifications

Weight

0.1lb

Height

78mm

Width

2.61mm

Length

3.16mm

Depth

43.6mm

AD All Features

Flexible installation

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

IT

AD Invoice Description

POLE FOURTH 690VAC 40A SCR CLAMP DOOR

AD Item Features 01

Flexible installation

AD Item Features 02

Handles designed with multiple hole patterns

AD Item Features 03

Red or black handles with reduced thickness

AD Item Features 04

Wide variety of accessories

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.1600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.1000

AD Package Weight UOM

LB

AD Package Width

2.6100

AD Package Width UOM

IN

Brand

Schneider Electric

Category

DISCONNECT MOTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

40

Spec 2 Attribute

Mounting Type

Spec 2 Attribute Value

Door

Spec 3 Attribute

Series

Spec 3 Attribute Value

VLS1P

Spec 4 Attribute

Suitable For Use With

Spec 4 Attribute Value

TeSys™ Vario™ Series VLS3P040D1 Disconnect Switch

Spec 5 Attribute

Terminals/Conductor Size

Spec 5 Attribute Value

Screw clamp

Spec 6 Attribute

Type

Spec 6 Attribute Value

High Performance

Spec 7 Attribute

Voltage Rating

Spec 7 Attribute UOM

V AC

Spec 7 Attribute Value

690
