Schneider Electric

VLS3P030R2 - Disconnect Switch

Category Rotary Motor Switches & Accessories

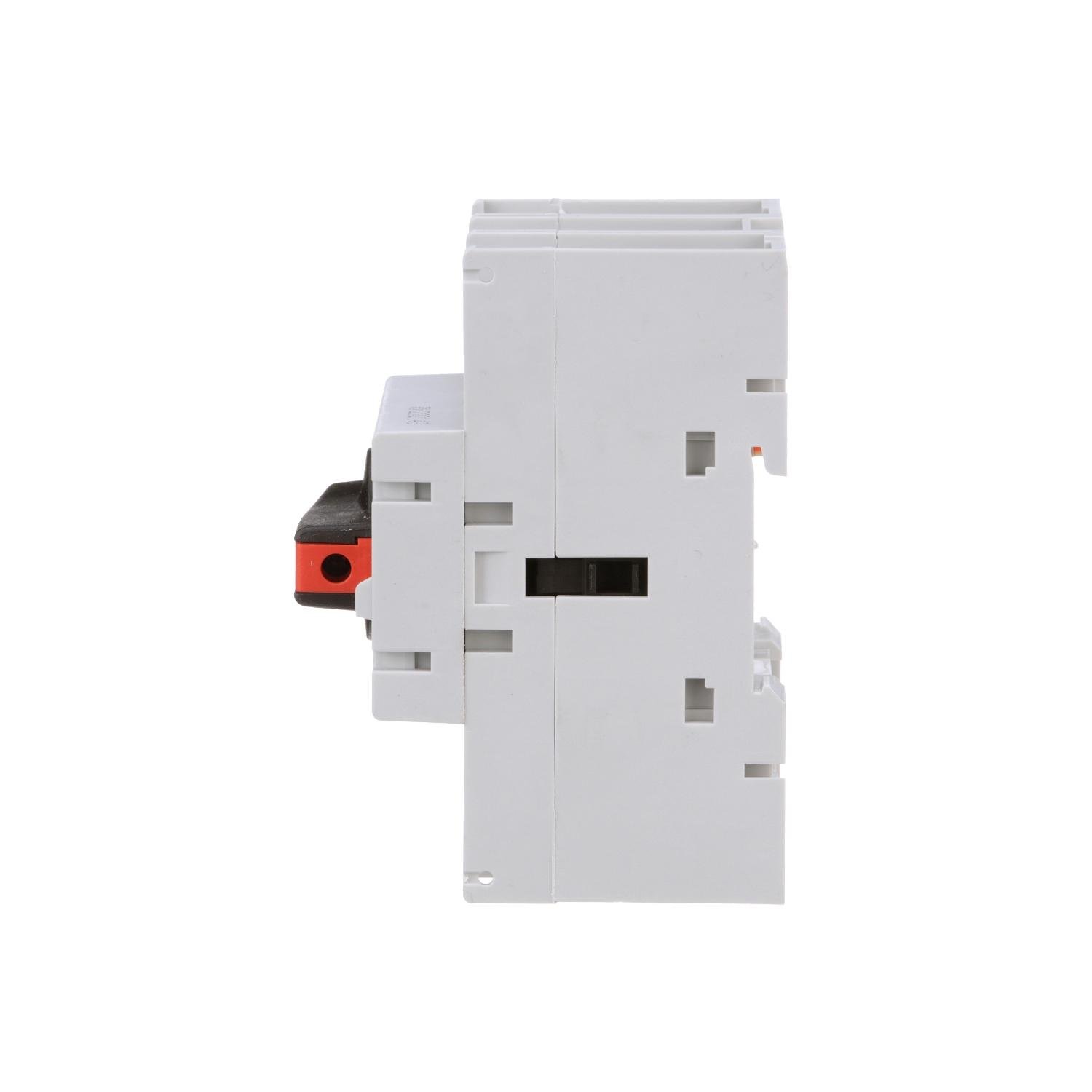

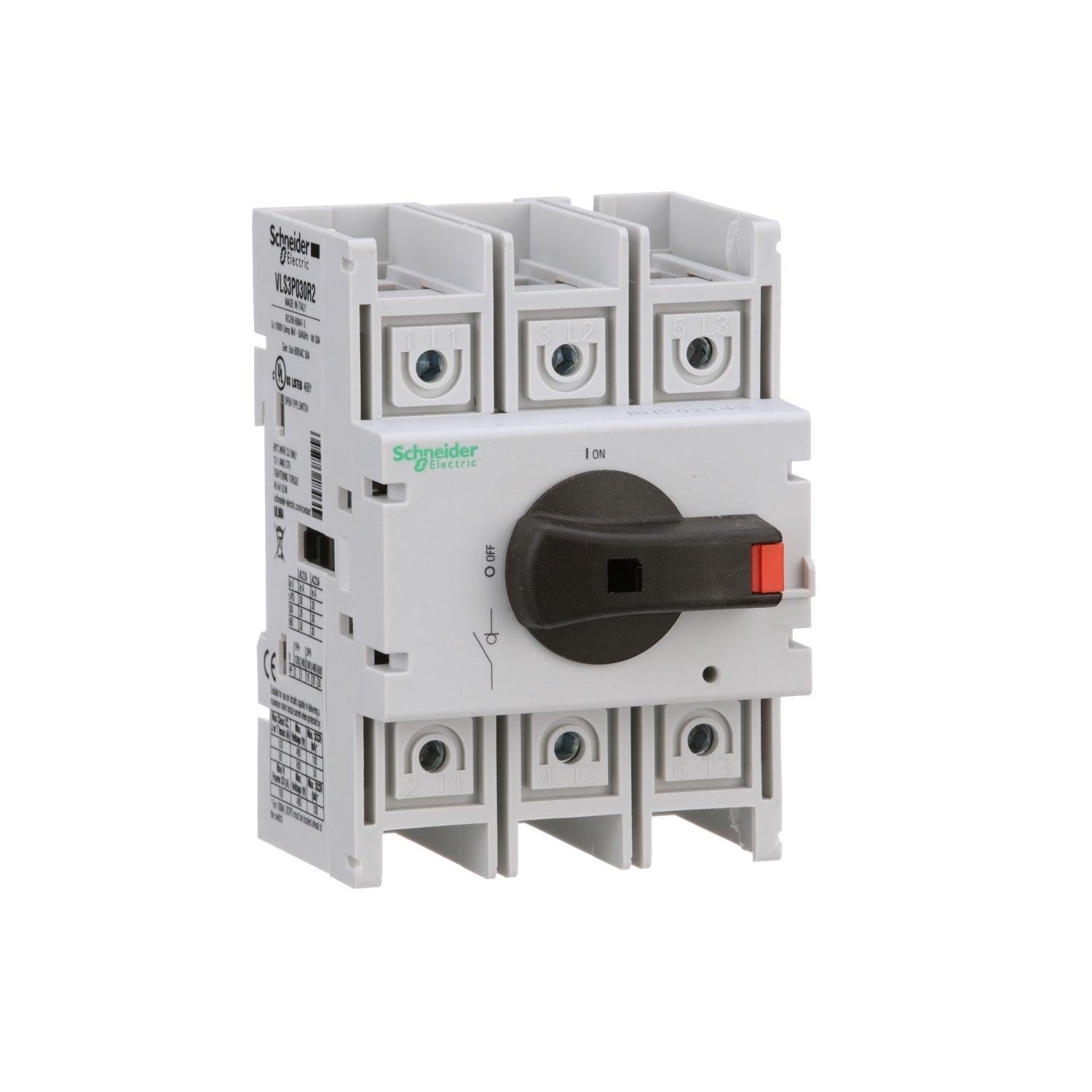

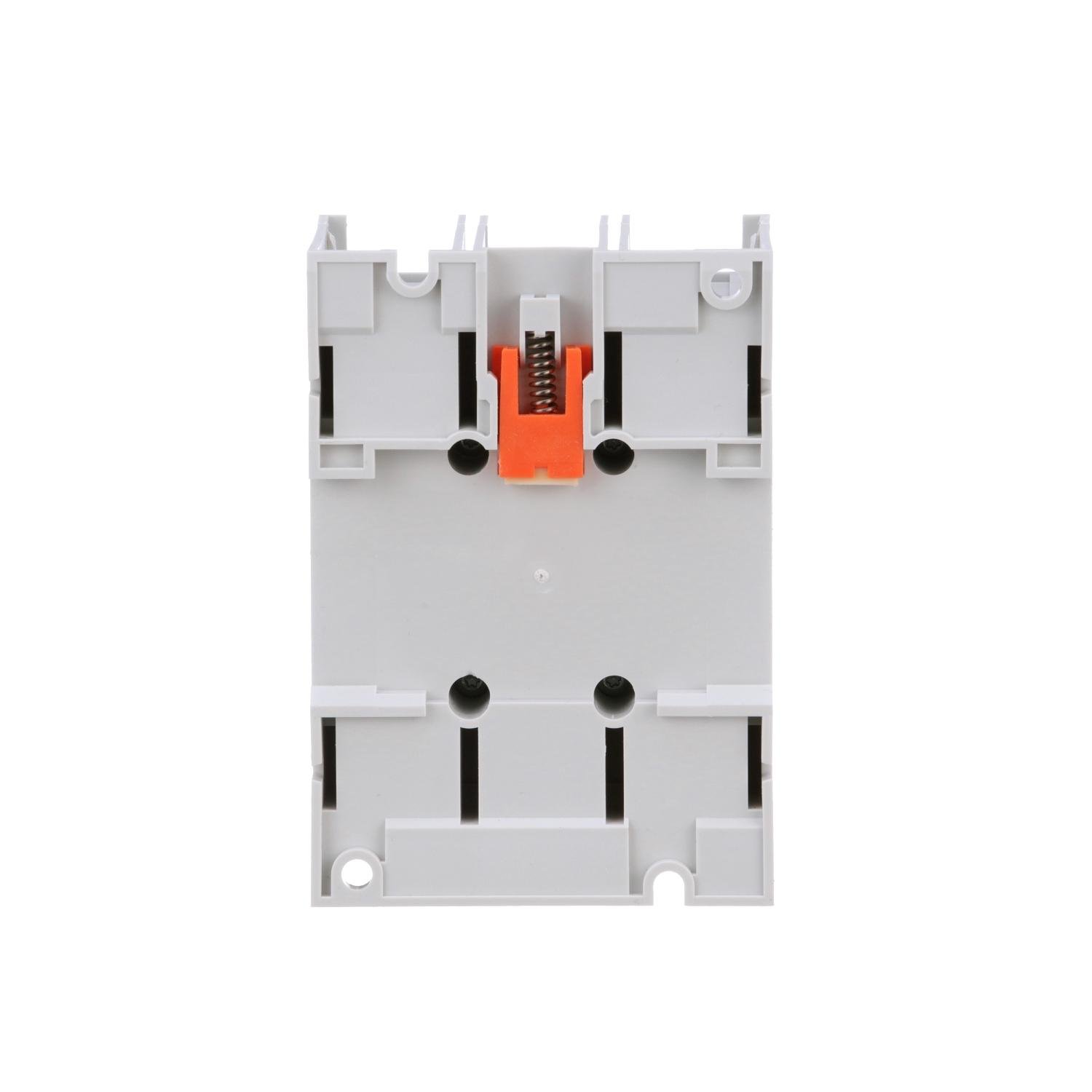

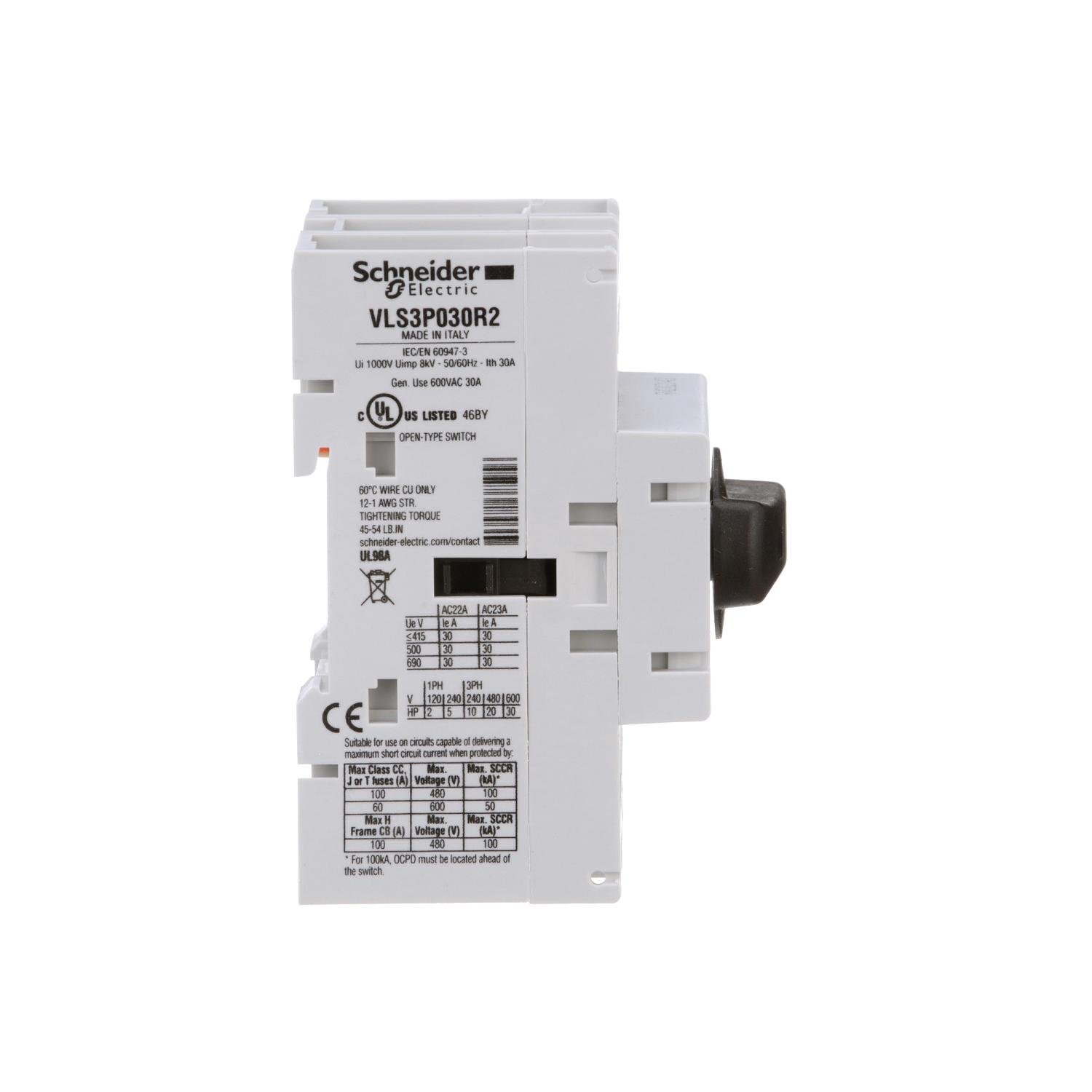

Picture of VLS3P030R2 - Disconnect Switch Picture of VLS3P030R2 - Disconnect Switch
Picture of VLS3P030R2 - Disconnect Switch Picture of VLS3P030R2 - Disconnect Switch
Picture of VLS3P030R2 - Disconnect Switch Picture of VLS3P030R2 - Disconnect Switch
Picture of VLS3P030R2 - Disconnect Switch Picture of VLS3P030R2 - Disconnect Switch
Picture of VLS3P030R2 - Disconnect Switch Picture of VLS3P030R2 - Disconnect Switch
Schneider Electric

VLS3P030R2 - Disconnect Switch

Item Code: 1160667
Category Rotary Motor Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref VLS3P030R2

Document
Document
Call for Availability
Add to Favorites
Compare

Description

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This 30A disconnect switch has 3 normally open poles and mounts on DIN rail. Per UL and CSA this this disconnect switch has a 2 HP rating at 120 VAC and a 5 HP at 240 VAC single phase. Per UL and CSA this disconnect switch has a 10HP rating at 200 to 208 VAC and 240 VAC, a 20HP rating at 480 VAC and a 30 HP rating at 600 VAC three phase. This disconnect switch has up to a 100 kA at 480 V short circuit current rating (SCCR) with a 100A Type J fuse maximum. Per IEC requirements, this disconnect switch has a 15 kW rating at 400 V, a 22 kW rating at 500 V and a 22 kW rating at 690V three phase. The screw clamps will accept from 12 AWG to 1 AWG wire. The screw clamp terminals will also accept 4 mm to 70 mm wire. This disconnect switch is 3.94 inches tall, 2.75 inches wide and 2.95 inches deep. The switch weighs 0.80 lbs. There are many accessories available this TeSys VLS disconnect switch. This TeSys VLS disconnect switch is UL Listed per UL98, CSA certified per CSA 22.2 and meets IEC 60947-3 requirements.

Specifications

AD All Features

Flexible installation

AD Application

For integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Invoice Description

OPEN RTRY CTRL DISC 30A 3 3PH 100KA

AD Item Features 01

Flexible installation

AD Item Features 02

Handles designed with multiple hole patterns

AD Item Features 03

Red or black handles with reduced thickness

AD Item Features 04

Wide variety of accessories

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

Brand

Square D

Category

ROTARY MOTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

30

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

3.94 in H x 2.75 in W x 2.95 in D

Spec 3 Attribute

Mounting Type

Spec 3 Attribute Value

DIN Rail

Spec 4 Attribute

Number Of Poles

Spec 4 Attribute Value

3

Spec 5 Attribute

PHASE

Spec 5 Attribute UOM

PH

Spec 5 Attribute Value

3

Spec 6 Attribute

Short Circuit Current Rating

Spec 6 Attribute UOM

KA

Spec 6 Attribute Value

100
