Square D

VW3A1111 - graphic display terminal, Altivar, 240 x 160pixels, IP65

Category Drive Accessories

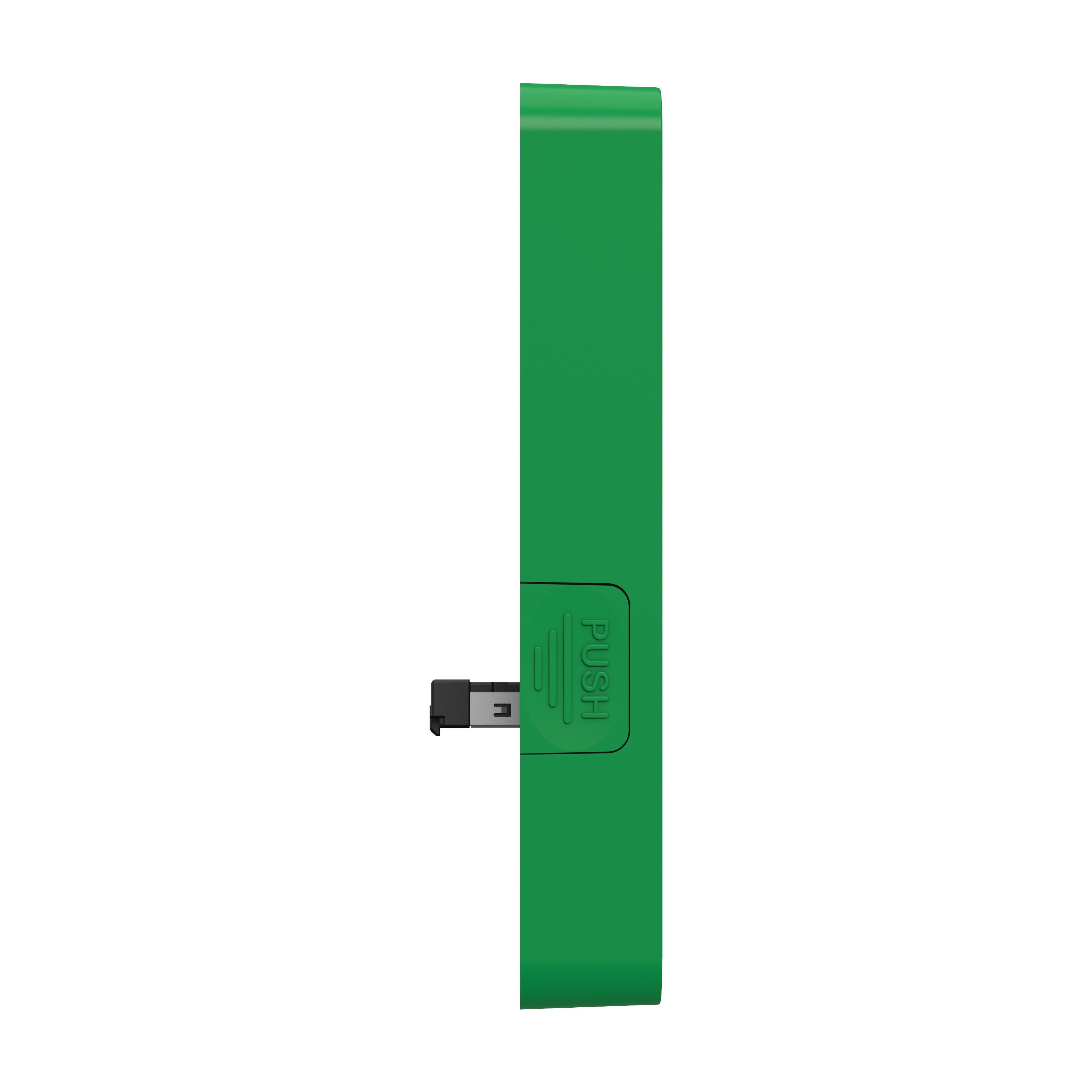

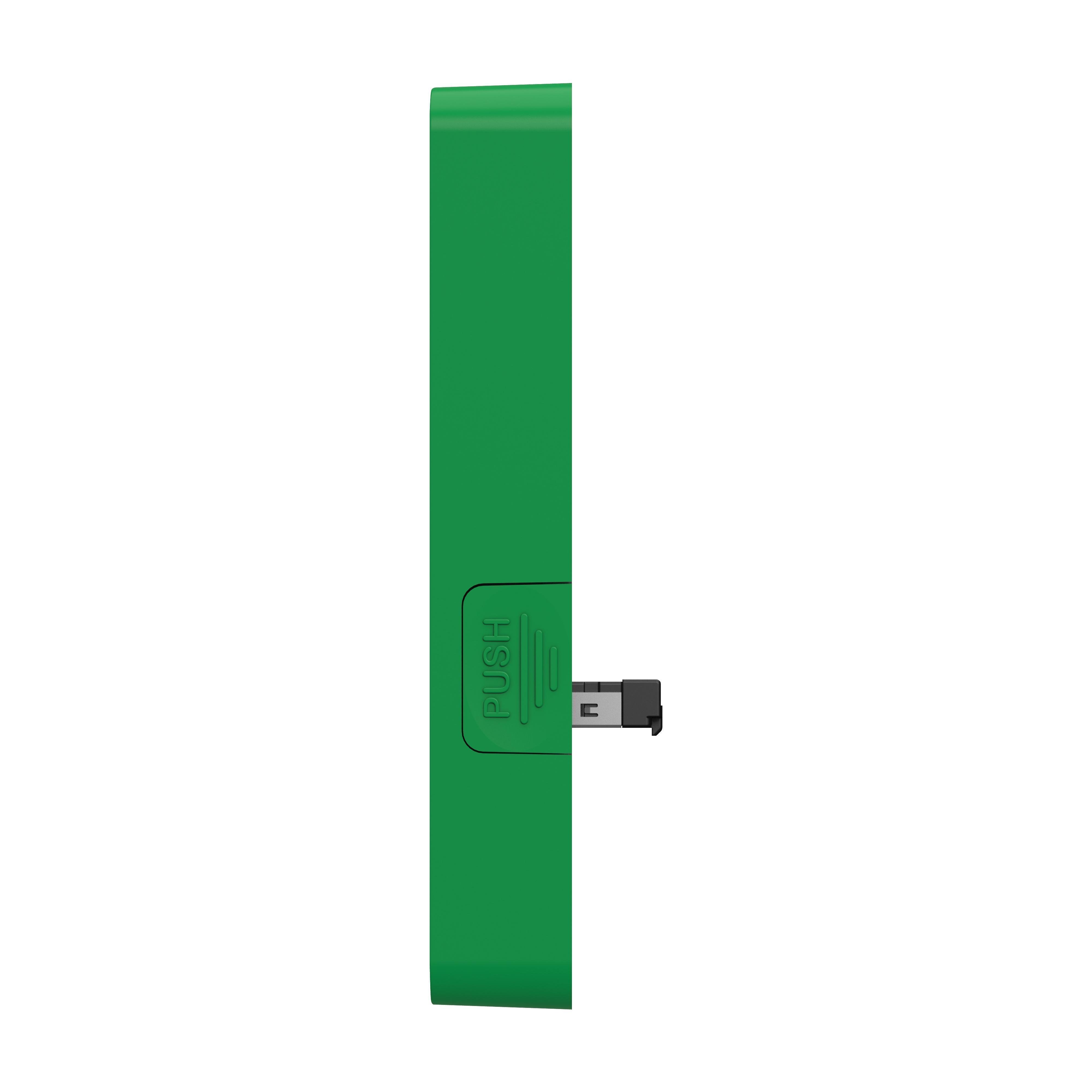

Picture of VW3A1111 - graphic display terminal, Altivar, 240 x 160pixels, IP65 Picture of VW3A1111 - graphic display terminal, Altivar, 240 x 160pixels, IP65
Picture of VW3A1111 - graphic display terminal, Altivar, 240 x 160pixels, IP65 Picture of VW3A1111 - graphic display terminal, Altivar, 240 x 160pixels, IP65
Picture of VW3A1111 - graphic display terminal, Altivar, 240 x 160pixels, IP65 Picture of VW3A1111 - graphic display terminal, Altivar, 240 x 160pixels, IP65
Square D

VW3A1111 - graphic display terminal, Altivar, 240 x 160pixels, IP65

Item Code: 976288
Category Drive Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref VW3A1111

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This graphic terminal is an option for variable speed drives of Altivar range. It is a dialogue option for the variable speed drive. Its protection index is IP65. This terminal can be connected and mounted on the front of the drive or on an enclosure door using a remote mounting accessory, it also can be connected to a PC to exchange files or to several drives in multidrop mode. Its maximum operating temperature is 50 °C. It provides a pixel resolution of 240 x 160 pixels and 8 lines of display. It weighs 200g. It provides 24 integrated languages (complete alphabets) covering the majority of countries around the world (other languages can be added). It is used to control, adjust and configure the drive, display the current values (motor, input/output values, etc.), save and download configurations (several configurations can be saved in the 16MB memory). A remote mounting kit for mounting on enclosure door with IP65 degree of protection is available as accessory, to be ordered separately.

Specifications

Weight

0.58lb

Width

5.34mm

Length

7.25mm

AD All Features

8-lines message display capability

AD Application

For use with Altivar™ process ATV600, ATV900, machine ATV340 variable speed drive applications

AD Brand (Description)

Square D

AD Country

USA

AD Country Of Origin

ID

AD Invoice Description

TERMINAL DSPL GRPH IP65 5 TO 122DEG F

AD Item Features 01

8-lines message display capability

AD Item Features 02

Energy Saving

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

7.2500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.5800

AD Package Weight UOM

LB

AD Package Width

5.3400

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/QMPSFFIYlDg

Brand

Square D

Category

Drive Accessories

Spec 1 Attribute

Color

Spec 1 Attribute Value

Red/White

Spec 2 Attribute

Enclosure Type

Spec 2 Attribute Value

IP65

Spec 3 Attribute

Series

Spec 3 Attribute Value

Altivar®

Spec 4 Attribute

Temperature Rating

Spec 4 Attribute UOM

deg F

Spec 4 Attribute Value

5 To 122

Spec 5 Attribute

Type

Spec 5 Attribute Value

Backlit LCD Screen
