Schneider Electric

XALACS1 - 22mm push button, Harmony, yellow control station, trigger action emergency stop, 40mm red mushroom, 1 NC, NEMA 13

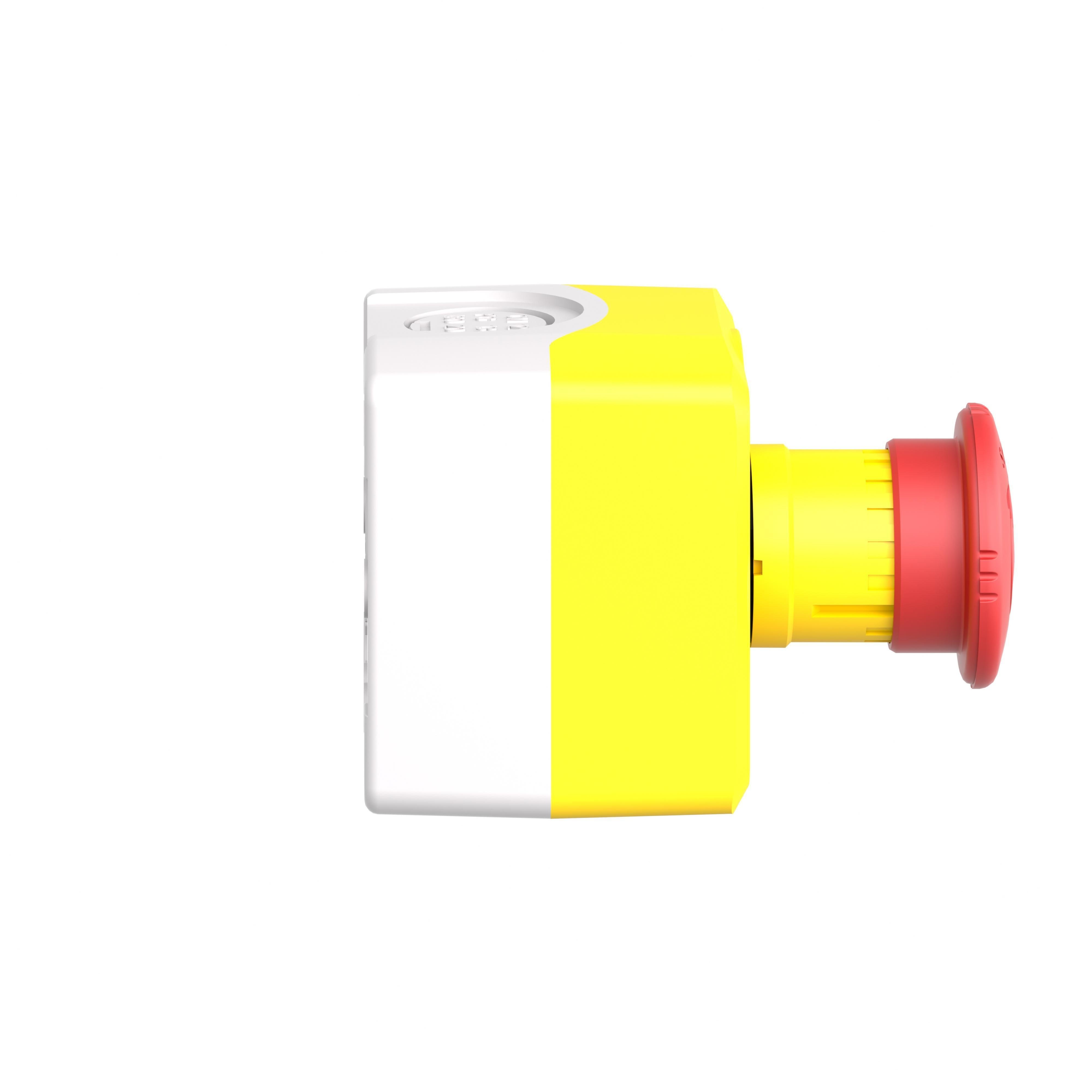

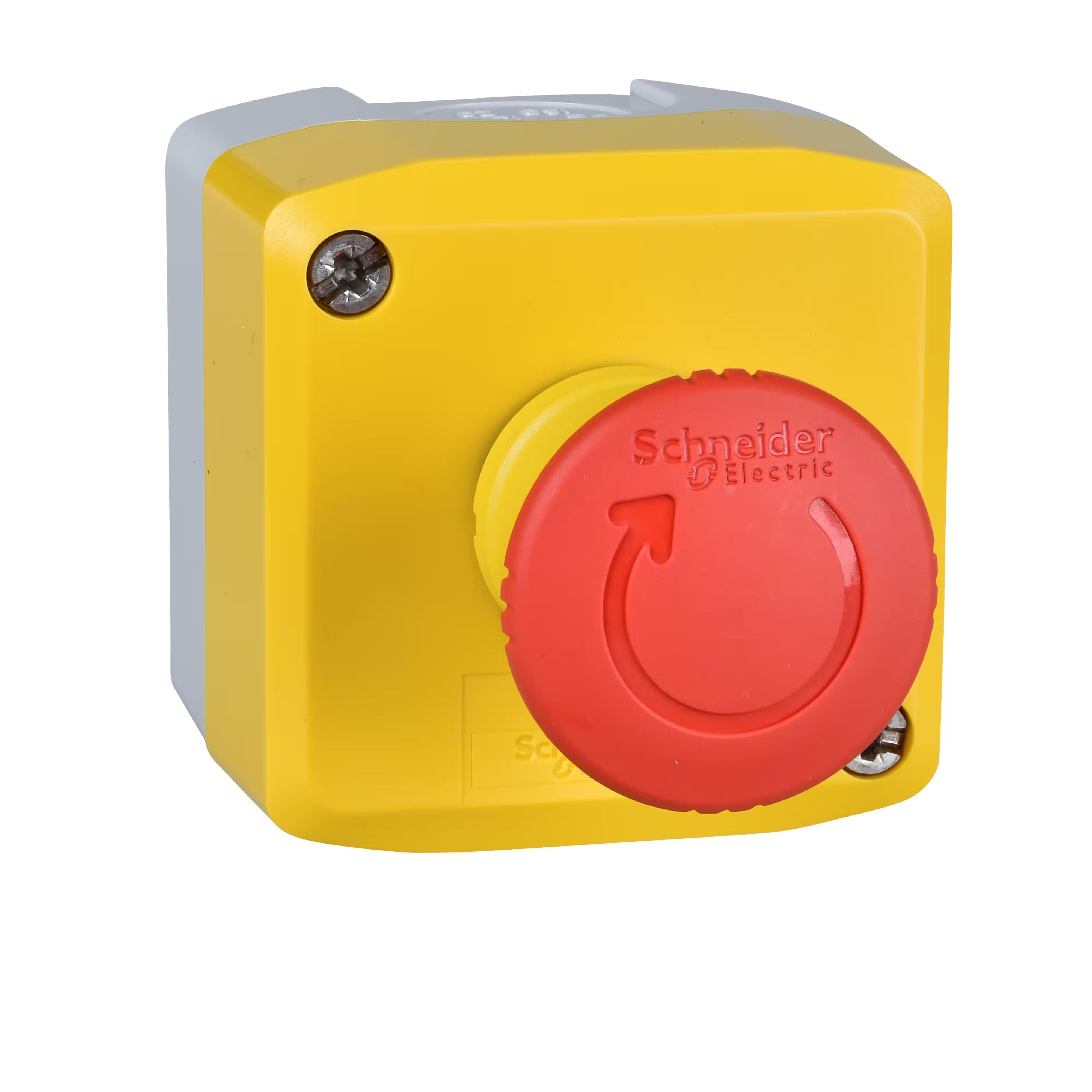

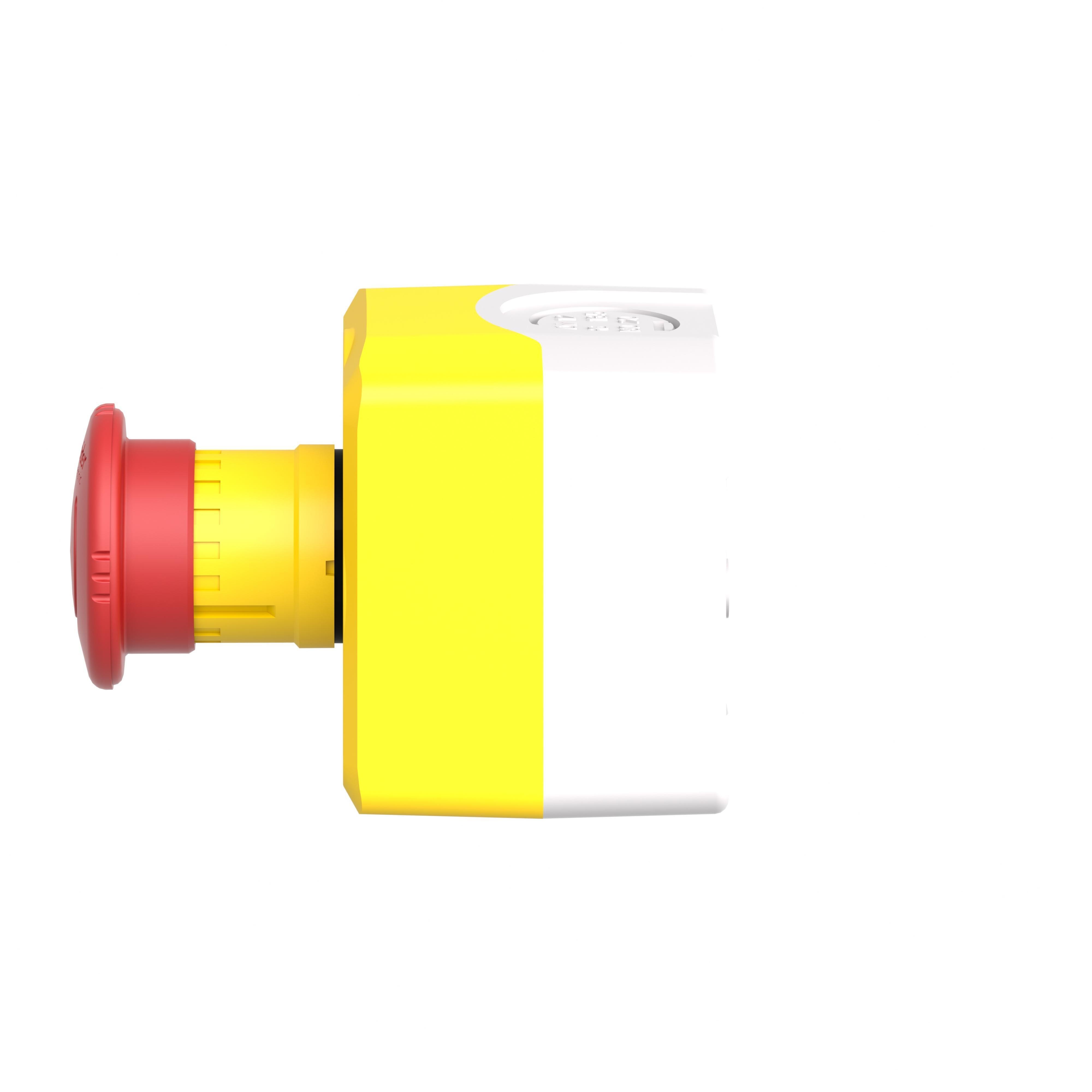

Picture of XALACS1 - 22mm push button, Harmony, yellow control station, trigger action emergency stop, 40mm red mushroom, 1 NC, NEMA 13 Picture of XALACS1 - 22mm push button, Harmony, yellow control station, trigger action emergency stop, 40mm red mushroom, 1 NC, NEMA 13
Picture of XALACS1 - 22mm push button, Harmony, yellow control station, trigger action emergency stop, 40mm red mushroom, 1 NC, NEMA 13 Picture of XALACS1 - 22mm push button, Harmony, yellow control station, trigger action emergency stop, 40mm red mushroom, 1 NC, NEMA 13
Picture of XALACS1 - 22mm push button, Harmony, yellow control station, trigger action emergency stop, 40mm red mushroom, 1 NC, NEMA 13 Picture of XALACS1 - 22mm push button, Harmony, yellow control station, trigger action emergency stop, 40mm red mushroom, 1 NC, NEMA 13
Picture of XALACS1 - 22mm push button, Harmony, yellow control station, trigger action emergency stop, 40mm red mushroom, 1 NC, NEMA 13 Picture of XALACS1 - 22mm push button, Harmony, yellow control station, trigger action emergency stop, 40mm red mushroom, 1 NC, NEMA 13
Schneider Electric

XALACS1 - 22mm push button, Harmony, yellow control station, trigger action emergency stop, 40mm red mushroom, 1 NC, NEMA 13

Item Code: 1059633
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XALACS1

Document
Document
Call for Availability
Add to Favorites
Compare

Description

XAL control stations are suitable for most common functions. XALK control stations are complete stations for emergency stop functions. This control station has an enclosure with a light grey box and a yellow cover. Control Station has a trigger action emergency stop operator with a 40mm red mushroom button. Operator is a turn to release push button. The operator has one normally closed contact. Control Station is 2.68 inches tall, 2.68 inches wide and 4.53 inches deep. The relay weighs 0.43 lbs. This point of purchase product is packaged in a blister pack. Control station is UL Listed and CSA certified. "This product is certified by IEC, UL, CSA and CE." "This range of control stations combines simplicity of setup with compact size and flexibility. It is ideal for applications requiring good resistance to chemical agents." "Plastic XALD/XALK control stations and enclosures for Ø 22mm plastic pushbuttons (XB5/ZB5 range)."

Specifications

Weight

0.5lb

Height

8.2mm

Width

5.35mm

Length

3.27mm

AD All Features

Low-load electrical contact

AD Application

For industry food and beverages, chemical industry, paper mill, marine, service sector and infrastructure energy distribution panel builders, food and beverages and car washes

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

STATION CTRL NEMA 13/IP66 MUSHROOM H

AD Item Features 01

Low-load electrical contact

AD Item Features 02

Fully-assembled

AD Item Features 03

Double electrical insulation

AD Manufacturer (Description)

Schneider Electric

AD Package Height

8.2000

AD Package Height UOM

IN

AD Package Length

3.2700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

146.1200

AD Package Volume UOM

cu-in

AD Package Weight

0.5000

AD Package Weight UOM

LB

AD Package Width

5.3500

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Push Button

Spec 2 Attribute

Color

Spec 2 Attribute Value

Light Gray/Red/Yellow

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

NEMA Rating

Spec 4 Attribute Value

NEMA 13/IP66

Spec 5 Attribute

Operating Temperature

Spec 5 Attribute UOM

deg C

Spec 5 Attribute Value

-25 to 70

Spec 6 Attribute

Operator Type

Spec 6 Attribute Value

Mushroom head

Spec 7 Attribute

Series

Spec 7 Attribute Value

XALA

Schneider Electric
