Schneider Electric

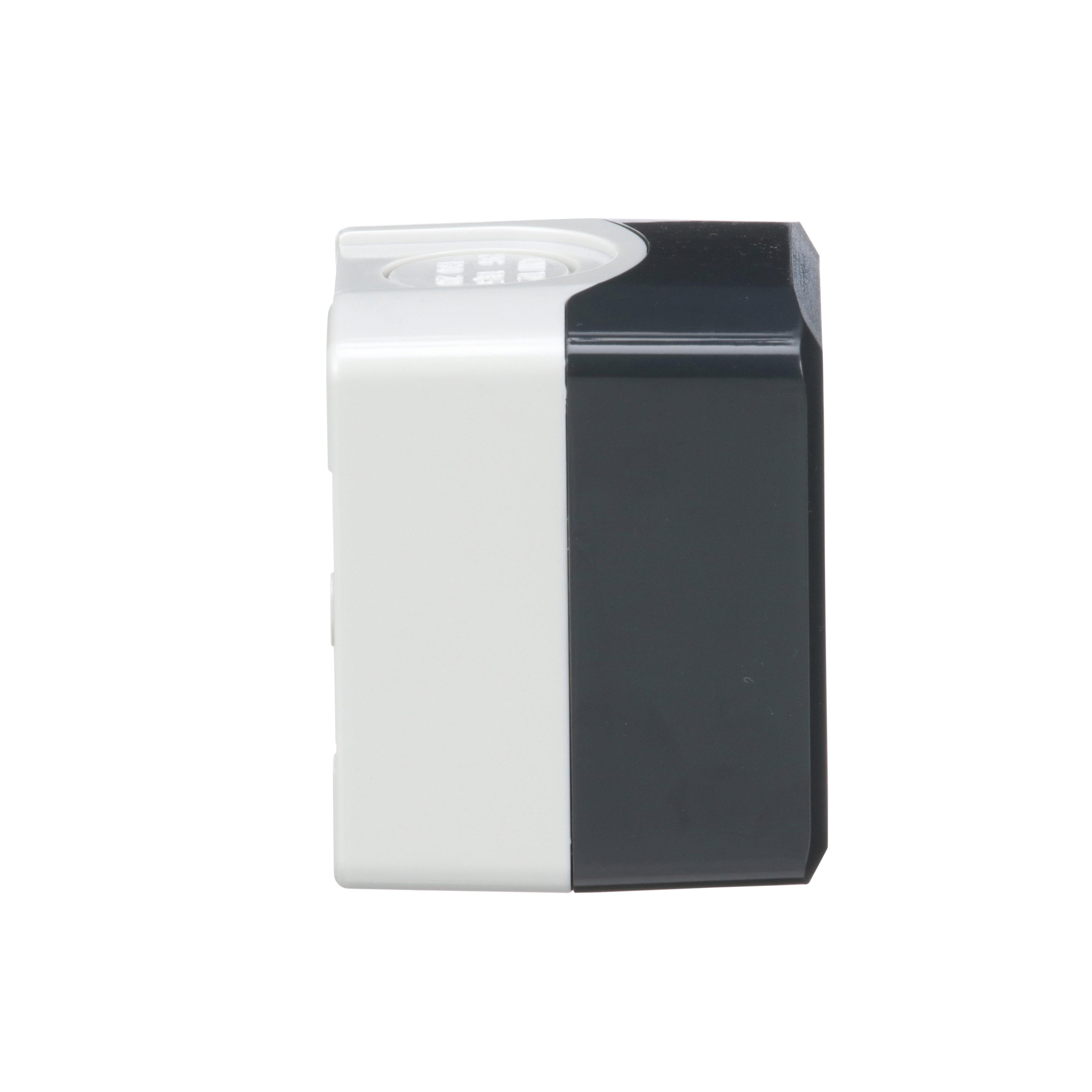

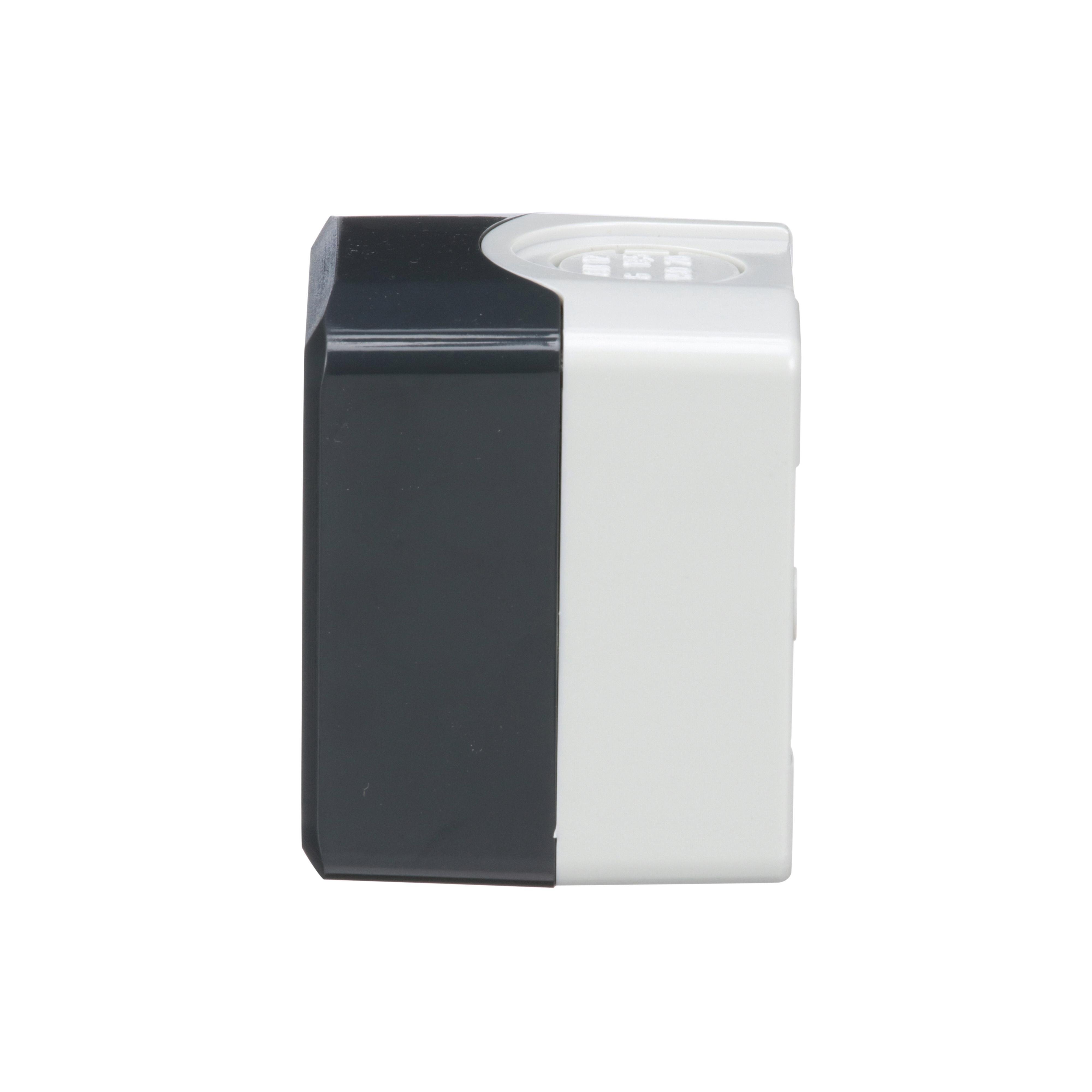

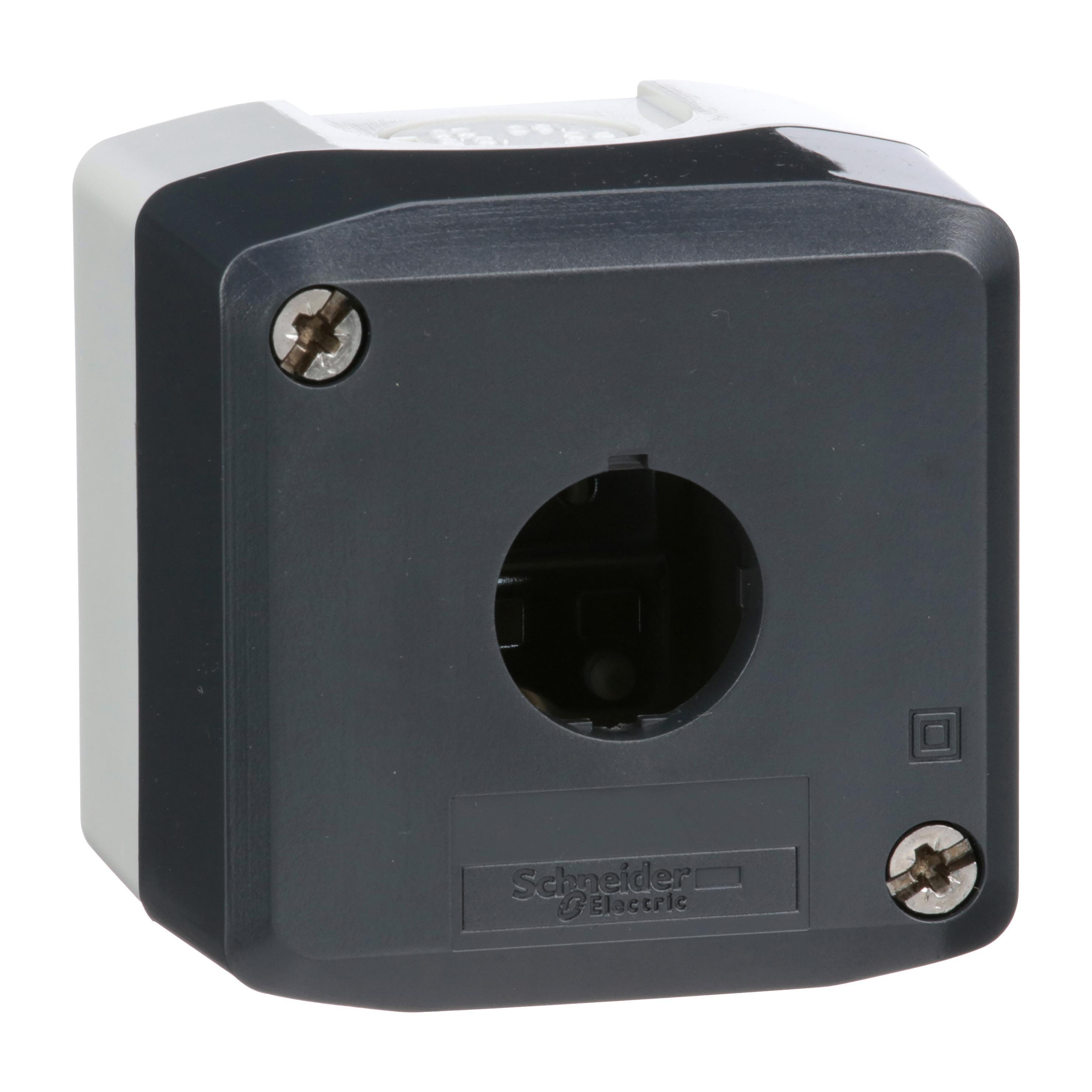

XALD01H7 - Harmony, enclosure, dark grey lid with light grey base, 1 opening, UL/CSA certified

Picture of XALD01H7 - Harmony, enclosure, dark grey lid with light grey base, 1 opening, UL/CSA certified Picture of XALD01H7 - Harmony, enclosure, dark grey lid with light grey base, 1 opening, UL/CSA certified
Picture of XALD01H7 - Harmony, enclosure, dark grey lid with light grey base, 1 opening, UL/CSA certified Picture of XALD01H7 - Harmony, enclosure, dark grey lid with light grey base, 1 opening, UL/CSA certified
Picture of XALD01H7 - Harmony, enclosure, dark grey lid with light grey base, 1 opening, UL/CSA certified Picture of XALD01H7 - Harmony, enclosure, dark grey lid with light grey base, 1 opening, UL/CSA certified
Picture of XALD01H7 - Harmony, enclosure, dark grey lid with light grey base, 1 opening, UL/CSA certified Picture of XALD01H7 - Harmony, enclosure, dark grey lid with light grey base, 1 opening, UL/CSA certified
Schneider Electric

XALD01H7 - Harmony, enclosure, dark grey lid with light grey base, 1 opening, UL/CSA certified

Item Code: 757565
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XALD01H7

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.26lb

Width

2.73mm

Length

3mm

AD Application

For 22 mm Dia control and signaling units

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

CZ

AD Invoice Description

STATION CTRL EMPTY 2.68IN 2.68IN 2.09IN

AD Item Features 01

Full compatibility with the Diameter 22 mm plastic push buttons, switches and pilot lights of the Harmony XB5 range

AD Item Features 02

Complete, ready-to-install stations with 1 to 3 buttons for the most common functions

AD Item Features 03

Modular system and simple to cable universal range

AD Item Features 04

Possibility to add up to 3 NO or NC contact blocks per operating head

AD Item Features 05

Large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.0000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2600

AD Package Weight UOM

LB

AD Package Width

2.7300

AD Package Width UOM

IN

Brand

Square D

Spec 1 Attribute

Color

Spec 1 Attribute Value

Light Gray

Spec 2 Attribute

Depth

Spec 2 Attribute UOM

IN

Spec 2 Attribute Value

2.09

Spec 3 Attribute

Length

Spec 3 Attribute UOM

IN

Spec 3 Attribute Value

2.68

Spec 4 Attribute

Material

Spec 4 Attribute Value

Polycarbonate

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Front/Rear/Panel

Spec 6 Attribute

NEMA Rating

Spec 6 Attribute Value

NEMA 4X/13

Spec 7 Attribute

Series

Spec 7 Attribute Value

XALD

Spec 8 Attribute

Temperature Rating

Spec 8 Attribute UOM

deg F

Spec 8 Attribute Value

-40 To 158

Spec 9 Attribute

Width

Spec 9 Attribute UOM

IN

Spec 9 Attribute Value

2.68
