Schneider Electric

XALK178H7 - Harmony, yellow control station, red mushroom head push button, 40 mm turn to release, 1 NC

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

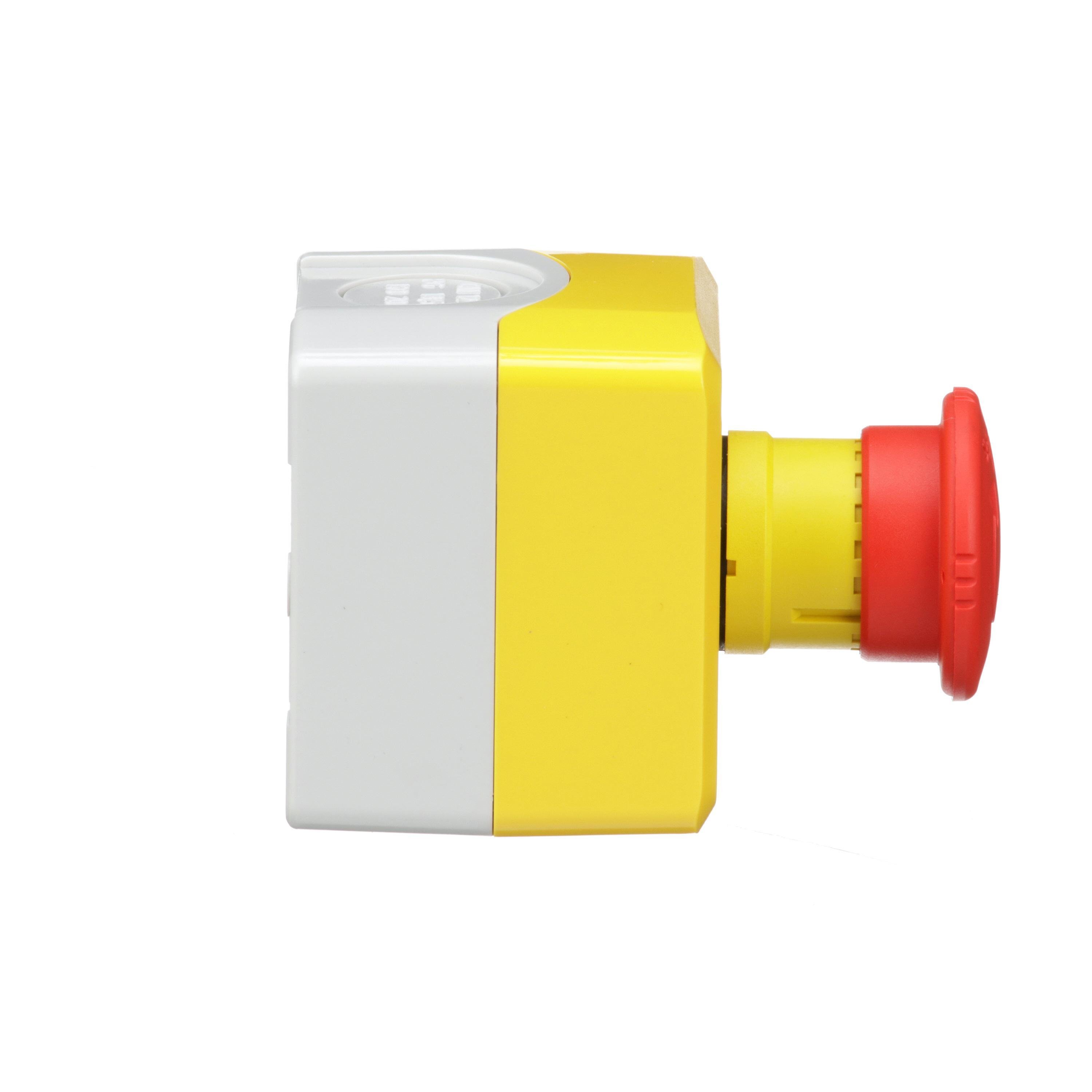

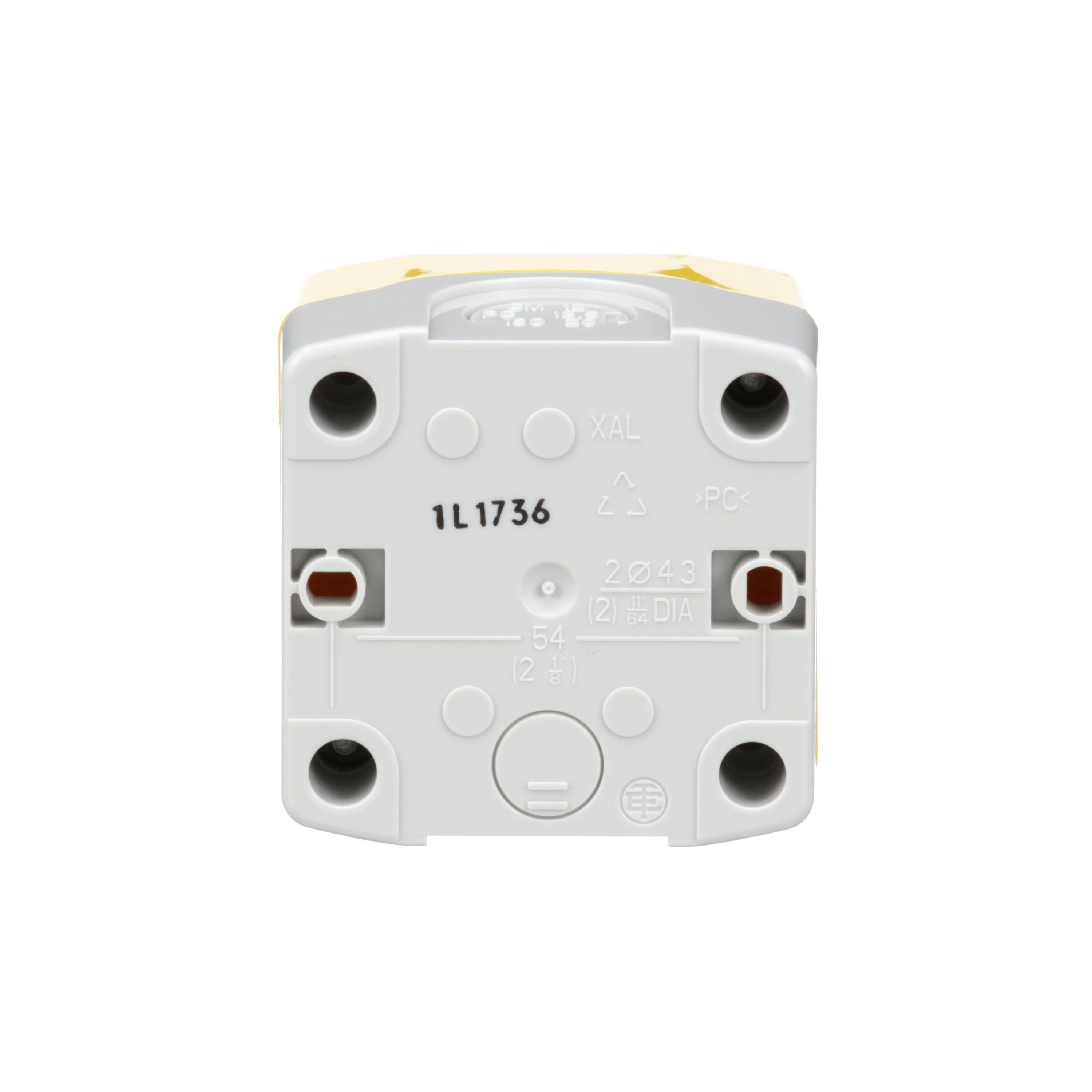

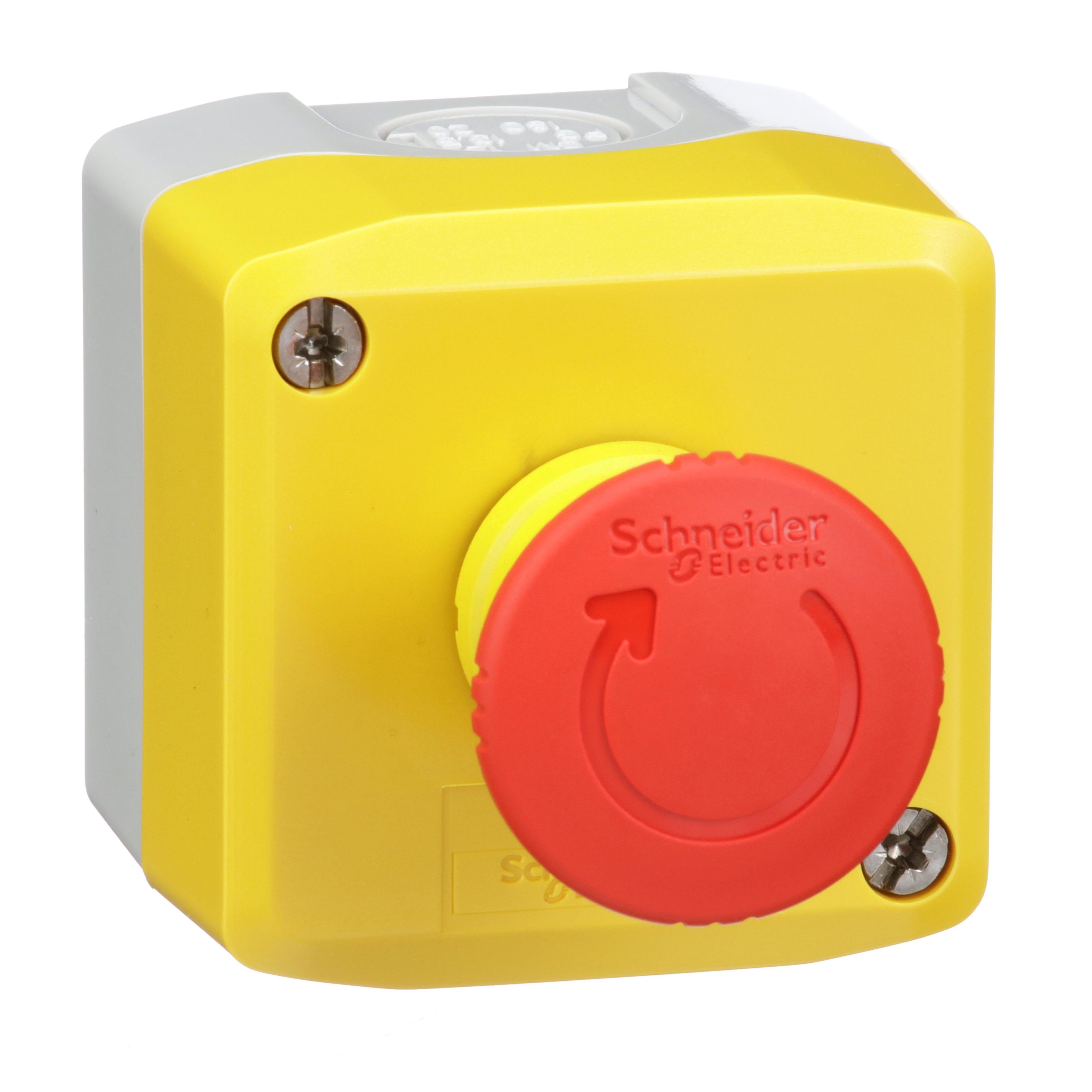

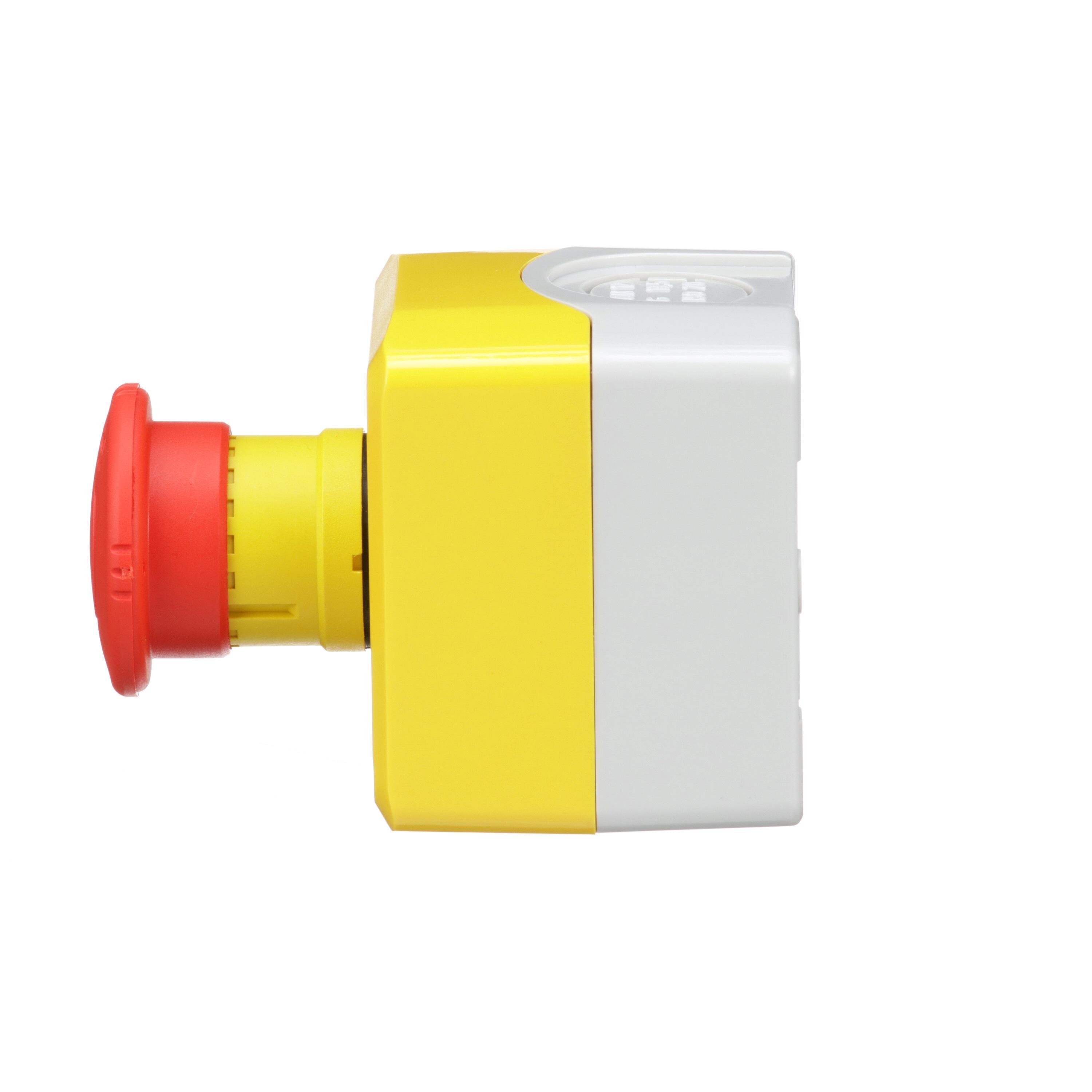

Picture of XALK178H7 - Harmony, yellow control station, red mushroom head push button, 40 mm turn to release, 1 NC Picture of XALK178H7 - Harmony, yellow control station, red mushroom head push button, 40 mm turn to release, 1 NC
Picture of XALK178H7 - Harmony, yellow control station, red mushroom head push button, 40 mm turn to release, 1 NC Picture of XALK178H7 - Harmony, yellow control station, red mushroom head push button, 40 mm turn to release, 1 NC
Picture of XALK178H7 - Harmony, yellow control station, red mushroom head push button, 40 mm turn to release, 1 NC Picture of XALK178H7 - Harmony, yellow control station, red mushroom head push button, 40 mm turn to release, 1 NC
Picture of XALK178H7 - Harmony, yellow control station, red mushroom head push button, 40 mm turn to release, 1 NC Picture of XALK178H7 - Harmony, yellow control station, red mushroom head push button, 40 mm turn to release, 1 NC
Picture of XALK178H7 - Harmony, yellow control station, red mushroom head push button, 40 mm turn to release, 1 NC Picture of XALK178H7 - Harmony, yellow control station, red mushroom head push button, 40 mm turn to release, 1 NC
Schneider Electric

XALK178H7 - Harmony, yellow control station, red mushroom head push button, 40 mm turn to release, 1 NC

Item Code: 890612
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XALK178H7

Document
Document
Call for Availability
Add to Favorites
Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.36lb

Width

2.89mm

Length

3.82mm

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

STATION PUSHBUTTON CTRL 600VAC 10A 1NC 1

AD Item Features 01

Full compatibility with the Diameter 22 mm plastic push buttons, switches and pilot lights of the Harmony XB5 range

AD Item Features 02

Complete, ready-to-install stations with 1 to 3 buttons for the most common functions

AD Item Features 03

Modular system and simple to cable universal range

AD Item Features 04

Possibility to add up to 3 NO or NC contact blocks per operating head

AD Item Features 05

Large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.8200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.3600

AD Package Weight UOM

LB

AD Package Width

2.8900

AD Package Width UOM

IN

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Trigger Action/Turn To Release

Spec 10 Attribute

Material

Spec 10 Attribute Value

Polycarbonate

Spec 11 Attribute

Mounting Type

Spec 11 Attribute Value

Wall

Spec 12 Attribute

NEMA Rating

Spec 12 Attribute Value

NEMA 13/4X

Spec 13 Attribute

Number Of Poles

Spec 13 Attribute Value

1

Spec 14 Attribute

Operating Temperature

Spec 14 Attribute UOM

deg C

Spec 14 Attribute Value

-25 to 70

Spec 15 Attribute

Operator Type

Spec 15 Attribute Value

Mushroom head

Spec 16 Attribute

Series

Spec 16 Attribute Value

XALK

Spec 17 Attribute

Voltage Rating

Spec 17 Attribute UOM

V AC

Spec 17 Attribute Value

600

Spec 2 Attribute

Amperage Rating

Spec 2 Attribute UOM

A

Spec 2 Attribute Value

10

Spec 3 Attribute

Color

Spec 3 Attribute Value

Light Gray/Yellow

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Screw clamp

Spec 5 Attribute

Contact Configuration

Spec 5 Attribute Value

1NC

Spec 6 Attribute

Contact Mode

Spec 6 Attribute Value

Maintained

Spec 7 Attribute

Contact Rating

Spec 7 Attribute Value

10 A at 600 V AC/AC 15 to DC 13

Spec 8 Attribute

Dimensions

Spec 8 Attribute Value

16 in L x 12 in W x 12 in H

Spec 9 Attribute

Legend

Spec 9 Attribute Value

EMERGENCY STOP/EMERGENCY OFF
