Schneider Electric

XB4AS2 - Selector switch, Harmony XB4, black, 22mm, 3 positions, stay put, 2NO

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

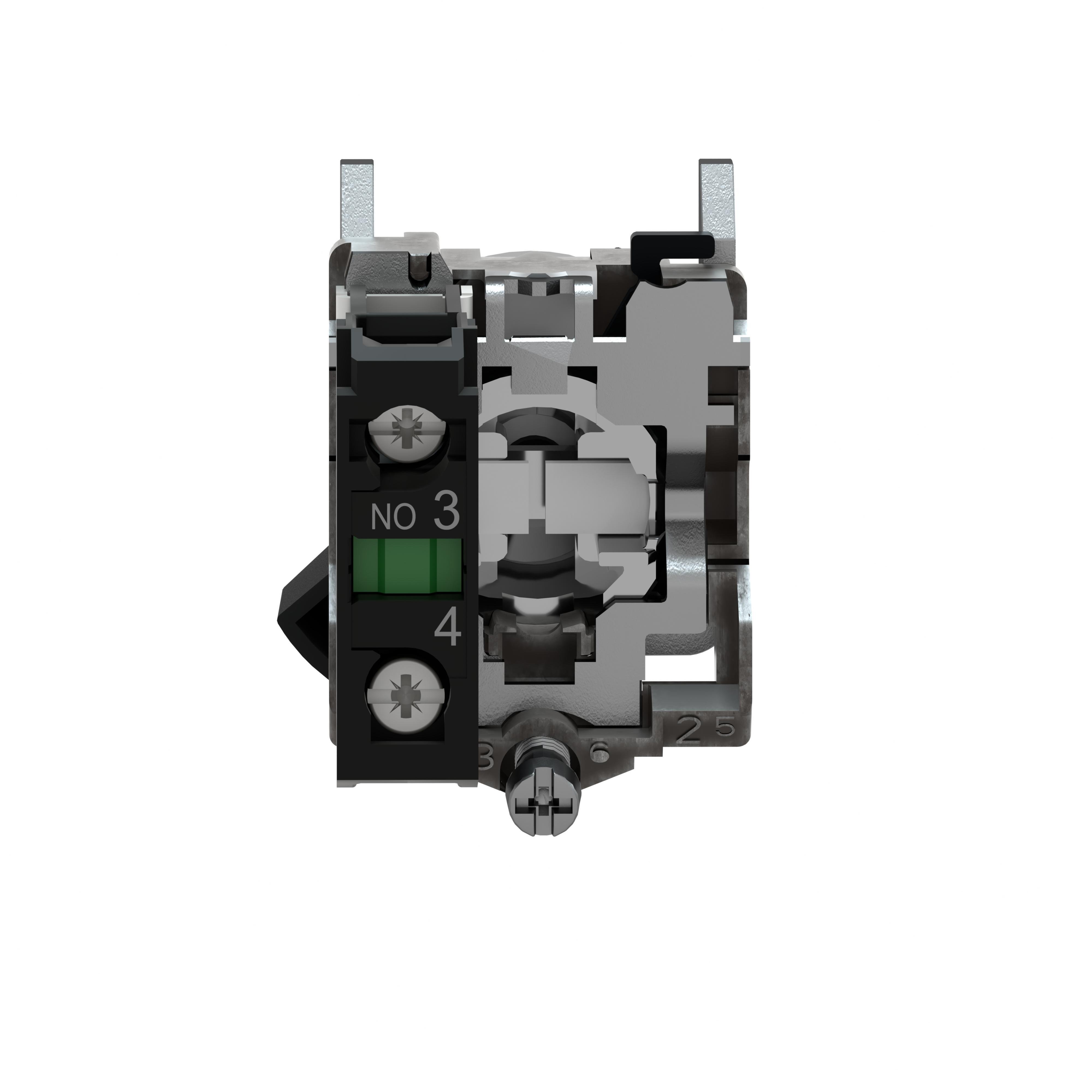

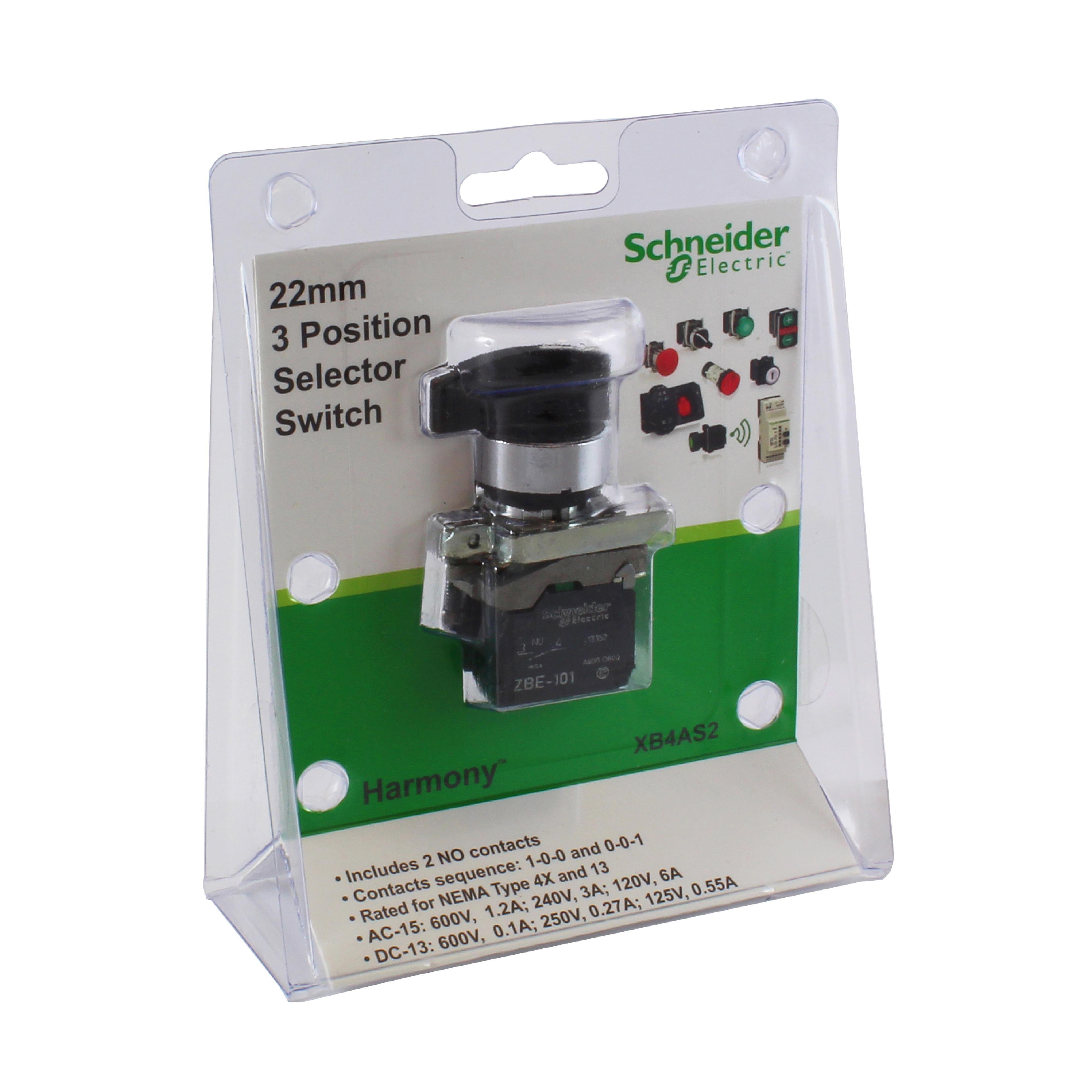

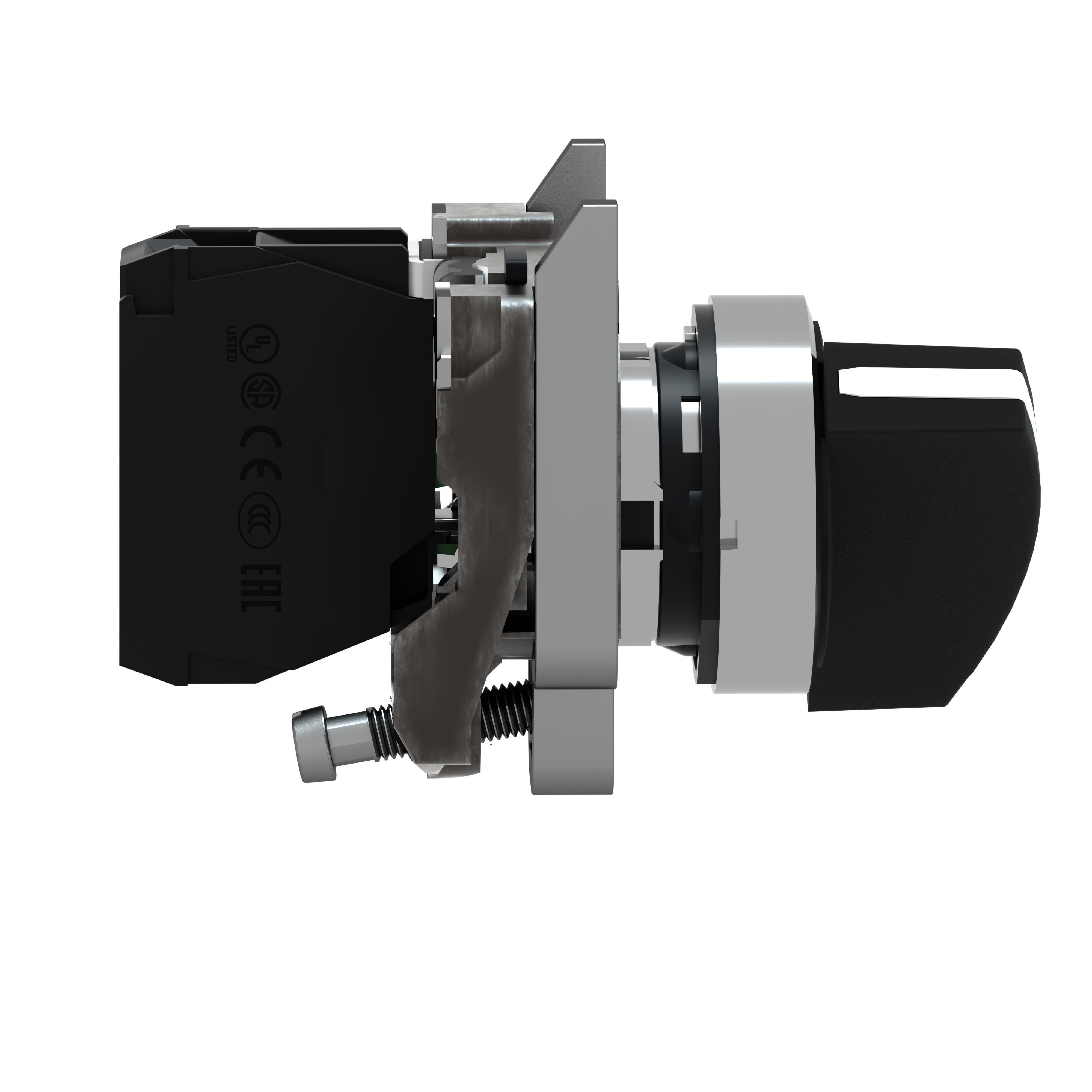

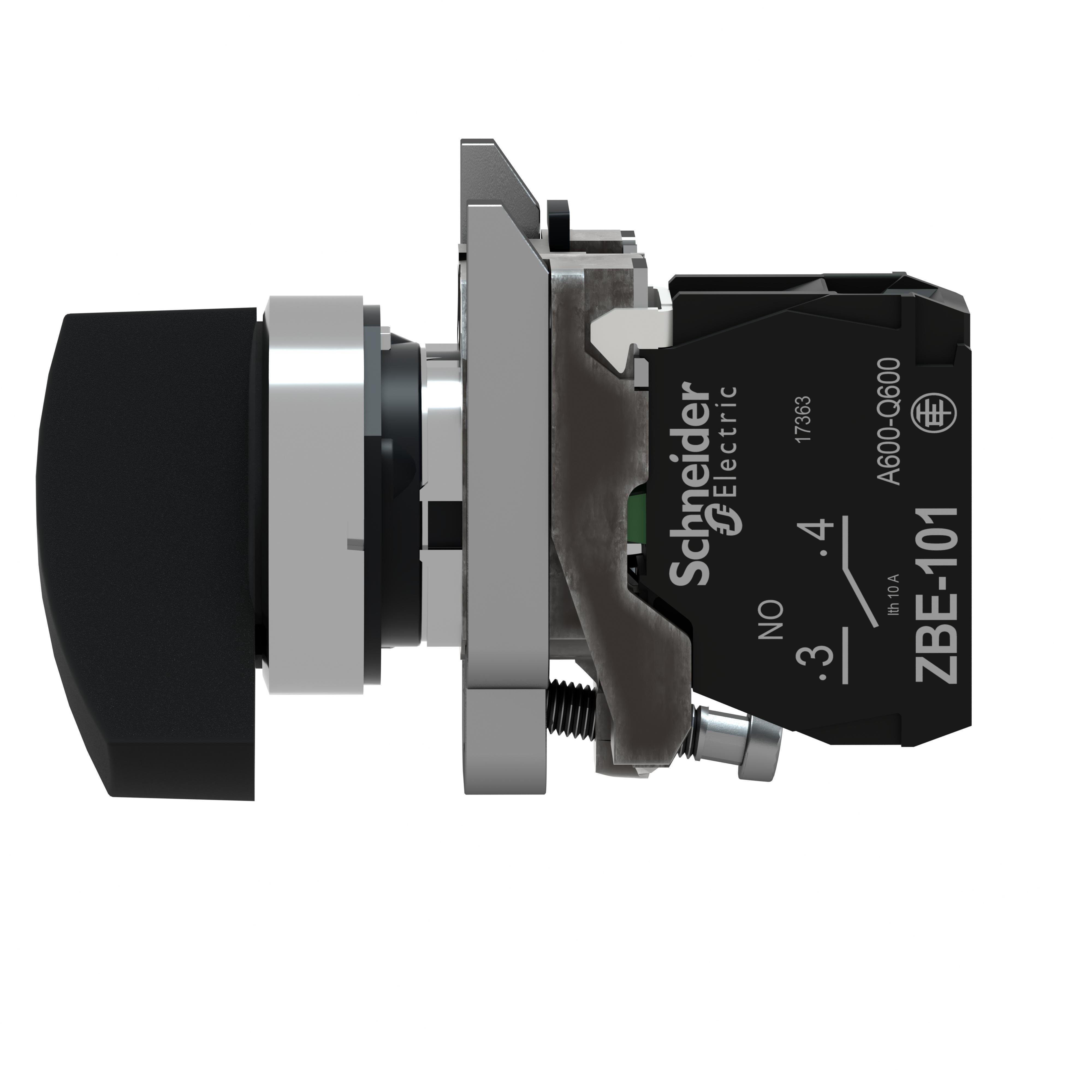

Picture of XB4AS2 - Selector switch, Harmony XB4, black, 22mm, 3 positions, stay put, 2NO Picture of XB4AS2 - Selector switch, Harmony XB4, black, 22mm, 3 positions, stay put, 2NO
Picture of XB4AS2 - Selector switch, Harmony XB4, black, 22mm, 3 positions, stay put, 2NO Picture of XB4AS2 - Selector switch, Harmony XB4, black, 22mm, 3 positions, stay put, 2NO
Picture of XB4AS2 - Selector switch, Harmony XB4, black, 22mm, 3 positions, stay put, 2NO Picture of XB4AS2 - Selector switch, Harmony XB4, black, 22mm, 3 positions, stay put, 2NO
Picture of XB4AS2 - Selector switch, Harmony XB4, black, 22mm, 3 positions, stay put, 2NO Picture of XB4AS2 - Selector switch, Harmony XB4, black, 22mm, 3 positions, stay put, 2NO
Picture of XB4AS2 - Selector switch, Harmony XB4, black, 22mm, 3 positions, stay put, 2NO Picture of XB4AS2 - Selector switch, Harmony XB4, black, 22mm, 3 positions, stay put, 2NO
Schneider Electric

XB4AS2 - Selector switch, Harmony XB4, black, 22mm, 3 positions, stay put, 2NO

Item Code: 1037108
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB4AS2

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This selector switch provides an ergonomic interface for controlling your machines Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K, making it ideal for operation in harsh environments It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections High performance International standards & certifications (Marine ABS certification, Type 1, 2, 3, 3R, 4, 4X, 12 and 13)

Specifications

Weight

1lb

Height

2.3mm

Width

6.44mm

Length

41.54mm

Depth

68mm

AD Application

Machine Manufacturers (Automotive, Textiles, Timber), Control System Panel Builders, Energy Distribution Panel Builders, Public Works, Building, Airports and Industrial Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH NON-ILLUMINATED SEL 22MM 1NO BK

AD Item Features 01

Quick and easy assembly and disassembly

AD Item Features 02

Robustness to withstand harsh environments

AD Item Features 03

Various types of connection - screw clamp, connector, Faston connector or spring terminal

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

Large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.3000

AD Package Height UOM

IN

AD Package Length

41.5400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

78.0200

AD Package Volume UOM

cu-in

AD Package Weight

1.0000

AD Package Weight UOM

LB

AD Package Width

6.4400

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/kSLYD1dXJVc

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Bezel/Housing

Spec 1 Attribute Value

Chromium Plated Metal

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Snap-Fit

Spec 11 Attribute

Number of Positions

Spec 11 Attribute Value

3

Spec 12 Attribute

Operator Type

Spec 12 Attribute Value

Lever

Spec 13 Attribute

Series

Spec 13 Attribute Value

XB4

Spec 14 Attribute

Size

Spec 14 Attribute UOM

MM

Spec 14 Attribute Value

22

Spec 15 Attribute

Throw

Spec 15 Attribute UOM

deg

Spec 15 Attribute Value

90

Spec 16 Attribute

Type

Spec 16 Attribute Value

Corrosion-Resistant Dusttight/Oiltight/Watertight Round

Spec 2 Attribute

Color

Spec 2 Attribute Value

Black

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Screw clamp

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

1NO

Spec 5 Attribute

Contact Mode

Spec 5 Attribute Value

Stay Put

Spec 6 Attribute

Contact Rating

Spec 6 Attribute Value

6 A at 120 V AC, 3 A at 240 V AC, 1.2 A at 600 V AC, 0.55 A at 125 V DC, 0.27 A at 250 V DC, 0.1 A at 600 V DC

Spec 7 Attribute

Contact Type

Spec 7 Attribute Value

Slow Break

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

NEMA 1/2/3/3R/4/4X/12/13/IP65/IP69K

Spec 9 Attribute

Environmental Conditions

Spec 9 Attribute Value

-13 to 158 deg F Operating, -40 to 158 deg F Storage
