Schneider Electric

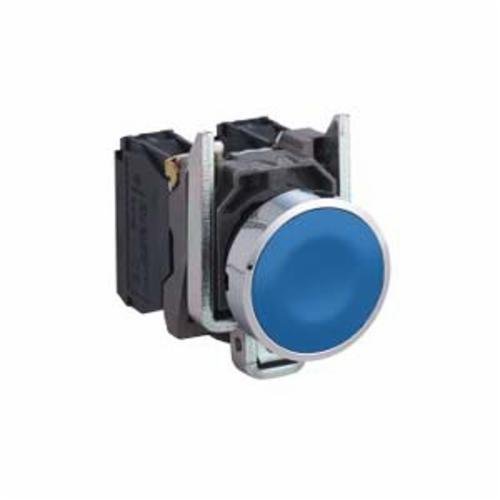

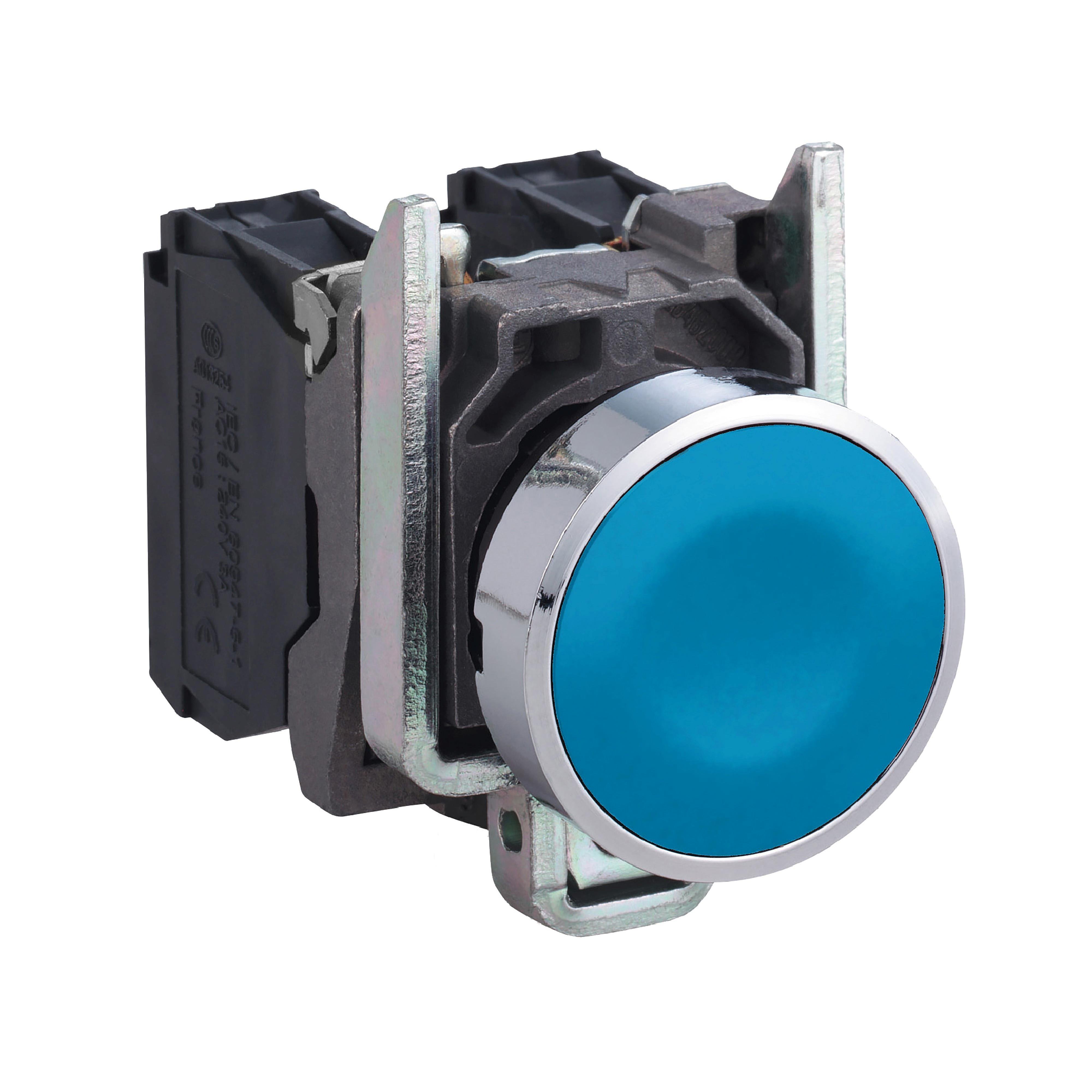

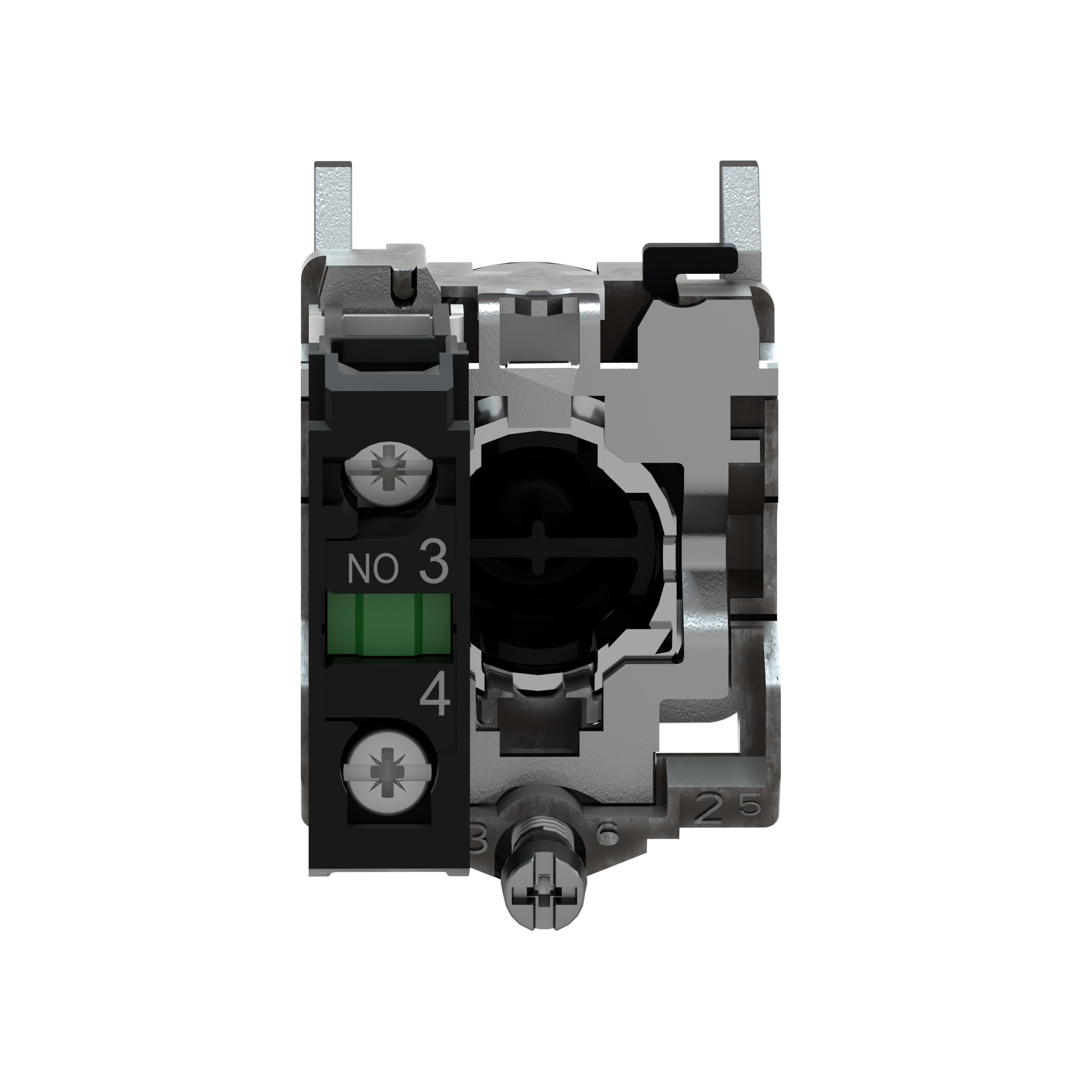

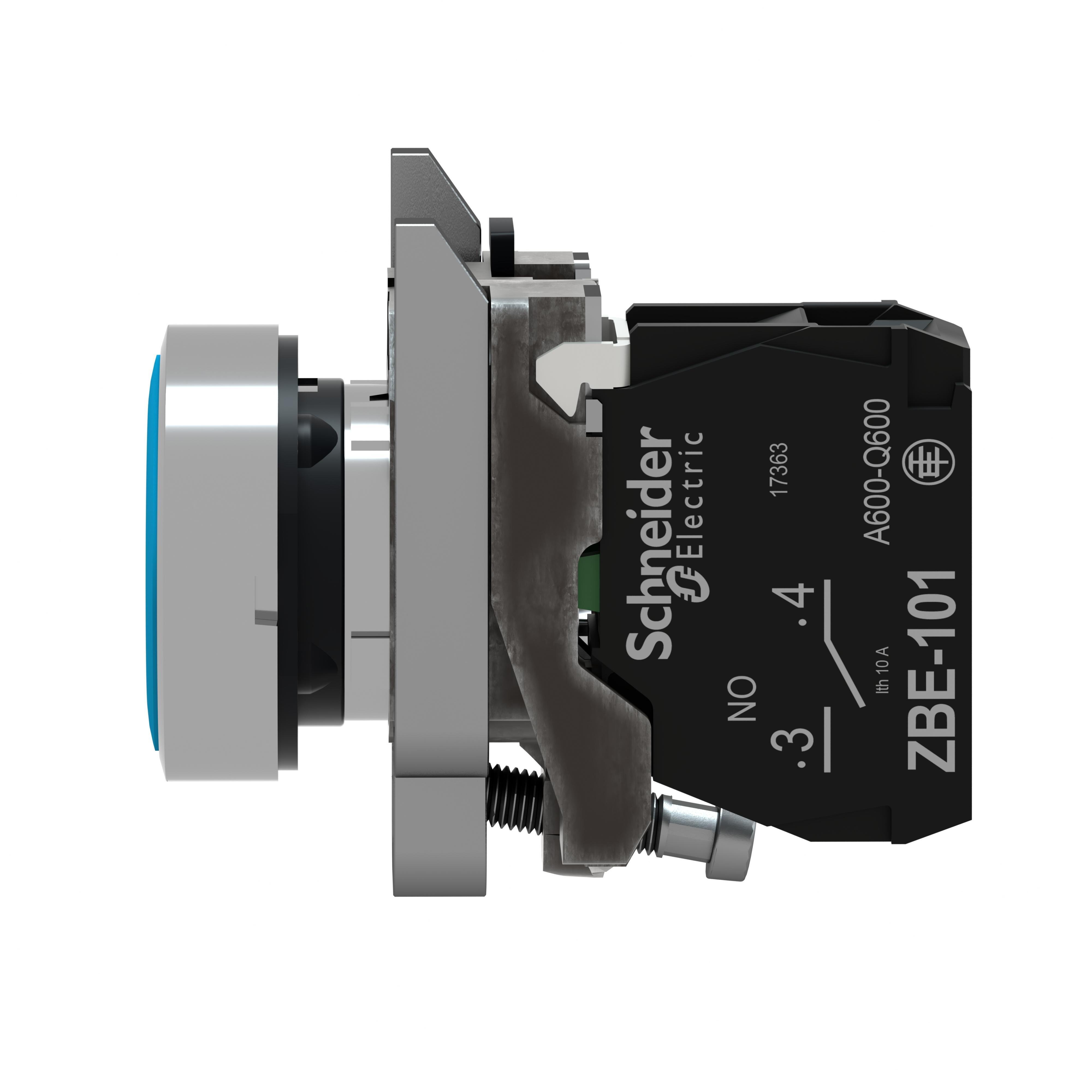

XB4BA61 - Push button, Harmony XB4, metal, flush, blue, 22mm, spring return, unmarked, 1NO

Picture of XB4BA61 - Push button, Harmony XB4, metal, flush, blue, 22mm, spring return, unmarked, 1NO Picture of XB4BA61 - Push button, Harmony XB4, metal, flush, blue, 22mm, spring return, unmarked, 1NO
Picture of XB4BA61 - Push button, Harmony XB4, metal, flush, blue, 22mm, spring return, unmarked, 1NO Picture of XB4BA61 - Push button, Harmony XB4, metal, flush, blue, 22mm, spring return, unmarked, 1NO
Picture of XB4BA61 - Push button, Harmony XB4, metal, flush, blue, 22mm, spring return, unmarked, 1NO Picture of XB4BA61 - Push button, Harmony XB4, metal, flush, blue, 22mm, spring return, unmarked, 1NO
Picture of XB4BA61 - Push button, Harmony XB4, metal, flush, blue, 22mm, spring return, unmarked, 1NO Picture of XB4BA61 - Push button, Harmony XB4, metal, flush, blue, 22mm, spring return, unmarked, 1NO
Picture of XB4BA61 - Push button, Harmony XB4, metal, flush, blue, 22mm, spring return, unmarked, 1NO Picture of XB4BA61 - Push button, Harmony XB4, metal, flush, blue, 22mm, spring return, unmarked, 1NO
Schneider Electric

XB4BA61 - Push button, Harmony XB4, metal, flush, blue, 22mm, spring return, unmarked, 1NO

Item Code: 738113
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB4BA61

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB4 modular blue push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Specifications

Weight

0.17lb

Height

1.3mm

Width

2.15mm

Length

3.51mm

Depth

52mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/XB4BA61/XB4BA61.spin

AD Alternative Part Number

8018195

AD Application

Indoor/Outdoor Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD Document Caption 3

Owners/User Manual

AD EAN

3389110118438

AD Gtin

03389110118438

AD IDEA Index ID

8018195

AD Invoice Description

PUSHBUTTON NON-ILLUMINATED 22MM 1NO BL

AD Item Features 01

Quick and easy assembly and disassembly

AD Item Features 02

Robustness to withstand harsh environments

AD Item Features 03

Various types of connection - screw clamp, connector, Faston connector or spring terminal

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

Large set of accessories to customize your panels

AD Keywords

Harmony Square D XB4BA61 Non-Illuminated Pushbutton, 22 mm, 1NO Contact, Flush Operator, Blue ; Schneider Electric ; Schneider Electric ; XB4BA61 ; 785901380511 ; Non-Illuminated Pushbuttons

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.3000

AD Package Height UOM

IN

AD Package Length

3.5100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

6.5500

AD Package Volume UOM

cu-in

AD Package Weight

0.1700

AD Package Weight UOM

LB

AD Package Width

2.1500

AD Package Width UOM

IN

AD Part Number Keywords

XB4BA61 ; 8018195 ; 785901380511 ; 78590138051 ; 03389110118438 ; 3389110118438

AD Video Links

https://www.youtube.com/embed/kSLYD1dXJVc

Brand

Square D

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Mushroom Head/Round Button

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Panel

Spec 11 Attribute

Operator Type

Spec 11 Attribute Value

Flush

Spec 12 Attribute

Series

Spec 12 Attribute Value

XB4

Spec 13 Attribute

Size

Spec 13 Attribute UOM

MM

Spec 13 Attribute Value

22

Spec 14 Attribute

Terminal Type

Spec 14 Attribute Value

Screw clamp

Spec 2 Attribute

Bezel/Housing

Spec 2 Attribute Value

Chromium Plated Metal

Spec 3 Attribute

Color

Spec 3 Attribute Value

Blue

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

1NO

Spec 5 Attribute

Contact Mode

Spec 5 Attribute Value

Momentary

Spec 6 Attribute

Contact Rating

Spec 6 Attribute Value

10/6/1.2 A at 120/600 V AC/0.55/0.1 A at 125/600 V DC

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

Nema 4/4X/13

Spec 8 Attribute

Environmental Conditions

Spec 8 Attribute Value

-40 to 70 deg C Operating Temperature

Spec 9 Attribute

Legend

Spec 9 Attribute Value

Unmarked
