Schneider Electric

XB4BD33 - Harmony, 22mm Push Button, 3 position selector switch, black, maintained, 2 NO, 600 V

Category Relays, Push Buttons, Pilot Lights, Selector Switches

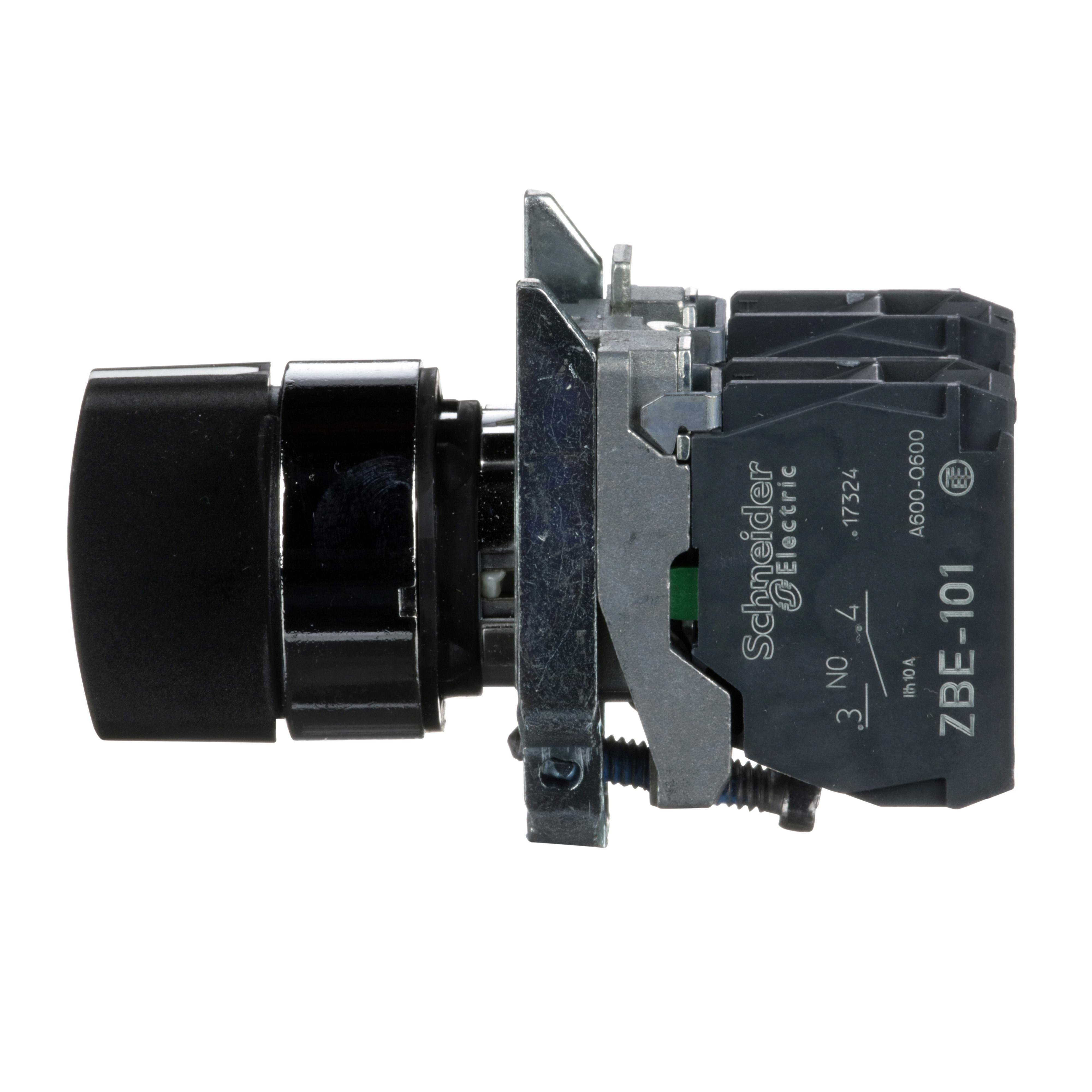

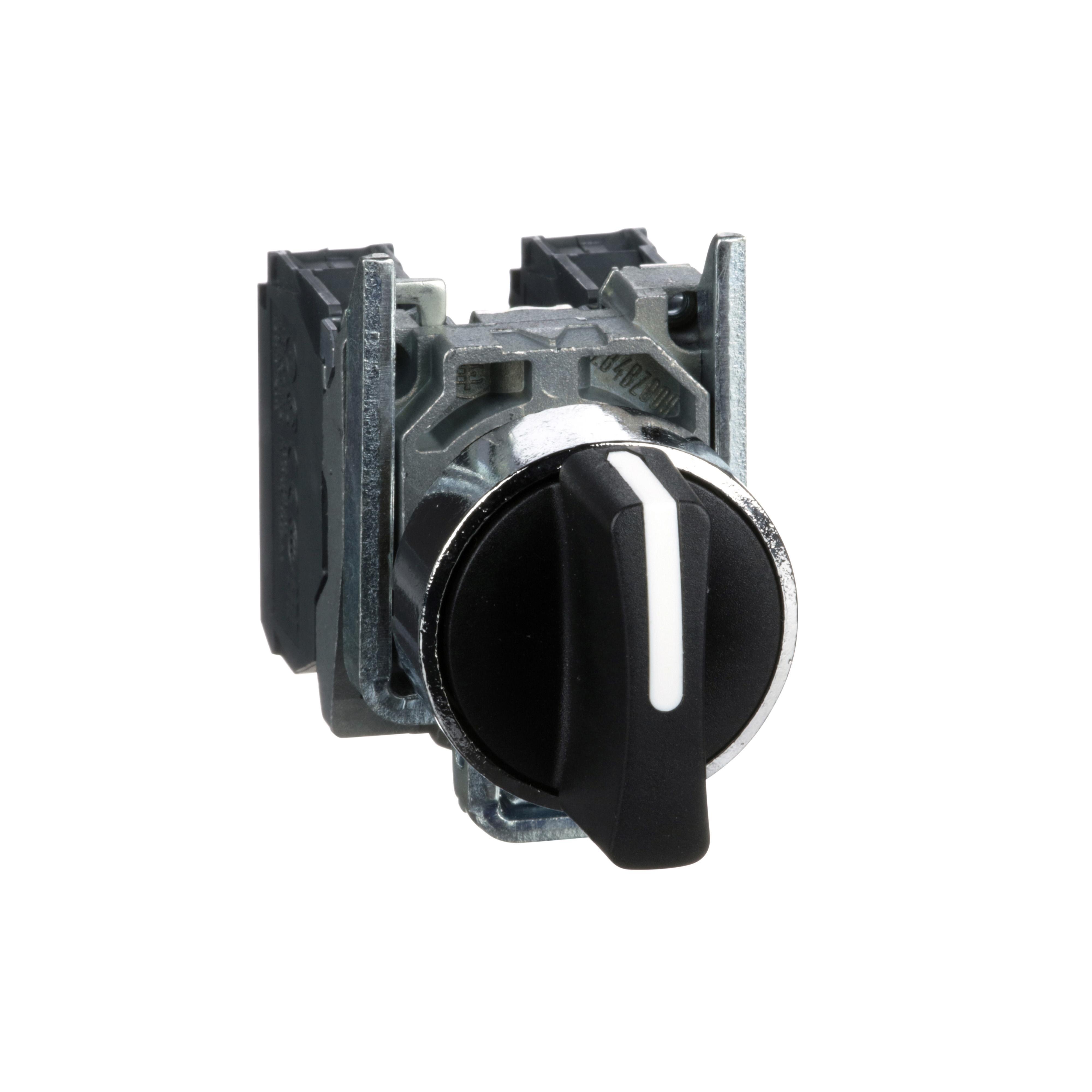

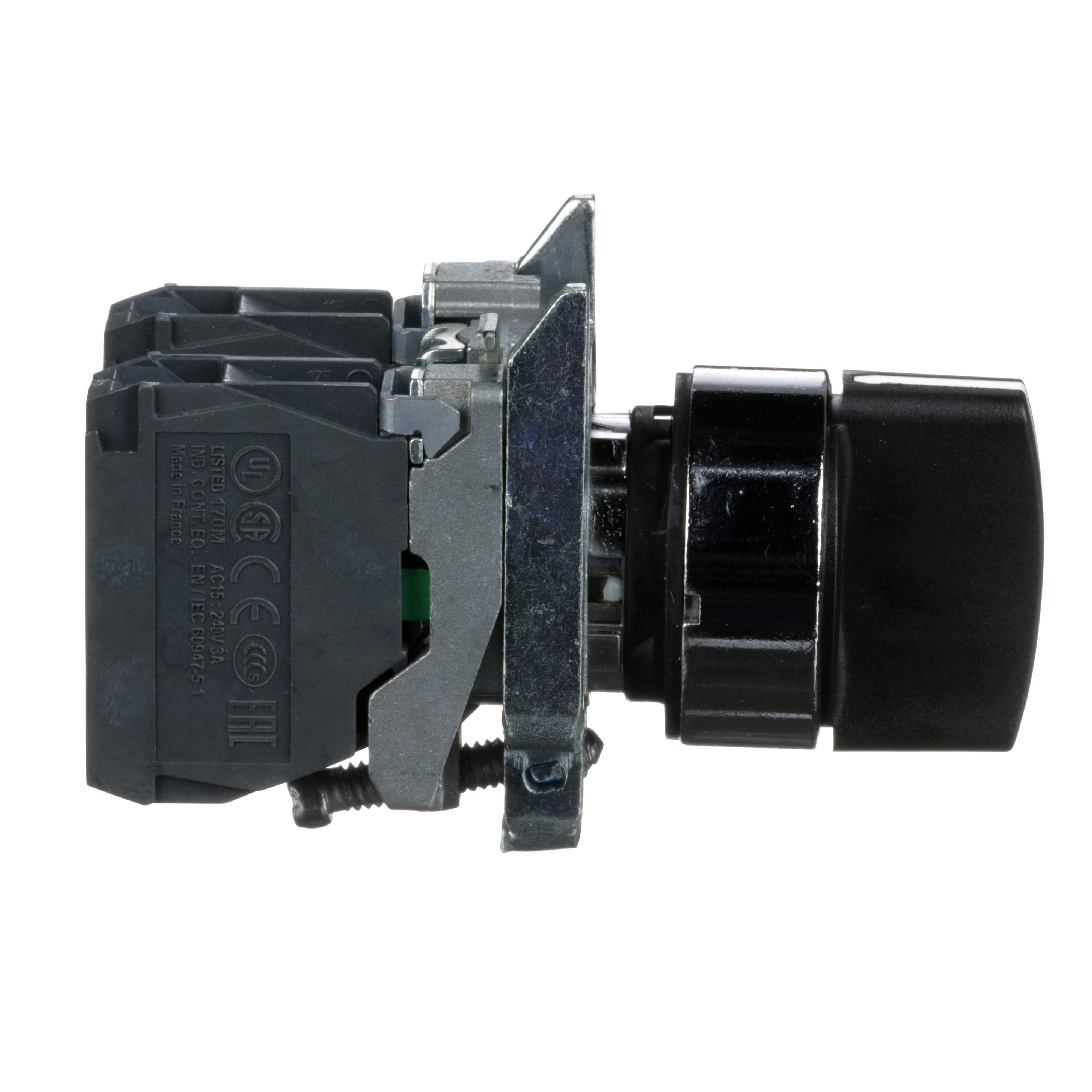

Picture of XB4BD33 - Harmony, 22mm Push Button, 3 position selector switch, black, maintained, 2 NO, 600 V Picture of XB4BD33 - Harmony, 22mm Push Button, 3 position selector switch, black, maintained, 2 NO, 600 V
Picture of XB4BD33 - Harmony, 22mm Push Button, 3 position selector switch, black, maintained, 2 NO, 600 V Picture of XB4BD33 - Harmony, 22mm Push Button, 3 position selector switch, black, maintained, 2 NO, 600 V
Picture of XB4BD33 - Harmony, 22mm Push Button, 3 position selector switch, black, maintained, 2 NO, 600 V Picture of XB4BD33 - Harmony, 22mm Push Button, 3 position selector switch, black, maintained, 2 NO, 600 V
Picture of XB4BD33 - Harmony, 22mm Push Button, 3 position selector switch, black, maintained, 2 NO, 600 V Picture of XB4BD33 - Harmony, 22mm Push Button, 3 position selector switch, black, maintained, 2 NO, 600 V
Schneider Electric

XB4BD33 - Harmony, 22mm Push Button, 3 position selector switch, black, maintained, 2 NO, 600 V

Item Code: 1263411
Category Relays, Push Buttons, Pilot Lights, Selector Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB4BD33

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.23lb

Height

2.1mm

Width

2.11mm

Length

3.51mm

Depth

68mm

AD Application

Indoor/Outdoor Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH SEL NON-ILLUMINATED 22MM 2NO BK 2

AD Item Features 01

Quick and easy assembly and disassembly

AD Item Features 02

Robustness to withstand harsh environments

AD Item Features 03

Various types of connection - screw clamp, connector, Faston connector or spring terminal

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

Large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.1000

AD Package Height UOM

IN

AD Package Length

3.5100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2300

AD Package Weight UOM

LB

AD Package Width

2.1100

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=yP4g9tSDud4

Brand

Square D

Category

RELAYS, PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Lever/Round

Spec 10 Attribute

Environmental Conditions

Spec 10 Attribute Value

-40 to 158 deg F Operating/Storage Temperature

Spec 11 Attribute

Mounting Type

Spec 11 Attribute Value

Panel

Spec 12 Attribute

Number of Positions

Spec 12 Attribute Value

2

Spec 13 Attribute

Series

Spec 13 Attribute Value

XB4

Spec 14 Attribute

Size

Spec 14 Attribute UOM

MM

Spec 14 Attribute Value

22

Spec 15 Attribute

Terminal Type

Spec 15 Attribute Value

Screw clamp

Spec 16 Attribute

Throw

Spec 16 Attribute Value

45 deg Left/Center/Right

Spec 2 Attribute

Bezel/Housing

Spec 2 Attribute Value

Chromium Plated Metal

Spec 3 Attribute

Color

Spec 3 Attribute Value

Black

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Screw clamp

Spec 5 Attribute

Contact Configuration

Spec 5 Attribute Value

2NO

Spec 6 Attribute

Contact Mode

Spec 6 Attribute Value

Maintained

Spec 7 Attribute

Contact Rating

Spec 7 Attribute Value

10 A at 600 V AC

Spec 8 Attribute

Contact Type

Spec 8 Attribute Value

Slow Break

Spec 9 Attribute

Enclosure Type

Spec 9 Attribute Value

NEMA 4/4X/13/IP69
