Schneider Electric

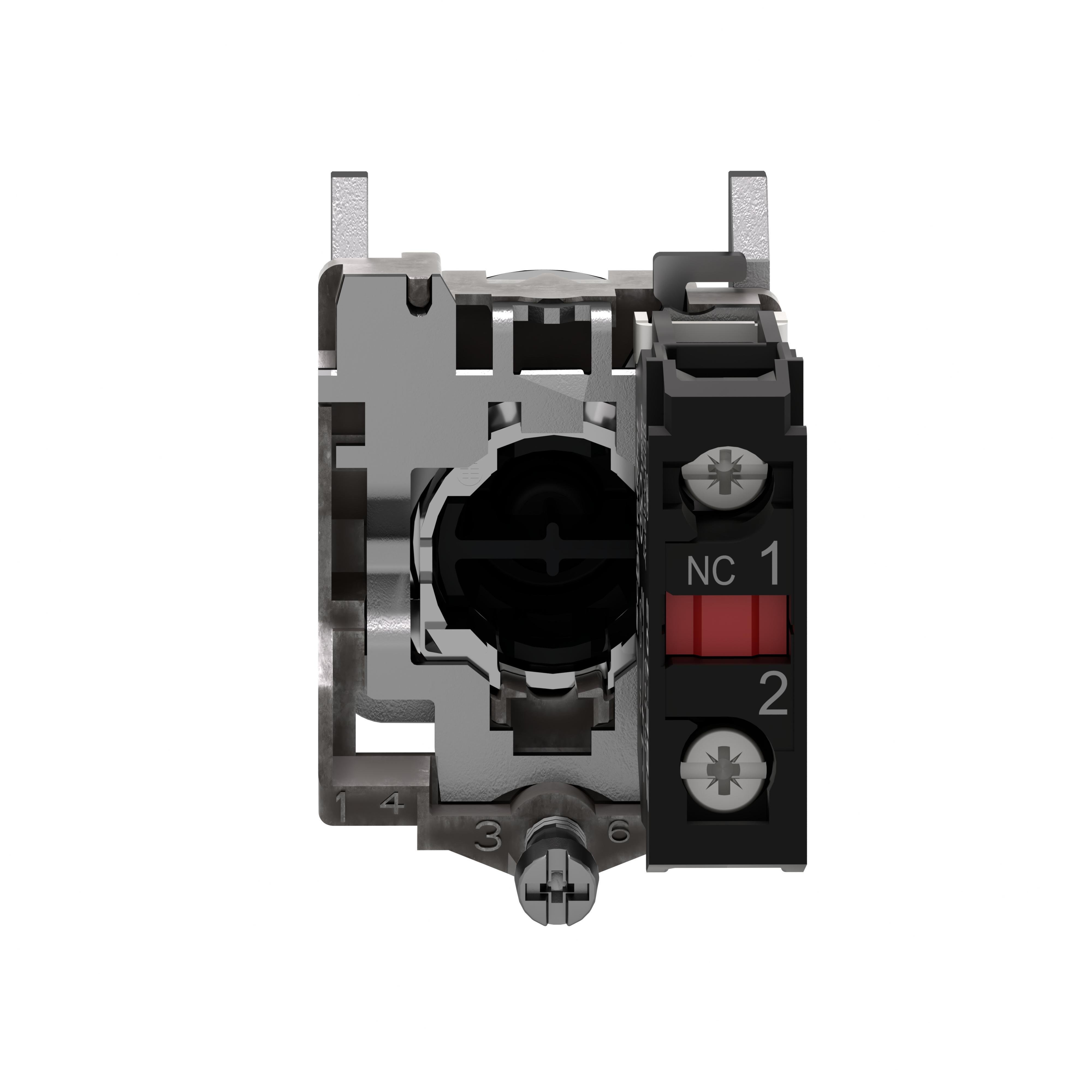

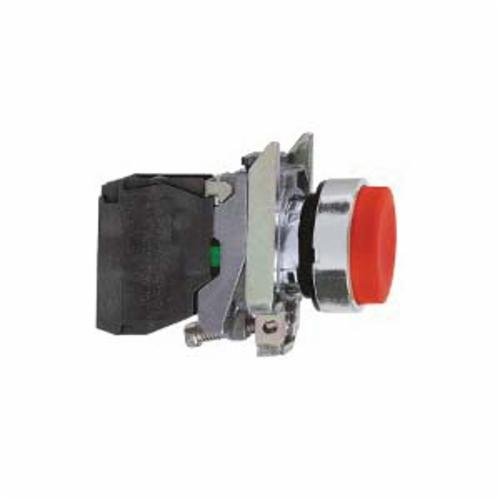

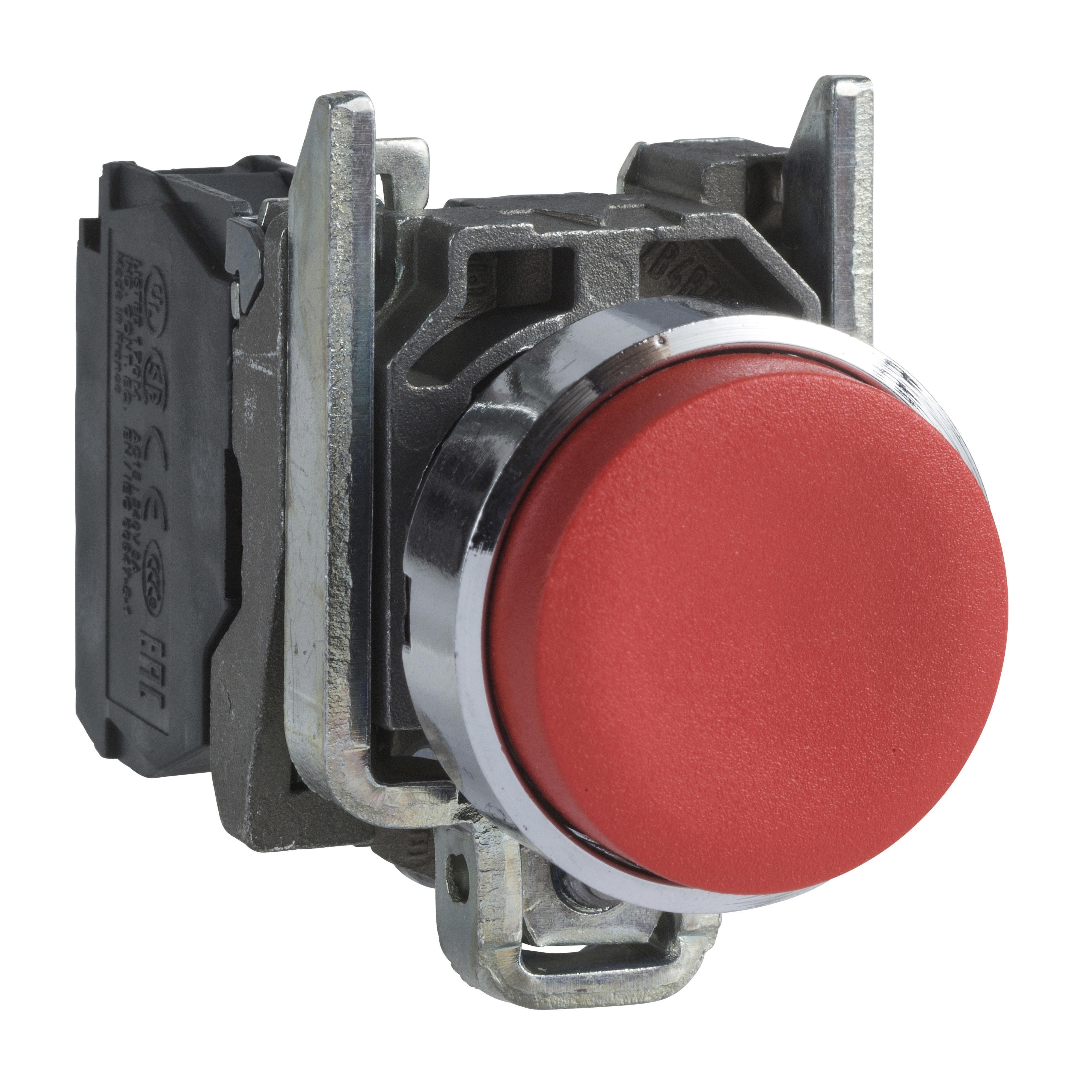

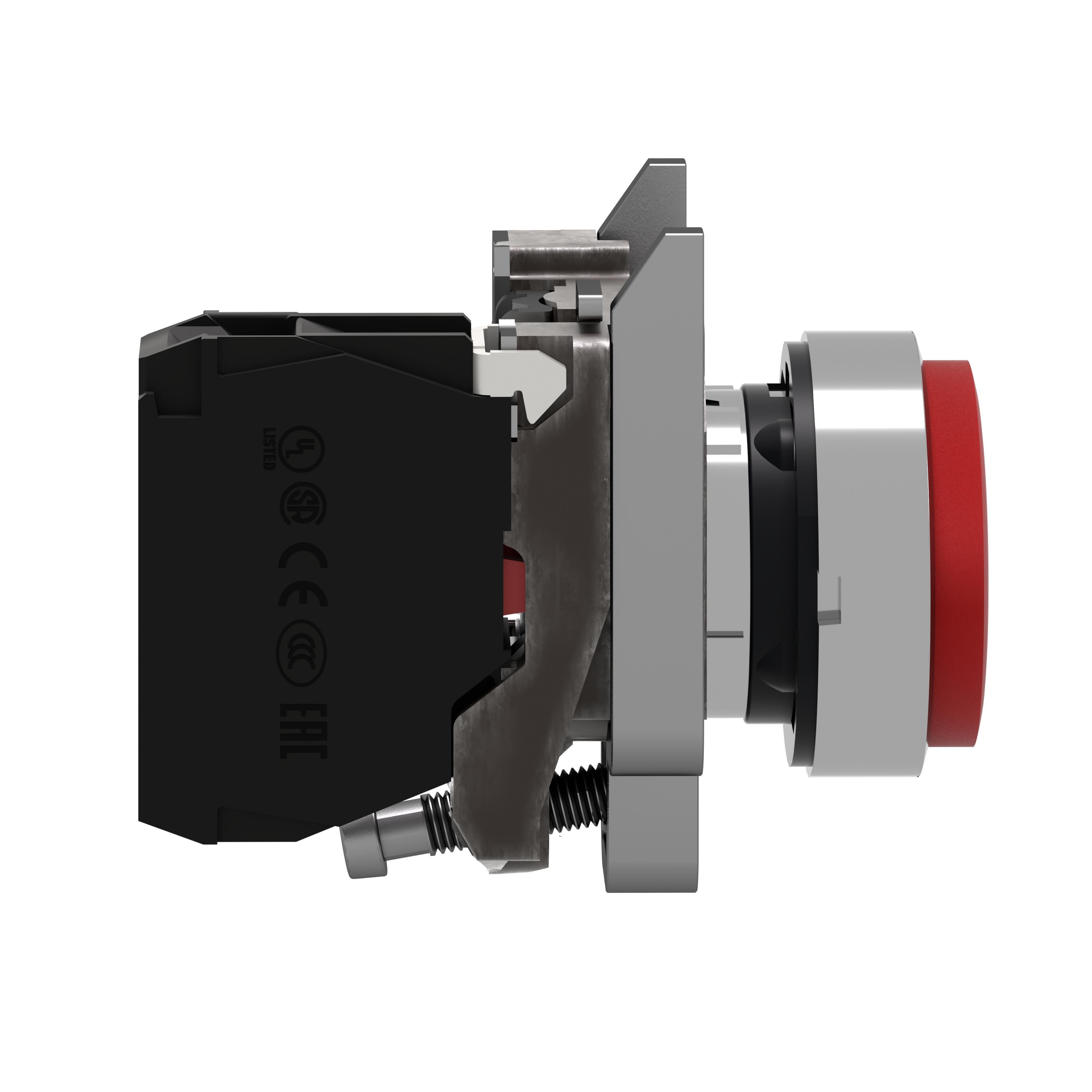

XB4BL42 - Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, unmarked, 1NC

Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Picture of XB4BL42 - Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, unmarked, 1NC Picture of XB4BL42 - Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, unmarked, 1NC
Picture of XB4BL42 - Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, unmarked, 1NC Picture of XB4BL42 - Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, unmarked, 1NC
Picture of XB4BL42 - Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, unmarked, 1NC Picture of XB4BL42 - Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, unmarked, 1NC
Picture of XB4BL42 - Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, unmarked, 1NC Picture of XB4BL42 - Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, unmarked, 1NC
Picture of XB4BL42 - Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, unmarked, 1NC Picture of XB4BL42 - Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, unmarked, 1NC
Schneider Electric

XB4BL42 - Push button, Harmony XB4, metal, projecting, red, 22mm, spring return, unmarked, 1NC

Item Code: 549255
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB4BL42

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB4 projecting modular red push button operates with a spring return / impulse mechanism. It has a metal bezel. This push button provides an ergonomic interface for controlling your machines and processes thanks to its protuding actuator. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments.

Specifications

Weight

0.18

Height

1.3

Width

1.33

Length

2.11

AD Application

Indoor/Outdoor Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

PUSHBUTTON NON-ILLUMINATED 22MM 1NC R

AD Item Features 01

Quick and easy assembly and disassembly

AD Item Features 02

Robustness to withstand harsh environments

AD Item Features 03

Various types of connection - screw clamp, connector, Faston connector or spring terminal

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

Large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.3000

AD Package Height UOM

IN

AD Package Length

2.1100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

6.9200

AD Package Volume UOM

cu-in

AD Package Weight

0.1800

AD Package Weight UOM

LB

AD Package Width

1.3300

AD Package Width UOM

IN

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Projecting/Round Button

Spec 10 Attribute

Legend

Spec 10 Attribute Value

Unmarked

Spec 11 Attribute

Mounting Type

Spec 11 Attribute Value

Panel

Spec 12 Attribute

Operator Type

Spec 12 Attribute Value

Flush

Spec 13 Attribute

Series

Spec 13 Attribute Value

XB4

Spec 14 Attribute

Size

Spec 14 Attribute UOM

MM

Spec 14 Attribute Value

22

Spec 15 Attribute

Terminal Type

Spec 15 Attribute Value

Screw clamp

Spec 16 Attribute

Type

Spec 16 Attribute Value

Non-Illuminated Round

Spec 2 Attribute

Bezel/Housing

Spec 2 Attribute Value

Chromium Plated Metal

Spec 3 Attribute

Color

Spec 3 Attribute Value

Red

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

1NC

Spec 5 Attribute

Contact Mode

Spec 5 Attribute Value

Momentary

Spec 6 Attribute

Contact Rating

Spec 6 Attribute Value

10/6/1.2 A at 120/600 V AC/0.55/0.1 A at 125/600 V DC

Spec 7 Attribute

Contact Type

Spec 7 Attribute Value

Slow Break

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

Nema 4/4X/13

Spec 9 Attribute

Environmental Conditions

Spec 9 Attribute Value

-40 to 70 deg C Operating Temperature
