Schneider Electric

XB4BS8444 - Emergency stop push button, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching turn to release, 2NC

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

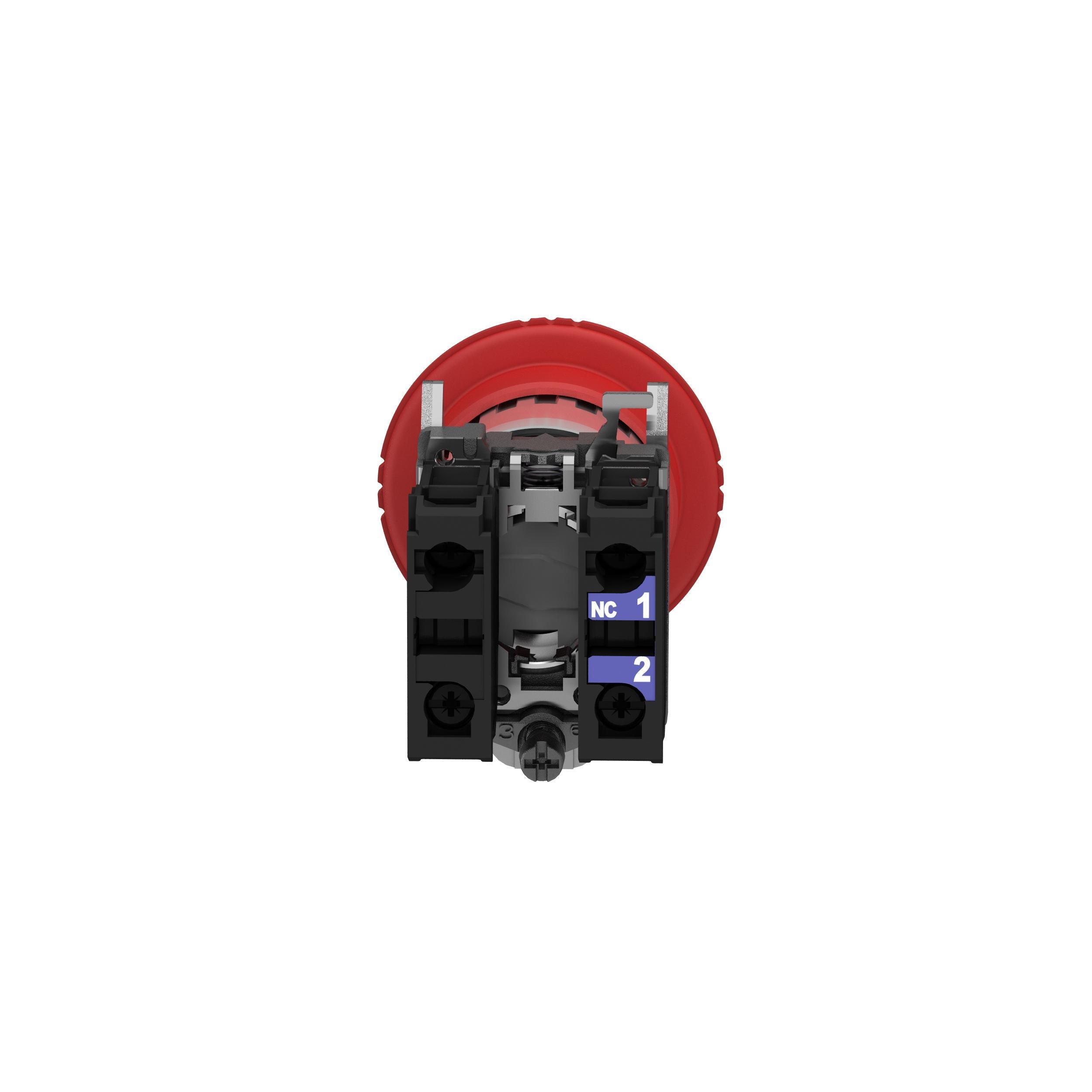

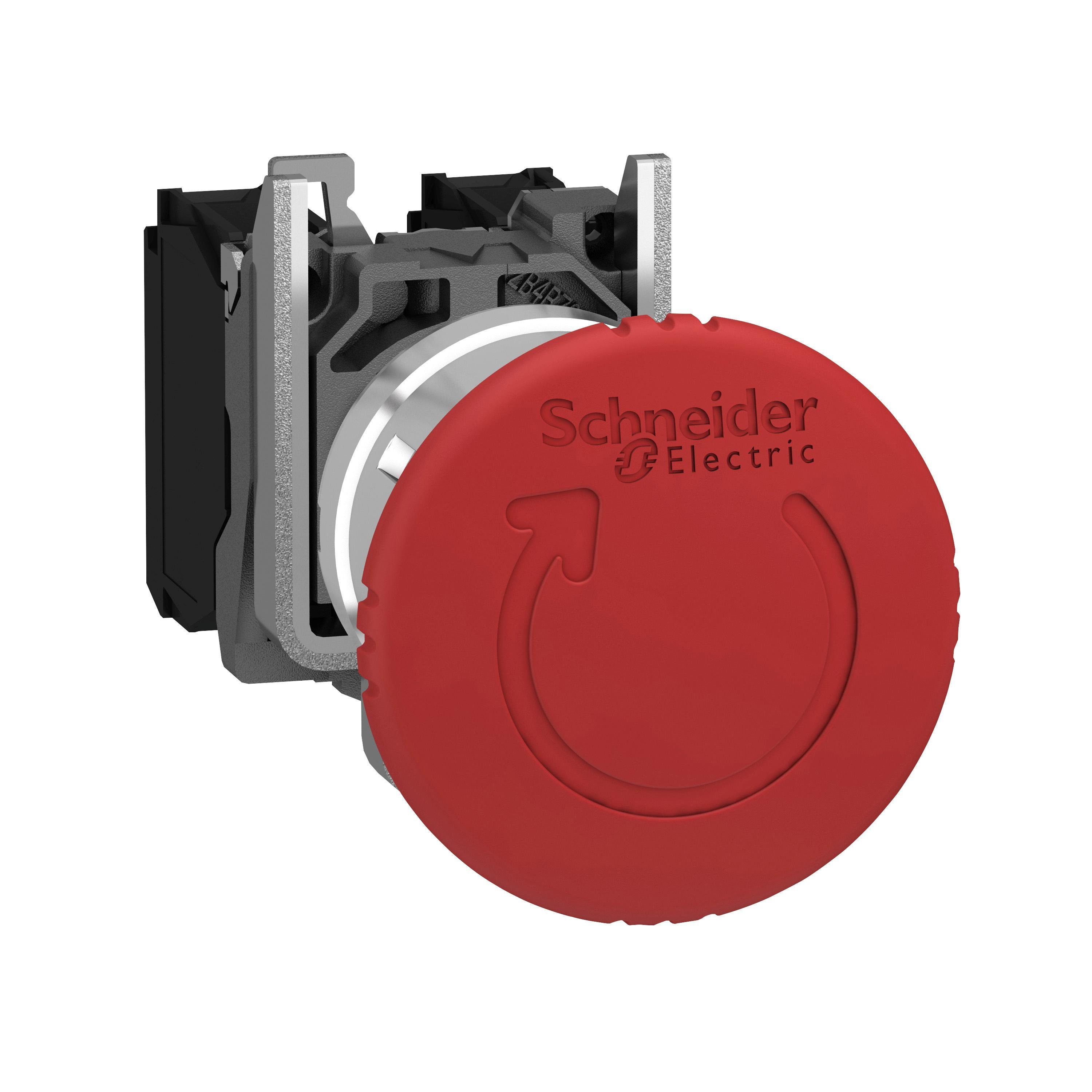

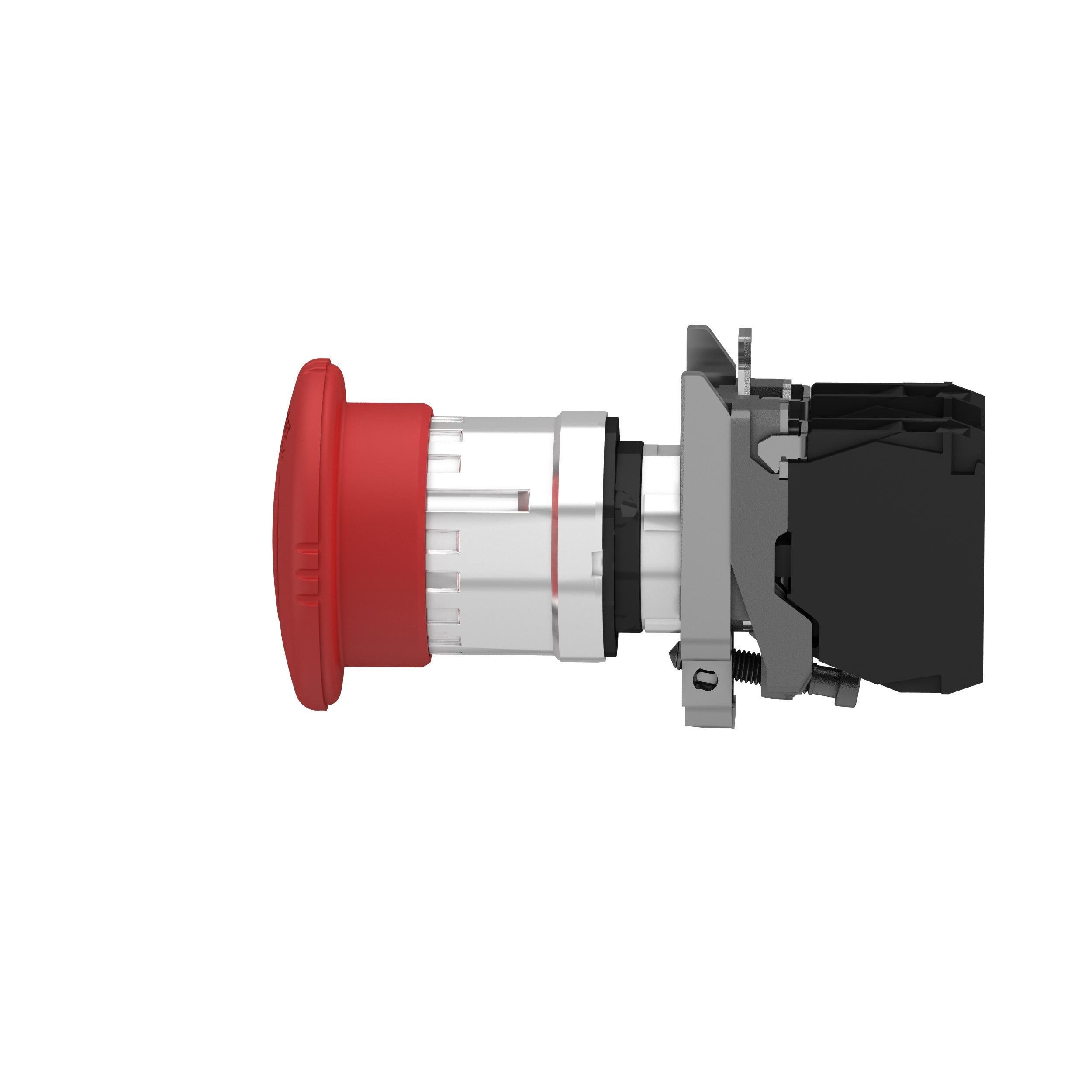

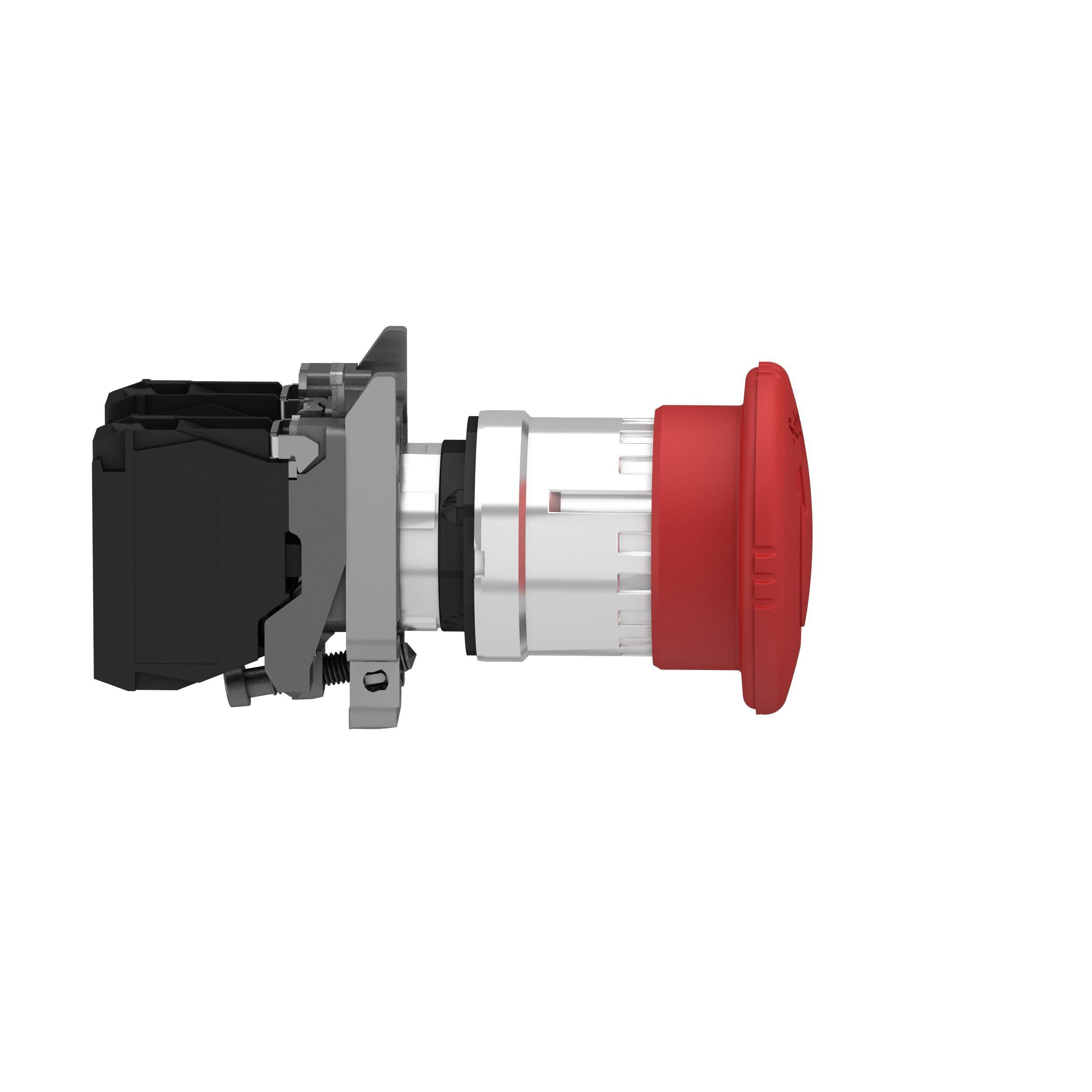

Picture of XB4BS8444 - Emergency stop push button, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching turn to release, 2NC Picture of XB4BS8444 - Emergency stop push button, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching turn to release, 2NC
Picture of XB4BS8444 - Emergency stop push button, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching turn to release, 2NC Picture of XB4BS8444 - Emergency stop push button, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching turn to release, 2NC
Picture of XB4BS8444 - Emergency stop push button, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching turn to release, 2NC Picture of XB4BS8444 - Emergency stop push button, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching turn to release, 2NC
Picture of XB4BS8444 - Emergency stop push button, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching turn to release, 2NC Picture of XB4BS8444 - Emergency stop push button, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching turn to release, 2NC
Picture of XB4BS8444 - Emergency stop push button, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching turn to release, 2NC Picture of XB4BS8444 - Emergency stop push button, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching turn to release, 2NC
Schneider Electric

XB4BS8444 - Emergency stop push button, Harmony XB4, metal, red mushroom, 40mm, 22mm, trigger latching turn to release, 2NC

Item Code: 856889
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB4BS8444

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB4 emergency stop / shutdown 40mm mushroom head modular red push button operates with a latched-turn-to-release mechanism. It has a metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.

Specifications

Weight

0.29lb

Height

47mm

Width

2.15mm

Length

3.67mm

Depth

82mm

AD Application

Indoor/Outdoor Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

PUSHBUTTON NON-ILLUMINATED 22MM 2NC R

AD Item Features 01

Wide modular range to suit machines and operator safety

AD Item Features 02

Designed to fit in a 22mm cut-out or Harmony XAPK control station ensuring compatibility with pre-existing machinery

AD Item Features 03

Ergonomic design for emergency actuation in several environments

AD Item Features 04

Large set of accessories - circular legends, illuminated legend rings for harsh environments

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

3.6700

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.2900

AD Package Weight UOM

LB

AD Package Width

2.1500

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/fRFG1d6JH7Q

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Mushroom Head/Round

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Panel

Spec 11 Attribute

Series

Spec 11 Attribute Value

XB4

Spec 12 Attribute

Size

Spec 12 Attribute UOM

MM

Spec 12 Attribute Value

22

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Screw clamp

Spec 2 Attribute

Bezel/Housing

Spec 2 Attribute Value

Chromium Plated Metal

Spec 3 Attribute

Color

Spec 3 Attribute Value

Red

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

2NC

Spec 5 Attribute

Contact Mode

Spec 5 Attribute Value

Maintained

Spec 6 Attribute

Contact Rating

Spec 6 Attribute Value

1.2 A at 600 V AC/0.1 A at 600 V DC

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

NEMA 4/4X/13/IP66/IP67/IP69/IP69K/IK06

Spec 8 Attribute

Environmental Conditions

Spec 8 Attribute Value

-13 to 158 deg f operating temperature

Spec 9 Attribute

Legend

Spec 9 Attribute Value

Emergency Stop
