Schneider Electric

XB4BT845 - Harmony, emergency stop, latching push pull, red, 40 mm, 1 NC and 1 NO

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

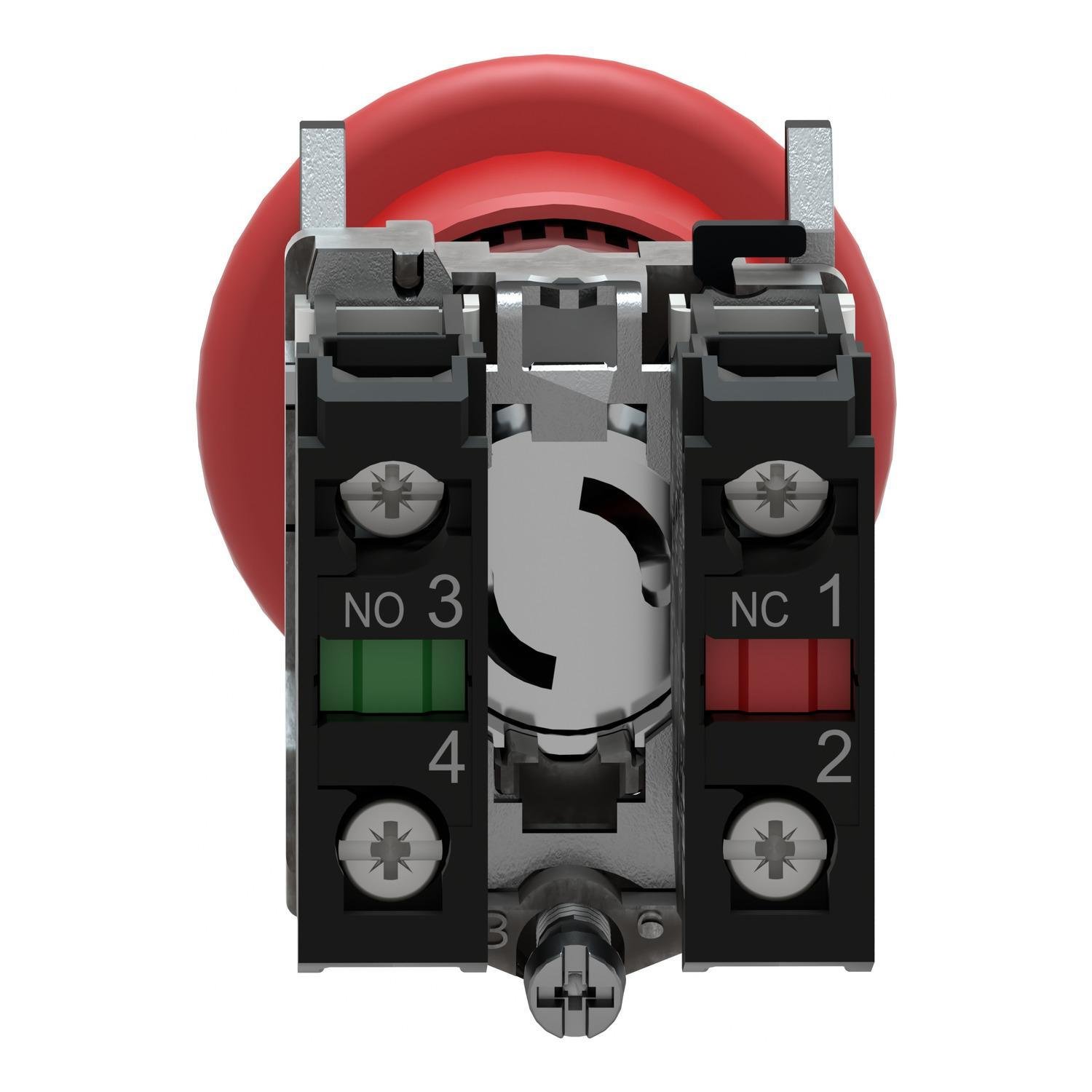

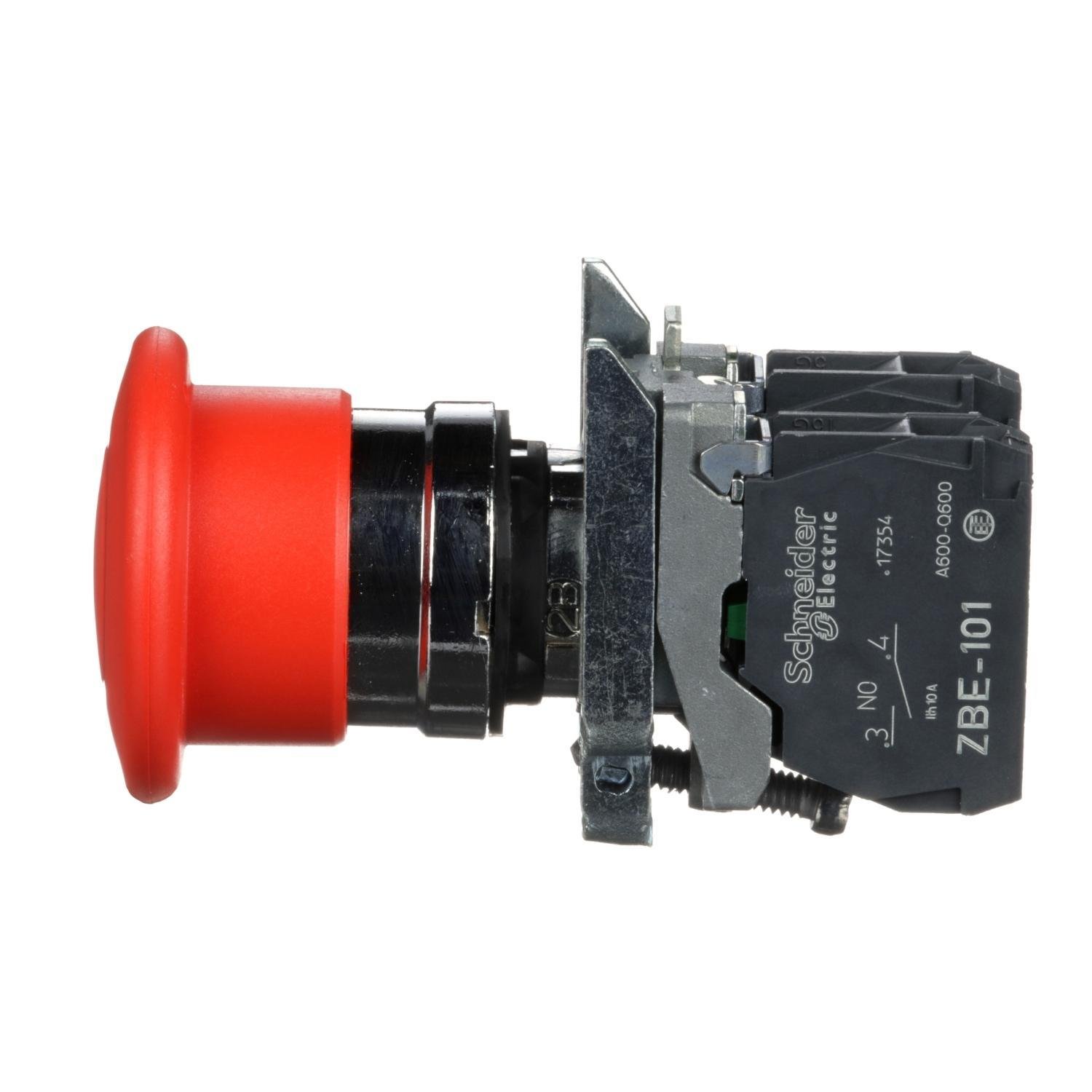

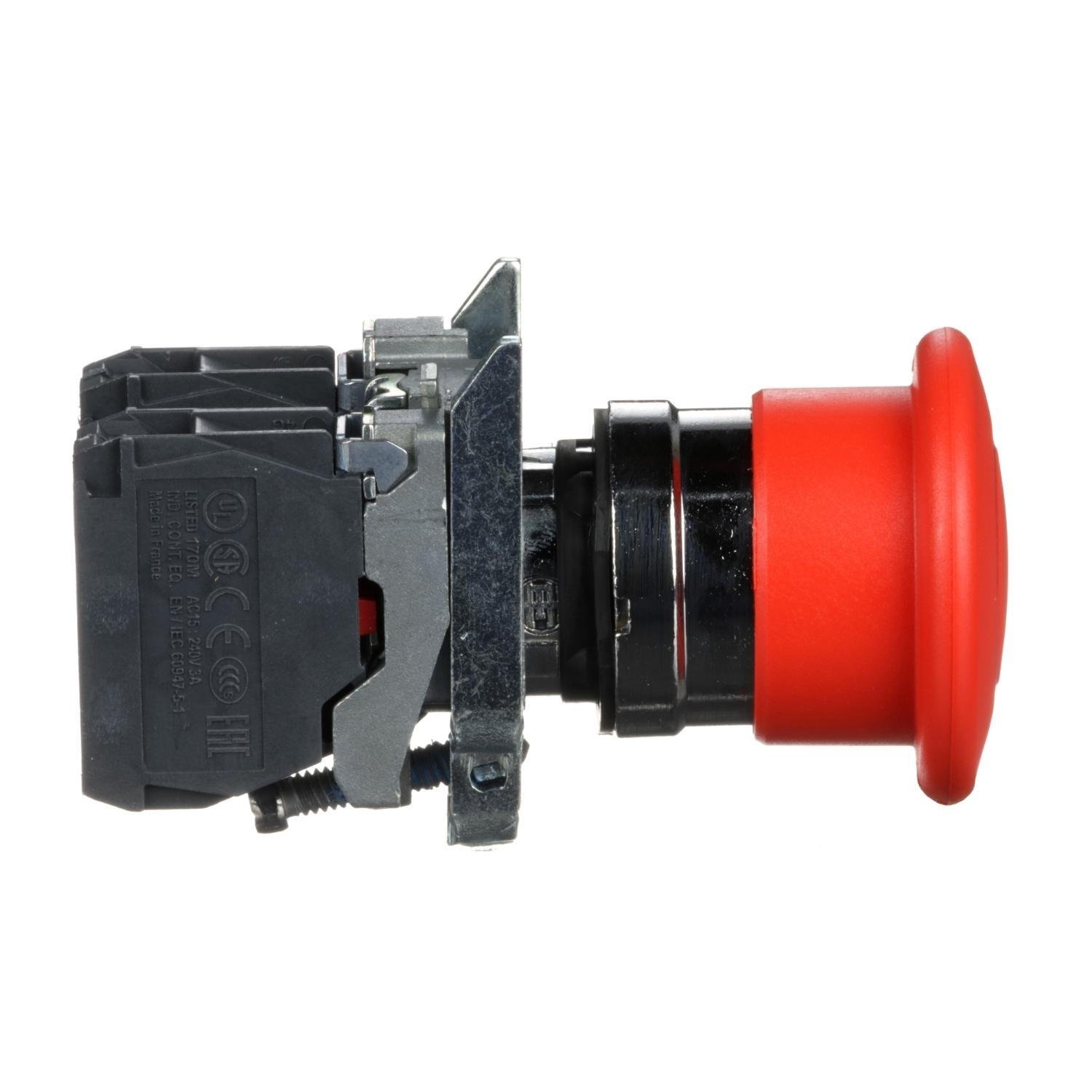

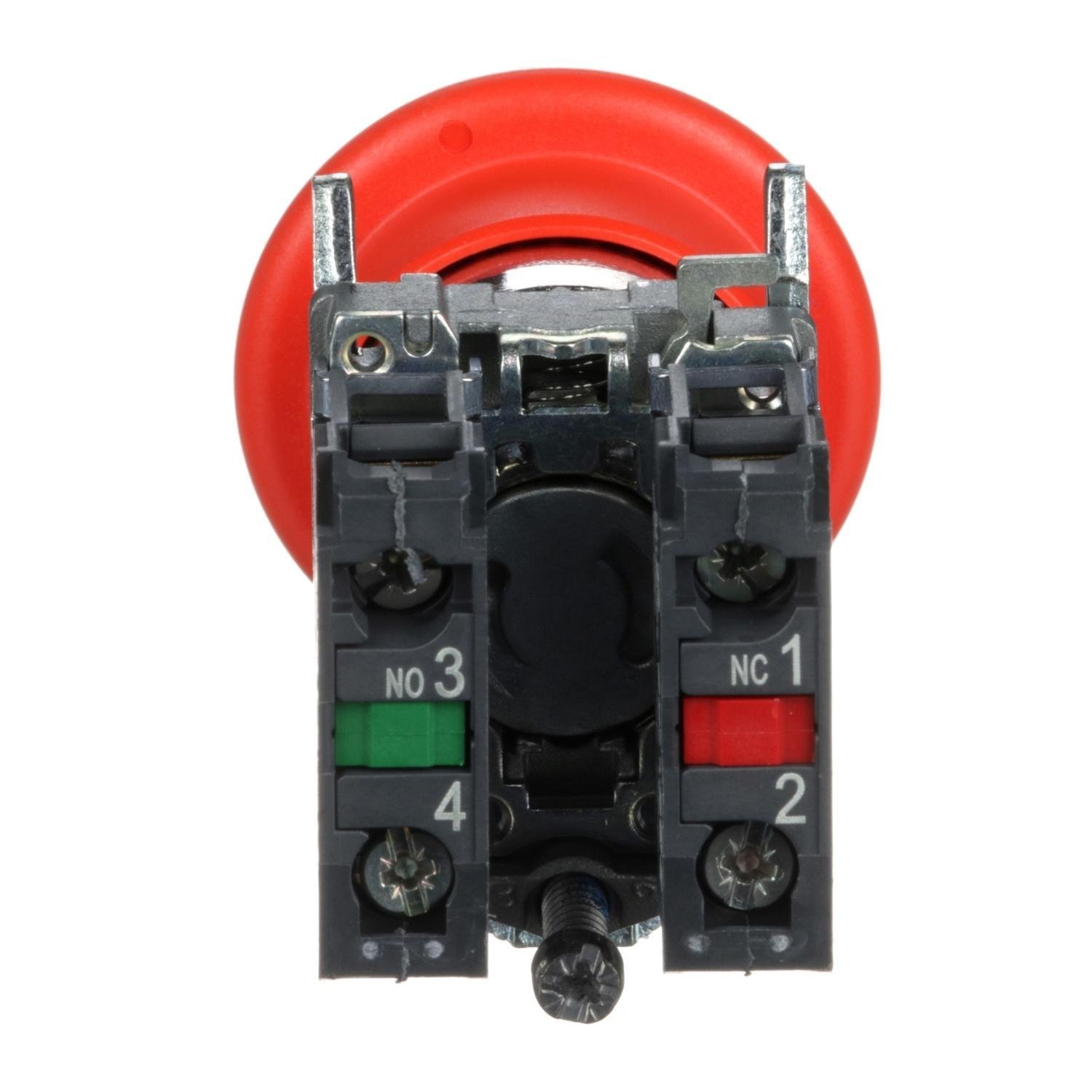

Picture of XB4BT845 - Harmony, emergency stop, latching push pull, red, 40 mm, 1 NC and 1 NO Picture of XB4BT845 - Harmony, emergency stop, latching push pull, red, 40 mm, 1 NC and 1 NO
Picture of XB4BT845 - Harmony, emergency stop, latching push pull, red, 40 mm, 1 NC and 1 NO Picture of XB4BT845 - Harmony, emergency stop, latching push pull, red, 40 mm, 1 NC and 1 NO
Picture of XB4BT845 - Harmony, emergency stop, latching push pull, red, 40 mm, 1 NC and 1 NO Picture of XB4BT845 - Harmony, emergency stop, latching push pull, red, 40 mm, 1 NC and 1 NO
Picture of XB4BT845 - Harmony, emergency stop, latching push pull, red, 40 mm, 1 NC and 1 NO Picture of XB4BT845 - Harmony, emergency stop, latching push pull, red, 40 mm, 1 NC and 1 NO
Picture of XB4BT845 - Harmony, emergency stop, latching push pull, red, 40 mm, 1 NC and 1 NO Picture of XB4BT845 - Harmony, emergency stop, latching push pull, red, 40 mm, 1 NC and 1 NO
Schneider Electric

XB4BT845 - Harmony, emergency stop, latching push pull, red, 40 mm, 1 NC and 1 NO

Item Code: 40811
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB4BT845

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.29

Height

1.5

Width

2.07

Length

3.43

AD Application

Indoor/Outdoor Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

SWITCH NON-ILLUMINATED 22MM 1NC-1NO R

AD Item Features 01

Wide modular range to suit machines and operator safety

AD Item Features 02

Designed to fit in a 22mm cut-out or Harmony XAPK control station ensuring compatibility with pre-existing machinery

AD Item Features 03

Ergonomic design for emergency actuation in several environments

AD Item Features 04

Large set of accessories - circular legends, illuminated legend rings for harsh environments

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.5000

AD Package Height UOM

IN

AD Package Length

3.4300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

10.3500

AD Package Volume UOM

cu-in

AD Package Weight

0.2900

AD Package Weight UOM

LB

AD Package Width

2.0700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/fRFG1d6JH7Q

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Mushroom Head/Round

Spec 10 Attribute

Series

Spec 10 Attribute Value

XB4

Spec 11 Attribute

Size

Spec 11 Attribute UOM

MM

Spec 11 Attribute Value

22

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Screw clamp

Spec 13 Attribute

Type

Spec 13 Attribute Value

Emergency Stop

Spec 2 Attribute

Bezel/Housing

Spec 2 Attribute Value

Chromium Plated Metal

Spec 3 Attribute

Color

Spec 3 Attribute Value

Red

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

1NO-1NC

Spec 5 Attribute

Contact Mode

Spec 5 Attribute Value

Maintained

Spec 6 Attribute

Contact Rating

Spec 6 Attribute Value

10 A/6 A/1.2 A at 120/600 V AC/0.55 A/0.1 A at 125/600 V DC

Spec 7 Attribute

Contact Type

Spec 7 Attribute Value

Slow Break

Spec 8 Attribute

Enclosure Type

Spec 8 Attribute Value

NEMA 4/4X/13/IP66/IP67/IP69/IP69K

Spec 9 Attribute

Environmental Conditions

Spec 9 Attribute Value

-40 to 70 deg C Operating Temperature
