Item Code: 115605
Manufacturer SCHNEIDER ELECTRIC

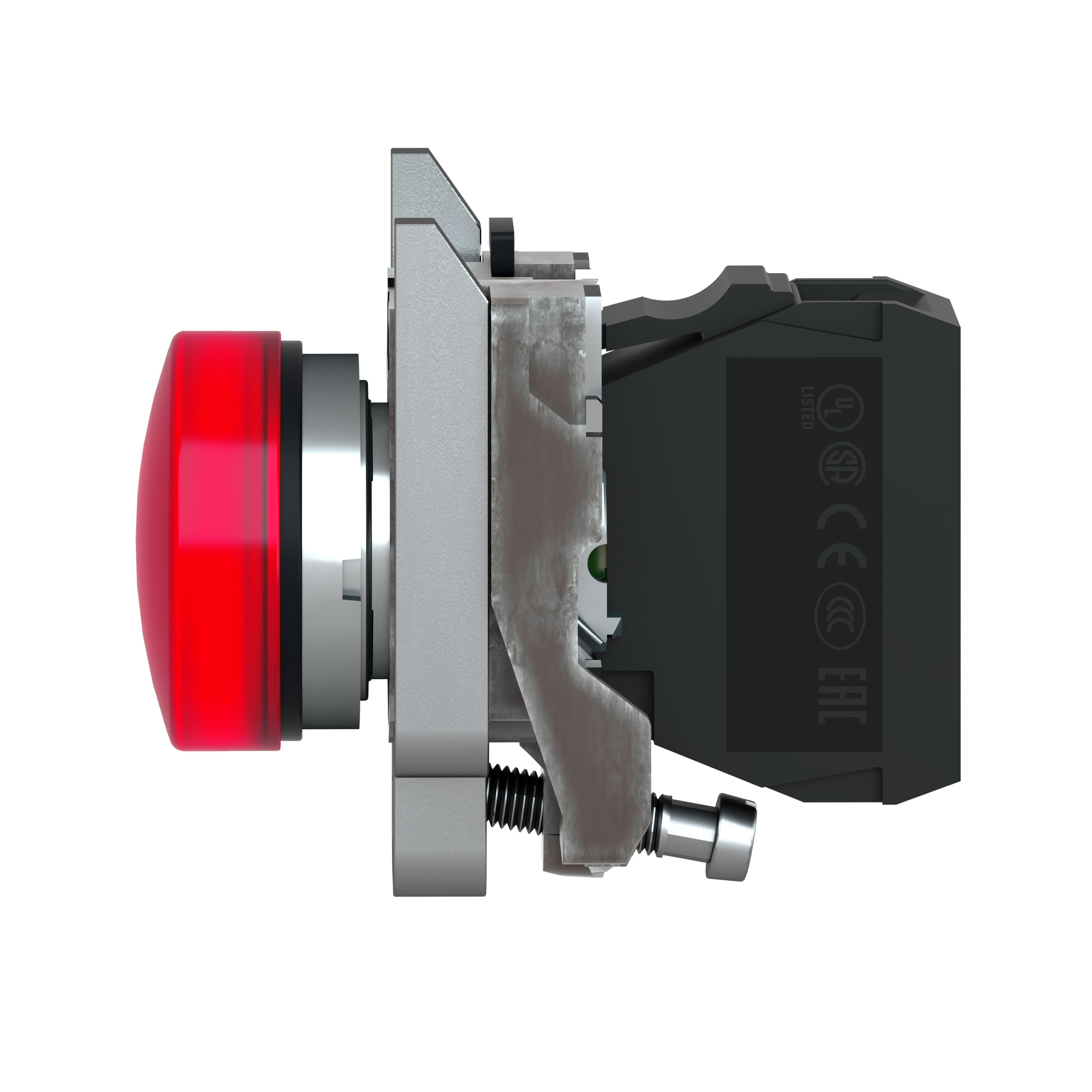

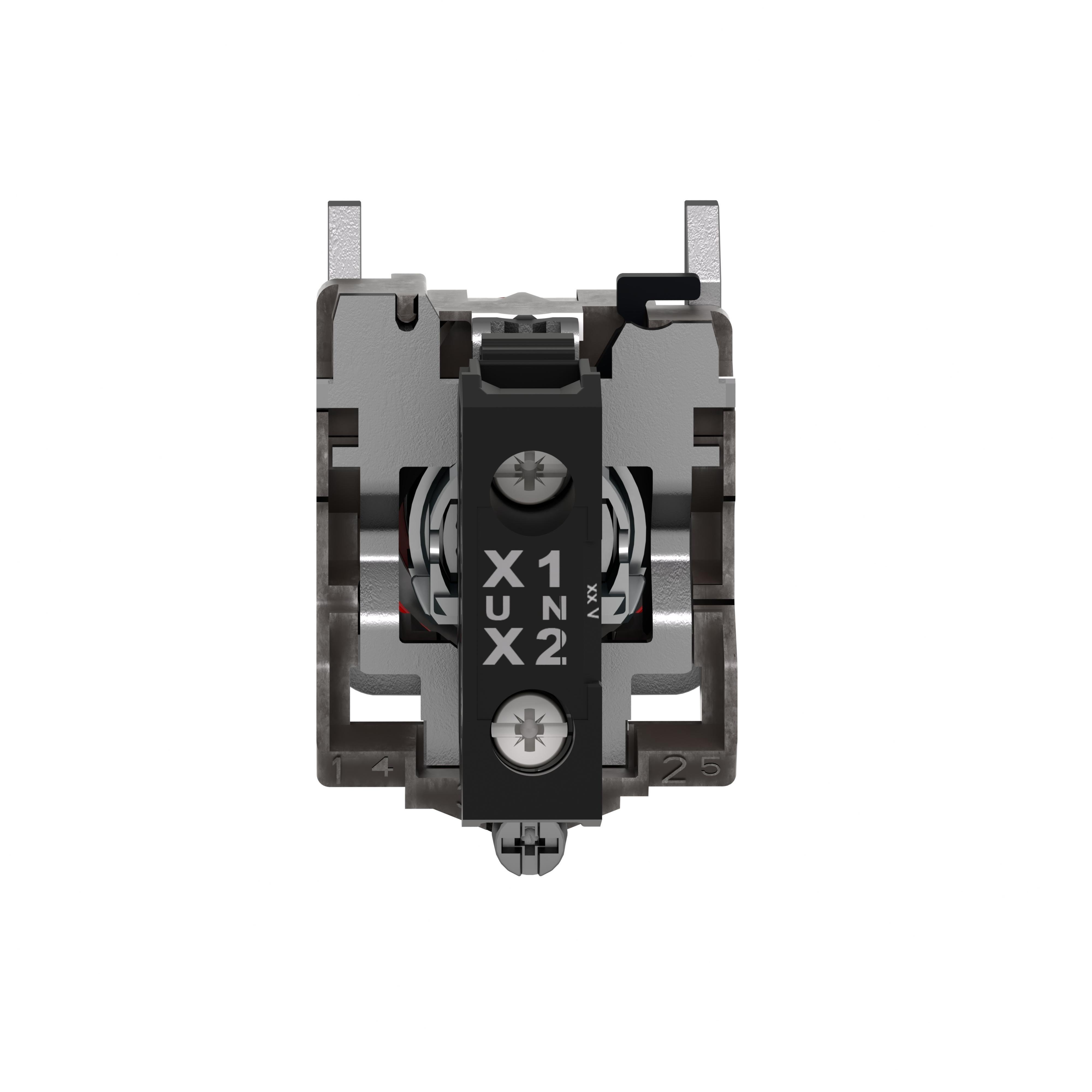

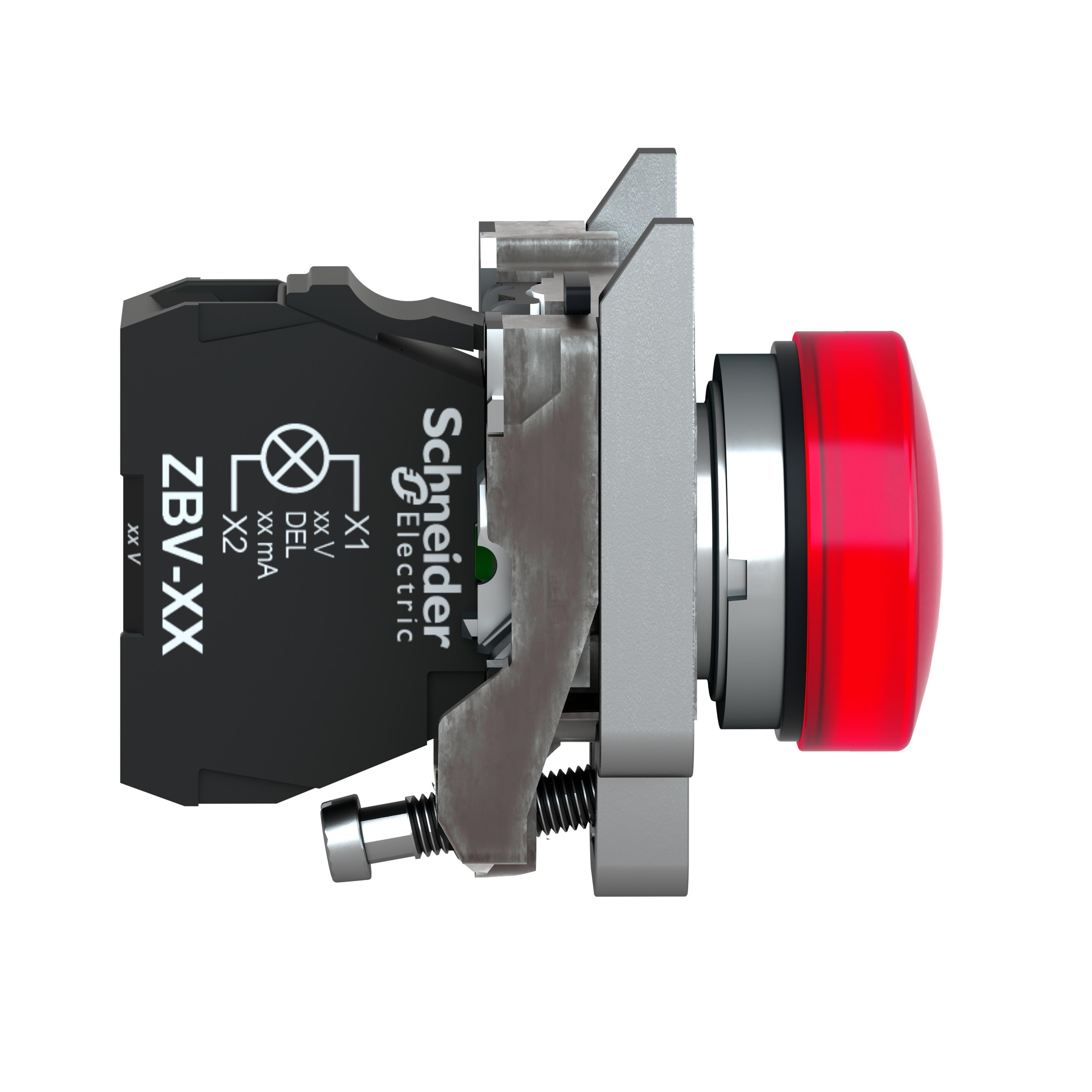

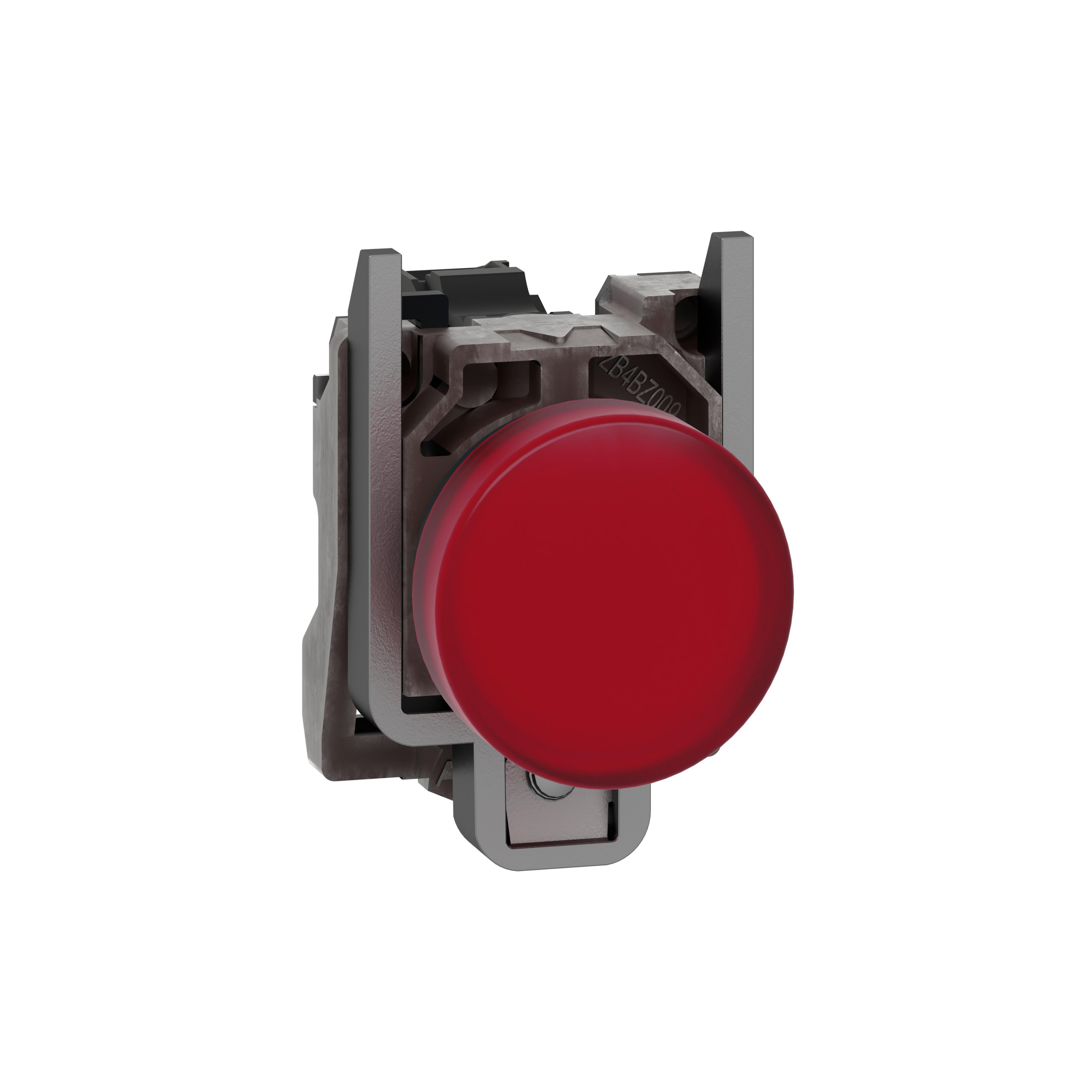

Manufacturer Ref XB4BVB4
selection not available, try a different combination
selection not available, try a different combination
Call for Availability
Compare
Description
Specifications
Weight
0.17lb
Height
1.2mm
Width
1.33mm
Length
2.11mm
Depth
54mm
Amperage Rating
18 mA
Average Life
100000 hr
Bezel/Housing
Chromium Plated Metal
Brand
Square D
Category
PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES
Enclosure Type
NEMA 4/4X/13/IP66/IP67/IP69/IP69K/IK06
Environmental Conditions
-40 to 70 deg C Operating Temperature
Lamp Type
Led
Lens Color
Red
Lens Material
Zamak
Lens Type
Plain
Mounting Type
Panel
Series
XB4
Shape
Round
Size
22 mm
Style
Integral
Terminal Type
Screw clamp
Voltage Rating
24 V AC/DC
