Schneider Electric

XB4BVG4 - Pilot light, Harmony XB4,metal, red, 22mm, universal LED, plain lens, 110…120V AC

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

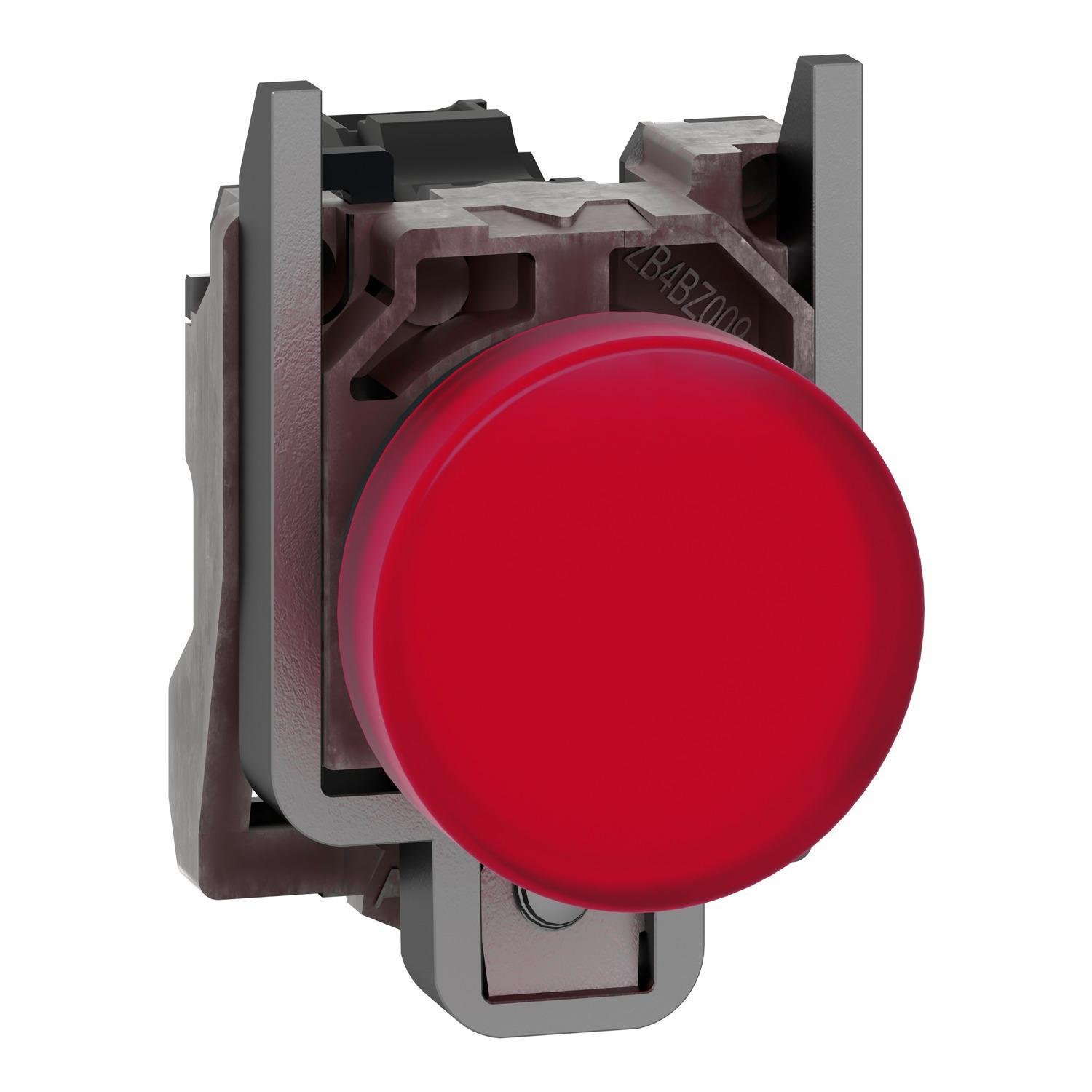

Picture of XB4BVG4 - Pilot light, Harmony XB4,metal, red, 22mm, universal LED, plain lens, 110…120V AC Picture of XB4BVG4 - Pilot light, Harmony XB4,metal, red, 22mm, universal LED, plain lens, 110…120V AC
Picture of XB4BVG4 - Pilot light, Harmony XB4,metal, red, 22mm, universal LED, plain lens, 110…120V AC Picture of XB4BVG4 - Pilot light, Harmony XB4,metal, red, 22mm, universal LED, plain lens, 110…120V AC
Schneider Electric

XB4BVG4 - Pilot light, Harmony XB4,metal, red, 22mm, universal LED, plain lens, 110…120V AC

Item Code: 18763
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB4BVG4

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB4 plain lens modular red pilot light is supplied with 110V to 120V AC, uses a universal LED. It has a metal bezel. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.18

Height

1.8

Width

2

Length

1.1

AD Application

Indoor/Outdoor Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

LIGHT PLT 110/120VAC/VDC 14MA PL PNL INT

AD Item Features 01

Universal LED block to be used for all colors

AD Item Features 02

Improved color intensity and brightness

AD Item Features 03

Quick and easy assembly and disassembly

AD Item Features 04

Robustness to withstand harsh environments

AD Item Features 05

Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.8000

AD Package Height UOM

IN

AD Package Length

1.1000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.1800

AD Package Weight UOM

LB

AD Package Width

2.0000

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=w8gfg57CotU

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

MA

Spec 1 Attribute Value

14

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Panel

Spec 11 Attribute

Series

Spec 11 Attribute Value

XB4

Spec 12 Attribute

Shape

Spec 12 Attribute Value

Round

Spec 13 Attribute

Size

Spec 13 Attribute UOM

MM

Spec 13 Attribute Value

22

Spec 14 Attribute

Style

Spec 14 Attribute Value

Integral

Spec 15 Attribute

Terminal Type

Spec 15 Attribute Value

Screw clamp

Spec 16 Attribute

Voltage Rating

Spec 16 Attribute UOM

V AC/DC

Spec 16 Attribute Value

110 to 120

Spec 2 Attribute

Average Life

Spec 2 Attribute UOM

HR

Spec 2 Attribute Value

100000

Spec 3 Attribute

Bezel/Housing

Spec 3 Attribute Value

Chromium Plated Metal

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 4X/13/IP66/IP67/IP69/IP69K/IK06

Spec 5 Attribute

Environmental Conditions

Spec 5 Attribute Value

-40 to 158 deg F Operating/Storage

Spec 6 Attribute

Lamp Type

Spec 6 Attribute Value

Led

Spec 7 Attribute

Lens Color

Spec 7 Attribute Value

Red

Spec 8 Attribute

Lens Material

Spec 8 Attribute Value

Zamak

Spec 9 Attribute

Lens Type

Spec 9 Attribute Value

Plain
