Schneider Electric

XB5AA21 - Push button, Harmony XB5, plastic, flush, black, 22mm, spring return, unmarked, 1NO

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

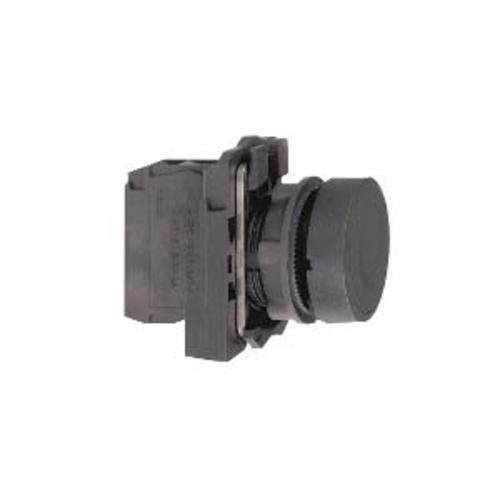

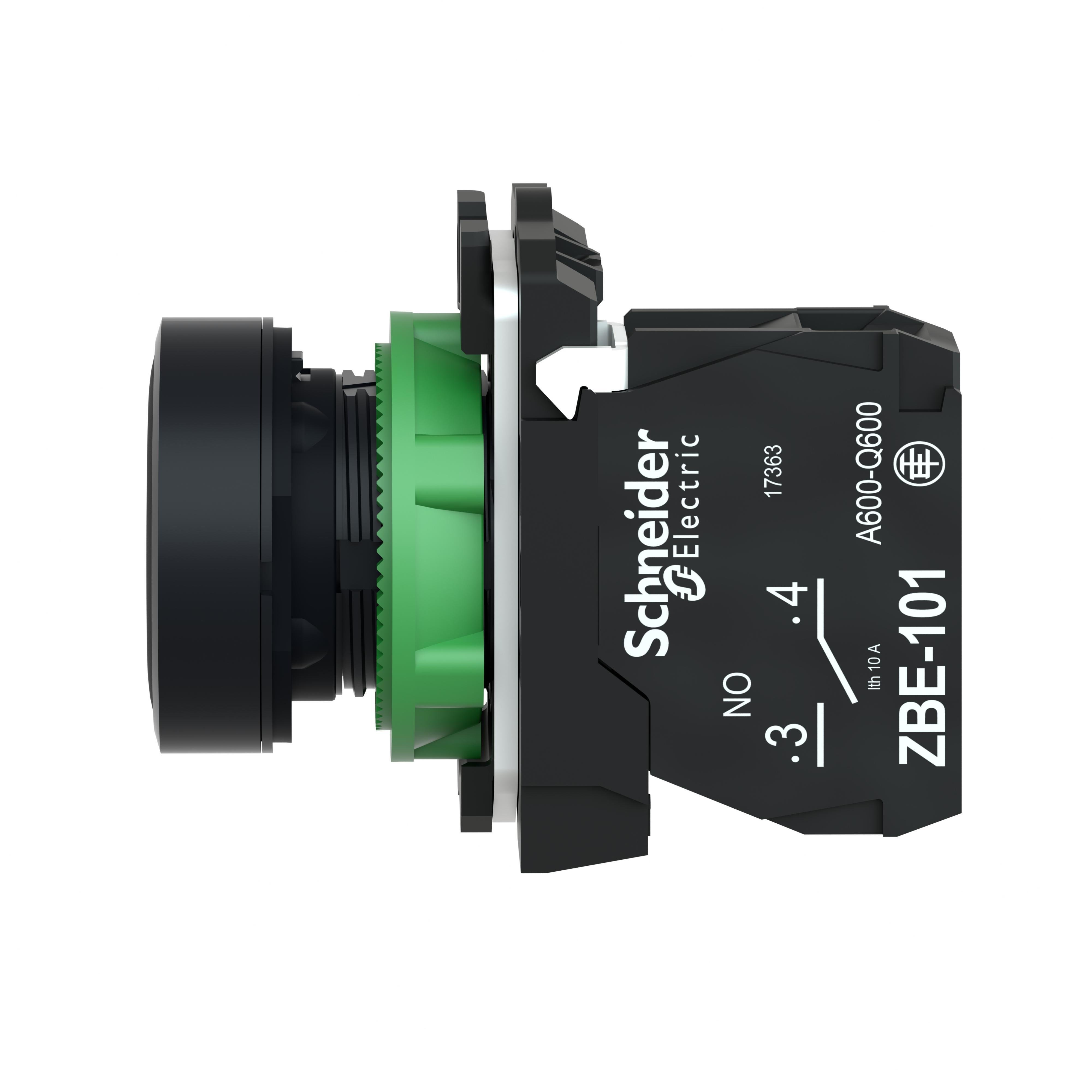

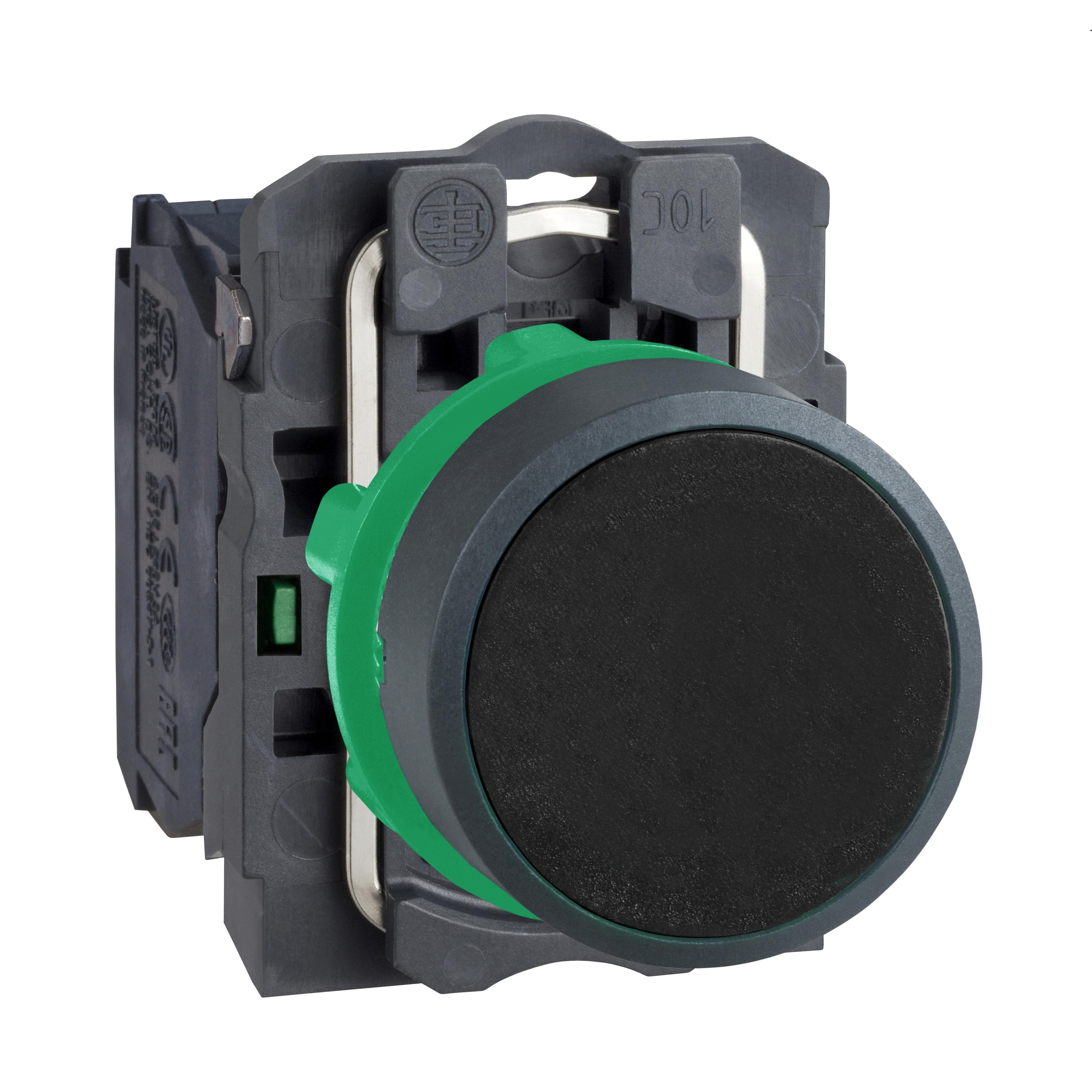

Picture of XB5AA21 - Push button, Harmony XB5, plastic, flush, black, 22mm, spring return, unmarked, 1NO Picture of XB5AA21 - Push button, Harmony XB5, plastic, flush, black, 22mm, spring return, unmarked, 1NO
Picture of XB5AA21 - Push button, Harmony XB5, plastic, flush, black, 22mm, spring return, unmarked, 1NO Picture of XB5AA21 - Push button, Harmony XB5, plastic, flush, black, 22mm, spring return, unmarked, 1NO
Picture of XB5AA21 - Push button, Harmony XB5, plastic, flush, black, 22mm, spring return, unmarked, 1NO Picture of XB5AA21 - Push button, Harmony XB5, plastic, flush, black, 22mm, spring return, unmarked, 1NO
Picture of XB5AA21 - Push button, Harmony XB5, plastic, flush, black, 22mm, spring return, unmarked, 1NO Picture of XB5AA21 - Push button, Harmony XB5, plastic, flush, black, 22mm, spring return, unmarked, 1NO
Schneider Electric

XB5AA21 - Push button, Harmony XB5, plastic, flush, black, 22mm, spring return, unmarked, 1NO

Item Code: 591517
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB5AA21

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB5, modular black push button operates with a spring return / impulse mechanism and uses screw clamp terminals. This push button provides a simple and robust control to machines and processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable visually at a distance thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Specifications

Weight

0.08lb

Height

3.5mm

Width

2.15mm

Length

3.31mm

Depth

52mm

AD Application

Indoor/Outdoor Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

PUSHBUTTON NON-ILLUMINATED 22MM 1NO BK

AD Item Features 01

Quick and easy assembly and disassembly

AD Item Features 02

Robustness to withstand harsh environments

AD Item Features 03

With various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

A large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.5000

AD Package Height UOM

IN

AD Package Length

3.3100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

9.5600

AD Package Volume UOM

cu-in

AD Package Weight

0.0800

AD Package Weight UOM

LB

AD Package Width

2.1500

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/6sW9Z3A8tM0

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Round Button

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Panel

Spec 11 Attribute

Operator Type

Spec 11 Attribute Value

Flush

Spec 12 Attribute

Series

Spec 12 Attribute Value

XB5

Spec 13 Attribute

Size

Spec 13 Attribute UOM

MM

Spec 13 Attribute Value

22

Spec 14 Attribute

Terminal Type

Spec 14 Attribute Value

Screw clamp

Spec 2 Attribute

Bezel/Housing

Spec 2 Attribute Value

Plastic

Spec 3 Attribute

Color

Spec 3 Attribute Value

Black

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

1NO

Spec 5 Attribute

Contact Mode

Spec 5 Attribute Value

Momentary

Spec 6 Attribute

Contact Rating

Spec 6 Attribute Value

10/6/1.2 A at 120/600 V AC/0.55/0.1 A at 125/600 V DC

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

Nema 4/4X/13

Spec 8 Attribute

Environmental Conditions

Spec 8 Attribute Value

-40 to 70 deg C Operating Temperature

Spec 9 Attribute

Legend

Spec 9 Attribute Value

Unmarked
