Schneider Electric

XB5AD21 - Harmony, 22mm Push Button, 2 position selector switch, black, maintained, 1 NO, marked OFF ON

Category Relays, Push Buttons, Pilot Lights, Selector Switches

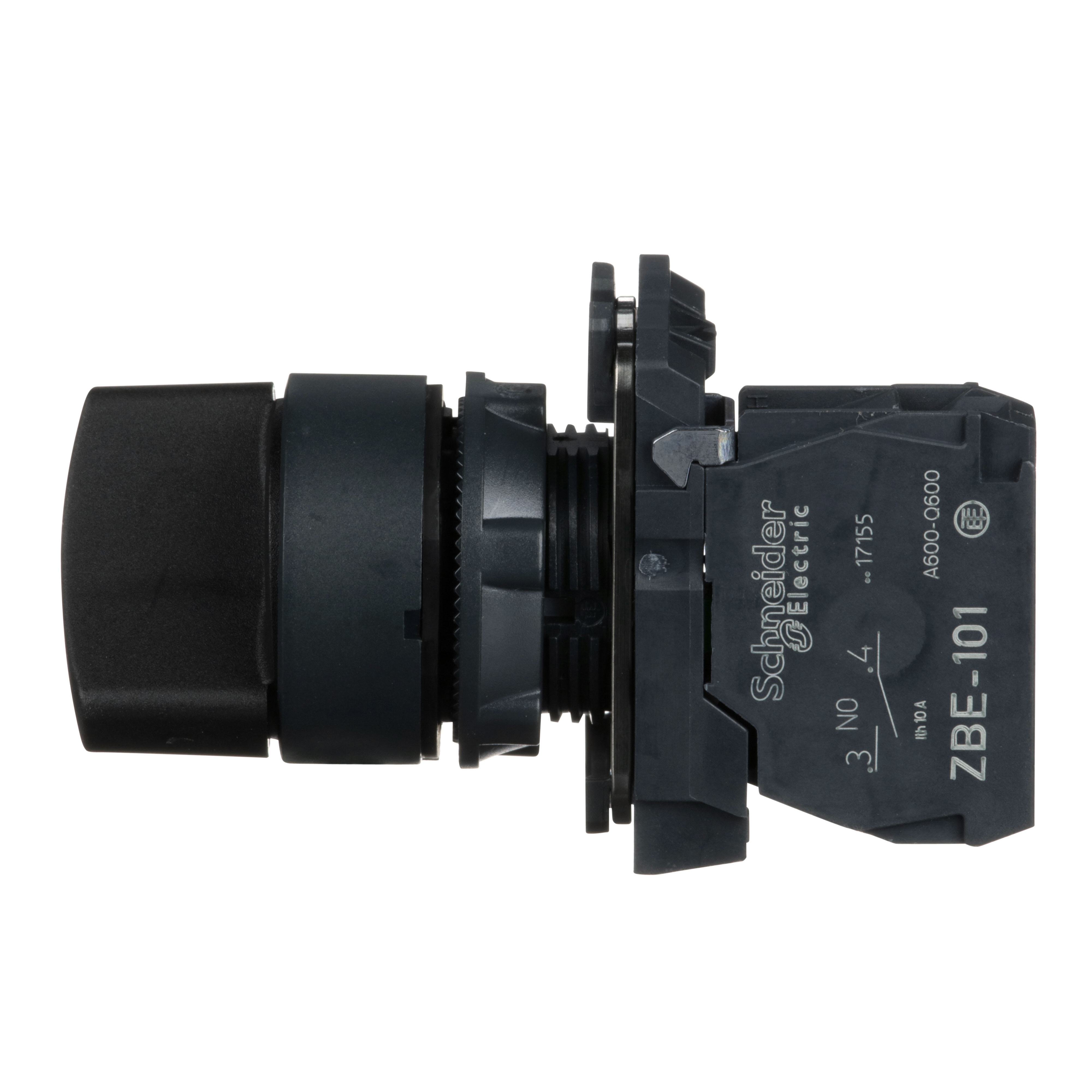

Picture of XB5AD21 - Harmony, 22mm Push Button, 2 position selector switch, black, maintained, 1 NO, marked OFF ON Picture of XB5AD21 - Harmony, 22mm Push Button, 2 position selector switch, black, maintained, 1 NO, marked OFF ON
Picture of XB5AD21 - Harmony, 22mm Push Button, 2 position selector switch, black, maintained, 1 NO, marked OFF ON Picture of XB5AD21 - Harmony, 22mm Push Button, 2 position selector switch, black, maintained, 1 NO, marked OFF ON
Schneider Electric

XB5AD21 - Harmony, 22mm Push Button, 2 position selector switch, black, maintained, 1 NO, marked OFF ON

Item Code: 577149
Category Relays, Push Buttons, Pilot Lights, Selector Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB5AD21

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.09lb

Height

1.1mm

Width

2.11mm

Length

3.55mm

Depth

70mm

AD Application

Indoor/Outdoor Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

SWITCH SEL NON-ILLUMINATED 22MM 1NO BK 2

AD Item Features 01

Quick and easy assembly and disassembly

AD Item Features 02

Robustness to withstand harsh environments

AD Item Features 03

With various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

A large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.1000

AD Package Height UOM

IN

AD Package Length

3.5500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

4.5800

AD Package Volume UOM

cu-in

AD Package Weight

0.0900

AD Package Weight UOM

LB

AD Package Width

2.1100

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/6sW9Z3A8tM0

Brand

Square D

Category

RELAYS, PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Round Handle

Spec 10 Attribute

Number of Positions

Spec 10 Attribute Value

2

Spec 11 Attribute

Series

Spec 11 Attribute Value

XB5

Spec 12 Attribute

Size

Spec 12 Attribute UOM

MM

Spec 12 Attribute Value

22

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Screw clamp

Spec 14 Attribute

Throw

Spec 14 Attribute Value

Left to Right

Spec 2 Attribute

Bezel/Housing

Spec 2 Attribute Value

Plastic

Spec 3 Attribute

Color

Spec 3 Attribute Value

Black

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

1NO

Spec 5 Attribute

Contact Mode

Spec 5 Attribute Value

Maintained

Spec 6 Attribute

Contact Rating

Spec 6 Attribute Value

10 A at 230 V AC

Spec 7 Attribute

Enclosure Type

Spec 7 Attribute Value

NEMA 4/4X/13/IP69

Spec 8 Attribute

Environmental Conditions

Spec 8 Attribute Value

-40 to 158 deg F Operating/Storage Temperature

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Panel
