Schneider Electric

XB5AVG1 - pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 110...120V AC

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

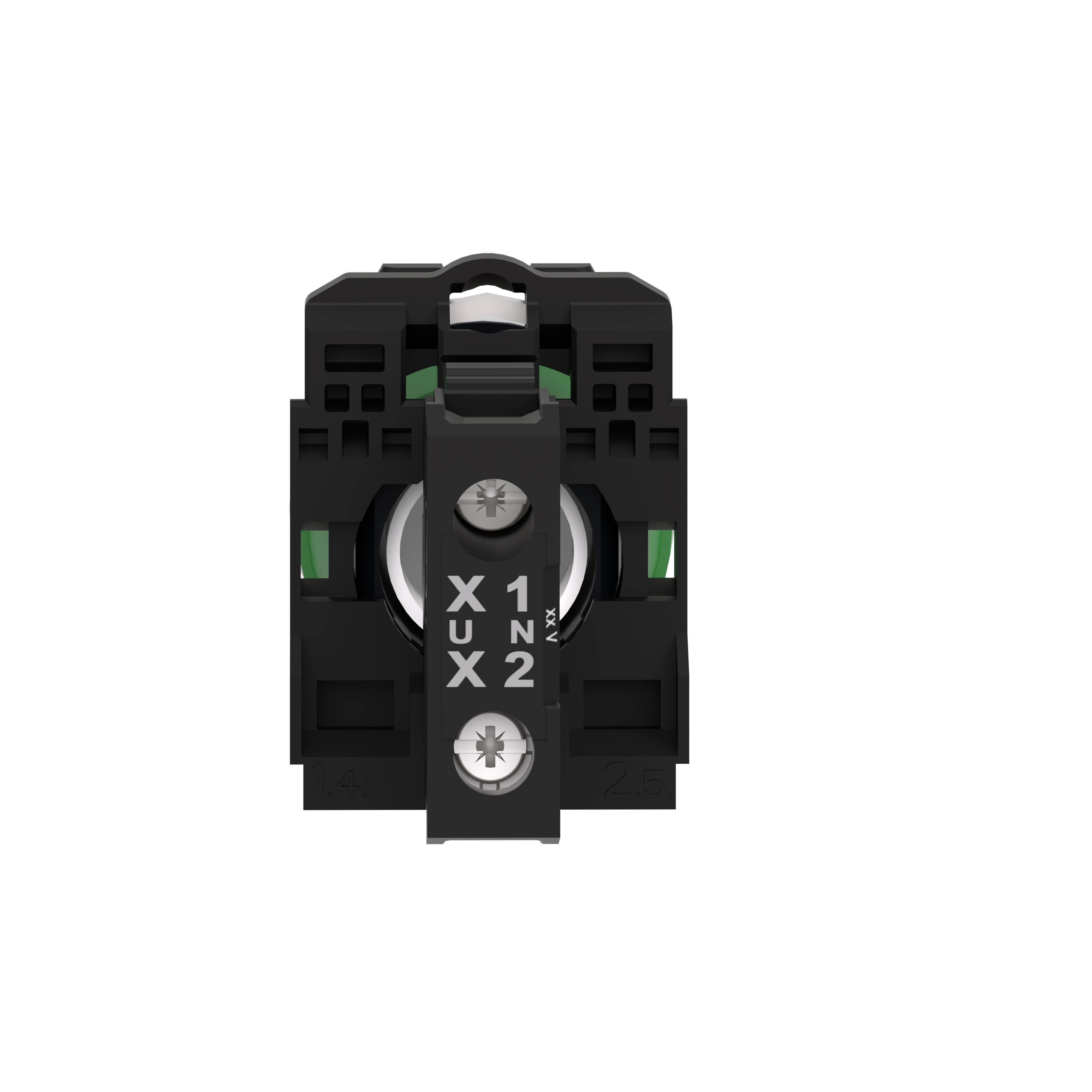

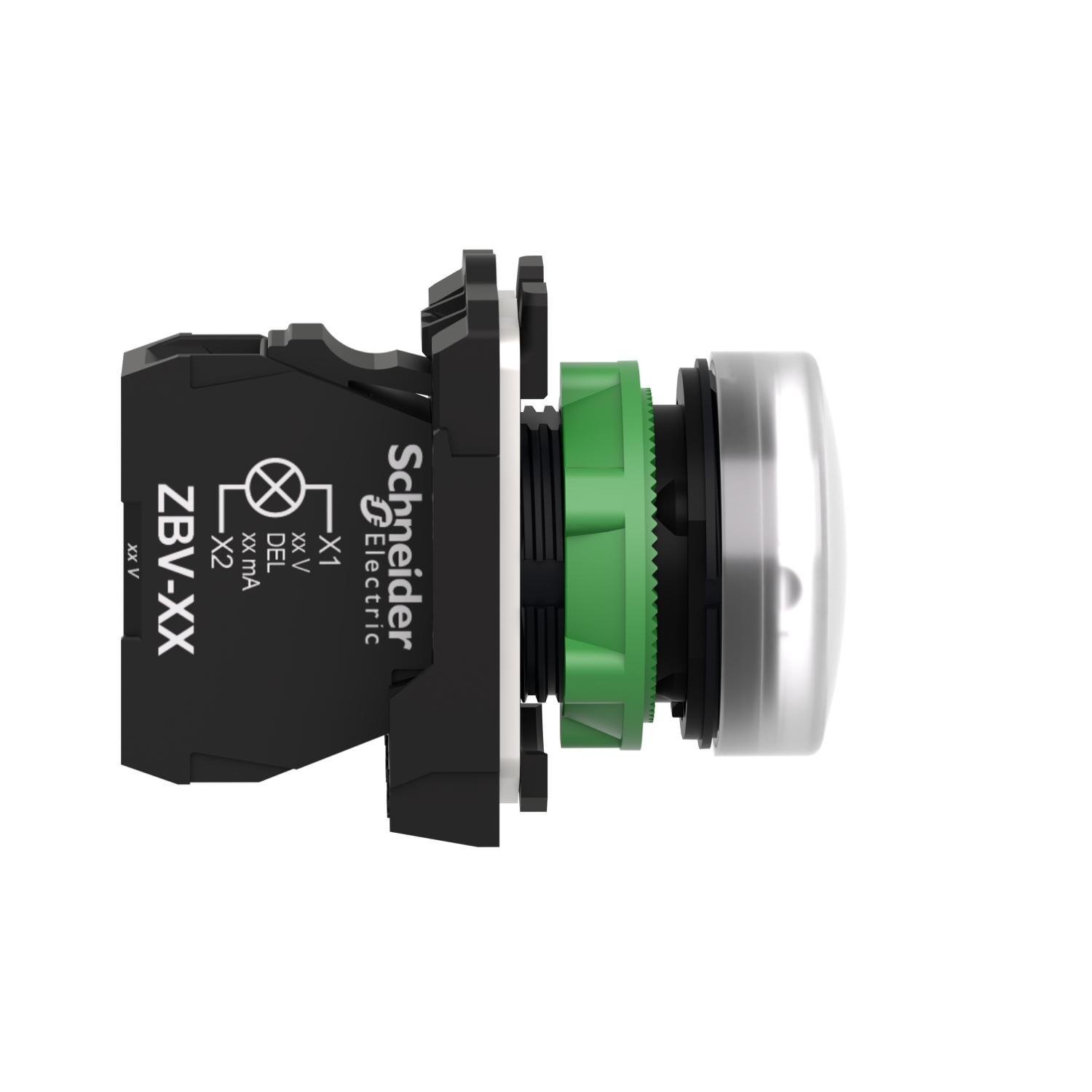

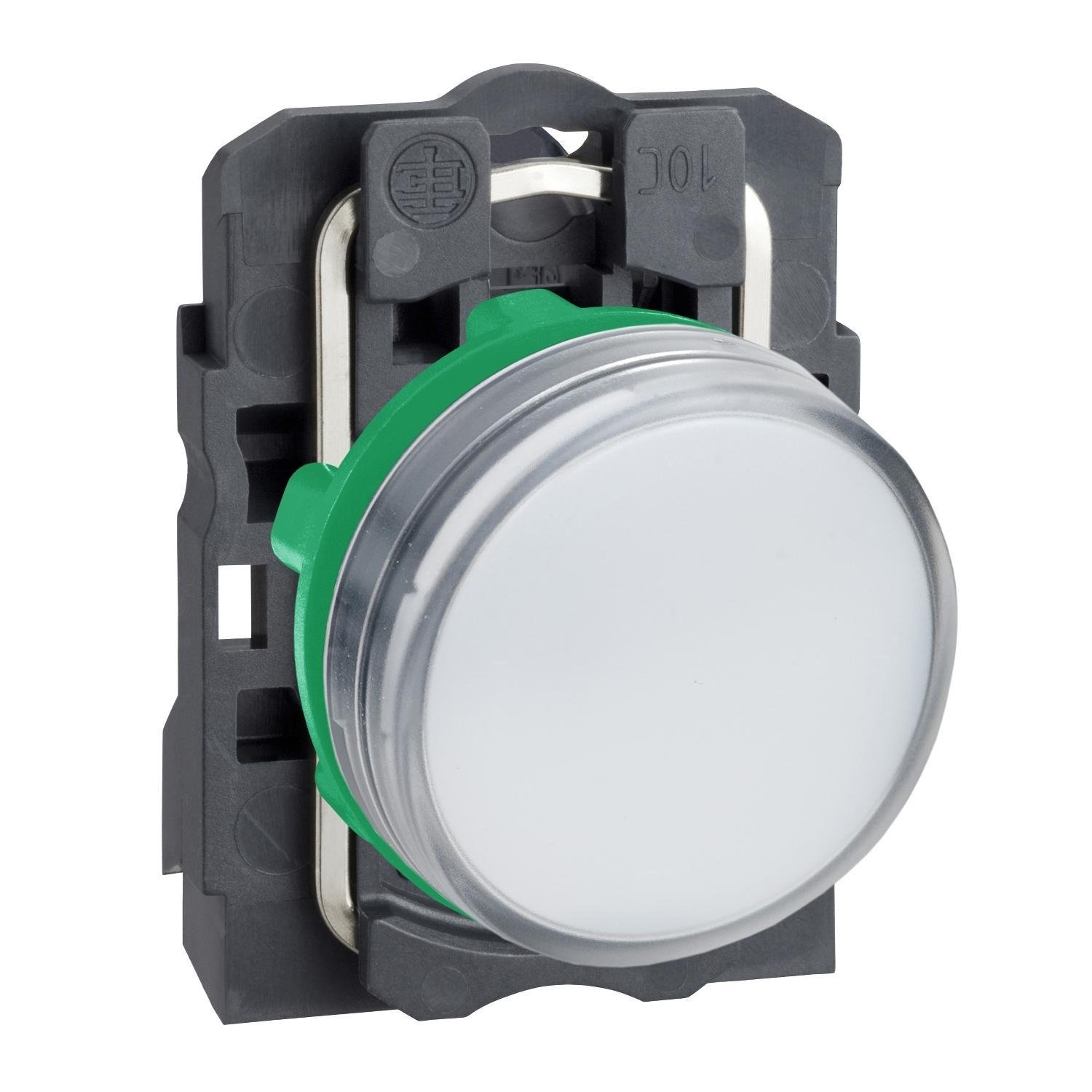

Picture of XB5AVG1 - pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 110...120V AC Picture of XB5AVG1 - pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 110...120V AC
Picture of XB5AVG1 - pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 110...120V AC Picture of XB5AVG1 - pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 110...120V AC
Picture of XB5AVG1 - pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 110...120V AC Picture of XB5AVG1 - pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 110...120V AC
Picture of XB5AVG1 - pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 110...120V AC Picture of XB5AVG1 - pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 110...120V AC
Schneider Electric

XB5AVG1 - pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 110...120V AC

Item Code: 707555
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB5AVG1

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB5, plain lens modular white pilot light is supplied with 110V to 120V AC, uses a universal LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Specifications

Weight

0.08lb

Height

1.3mm

Width

1.4mm

Length

2.11mm

Depth

54mm

AD Application

Signaling Units Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

LIGHT PLT 48/120VAC/VDC 14MA PL PNL INT

AD Item Features 01

Universal LED block to be used for all colors

AD Item Features 02

Improved color intensity and brightness

AD Item Features 03

Quick and easy assembly and disassembly

AD Item Features 04

Robustness to withstand harsh environments

AD Item Features 05

Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.3000

AD Package Height UOM

IN

AD Package Length

2.1100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0800

AD Package Weight UOM

LB

AD Package Width

1.4000

AD Package Width UOM

IN

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

MA

Spec 1 Attribute Value

14

Spec 10 Attribute

Mounting Type

Spec 10 Attribute Value

Panel

Spec 11 Attribute

Series

Spec 11 Attribute Value

XB5

Spec 12 Attribute

Shape

Spec 12 Attribute Value

Round

Spec 13 Attribute

Size

Spec 13 Attribute UOM

MM

Spec 13 Attribute Value

22

Spec 14 Attribute

Style

Spec 14 Attribute Value

Integral

Spec 15 Attribute

Terminal Type

Spec 15 Attribute Value

Screw clamp

Spec 16 Attribute

Type

Spec 16 Attribute Value

Complete

Spec 17 Attribute

Voltage Rating

Spec 17 Attribute Value

48 V AC/120 V DC

Spec 2 Attribute

Average Life

Spec 2 Attribute UOM

HR

Spec 2 Attribute Value

100000

Spec 3 Attribute

Bezel/Housing

Spec 3 Attribute Value

Black Plastic

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 4/4X/13/IP66/IP67/IK05

Spec 5 Attribute

Environmental Conditions

Spec 5 Attribute Value

-13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature

Spec 6 Attribute

Lamp Type

Spec 6 Attribute Value

Led

Spec 7 Attribute

Lens Color

Spec 7 Attribute Value

White

Spec 8 Attribute

Lens Material

Spec 8 Attribute Value

Plastic

Spec 9 Attribute

Lens Type

Spec 9 Attribute Value

Plain
