Schneider Electric

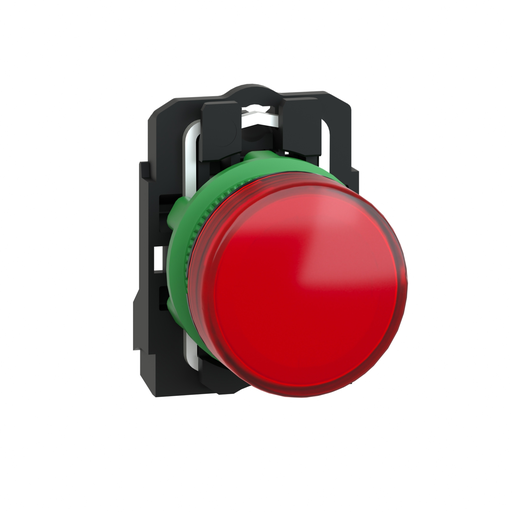

XB5AVG4 - pilot light, Harmony XB5, grey plastic, red, 22mm, universal LED, plain lens, 110…120V AC

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

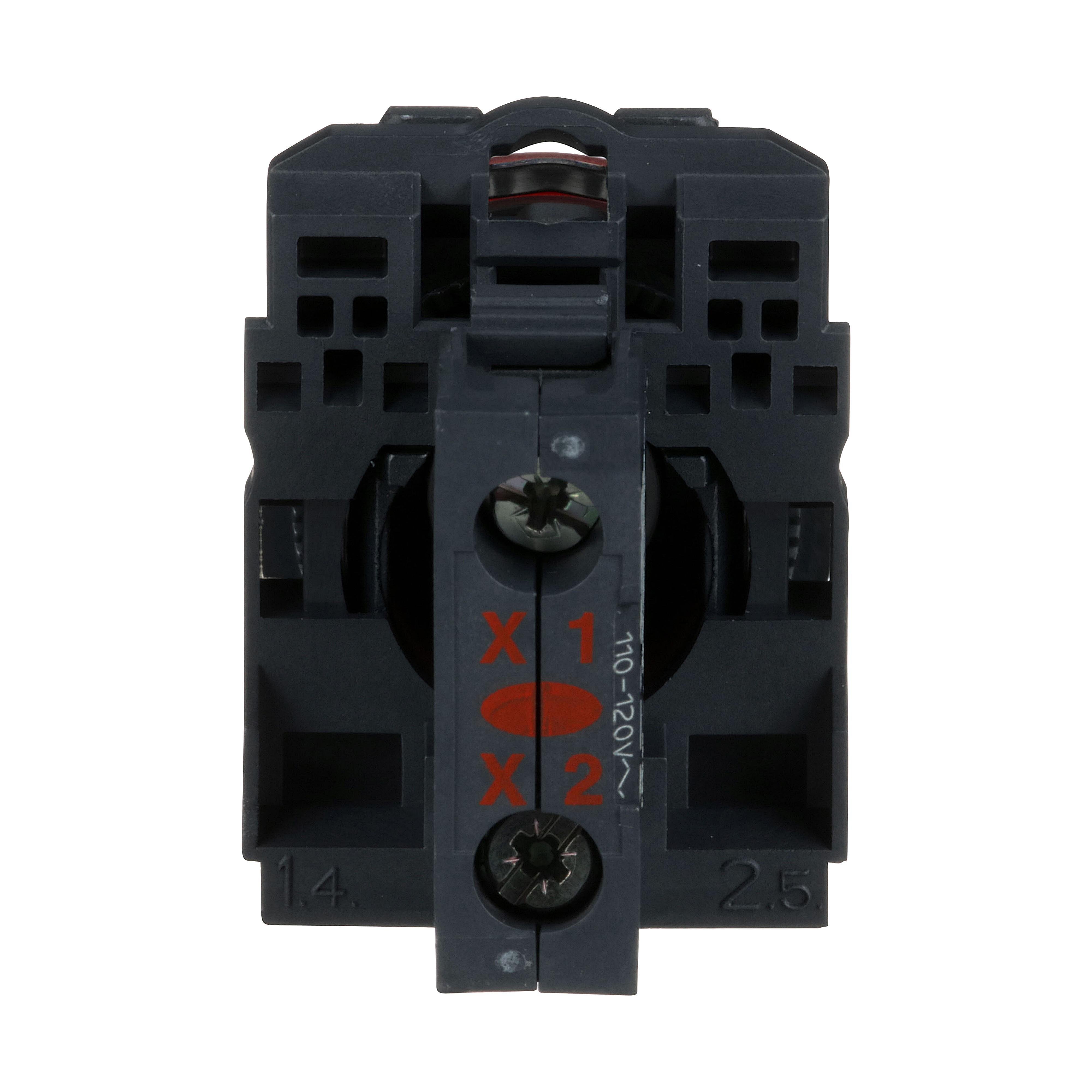

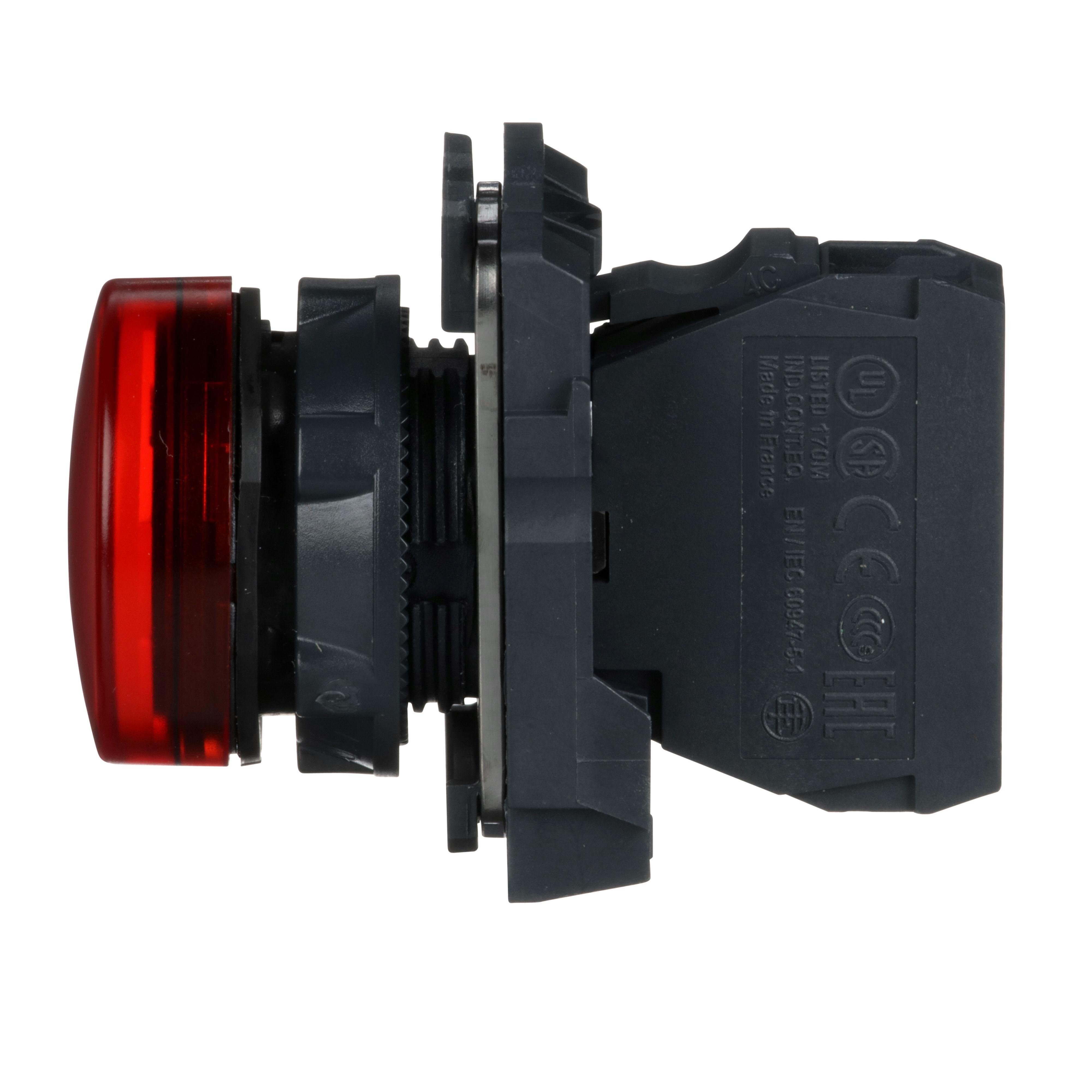

Picture of XB5AVG4 - pilot light, Harmony XB5, grey plastic, red, 22mm, universal LED, plain lens, 110…120V AC Picture of XB5AVG4 - pilot light, Harmony XB5, grey plastic, red, 22mm, universal LED, plain lens, 110…120V AC
Picture of XB5AVG4 - pilot light, Harmony XB5, grey plastic, red, 22mm, universal LED, plain lens, 110…120V AC Picture of XB5AVG4 - pilot light, Harmony XB5, grey plastic, red, 22mm, universal LED, plain lens, 110…120V AC
Picture of XB5AVG4 - pilot light, Harmony XB5, grey plastic, red, 22mm, universal LED, plain lens, 110…120V AC Picture of XB5AVG4 - pilot light, Harmony XB5, grey plastic, red, 22mm, universal LED, plain lens, 110…120V AC
Picture of XB5AVG4 - pilot light, Harmony XB5, grey plastic, red, 22mm, universal LED, plain lens, 110…120V AC Picture of XB5AVG4 - pilot light, Harmony XB5, grey plastic, red, 22mm, universal LED, plain lens, 110…120V AC
Schneider Electric

XB5AVG4 - pilot light, Harmony XB5, grey plastic, red, 22mm, universal LED, plain lens, 110…120V AC

Item Code: 592664
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB5AVG4

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB5, plain lens modular red pilot light is supplied with 110V to 120V AC, uses a universal LED and screw clamp terminals. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.08lb

Height

3.5mm

Width

2.11mm

Length

3.43mm

Depth

54mm

AD Application

Signaling and Indoor/Outdoor Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

LIGHT PLT 110/120VAC PL PNL INT R PLSTC

AD Item Features 01

Universal LED block to be used for all colors

AD Item Features 02

Improved color intensity and brightness

AD Item Features 03

Quick and easy assembly and disassembly

AD Item Features 04

Robustness to withstand harsh environments

AD Item Features 05

Various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board

AD Manufacturer (Description)

Schneider Electric

AD Package Height

3.5000

AD Package Height UOM

IN

AD Package Length

3.4300

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

9.5600

AD Package Volume UOM

cu-in

AD Package Weight

0.0800

AD Package Weight UOM

LB

AD Package Width

2.1100

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/phYL_MaZPwo

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Average Life

Spec 1 Attribute UOM

HR

Spec 1 Attribute Value

100000

Spec 10 Attribute

Series

Spec 10 Attribute Value

XB5

Spec 11 Attribute

Shape

Spec 11 Attribute Value

Round

Spec 12 Attribute

Size

Spec 12 Attribute UOM

MM

Spec 12 Attribute Value

22

Spec 13 Attribute

Style

Spec 13 Attribute Value

Integral

Spec 14 Attribute

Terminal Type

Spec 14 Attribute Value

Screw clamp

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

110/120

Spec 2 Attribute

Bezel/Housing

Spec 2 Attribute Value

Black Plastic

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 4/4X/13/IP66/IP67

Spec 4 Attribute

Environmental Conditions

Spec 4 Attribute Value

-40 to 70 deg C Operating Temperature

Spec 5 Attribute

Lamp Type

Spec 5 Attribute Value

Led

Spec 6 Attribute

Lens Color

Spec 6 Attribute Value

Red

Spec 7 Attribute

Lens Material

Spec 7 Attribute Value

Plastic

Spec 8 Attribute

Lens Type

Spec 8 Attribute Value

Plain

Spec 9 Attribute

Mounting Type

Spec 9 Attribute Value

Panel
