Schneider Electric

XB5DTGM5 - Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3...60min, 100...240V AC DC

Category Miscellaneous Signaling & Security Equipment

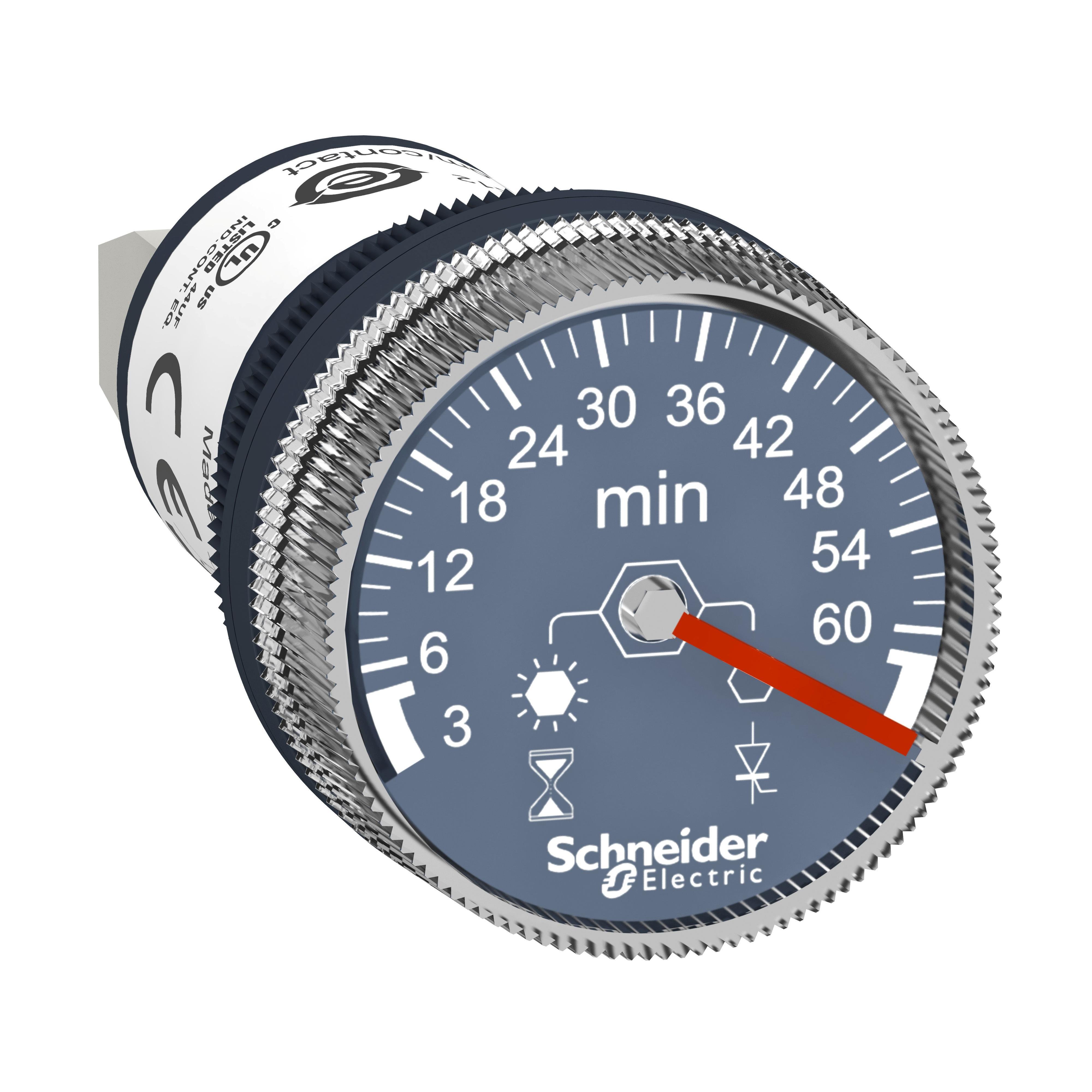

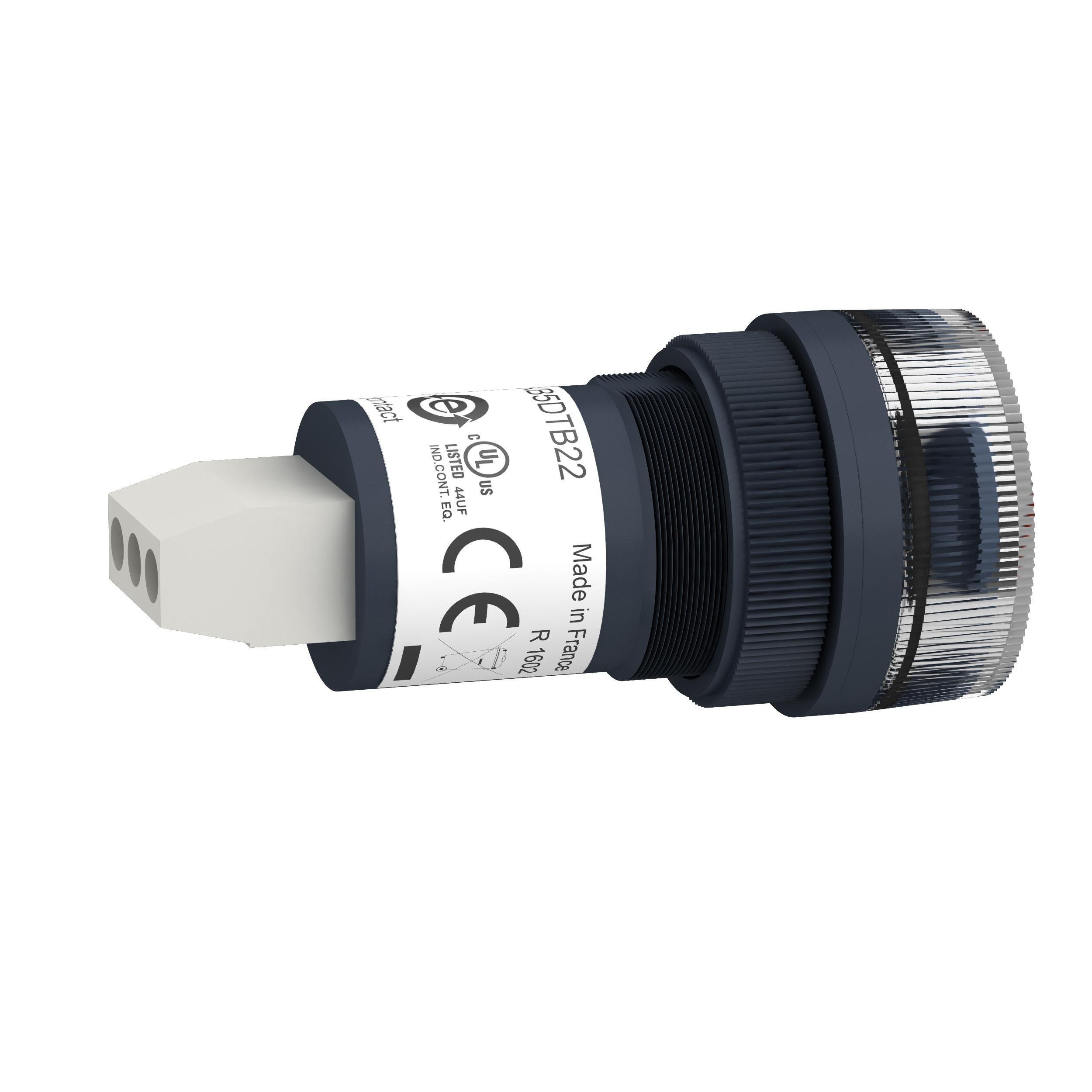

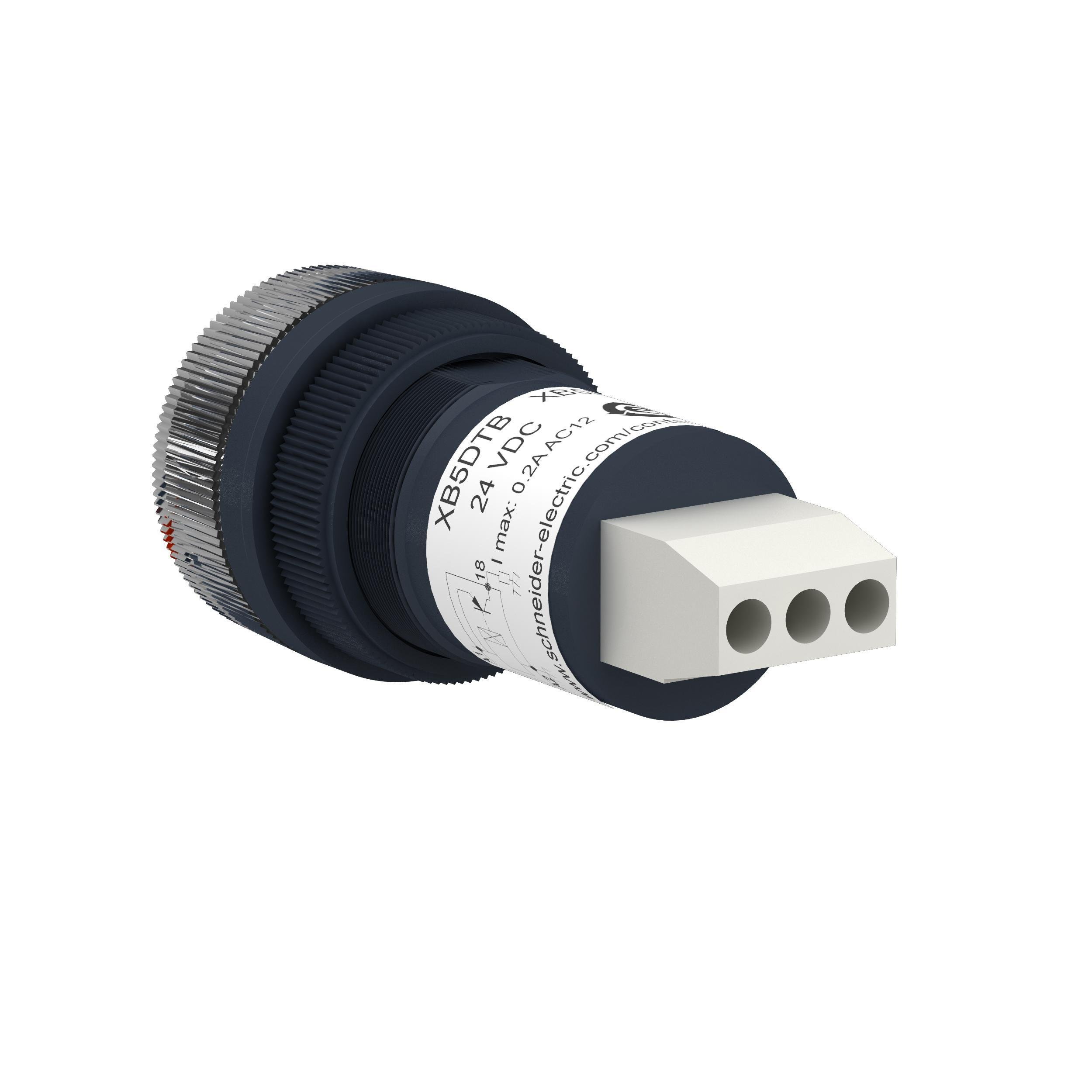

Picture of XB5DTGM5 - Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3...60min, 100...240V AC DC Picture of XB5DTGM5 - Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3...60min, 100...240V AC DC
Picture of XB5DTGM5 - Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3...60min, 100...240V AC DC Picture of XB5DTGM5 - Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3...60min, 100...240V AC DC
Picture of XB5DTGM5 - Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3...60min, 100...240V AC DC Picture of XB5DTGM5 - Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3...60min, 100...240V AC DC
Picture of XB5DTGM5 - Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3...60min, 100...240V AC DC Picture of XB5DTGM5 - Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3...60min, 100...240V AC DC
Schneider Electric

XB5DTGM5 - Panel mounted timer monofunction, Harmony XB5, plastic, 22mm, time delay 3...60min, 100...240V AC DC

Item Code: 1050012
Category Miscellaneous Signaling & Security Equipment
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB5DTGM5

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB5, monolithic analog timer can be set for timing intervals between 3 to 60 minutes and is supplied with a 100V to 240V AC/DC input. This analog timer provides visual timing of your processes. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It provides highly visible timing of machine processes, ensuring accuracy and consistency of operation.

Specifications

Weight

0.06lb

Height

62mm

Width

1.25mm

Length

2.92mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/xb5dtgm5/xb5dtgm5.spin

AD Alternative Part Number

15647384

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

3606481205537

AD Gtin

03606481205537

AD IDEA Index ID

15647384

AD Invoice Description

TIMER 3 TO 60MIN 100 TO 230VAC/VDC

AD Item Features 01

Quick and easy assembly and disassembly

AD Item Features 02

Robustness to withstand harsh environments

AD Item Features 03

With various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

A large set of accessories to customize your panels

AD Keywords

Harmony XB5DTGM5 Mono-Function Timer, 3 to 60 min Setting, 100 to 230 V AC/DC ; Schneider Electric ; Schneider Electric ; XB5DTGM5 ; 785901911890 ; Electromechanical Timers

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

2.9200

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0600

AD Package Weight UOM

LB

AD Package Width

1.2500

AD Package Width UOM

IN

AD Part Number Keywords

XB5DTGM5 ; 15647384 ; 785901911890 ; 78590191189 ; 03606481205537 ; 3606481205537

AD Video Links

https://youtu.be/9zC9OPsk2fw

Brand

Square D

Category

MISCELLANEOUS SIGNALING & SECURITY EQUIPMENT

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

10

Spec 10 Attribute

Voltage Rating

Spec 10 Attribute UOM

V AC/DC

Spec 10 Attribute Value

100 to 230

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

1.14 in Dia x 2.44 in H

Spec 3 Attribute

Display Type

Spec 3 Attribute Value

Led

Spec 4 Attribute

Electrical Connections

Spec 4 Attribute Value

Screw Terminal

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP20/IP65

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

Temperature Rating

Spec 7 Attribute UOM

deg F

Spec 7 Attribute Value

-4 To 140

Spec 8 Attribute

Time Setting

Spec 8 Attribute UOM

MIN

Spec 8 Attribute Value

3 to 60

Spec 9 Attribute

Type

Spec 9 Attribute Value

Mono-Function
