Schneider Electric

XB6AS8349B - Complete emergency stop push button, Harmony XB6, 16mm, red pushbutton 30mm, trigger latching Turn to release, 1NO + 2NC

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

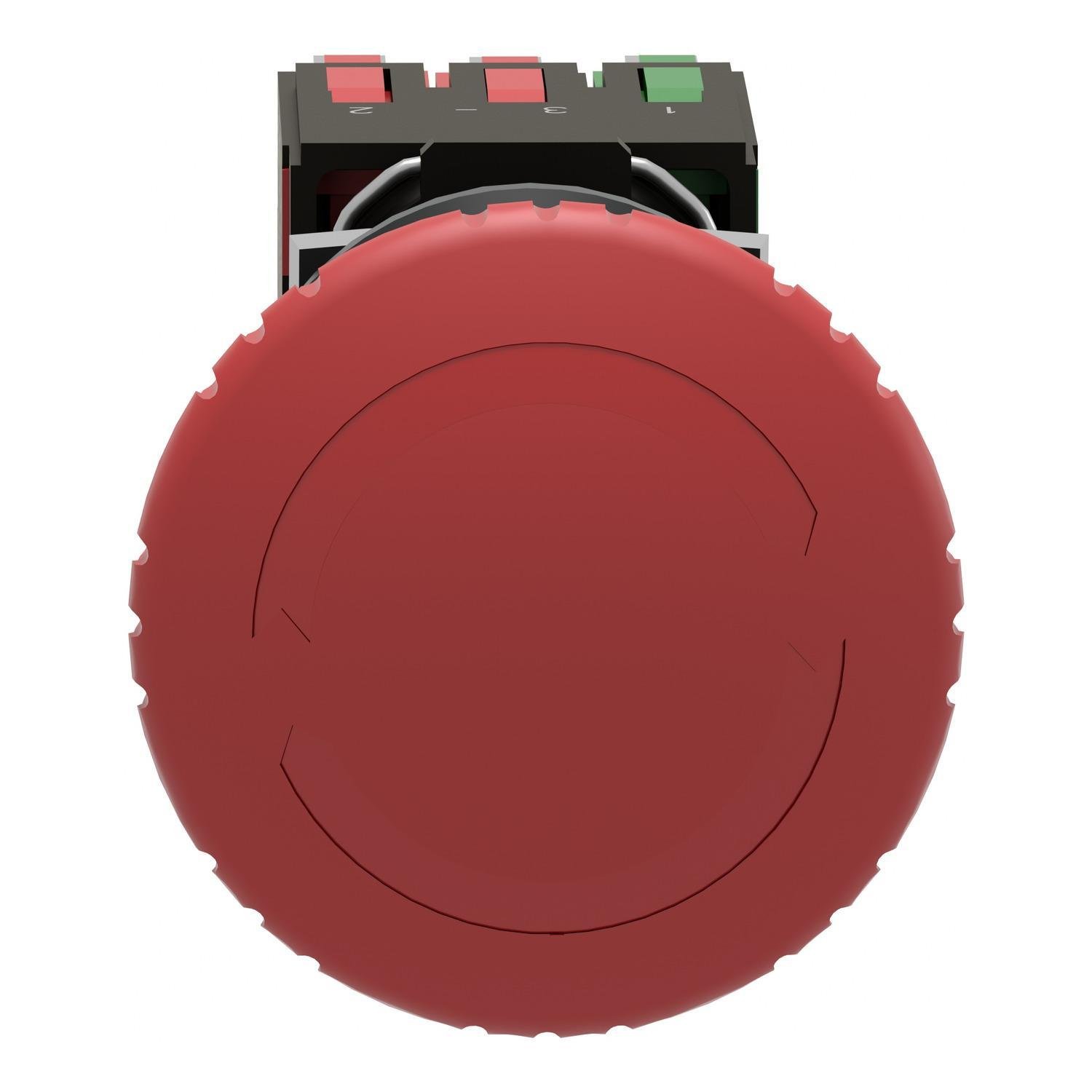

Picture of XB6AS8349B - Complete emergency stop push button, Harmony XB6, 16mm, red pushbutton 30mm, trigger latching Turn to release, 1NO + 2NC Picture of XB6AS8349B - Complete emergency stop push button, Harmony XB6, 16mm, red pushbutton 30mm, trigger latching Turn to release, 1NO + 2NC
Picture of XB6AS8349B - Complete emergency stop push button, Harmony XB6, 16mm, red pushbutton 30mm, trigger latching Turn to release, 1NO + 2NC Picture of XB6AS8349B - Complete emergency stop push button, Harmony XB6, 16mm, red pushbutton 30mm, trigger latching Turn to release, 1NO + 2NC
Schneider Electric

XB6AS8349B - Complete emergency stop push button, Harmony XB6, 16mm, red pushbutton 30mm, trigger latching Turn to release, 1NO + 2NC

Item Code: 1000960
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB6AS8349B

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB6 red, complete emergency stop push button is part of the range diameter 16mm plastic, Harmony XB6 modular. It has a circular head shape, with a turn to release mushroom, diameter 30mm, with trigger action and mechanical latching. It features 1 NO + 2 NC slow break contacts and faston connection type. Its reduced diameter 16mm makes it suitable to applications where less space is available for mounting, like small machines and control panels. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.

Specifications

Weight

0.08lb

Height

30mm

Width

2.15mm

Length

2.34mm

Depth

77mm

AD All Features

Circular head

AD Application

Buildings, Tertiary and Industrial Applications

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

PUSHBUTTON NON-ILLUMINATED 16MM 1NO-2NC

AD Item Features 01

Circular head

AD Item Features 02

Solder tab or pins for printed circuit board connection

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

2.3400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0800

AD Package Weight UOM

LB

AD Package Width

2.1500

AD Package Width UOM

IN

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Actuator

Spec 1 Attribute Value

Mushroom head

Spec 10 Attribute

Environmental Conditions

Spec 10 Attribute Value

-13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature

Spec 11 Attribute

Mounting Type

Spec 11 Attribute Value

Panel

Spec 12 Attribute

Series

Spec 12 Attribute Value

XB6

Spec 13 Attribute

Size

Spec 13 Attribute UOM

MM

Spec 13 Attribute Value

16

Spec 14 Attribute

Terminal Type

Spec 14 Attribute Value

Faston

Spec 15 Attribute

Type

Spec 15 Attribute Value

Emergency Stop Unmarked

Spec 2 Attribute

Bezel/Housing

Spec 2 Attribute Value

Plastic

Spec 3 Attribute

Color

Spec 3 Attribute Value

Red

Spec 4 Attribute

Connection Type

Spec 4 Attribute Value

Faston

Spec 5 Attribute

Contact Configuration

Spec 5 Attribute Value

1NO-2NC

Spec 6 Attribute

Contact Mode

Spec 6 Attribute Value

Momentary/Maintained

Spec 7 Attribute

Contact Rating

Spec 7 Attribute Value

3 A at 120 V AC, 1.5 A at 240 V AC, 0.22 A at 125 V DC, 0.1 A at 250 V DC

Spec 8 Attribute

Contact Type

Spec 8 Attribute Value

Slow Break

Spec 9 Attribute

Enclosure Type

Spec 9 Attribute Value

NEMA 1/4/4X/12/13/IP65
