Schneider Electric

XB7EV03BP - Monolithic pilot light, Harmony XB7, plastic, green, 22mm, integral LED, 24V AC DC

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

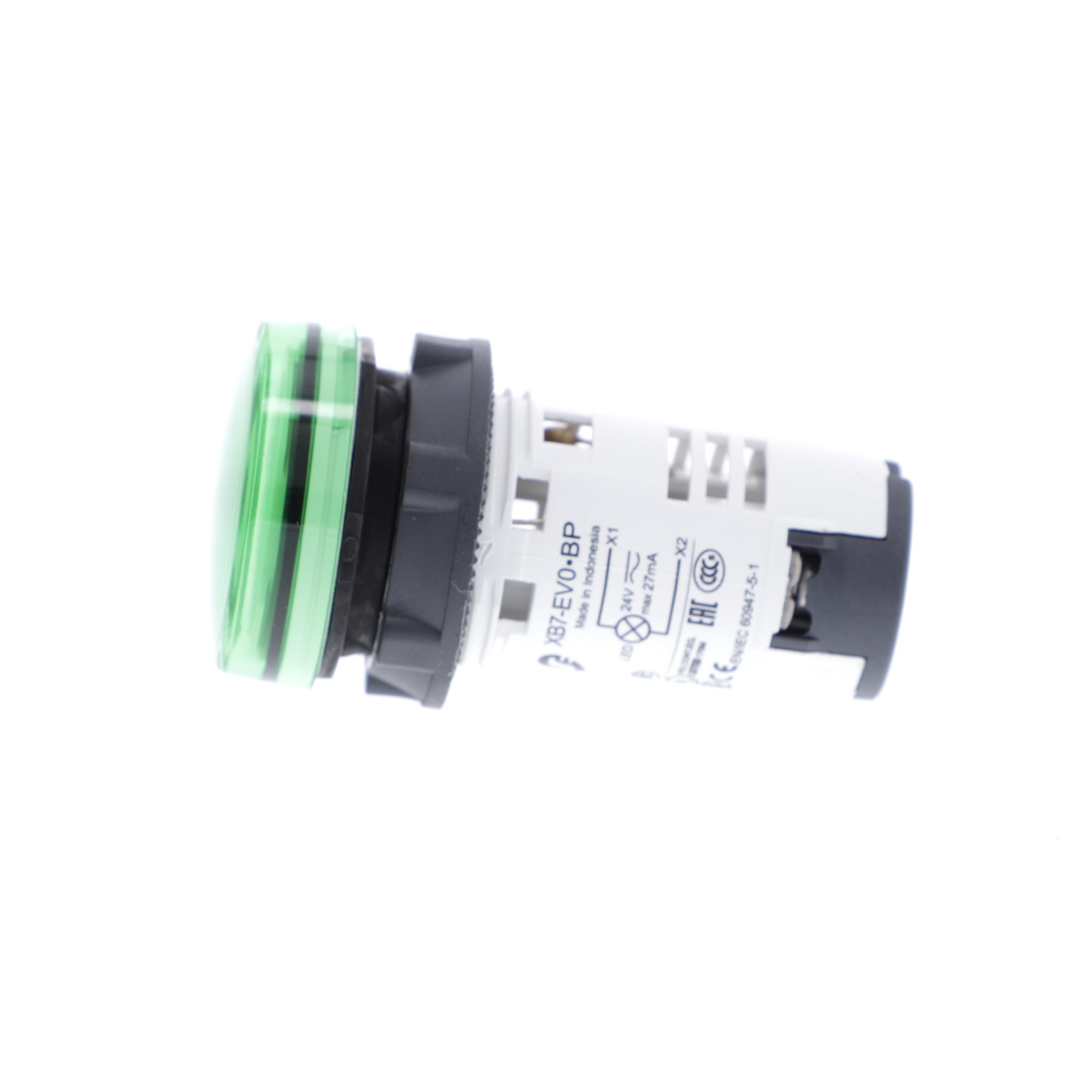

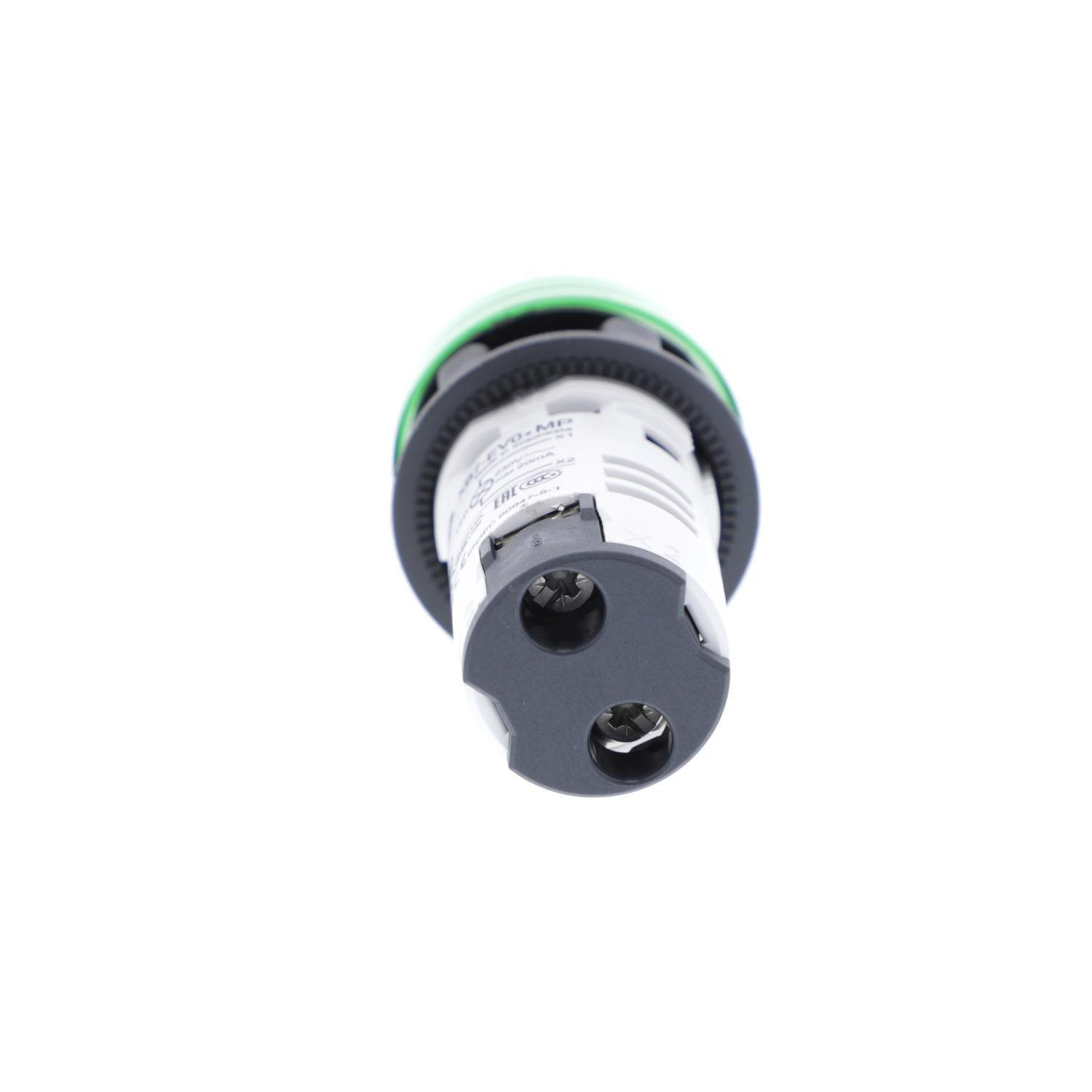

Picture of XB7EV03BP - Monolithic pilot light, Harmony XB7, plastic, green, 22mm, integral LED, 24V AC DC Picture of XB7EV03BP - Monolithic pilot light, Harmony XB7, plastic, green, 22mm, integral LED, 24V AC DC
Picture of XB7EV03BP - Monolithic pilot light, Harmony XB7, plastic, green, 22mm, integral LED, 24V AC DC Picture of XB7EV03BP - Monolithic pilot light, Harmony XB7, plastic, green, 22mm, integral LED, 24V AC DC
Picture of XB7EV03BP - Monolithic pilot light, Harmony XB7, plastic, green, 22mm, integral LED, 24V AC DC Picture of XB7EV03BP - Monolithic pilot light, Harmony XB7, plastic, green, 22mm, integral LED, 24V AC DC
Picture of XB7EV03BP - Monolithic pilot light, Harmony XB7, plastic, green, 22mm, integral LED, 24V AC DC Picture of XB7EV03BP - Monolithic pilot light, Harmony XB7, plastic, green, 22mm, integral LED, 24V AC DC
Schneider Electric

XB7EV03BP - Monolithic pilot light, Harmony XB7, plastic, green, 22mm, integral LED, 24V AC DC

Item Code: 943767
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB7EV03BP

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB7, plain lens monolithic green pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Specifications

Weight

0.04lb

Height

1.2mm

Width

1.2mm

Length

2.1mm

Depth

54mm

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ID

AD Invoice Description

LIGHT PLT 24VAC/VDC 20 TO 27MA PNL INT

AD Item Features 01

Plastic bezel making it ideal for applications requiring good resistance to chemical agents and/or electrical insulation

AD Item Features 02

Designed to fit in a standard 22mm cut-out ensuring compatibility with pre-existing machinery

AD Item Features 03

Wide range of operating temperatures from -25 deg C to 70 deg C/-13 to +158 deg F

AD Item Features 04

Wide availability throughout an extensive distribution network

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.2000

AD Package Height UOM

IN

AD Package Length

2.1000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

3.0200

AD Package Volume UOM

cu-in

AD Package Weight

0.0400

AD Package Weight UOM

LB

AD Package Width

1.2000

AD Package Width UOM

IN

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

MA

Spec 1 Attribute Value

20 to 27

Spec 10 Attribute

Size

Spec 10 Attribute UOM

MM

Spec 10 Attribute Value

22

Spec 11 Attribute

Style

Spec 11 Attribute Value

Integral

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Screw clamp

Spec 13 Attribute

Type

Spec 13 Attribute Value

Monolithic

Spec 14 Attribute

Voltage Rating

Spec 14 Attribute UOM

V AC/DC

Spec 14 Attribute Value

24

Spec 2 Attribute

Average Life

Spec 2 Attribute UOM

HR

Spec 2 Attribute Value

70000

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

NEMA 4/12/IP65/IP20

Spec 4 Attribute

Environmental Conditions

Spec 4 Attribute Value

-13 to 158 deg F Operating Temperature, -40 to 158 deg F Storage Temperature

Spec 5 Attribute

Lamp Type

Spec 5 Attribute Value

Led

Spec 6 Attribute

Lens Color

Spec 6 Attribute Value

Green

Spec 7 Attribute

Mounting Type

Spec 7 Attribute Value

Panel

Spec 8 Attribute

Series

Spec 8 Attribute Value

XB7

Spec 9 Attribute

Shape

Spec 9 Attribute Value

Round
