Schneider Electric

XB7EV08GP - Monolithic pilot light, Harmony XB7, plastic, orange, 22mm, integral LED, 110...120V AC

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

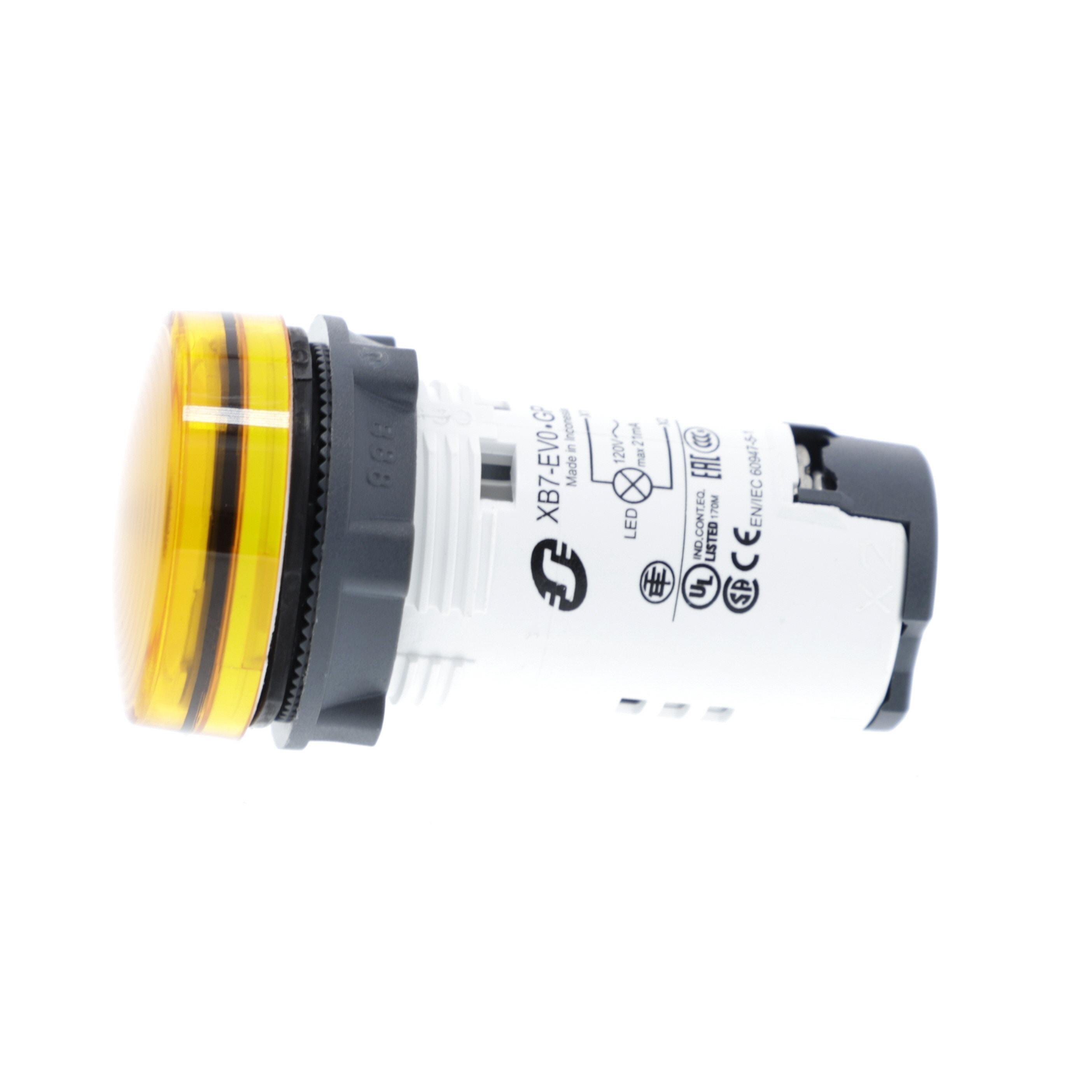

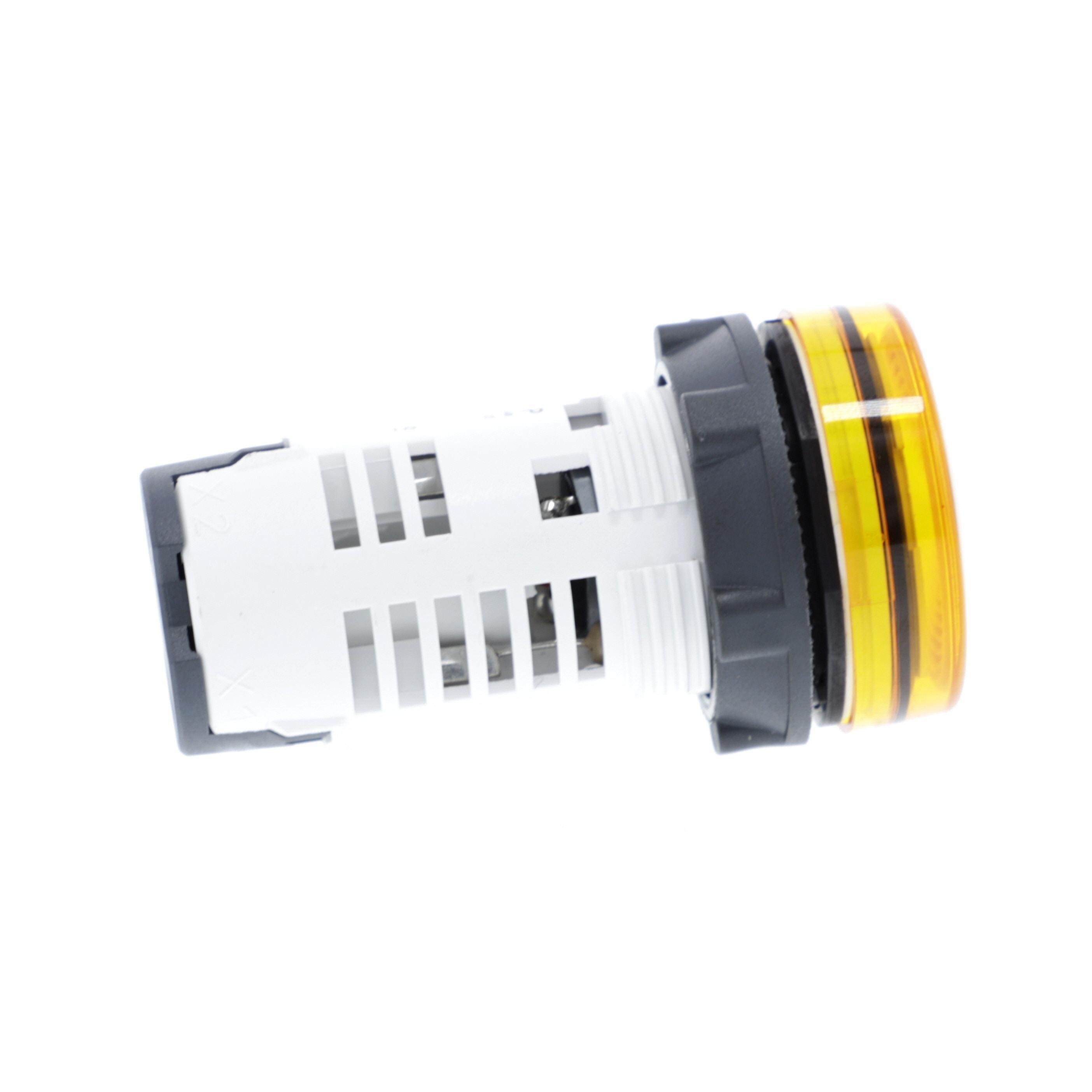

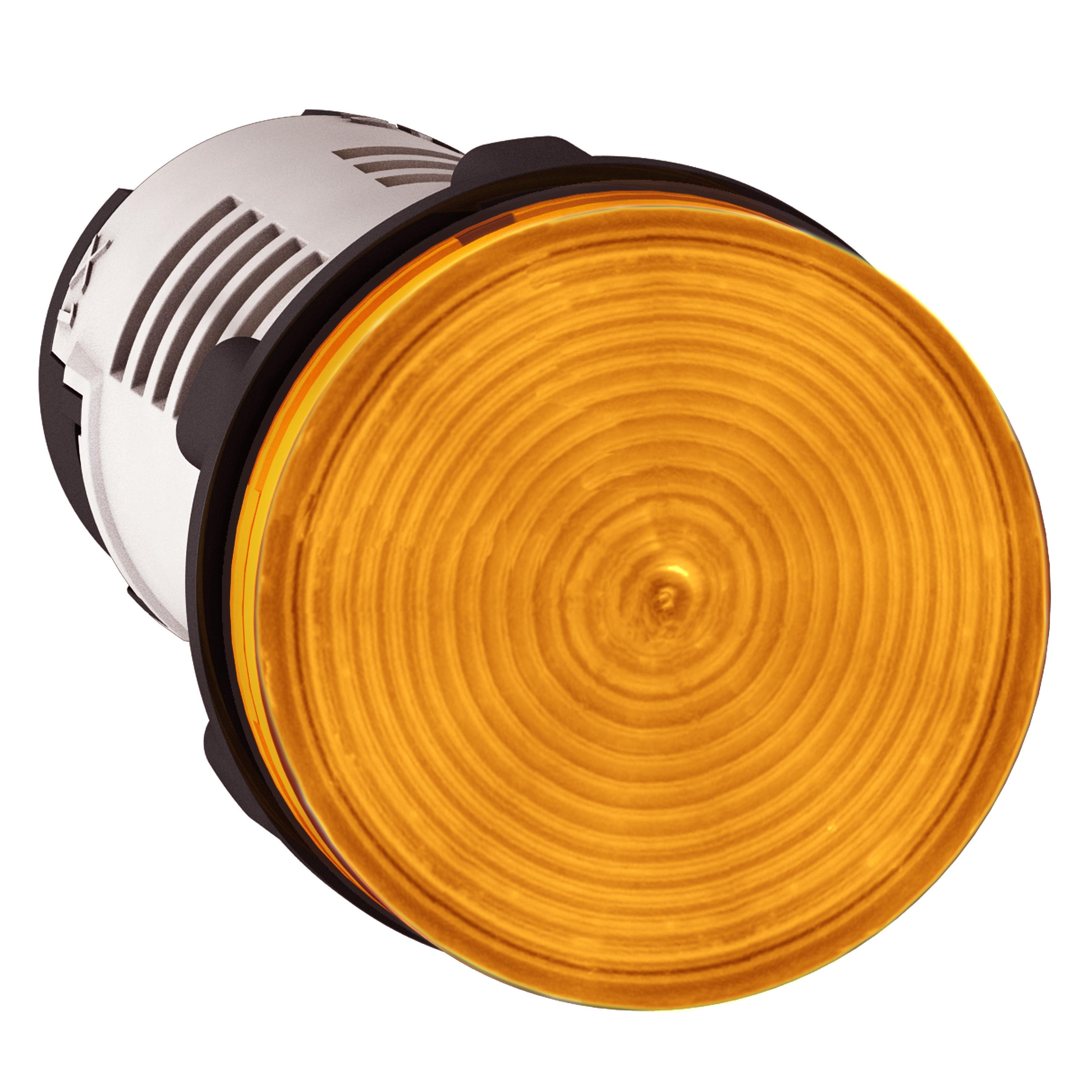

Picture of XB7EV08GP - Monolithic pilot light, Harmony XB7, plastic, orange, 22mm, integral LED, 110...120V AC Picture of XB7EV08GP - Monolithic pilot light, Harmony XB7, plastic, orange, 22mm, integral LED, 110...120V AC
Picture of XB7EV08GP - Monolithic pilot light, Harmony XB7, plastic, orange, 22mm, integral LED, 110...120V AC Picture of XB7EV08GP - Monolithic pilot light, Harmony XB7, plastic, orange, 22mm, integral LED, 110...120V AC
Picture of XB7EV08GP - Monolithic pilot light, Harmony XB7, plastic, orange, 22mm, integral LED, 110...120V AC Picture of XB7EV08GP - Monolithic pilot light, Harmony XB7, plastic, orange, 22mm, integral LED, 110...120V AC
Picture of XB7EV08GP - Monolithic pilot light, Harmony XB7, plastic, orange, 22mm, integral LED, 110...120V AC Picture of XB7EV08GP - Monolithic pilot light, Harmony XB7, plastic, orange, 22mm, integral LED, 110...120V AC
Schneider Electric

XB7EV08GP - Monolithic pilot light, Harmony XB7, plastic, orange, 22mm, integral LED, 110...120V AC

Item Code: 995870
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB7EV08GP

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB7, plain lens monolithic orange pilot light is supplied with 120V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Specifications

Weight

0.05lb

Height

1.1mm

Width

3.9mm

Length

5.85mm

Depth

54mm

AD All Features

Finger safe screw clamp terminals

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ID

AD Invoice Description

LIGHT PLT 120VAC 18 TO 21MA PNL

AD Item Features 01

Finger safe screw clamp terminals

AD Item Features 02

High Chemical Resistance

AD Item Features 03

Modern design, reinforced with flush mounting kit

AD Item Features 04

High brightness of the LED illuminated functions

AD Item Features 05

Simple to choose

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.1000

AD Package Height UOM

IN

AD Package Length

5.8500

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

2.5400

AD Package Volume UOM

cu-in

AD Package Weight

0.0500

AD Package Weight UOM

LB

AD Package Width

3.9000

AD Package Width UOM

IN

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

MA

Spec 1 Attribute Value

18 to 21

Spec 10 Attribute

Shape

Spec 10 Attribute Value

Round

Spec 11 Attribute

Size

Spec 11 Attribute UOM

MM

Spec 11 Attribute Value

22/29/54

Spec 12 Attribute

Style

Spec 12 Attribute Value

Integral

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Screw clamp

Spec 14 Attribute

Type

Spec 14 Attribute Value

Direct Monolithic

Spec 15 Attribute

Voltage Rating

Spec 15 Attribute UOM

V AC

Spec 15 Attribute Value

120

Spec 2 Attribute

Average Life

Spec 2 Attribute UOM

HR

Spec 2 Attribute Value

70000

Spec 3 Attribute

Bezel/Housing

Spec 3 Attribute Value

Plastic

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 4/12/IP65/IP20

Spec 5 Attribute

Environmental Conditions

Spec 5 Attribute Value

-25 to 70 deg C Operating, -40 to 158 deg F Storage

Spec 6 Attribute

Lamp Type

Spec 6 Attribute Value

A22 LED

Spec 7 Attribute

Lens Color

Spec 7 Attribute Value

Orange

Spec 8 Attribute

Mounting Type

Spec 8 Attribute Value

Panel

Spec 9 Attribute

Series

Spec 9 Attribute Value

XB7
