Schneider Electric

- SQD XB7NA4232 DISCONTINUED

Category Relays, Push Buttons, Pilot Lights, Selector Switches

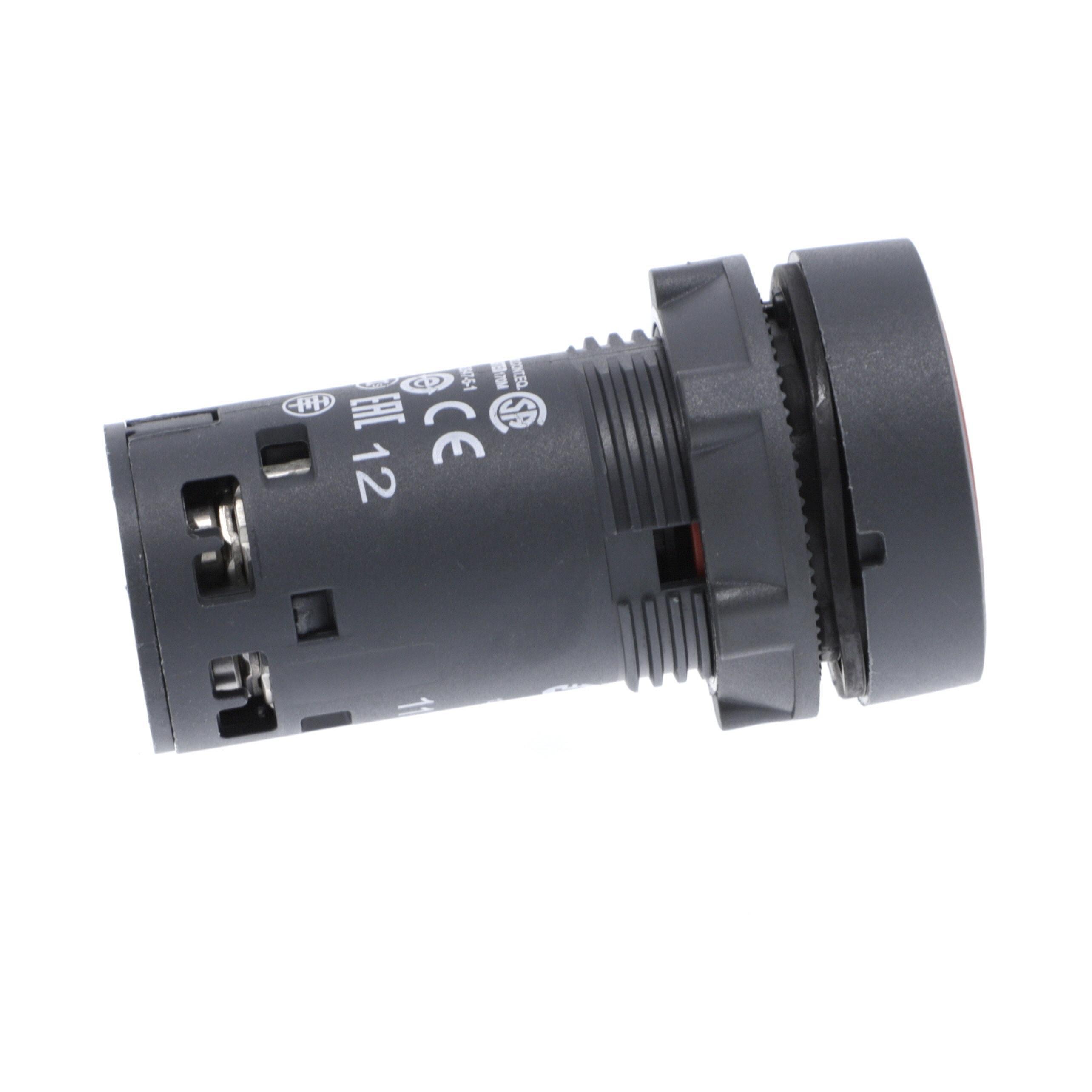

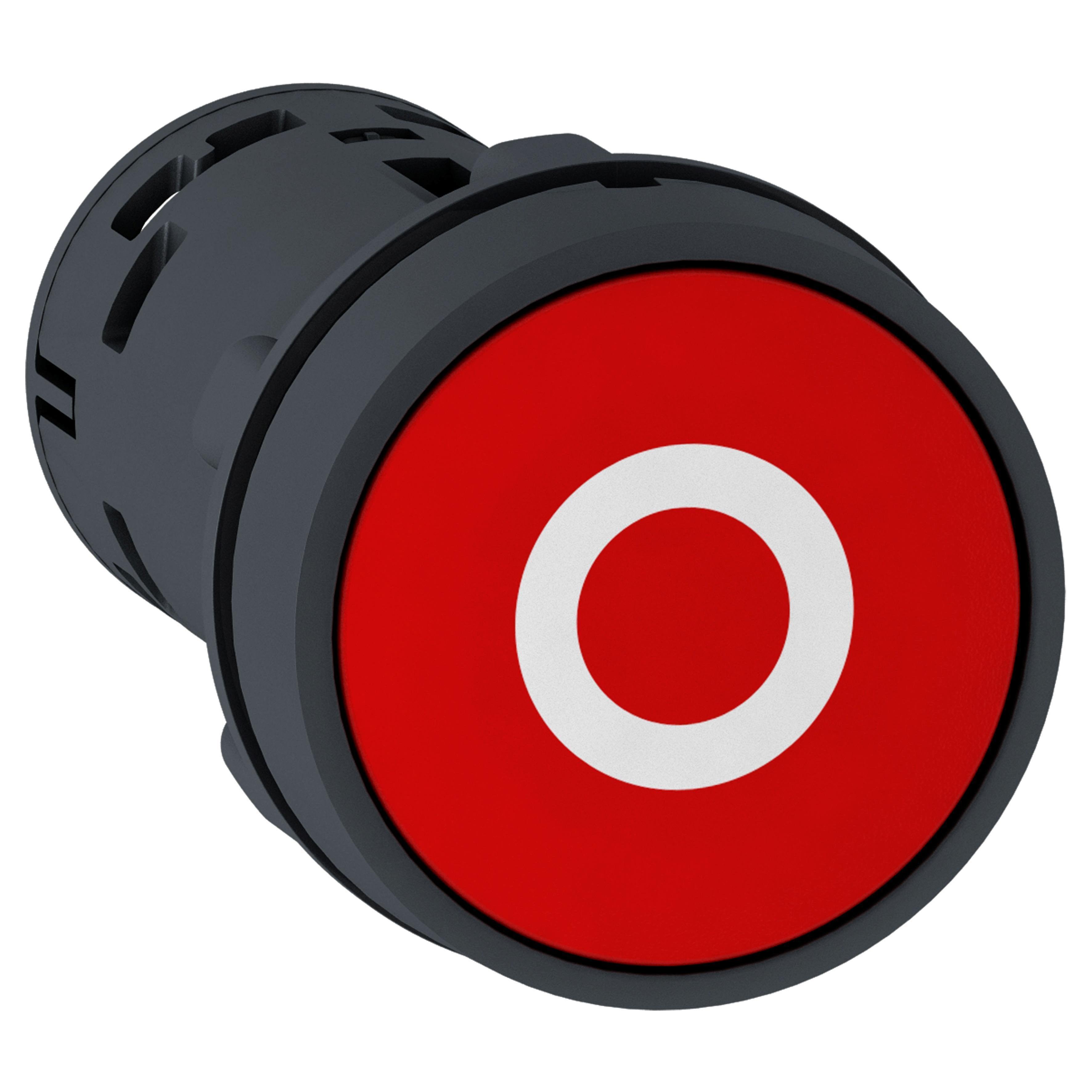

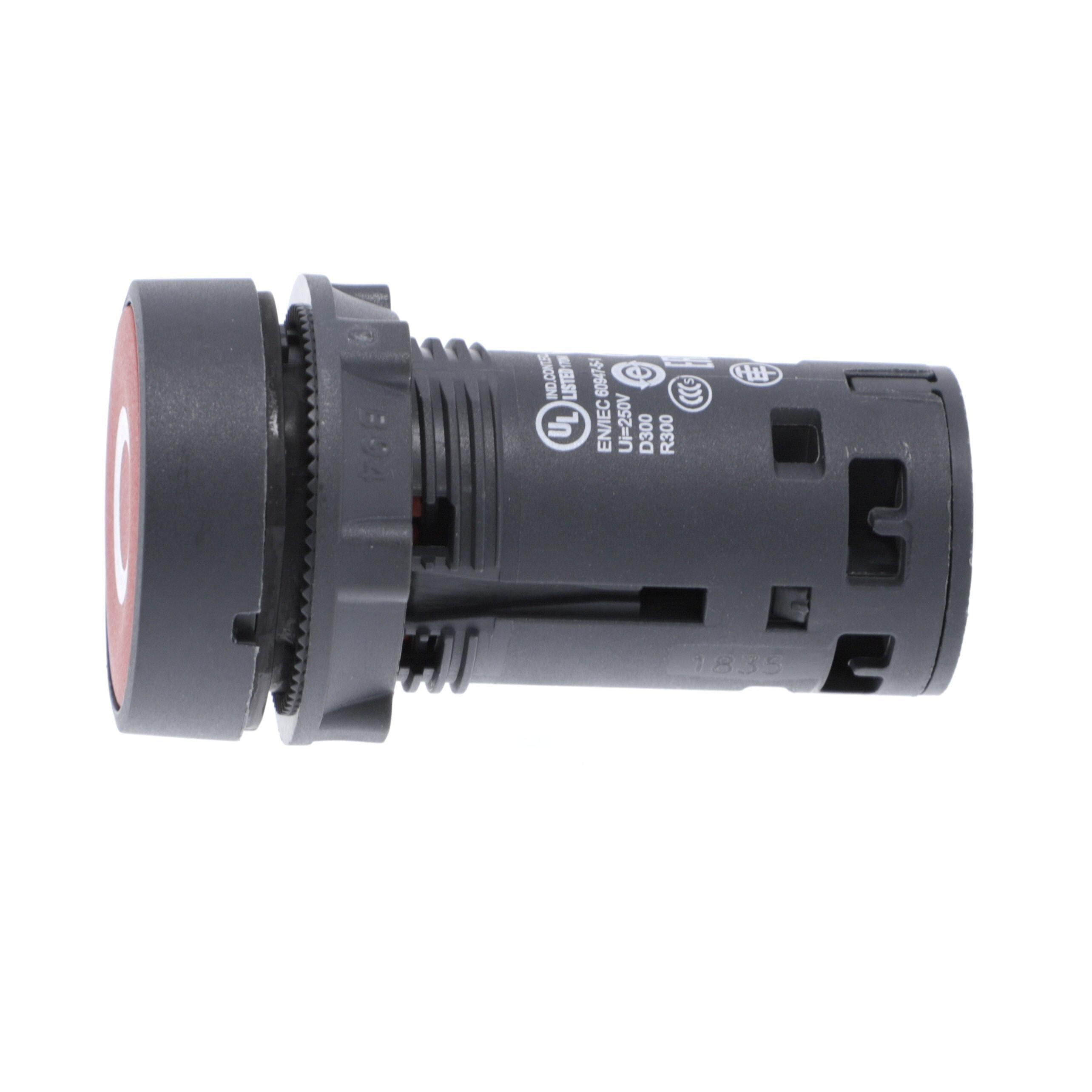

Picture of - SQD XB7NA4232 DISCONTINUED Picture of - SQD XB7NA4232 DISCONTINUED
Picture of - SQD XB7NA4232 DISCONTINUED Picture of - SQD XB7NA4232 DISCONTINUED
Picture of - SQD XB7NA4232 DISCONTINUED Picture of - SQD XB7NA4232 DISCONTINUED
Picture of - SQD XB7NA4232 DISCONTINUED Picture of - SQD XB7NA4232 DISCONTINUED
Schneider Electric

- SQD XB7NA4232 DISCONTINUED

Item Code: 1047679
Category Relays, Push Buttons, Pilot Lights, Selector Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XB7NA4232

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB7, monolithic red push button marked with a "O" symbol operates with a spring return / impulse mechanism and screw clamp terminals. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.

Specifications

AD Application

Industry: Machine Manufacturers, Chemical Industry, Paper Mill, Service Sector and Infrastructure: Energy Distribution Panel Builders, Food and Beverage, Car Washes

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Invoice Description

PUSHBUTTON 22MM 1NC R FL/SPR RTN O WHT

AD Item Features 01

Monolithic design - easy to buy and quick to install by eliminating the need for components

AD Item Features 02

Four terminals with two contacts - a more flexible solution for customers' wiring needs

AD Item Features 03

Separate NO and NC contacts - increased wiring flexibility

AD Item Features 04

Compatibility - seamless integration with Harmony™ accessories and legend plates

AD Item Features 05

All-in-one product - reduce inventory and eliminate the need for parts and pieces

AD Manufacturer (Description)

Schneider Electric

AD Package Quantity

1

Brand

Schneider Electric

Category

RELAYS, PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES

Spec 1 Attribute

Bezel/Housing

Spec 1 Attribute Value

Plastic

Spec 10 Attribute

Operator Type

Spec 10 Attribute Value

Flush

Spec 11 Attribute

Series

Spec 11 Attribute Value

XB7 Series

Spec 12 Attribute

Size

Spec 12 Attribute UOM

MM

Spec 12 Attribute Value

22

Spec 13 Attribute

Terminal Type

Spec 13 Attribute Value

Screw clamp

Spec 14 Attribute

Type

Spec 14 Attribute Value

Monolithic

Spec 2 Attribute

Color

Spec 2 Attribute Value

Red

Spec 3 Attribute

Connection Type

Spec 3 Attribute Value

Cable Connector

Spec 4 Attribute

Contact Configuration

Spec 4 Attribute Value

1NC

Spec 5 Attribute

Contact Mode

Spec 5 Attribute Value

Momentary

Spec 6 Attribute

Enclosure Type

Spec 6 Attribute Value

NEMA 3/12

Spec 7 Attribute

Environmental Conditions

Spec 7 Attribute Value

-40 to 158 deg F Storage/-13 to 158 deg F Operation/50 gn Shock Resistance

Spec 8 Attribute

Legend

Spec 8 Attribute Value

O

Spec 9 Attribute

Legend Color

Spec 9 Attribute Value

White
