Schneider Electric

XPSUAK12AP - safety module, Harmony XPSU, Cat 4, features XPSUAF with PNP or NPN, safety mat, 24V AC or DC, screw

Category Monitoring Relays & Accessories

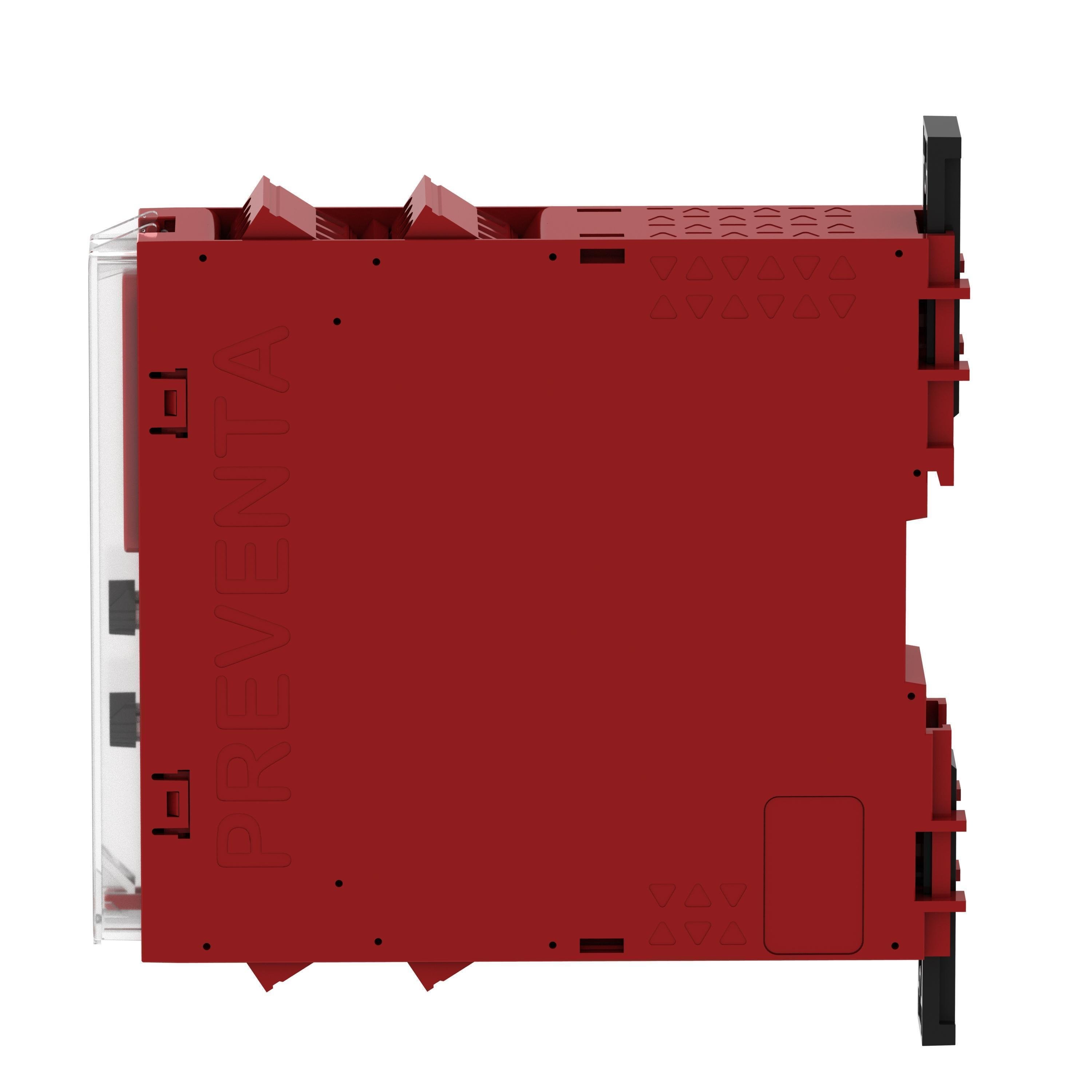

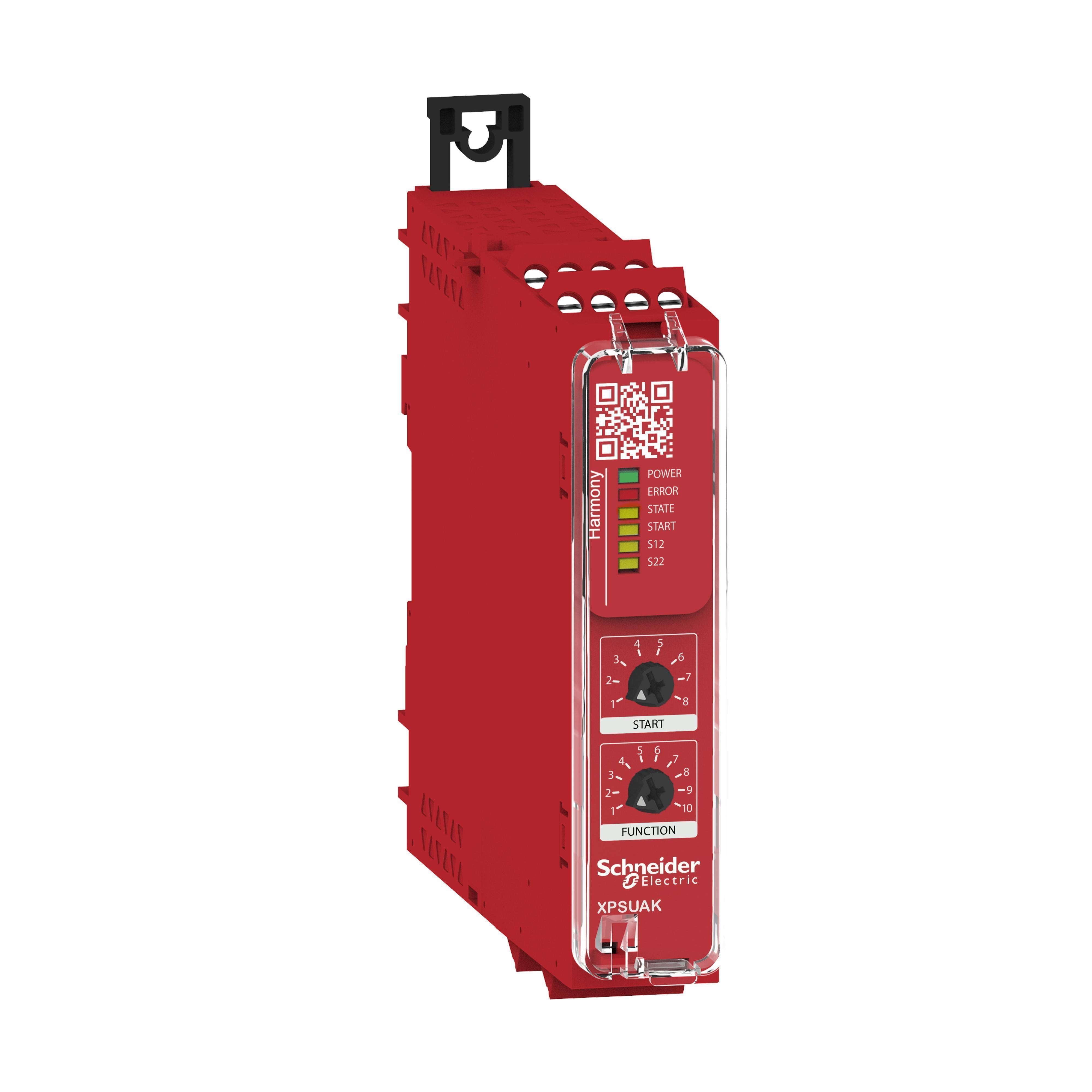

Picture of XPSUAK12AP - safety module, Harmony XPSU, Cat 4, features XPSUAF with PNP or NPN, safety mat, 24V AC or DC, screw Picture of XPSUAK12AP - safety module, Harmony XPSU, Cat 4, features XPSUAF with PNP or NPN, safety mat, 24V AC or DC, screw
Picture of XPSUAK12AP - safety module, Harmony XPSU, Cat 4, features XPSUAF with PNP or NPN, safety mat, 24V AC or DC, screw Picture of XPSUAK12AP - safety module, Harmony XPSU, Cat 4, features XPSUAF with PNP or NPN, safety mat, 24V AC or DC, screw
Picture of XPSUAK12AP - safety module, Harmony XPSU, Cat 4, features XPSUAF with PNP or NPN, safety mat, 24V AC or DC, screw Picture of XPSUAK12AP - safety module, Harmony XPSU, Cat 4, features XPSUAF with PNP or NPN, safety mat, 24V AC or DC, screw
Schneider Electric

XPSUAK12AP - safety module, Harmony XPSU, Cat 4, features XPSUAF with PNP or NPN, safety mat, 24V AC or DC, screw

Item Code: 1086929
Category Monitoring Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XPSUAK12AP

Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This safety relay is designed for monitoring Emergency stop, Guard switch, Magnetic switch, Proximity safety switch, PNP, NPN sensors, RFID safety switch, Safety light curtain or Sensing mat/edges. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds 2 safety inputs, 3 ON/OFF configurable pulsed outputs, 2 NO + 1 NC safety outputs, and 1 solid state diagnostic output with complete status information. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILC L 3 conforming to IEC 62061, and SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. Harmony safety relays are compatible with Modicon logic controllers. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.

Specifications

Weight

0.62lb

Height

2.8mm

Width

5.26mm

Length

6.04mm

Depth

120mm

AD Application

For emergency stop, guard and light curtain monitoring, monitoring antivalent contacts and monitoring of pressure-sensitive 4-wire protective devices

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

MODULE SAF 24VAC/VDC 8A 2NO-3NC LED

AD Item Features 01

More than 40 different diagnostic messages, without additional fieldbus interface

AD Item Features 02

Reduced down time of the machine due to messages

AD Item Features 03

Status information about upcoming test intervals and amount of remaining cycles before reaching end of life time

AD Item Features 04

ECODESIGN - Optimized Energy Efficiency, Reduction of 24 per cent of CO2 on the whole product life cycle

AD Item Features 05

Reduce risk to an acceptable level

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.8000

AD Package Height UOM

IN

AD Package Length

6.0400

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

93.7000

AD Package Volume UOM

cu-in

AD Package Weight

0.6200

AD Package Weight UOM

LB

AD Package Width

5.2600

AD Package Width UOM

IN

Brand

Square D

Category

MONITORING RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

8

Spec 2 Attribute

Contact Configuration

Spec 2 Attribute Value

2NO-3NC

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

IP20/IP40/IP54

Spec 4 Attribute

Indicator Type

Spec 4 Attribute Value

Led

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

DIN Rail

Spec 6 Attribute

Series

Spec 6 Attribute Value

XPSUAK

Spec 7 Attribute

Size

Spec 7 Attribute Value

0.89 in W x 4.61 in D x 4.3 in H

Spec 8 Attribute

Voltage Rating

Spec 8 Attribute UOM

V AC/DC

Spec 8 Attribute Value

24
