Schneider Electric

XPSUEP14AP - safety module, Harmony XPSU, Cat 4, expansion use with universal range, 24V AC or DC, screw

Category Monitoring Relays & Accessories

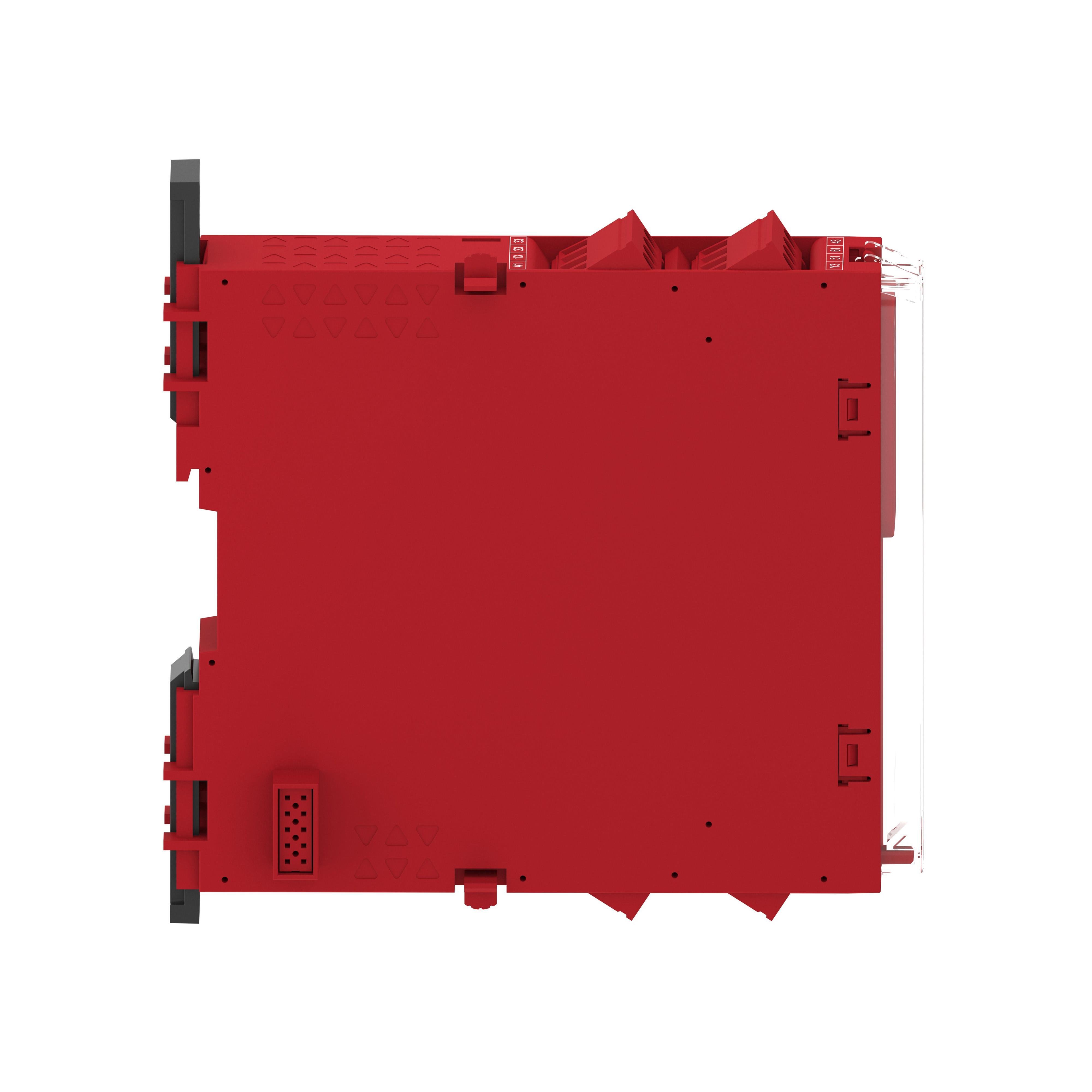

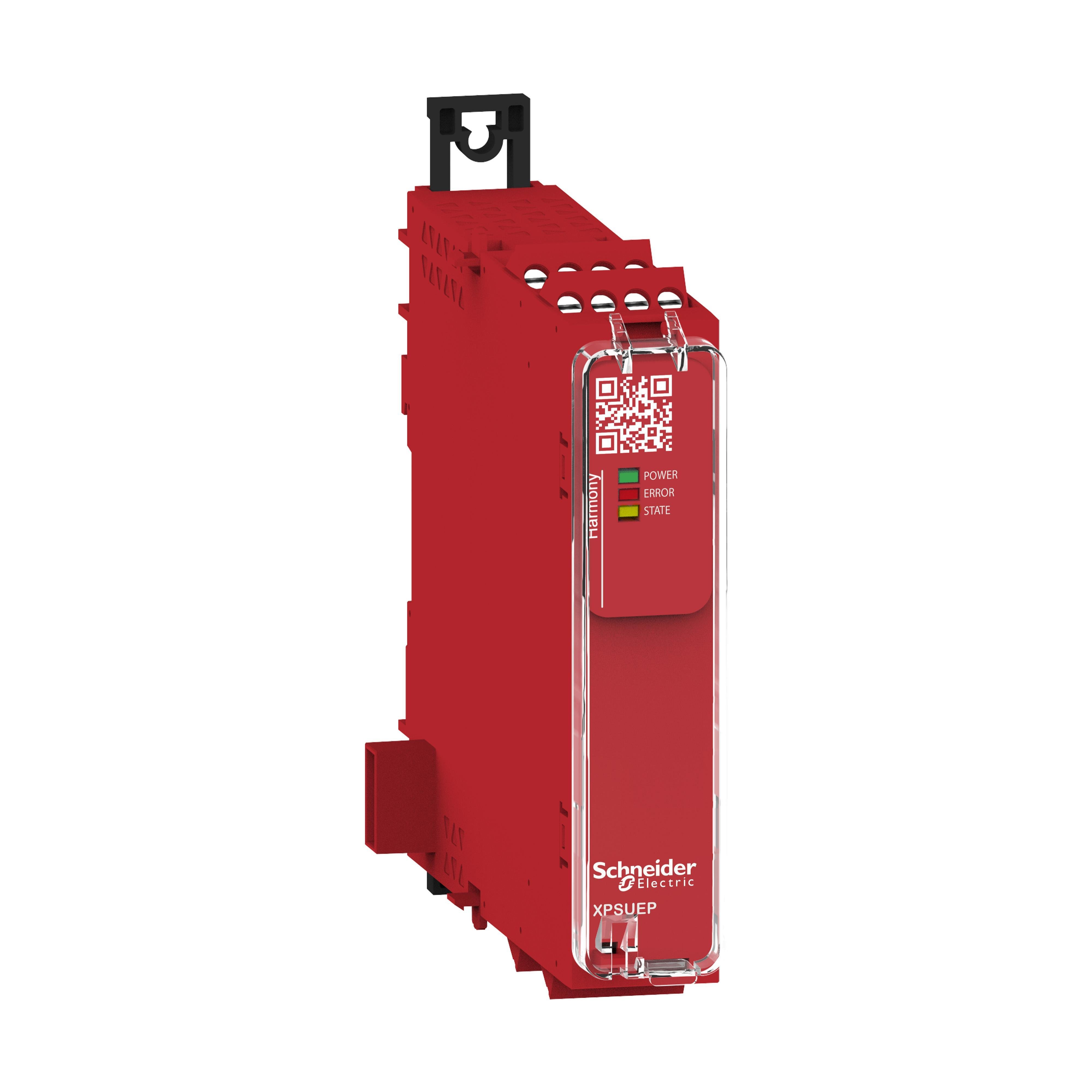

Picture of XPSUEP14AP - safety module, Harmony XPSU, Cat 4, expansion use with universal range, 24V AC or DC, screw Picture of XPSUEP14AP - safety module, Harmony XPSU, Cat 4, expansion use with universal range, 24V AC or DC, screw
Picture of XPSUEP14AP - safety module, Harmony XPSU, Cat 4, expansion use with universal range, 24V AC or DC, screw Picture of XPSUEP14AP - safety module, Harmony XPSU, Cat 4, expansion use with universal range, 24V AC or DC, screw
Picture of XPSUEP14AP - safety module, Harmony XPSU, Cat 4, expansion use with universal range, 24V AC or DC, screw Picture of XPSUEP14AP - safety module, Harmony XPSU, Cat 4, expansion use with universal range, 24V AC or DC, screw
Schneider Electric

XPSUEP14AP - safety module, Harmony XPSU, Cat 4, expansion use with universal range, 24V AC or DC, screw

Item Code: 1123269
Category Monitoring Relays & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref XPSUEP14AP

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This safety relay is designed for extending the number of safety contacts. The safety relay is powered with 24V AC/DC, and equipped with a screw removable terminal block. This universal safety module embeds pre-defined safety functions, or selectable safety functions via rotary selectors. This safety relay embeds a safety extension bus, 4 NO and 2 single NC safety outputs. The maximum safety level achieved by this safety relay is PLe/Category 4 conforming to ISO 13849-1, SILCL 3 conforming to IEC 62061, SIL 3 conforming to IEC 61508. This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relay weighs 0,200kg. Its dimensions are 22,5mm (Width) x 120mm (Depth) x 100mm (Height). This safety relays is suitable for applications such as Food and Beverage, Hoisting, Material Handling, Material Working, Packaging. This safe relay conforms to IEC60947-5-1, IEC61508-1/2/3, ISO13849-1, IEC62061 functional safety standards, is certified by cULus, TÜV, EAC, CCC and KC marking. XPSUEP can be only used with XPSUAF, XPSUAK, XPSUAT, XPSUDN and XPSUS safety modules. This relay is mounted on a 35mm symmetrical DIN rail. Harmony XPS Basic and Universal safety relays are the first choice for managing single safety functions easily, typically in machines of simple to medium complexity. Harmony XPS Universal is the first choice for a broad range of simple to mid-complex machines.

Specifications

Weight

0.64lb

Height

2.56mm

Width

6.04mm

Length

5.26mm

Depth

120mm

AD Application

For extending the number of safety contacts The safety relay is powered with 24V, For a broad range of machines of the general mechanical engineering

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

ID

AD Invoice Description

SAF RLY 5A 1.5W 50TO60HZ SCREW

AD Item Features 01

More than 40 different diagnostic messages, without additional fieldbus interface

AD Item Features 02

Reduced down time of the machine due to messages

AD Item Features 03

Status information about upcoming test intervals and amount of remaining cycles before reaching end of life time

AD Item Features 04

ECODESIGN - Optimized Energy Efficiency, Reduction of 24 per cent of CO2 on the whole product life cycle

AD Item Features 05

Reduce risk to an acceptable level

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.5600

AD Package Height UOM

IN

AD Package Length

5.2600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

93.7400

AD Package Volume UOM

cu-in

AD Package Weight

0.6400

AD Package Weight UOM

LB

AD Package Width

6.0400

AD Package Width UOM

IN

Brand

Square D

Category

MONITORING RELAYS & ACCESSORIES

Spec 1 Attribute

Amperage Rating

Spec 1 Attribute UOM

A

Spec 1 Attribute Value

5

Spec 2 Attribute

Dimensions

Spec 2 Attribute Value

3.94 in H x 0.89 in W x 4.72 in D

Spec 3 Attribute

Enclosure Type

Spec 3 Attribute Value

IP20/IP40/IP54

Spec 4 Attribute

Frequency Rating

Spec 4 Attribute UOM

HZ

Spec 4 Attribute Value

50/60

Spec 5 Attribute

Power Rating

Spec 5 Attribute UOM

W

Spec 5 Attribute Value

1.5

Spec 6 Attribute

Series

Spec 6 Attribute Value

XPS

Spec 7 Attribute

Temperature Rating

Spec 7 Attribute UOM

deg F

Spec 7 Attribute Value

-13 to 185

Spec 8 Attribute

Terminal Type

Spec 8 Attribute Value

Screw

Spec 9 Attribute

Type

Spec 9 Attribute Value

Safety Module
