Schneider Electric

ZB2BE101 - Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal

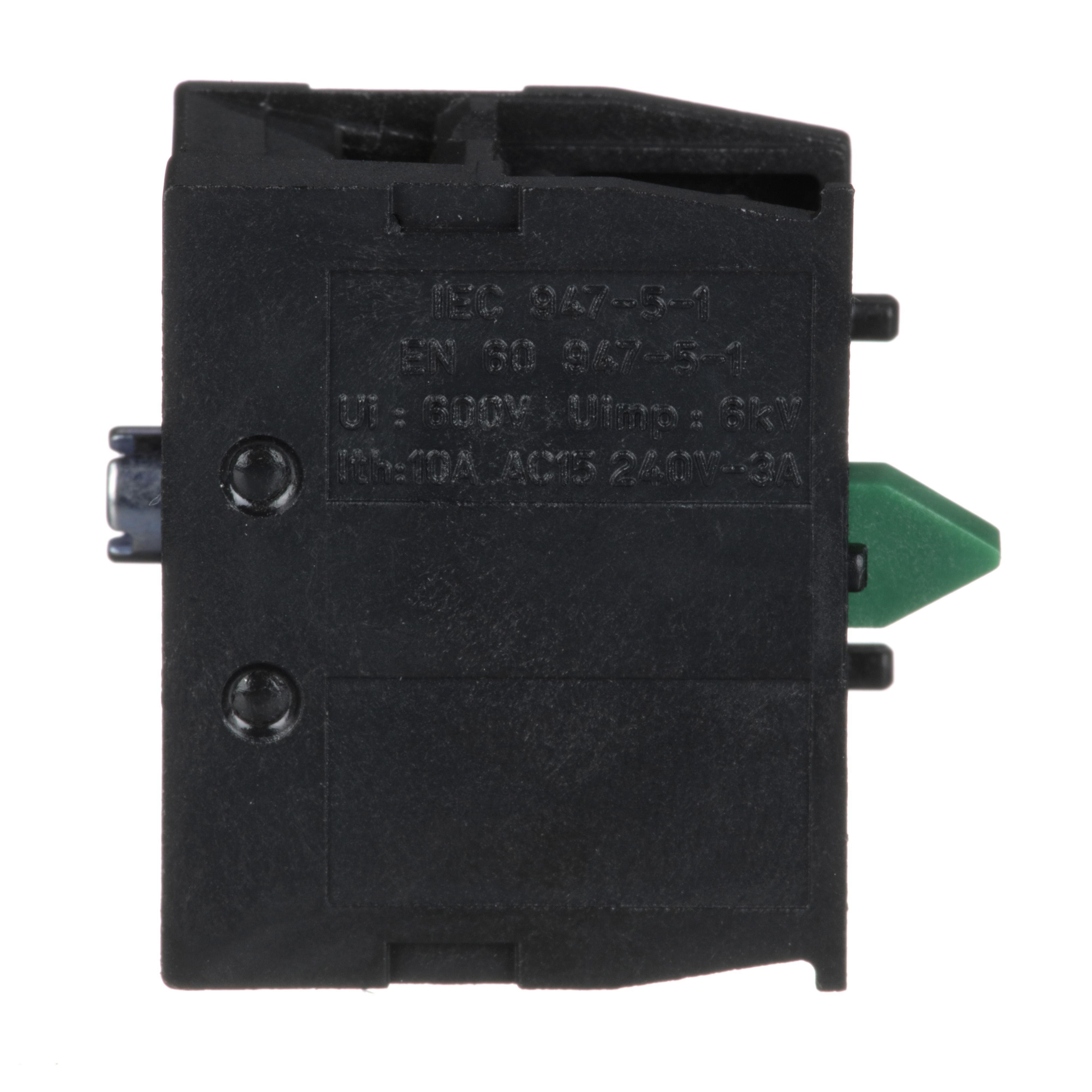

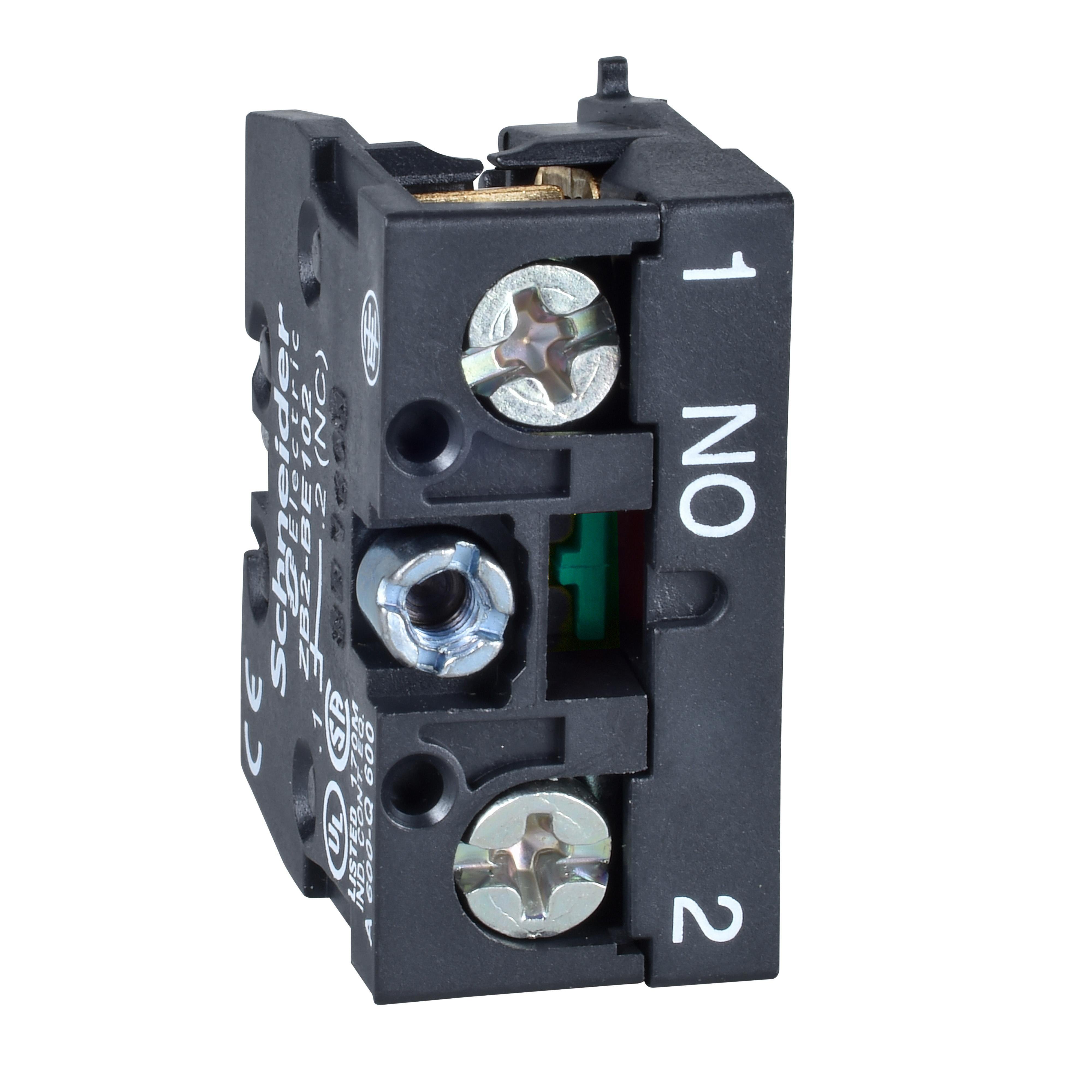

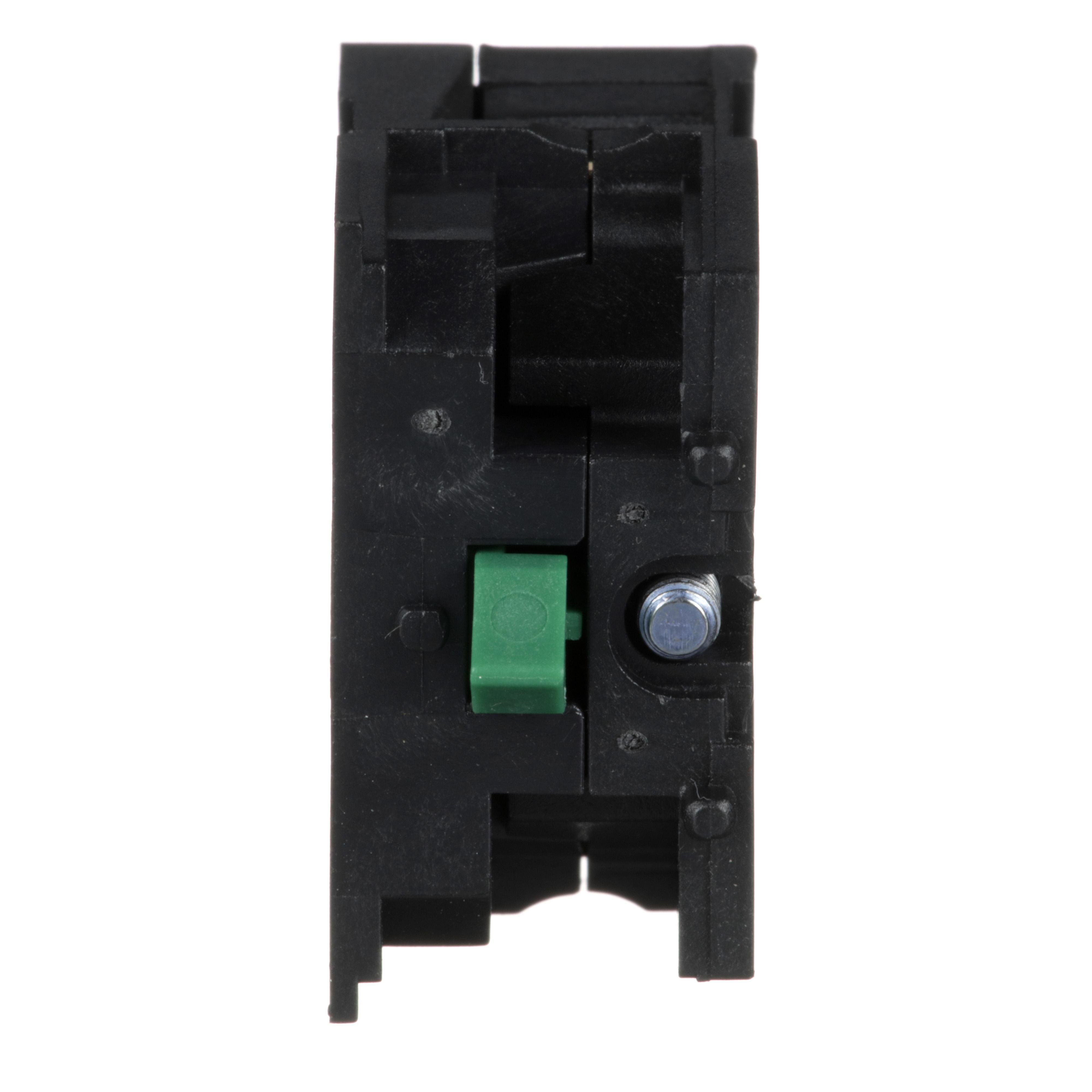

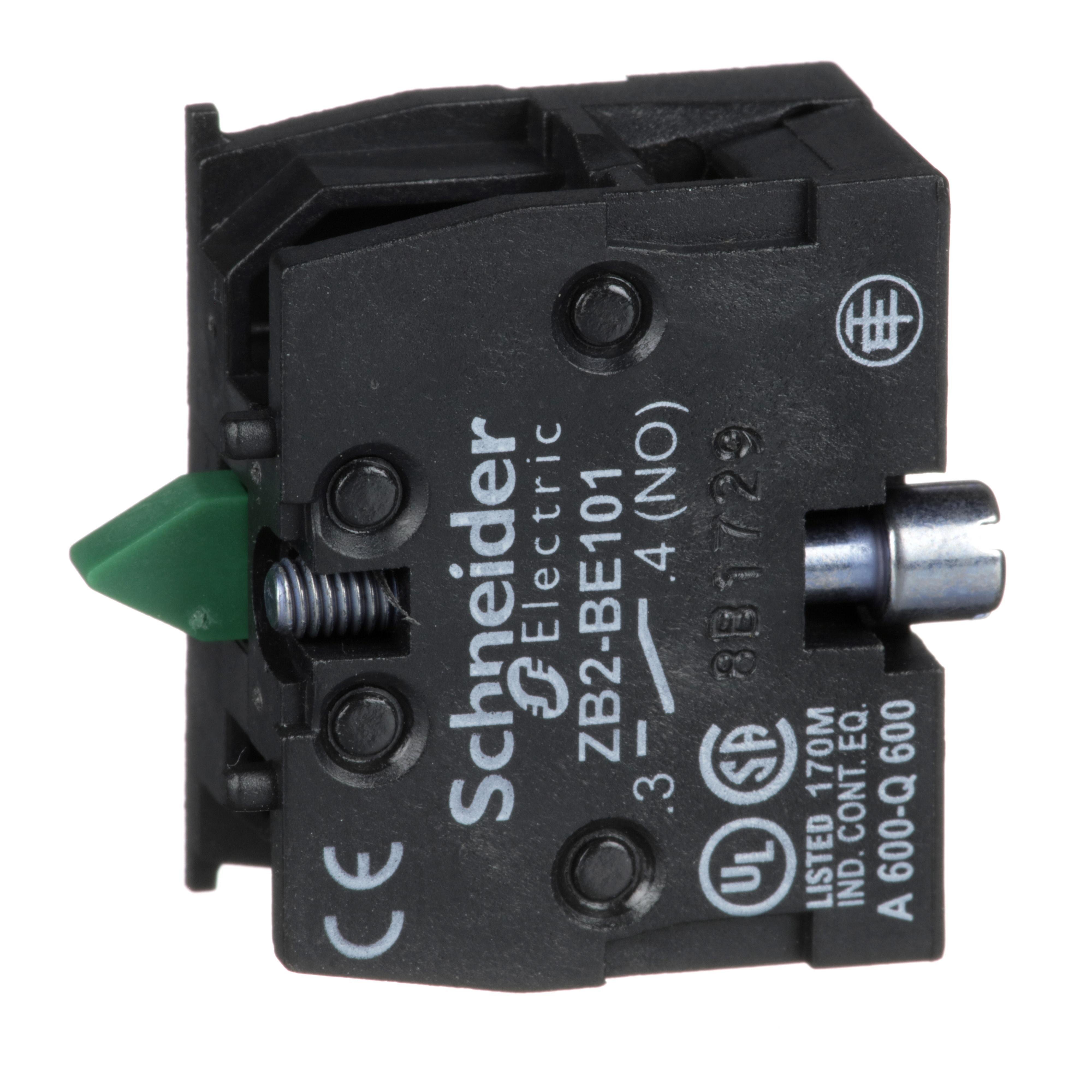

Picture of ZB2BE101 - Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal Picture of ZB2BE101 - Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal
Picture of ZB2BE101 - Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal Picture of ZB2BE101 - Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal
Picture of ZB2BE101 - Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal Picture of ZB2BE101 - Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal
Picture of ZB2BE101 - Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal Picture of ZB2BE101 - Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal
Schneider Electric

ZB2BE101 - Harmony, 22mm Push Button, add on contact block, 1 NO, screw clamp terminal

Item Code: 18857
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZB2BE101

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.03lb

Height

0.5mm

Width

1.56mm

Length

1.56mm

AD All Features

Slow break contact operation

AD Application

For 22 mm XB4 and XB5 signaling units

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

MX

AD Invoice Description

BLOCK CONT 22MM 1NO 10 A 600 VAC MOM

AD Item Features 01

Slow break contact operation

AD Item Features 02

600 vac (3 deg of pollution) conforming to IEC 60947-1 rated insulation voltage

AD Item Features 03

-25 to 70 deg c operating temperature

AD Manufacturer (Description)

Schneider Electric

AD Package Height

0.5000

AD Package Height UOM

IN

AD Package Length

1.5600

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

3.2000

AD Package Volume UOM

cu-in

AD Package Weight

0.0300

AD Package Weight UOM

LB

AD Package Width

1.5600

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/watch?v=P5ukp5nsyNI&list=PLa7UGrWOTyjnMSGFb16ULXxkQpETEayVn

Brand

Square D

Spec 1 Attribute

Action

Spec 1 Attribute Value

Momentary

Spec 10 Attribute

Terminal Type

Spec 10 Attribute Value

Screw clamp

Spec 11 Attribute

Type

Spec 11 Attribute Value

1-Pole Slow Break

Spec 2 Attribute

Contact Configuration

Spec 2 Attribute Value

1NO

Spec 3 Attribute

Contact Rating

Spec 3 Attribute Value

10 A, 600 V AC

Spec 4 Attribute

Contacts

Spec 4 Attribute Value

1

Spec 5 Attribute

Enclosure Type

Spec 5 Attribute Value

IP20

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Front

Spec 7 Attribute

Operator Type

Spec 7 Attribute Value

Spring Return

Spec 8 Attribute

Series

Spec 8 Attribute Value

ZB2

Spec 9 Attribute

Size

Spec 9 Attribute UOM

MM

Spec 9 Attribute Value

22
