Schneider Electric

ZB4BD5 - Harmony, 22mm Push Button, selector switch operating head, 3 position, spring return, black, unmarked

Category Relays, Push Buttons, Pilot Lights, Selector Switches

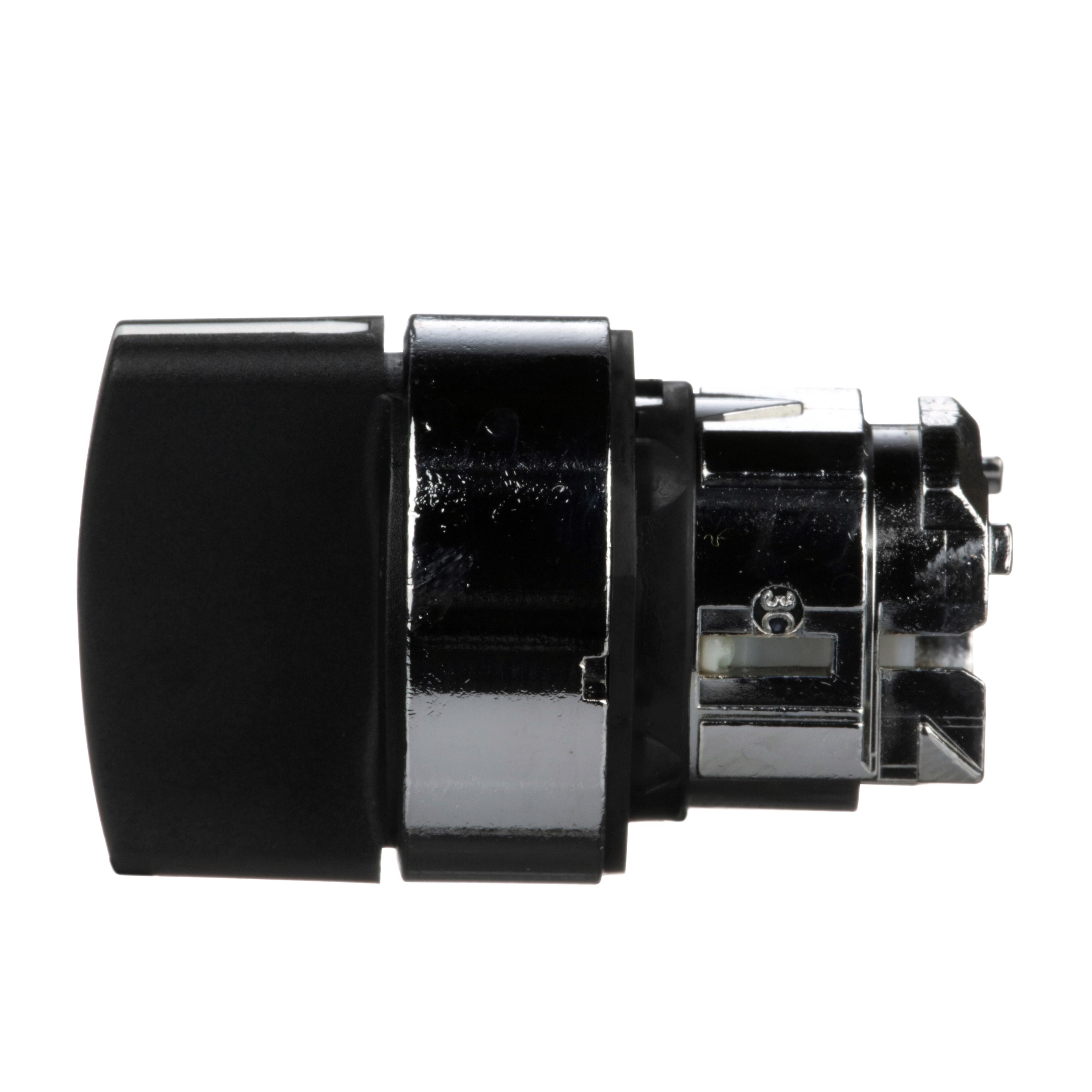

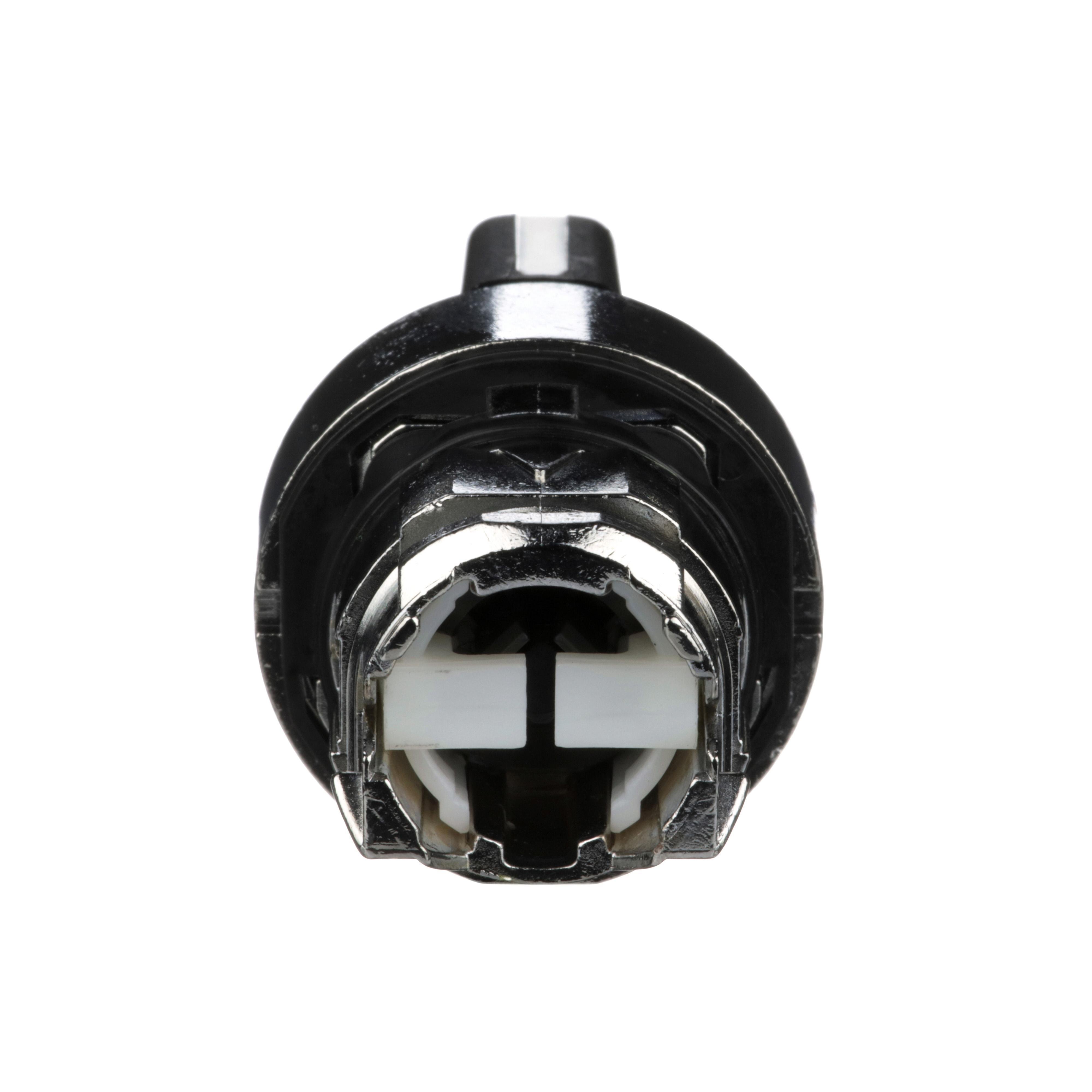

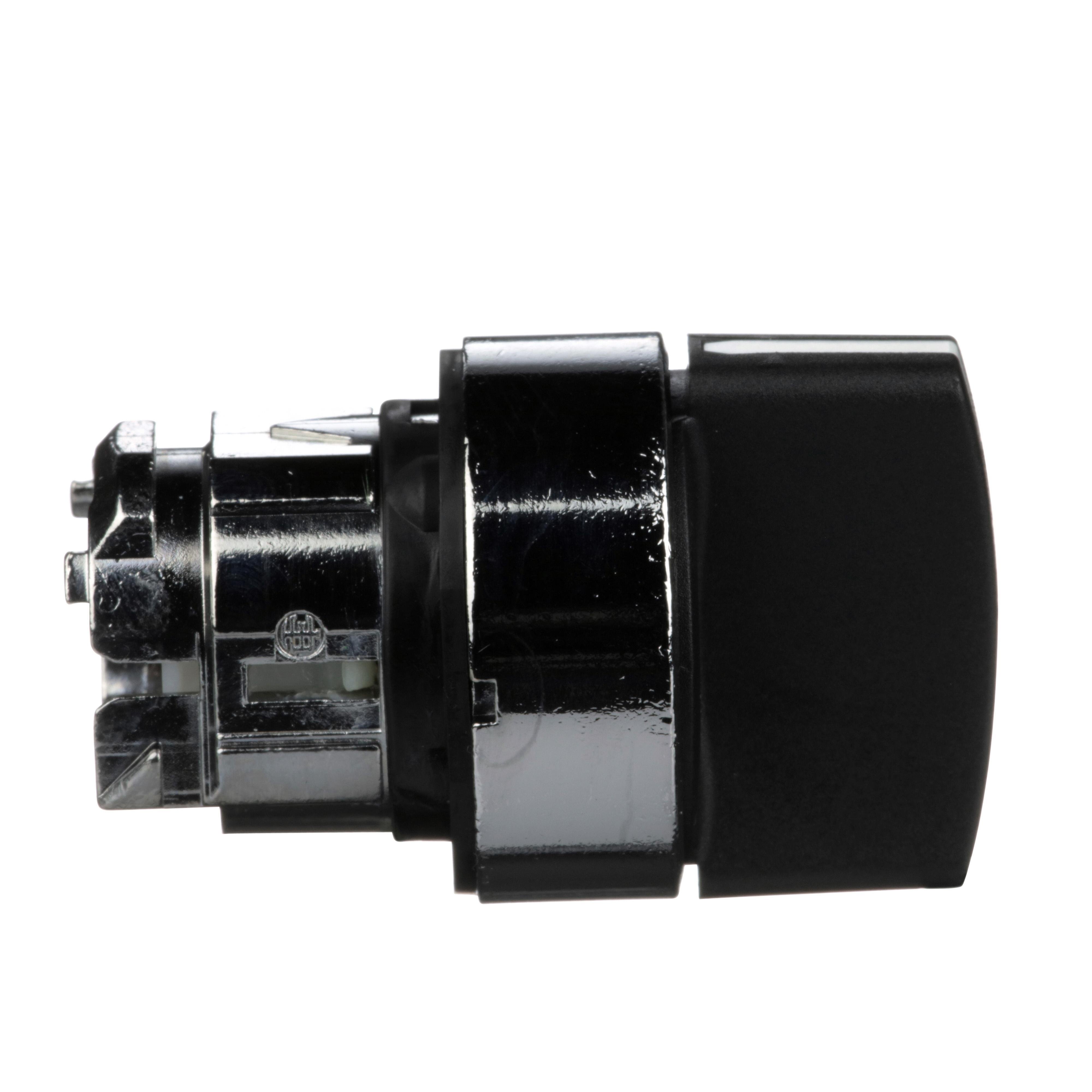

Picture of ZB4BD5 - Harmony, 22mm Push Button, selector switch operating head, 3 position, spring return, black, unmarked Picture of ZB4BD5 - Harmony, 22mm Push Button, selector switch operating head, 3 position, spring return, black, unmarked
Picture of ZB4BD5 - Harmony, 22mm Push Button, selector switch operating head, 3 position, spring return, black, unmarked Picture of ZB4BD5 - Harmony, 22mm Push Button, selector switch operating head, 3 position, spring return, black, unmarked
Picture of ZB4BD5 - Harmony, 22mm Push Button, selector switch operating head, 3 position, spring return, black, unmarked Picture of ZB4BD5 - Harmony, 22mm Push Button, selector switch operating head, 3 position, spring return, black, unmarked
Picture of ZB4BD5 - Harmony, 22mm Push Button, selector switch operating head, 3 position, spring return, black, unmarked Picture of ZB4BD5 - Harmony, 22mm Push Button, selector switch operating head, 3 position, spring return, black, unmarked
Schneider Electric

ZB4BD5 - Harmony, 22mm Push Button, selector switch operating head, 3 position, spring return, black, unmarked

Item Code: 544990
Category Relays, Push Buttons, Pilot Lights, Selector Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZB4BD5

Document
Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.1lb

Width

2.07mm

Length

2.11mm

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

OPERATOR SW SEL NON-ILLUMINATED 22MM 3

AD Item Features 01

Quick and easy assembly and disassembly

AD Item Features 02

Robustness to withstand harsh environments

AD Item Features 03

Various types of connection - screw clamp, connector, Faston connector or spring terminal

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

Large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

2.1100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.1000

AD Package Weight UOM

LB

AD Package Width

2.0700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/fRFG1d6JH7Q

Brand

Square D

Category

RELAYS, PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES

Spec 1 Attribute

Bezel/Housing

Spec 1 Attribute Value

Chromium Plated Metal

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

-40 To 70

Spec 11 Attribute

Throw

Spec 11 Attribute Value

45 deg Left/Center/Right

Spec 2 Attribute

Color

Spec 2 Attribute Value

Black

Spec 3 Attribute

Contact Mode

Spec 3 Attribute Value

Momentary

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1/2/3/4/4X/13/IP65/IP66

Spec 5 Attribute

Mounting Type

Spec 5 Attribute Value

Panel

Spec 6 Attribute

Number of Positions

Spec 6 Attribute Value

3

Spec 7 Attribute

Operator Type

Spec 7 Attribute Value

Knob

Spec 8 Attribute

Series

Spec 8 Attribute Value

ZB4

Spec 9 Attribute

Size

Spec 9 Attribute UOM

MM

Spec 9 Attribute Value

22
