Schneider Electric

ZB4BG2 - Harmony, 22mm Push Button, keyed selector switch operating head, 2 position, maintained, unmarked

Category Relays, Push Buttons, Pilot Lights, Selector Switches

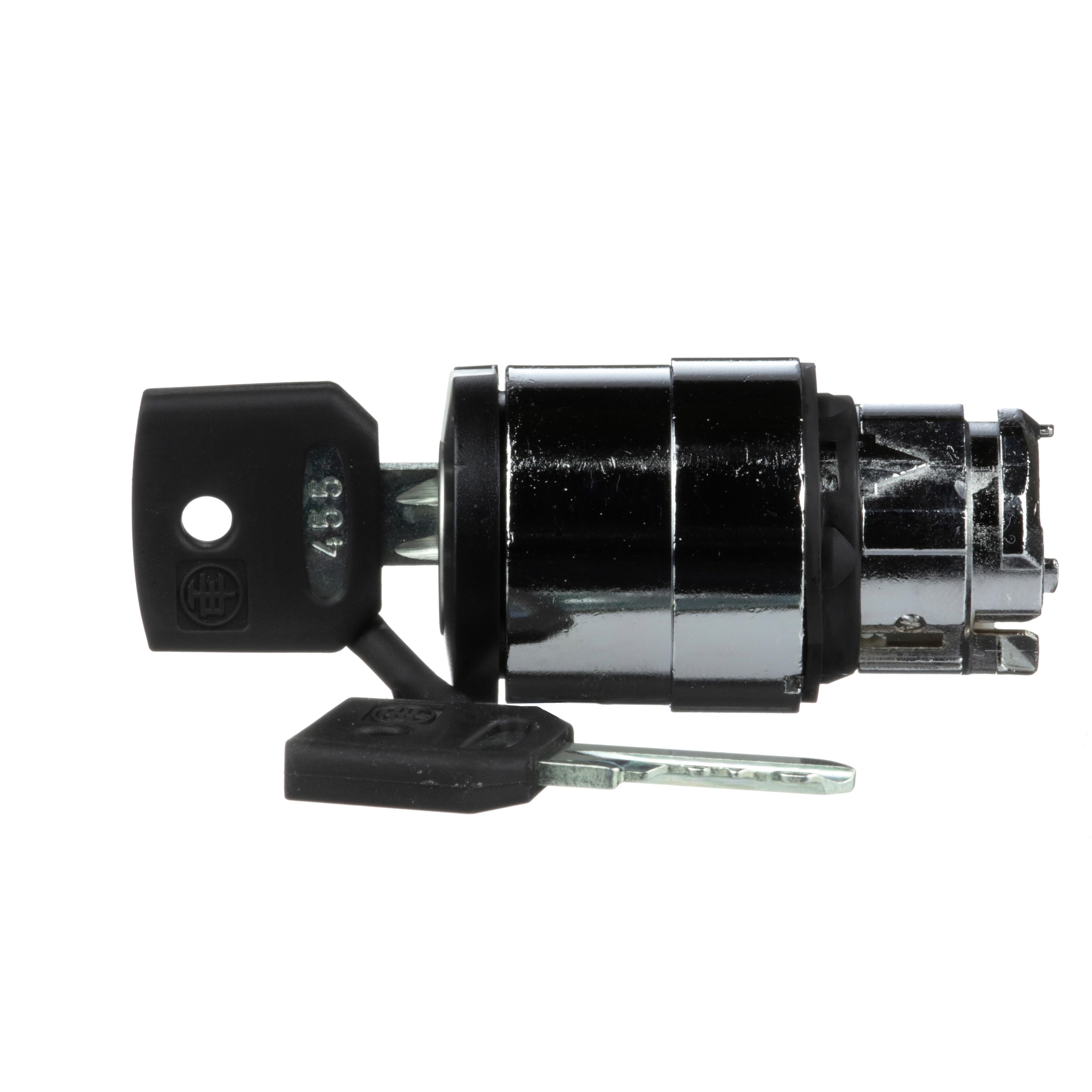

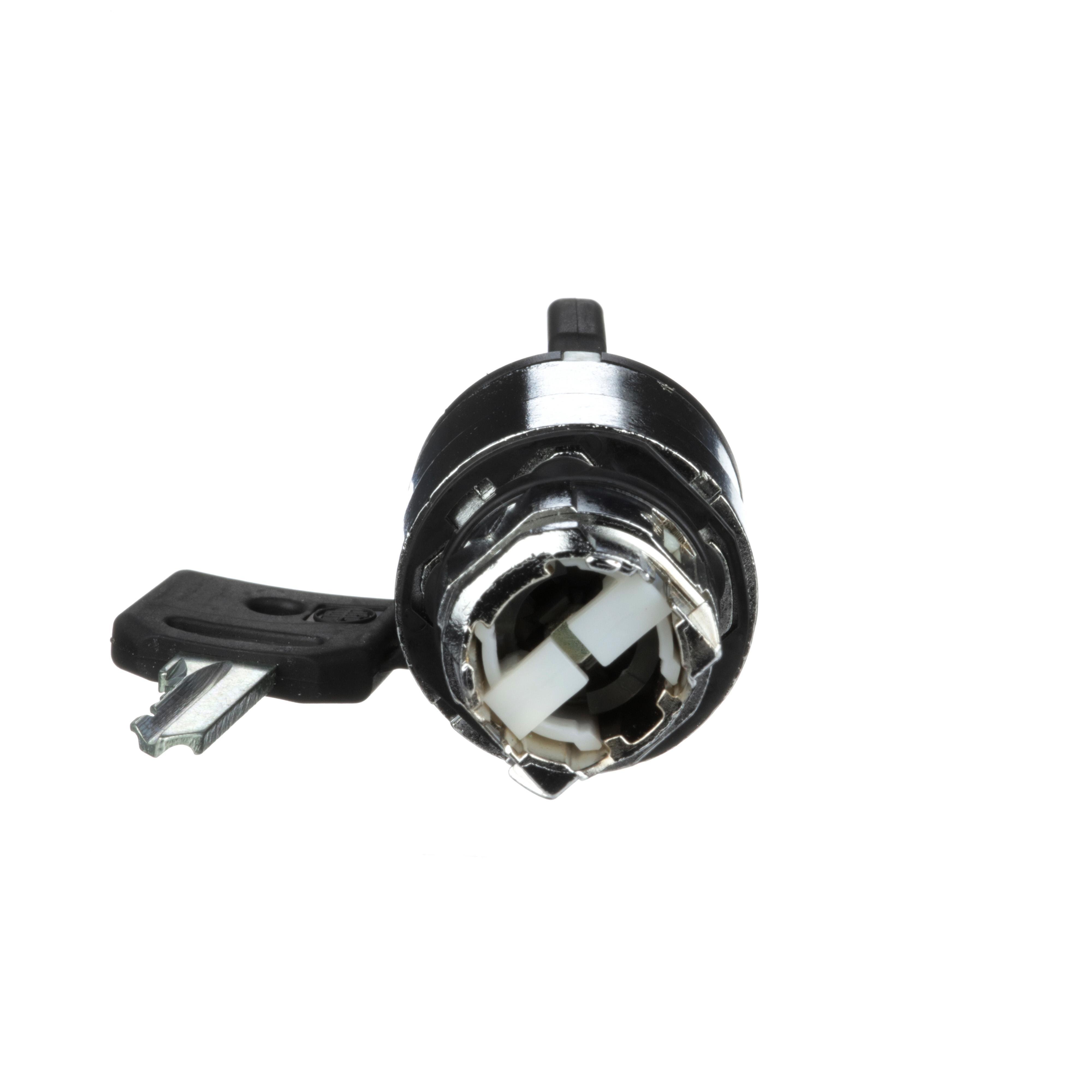

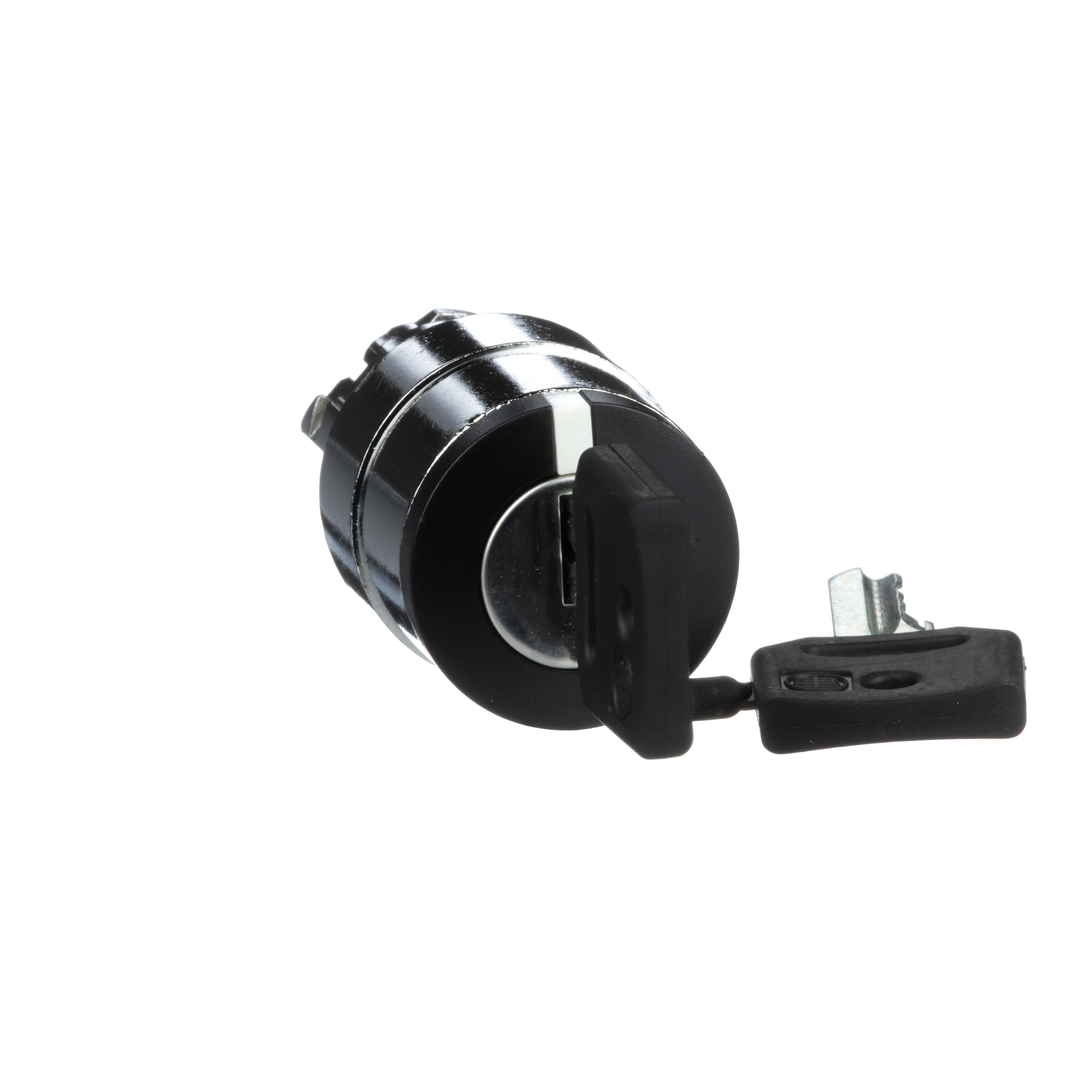

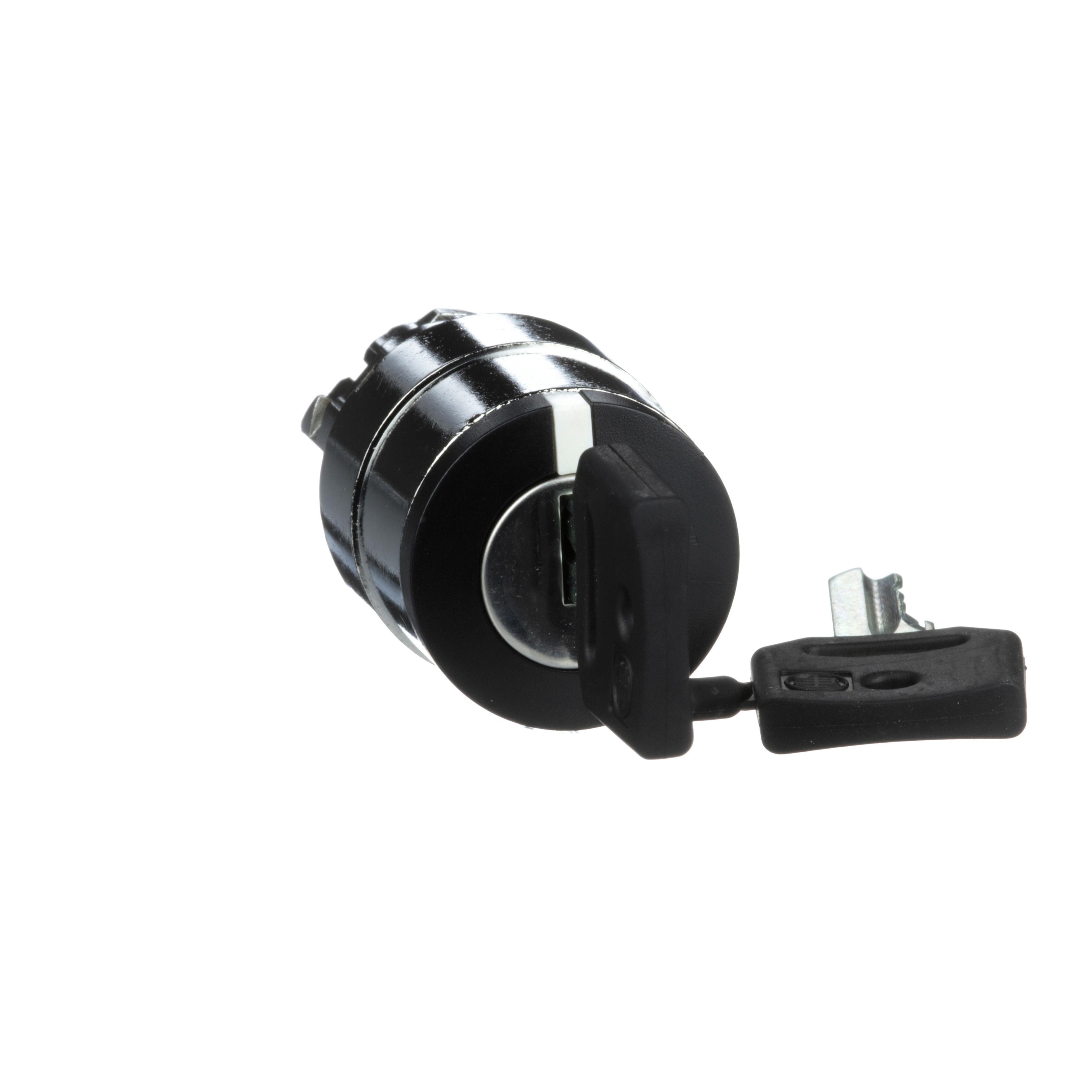

Picture of ZB4BG2 - Harmony, 22mm Push Button, keyed selector switch operating head, 2 position, maintained, unmarked
Schneider Electric

ZB4BG2 - Harmony, 22mm Push Button, keyed selector switch operating head, 2 position, maintained, unmarked

Item Code: 18907
Category Relays, Push Buttons, Pilot Lights, Selector Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZB4BG2

Full Engineering Drawing
Owners User Manual
RoHS
Specification Sheet
Watch video
Call for Availability
Add to Favorites
Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.23lb

Width

2.11mm

Length

3.55mm

Bezel/Housing

Chromium Plated Metal

Brand

Square D

Category

RELAYS, PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES

Color

Black

Contact Mode

Maintained

Enclosure Type

NEMA 1/2/3/4/4X/13/IP65/IP66

Mounting Type

Panel

Number of Positions

2

Operator Type

Keyed

Series

ZB4

Size

22 mm

Temperature Rating

-40 to 70 deg C

Throw

90 deg Left/Right
