Schneider Electric

ZB4BK1333 - Head for illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 3 positions, stay put

Category Relays, Push Buttons, Pilot Lights, Selector Switches

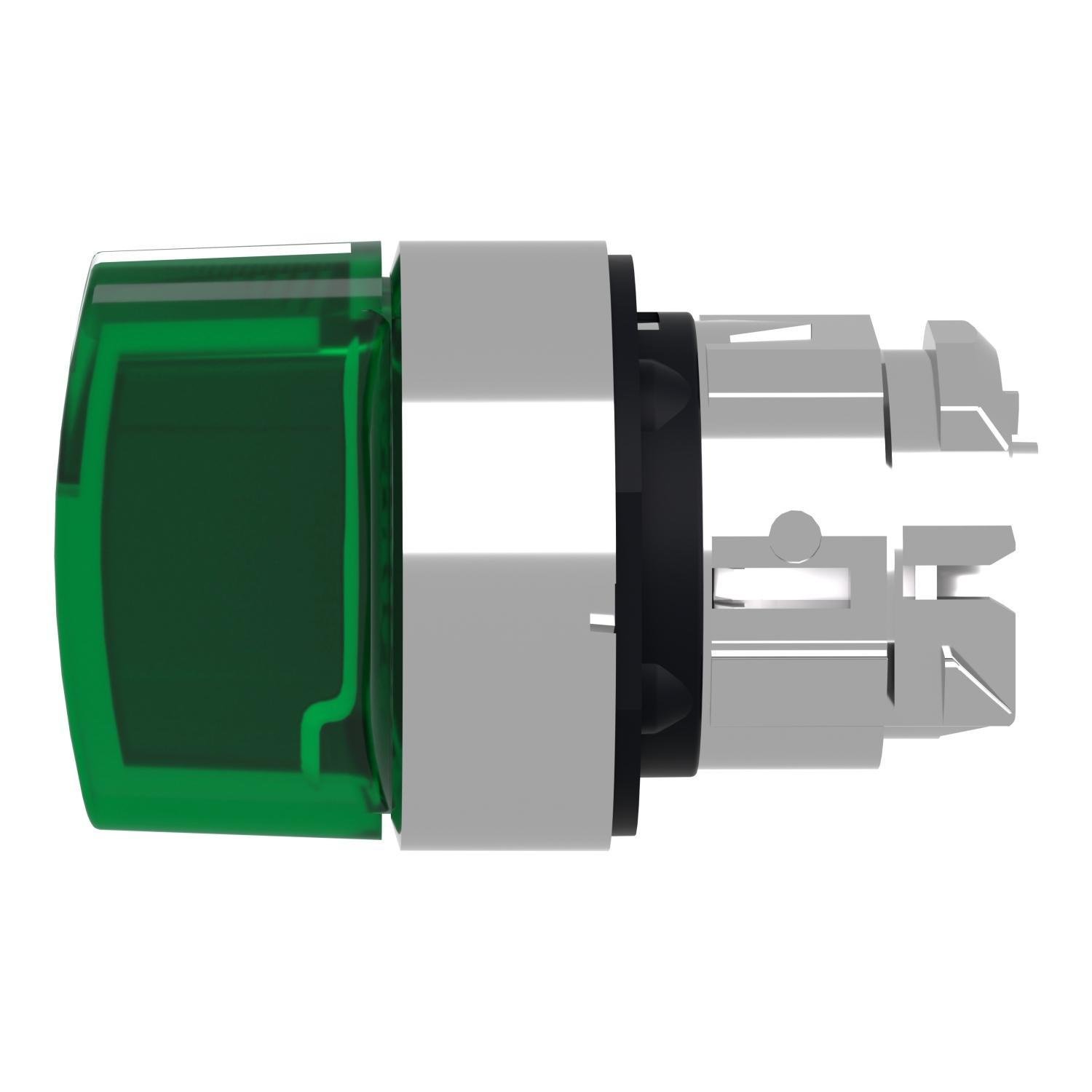

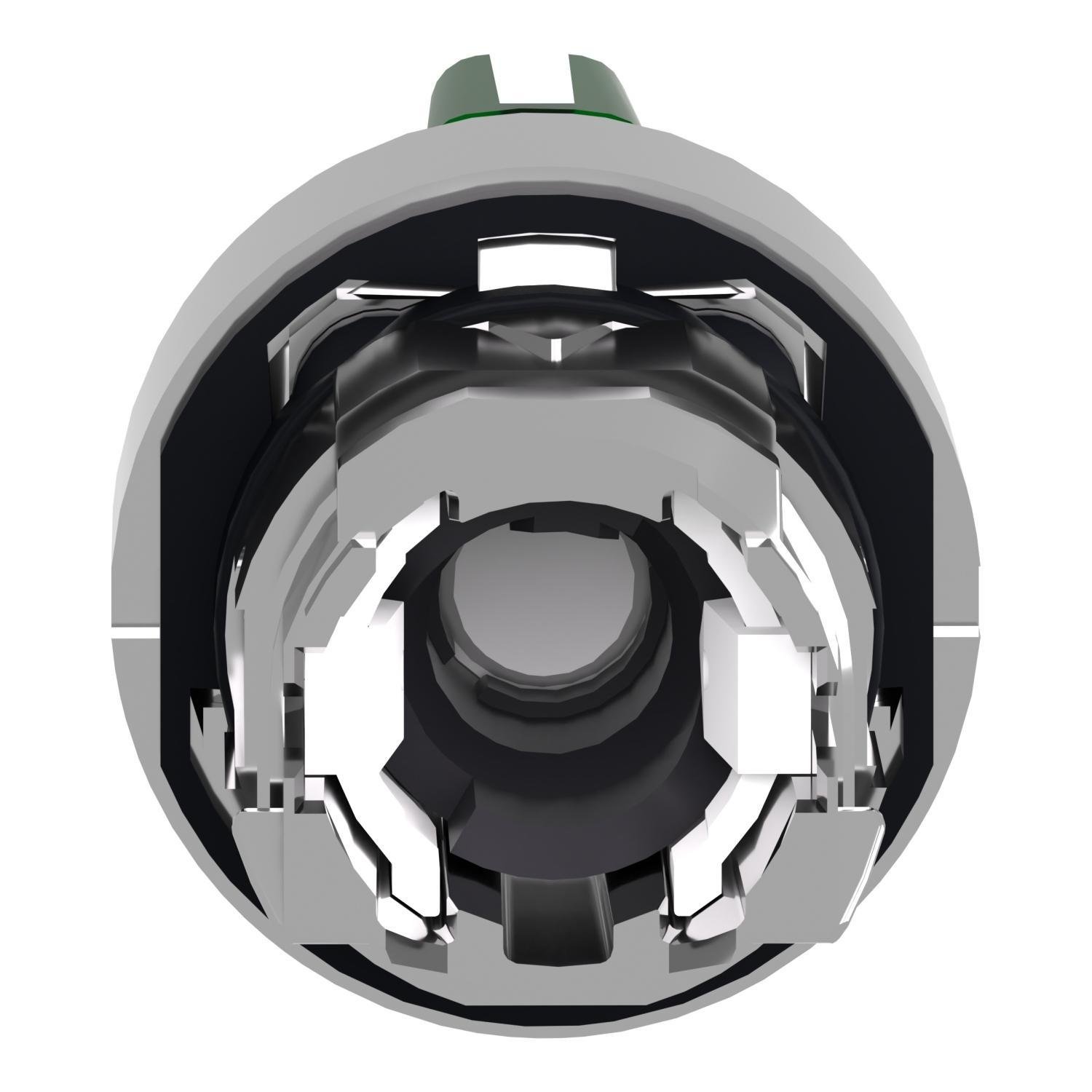

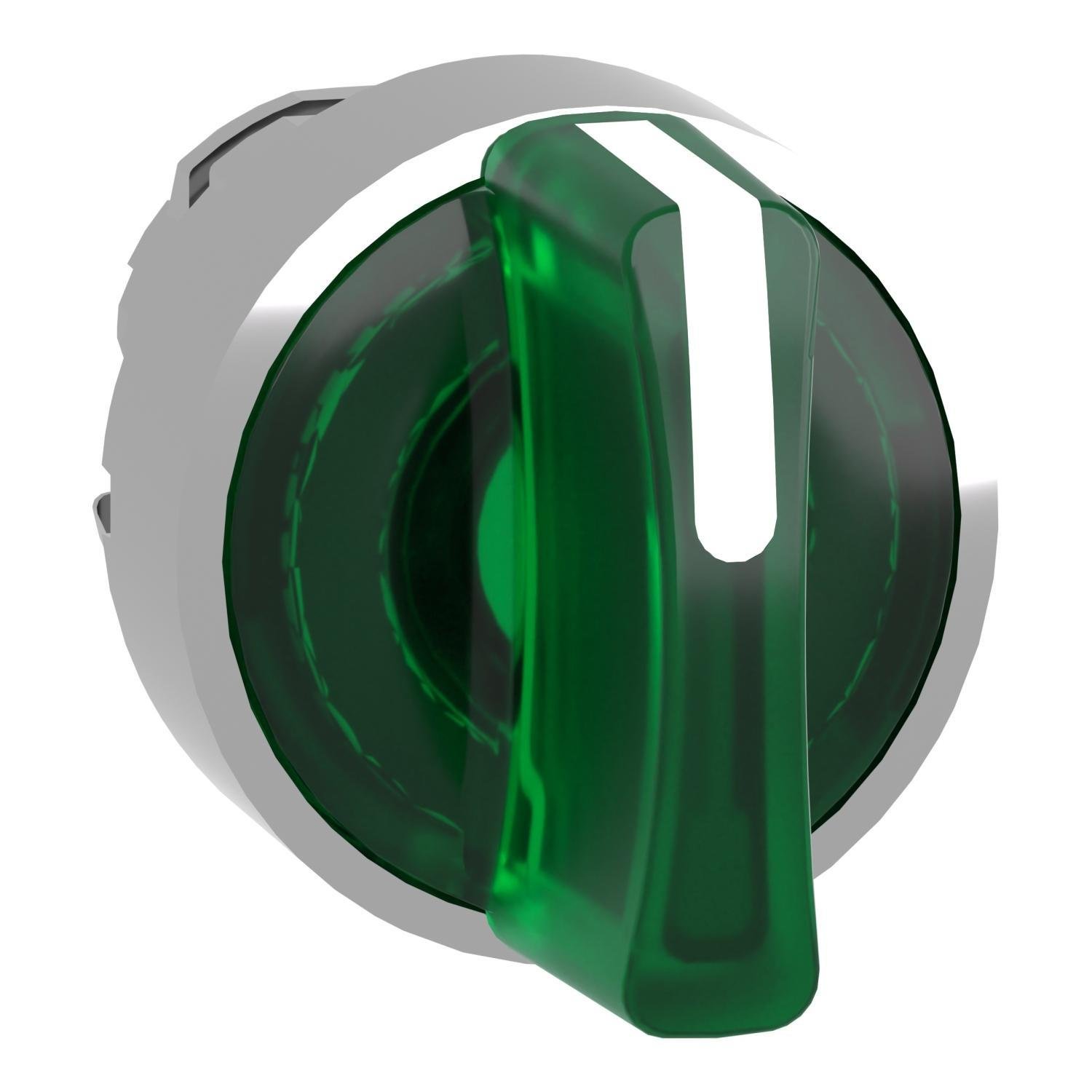

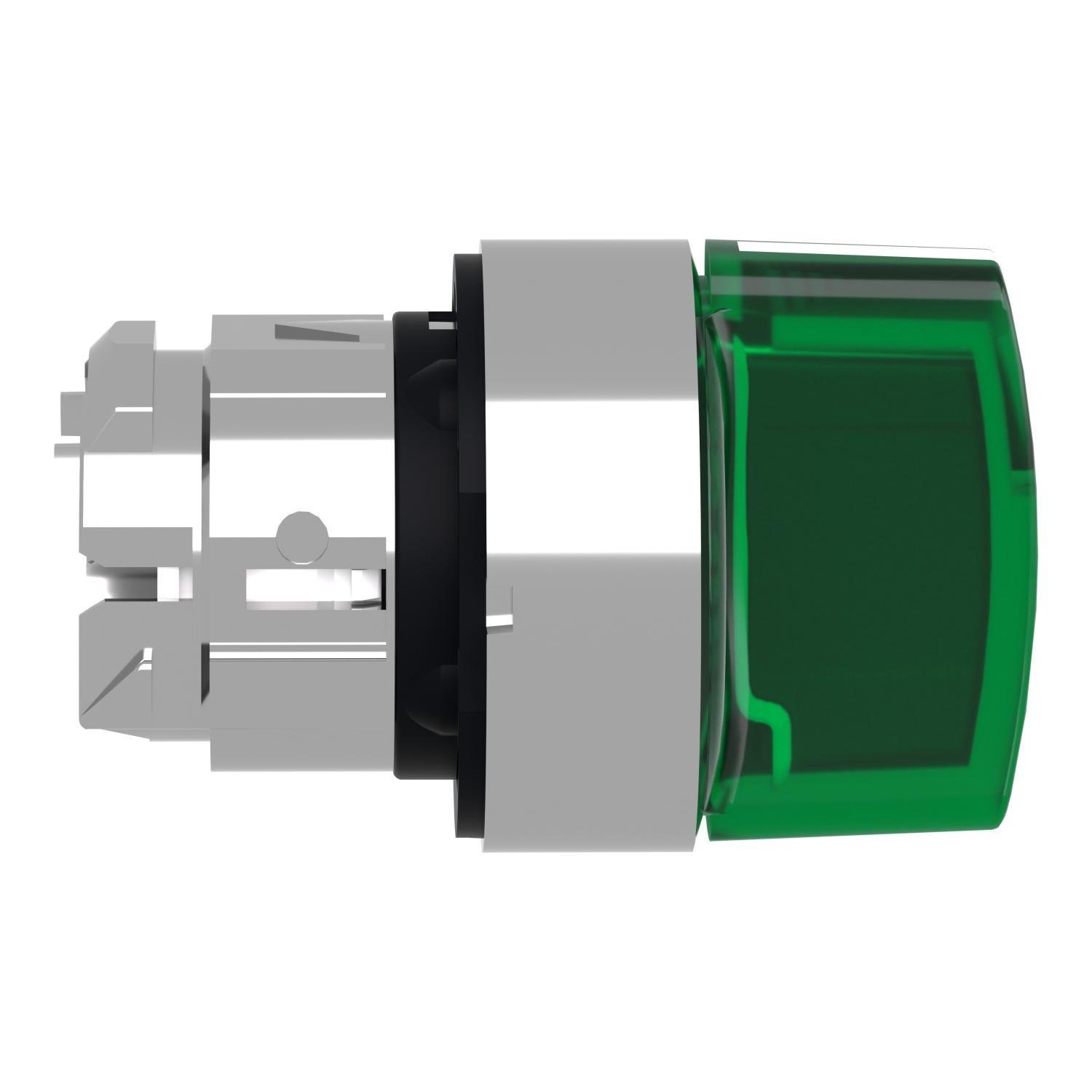

Picture of ZB4BK1333 - Head for illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 3 positions, stay put Picture of ZB4BK1333 - Head for illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 3 positions, stay put
Picture of ZB4BK1333 - Head for illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 3 positions, stay put Picture of ZB4BK1333 - Head for illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 3 positions, stay put
Picture of ZB4BK1333 - Head for illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 3 positions, stay put Picture of ZB4BK1333 - Head for illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 3 positions, stay put
Picture of ZB4BK1333 - Head for illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 3 positions, stay put Picture of ZB4BK1333 - Head for illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 3 positions, stay put
Picture of ZB4BK1333 - Head for illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 3 positions, stay put Picture of ZB4BK1333 - Head for illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 3 positions, stay put
Schneider Electric

ZB4BK1333 - Head for illuminated selector switch, Harmony XB4, metal, green handle, 22mm, universal LED, 3 positions, stay put

Item Code: 539258
Category Relays, Push Buttons, Pilot Lights, Selector Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZB4BK1333

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB4, illuminated green selector switch head for universal LED with standard handle has 3 positions, operates with stay-put mechanism. This illuminated switch head for universal LED provides an ergonomic interface for controlling your machines. It is supplied with standard handle and can easily be installed on compatible selector switch units. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Specifications

Weight

0.09lb

Height

2mm

Width

2.07mm

Length

2.11mm

AD All Features

Compatible with universal LED block to be used for all colors

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

OPERATOR SW SEL ILLUMINATED 22MM 3 GRN

AD Item Features 01

Compatible with universal LED block to be used for all colors

AD Item Features 02

Improved color intensity and brightness

AD Item Features 03

Quick and easy assembly and disassembly

AD Item Features 04

Robustness to withstand harsh environments

AD Item Features 05

Large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.0000

AD Package Height UOM

IN

AD Package Length

2.1100

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

5.4600

AD Package Volume UOM

cu-in

AD Package Weight

0.0900

AD Package Weight UOM

LB

AD Package Width

2.0700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/kSLYD1dXJVc

Brand

Square D

Category

RELAYS, PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES

Spec 1 Attribute

Bezel/Housing

Spec 1 Attribute Value

Chromium Plated Metal

Spec 10 Attribute

Size

Spec 10 Attribute UOM

MM

Spec 10 Attribute Value

22

Spec 11 Attribute

Temperature Rating

Spec 11 Attribute UOM

deg F

Spec 11 Attribute Value

-40 To 158

Spec 12 Attribute

Terminal Type

Spec 12 Attribute Value

Screw clamp

Spec 13 Attribute

Throw

Spec 13 Attribute Value

45 deg Left/Center/Right

Spec 14 Attribute

Type

Spec 14 Attribute Value

Illuminated

Spec 2 Attribute

Color

Spec 2 Attribute Value

Green

Spec 3 Attribute

Contact Mode

Spec 3 Attribute Value

Maintained

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1/2/3/4/4X/13/IP65

Spec 5 Attribute

Lamp Type

Spec 5 Attribute Value

Integral LED

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Front

Spec 7 Attribute

Number of Positions

Spec 7 Attribute Value

3

Spec 8 Attribute

Operator Type

Spec 8 Attribute Value

Round

Spec 9 Attribute

Series

Spec 9 Attribute Value

ZB4
