Schneider Electric

ZB4BW153 - Head for illuminated push button, Harmony XB4, metal, orange projecting, 22mm, universal LED, spring return, plain lens

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

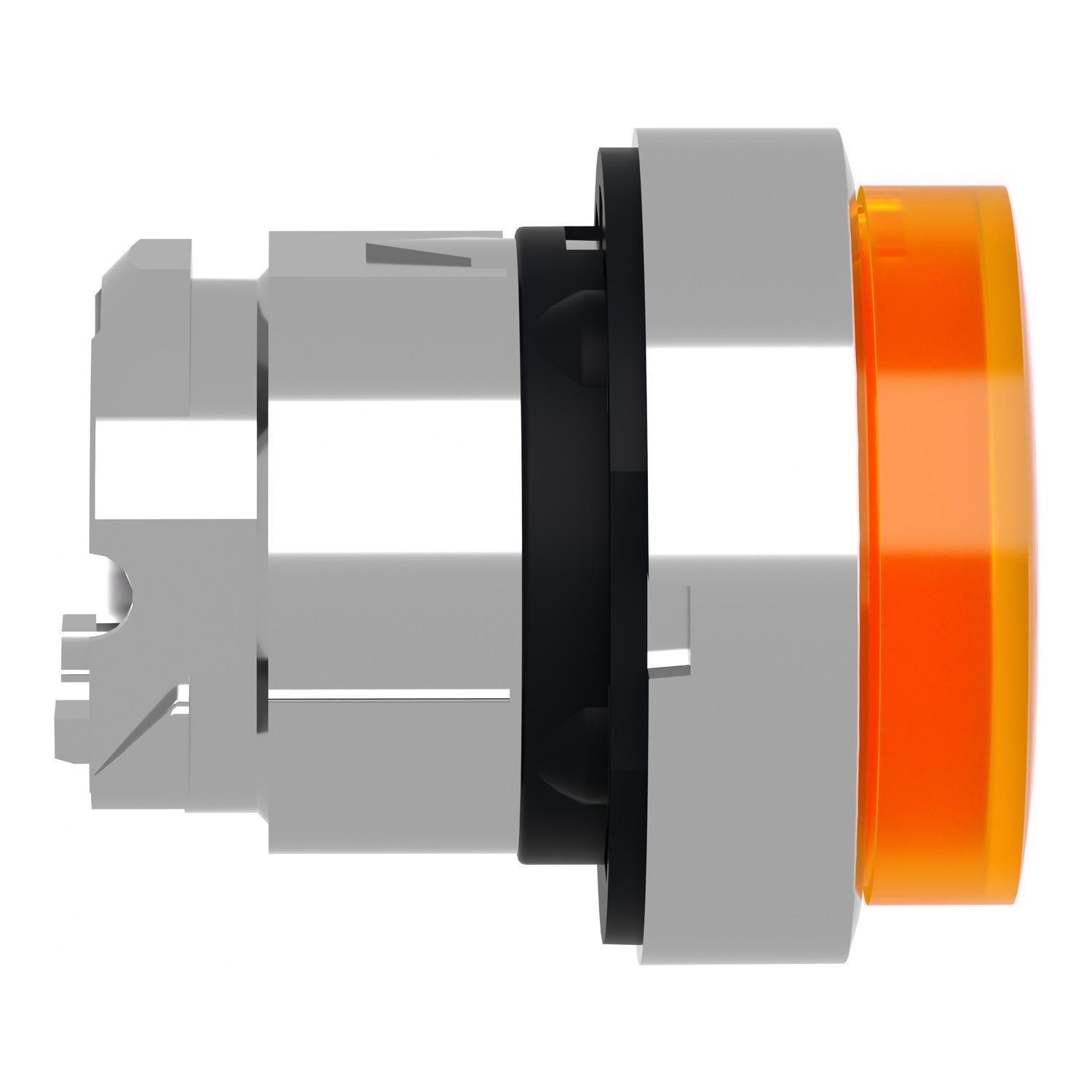

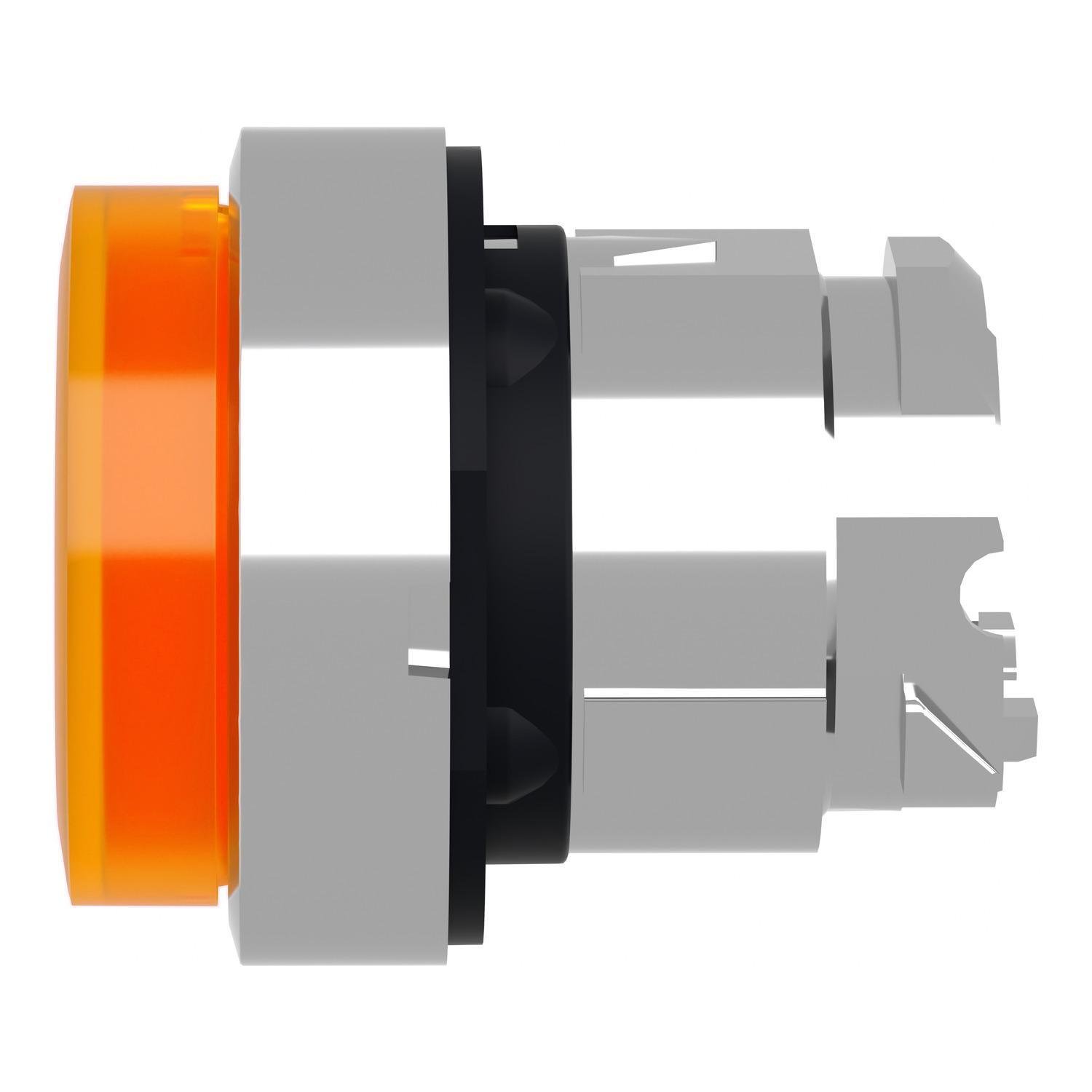

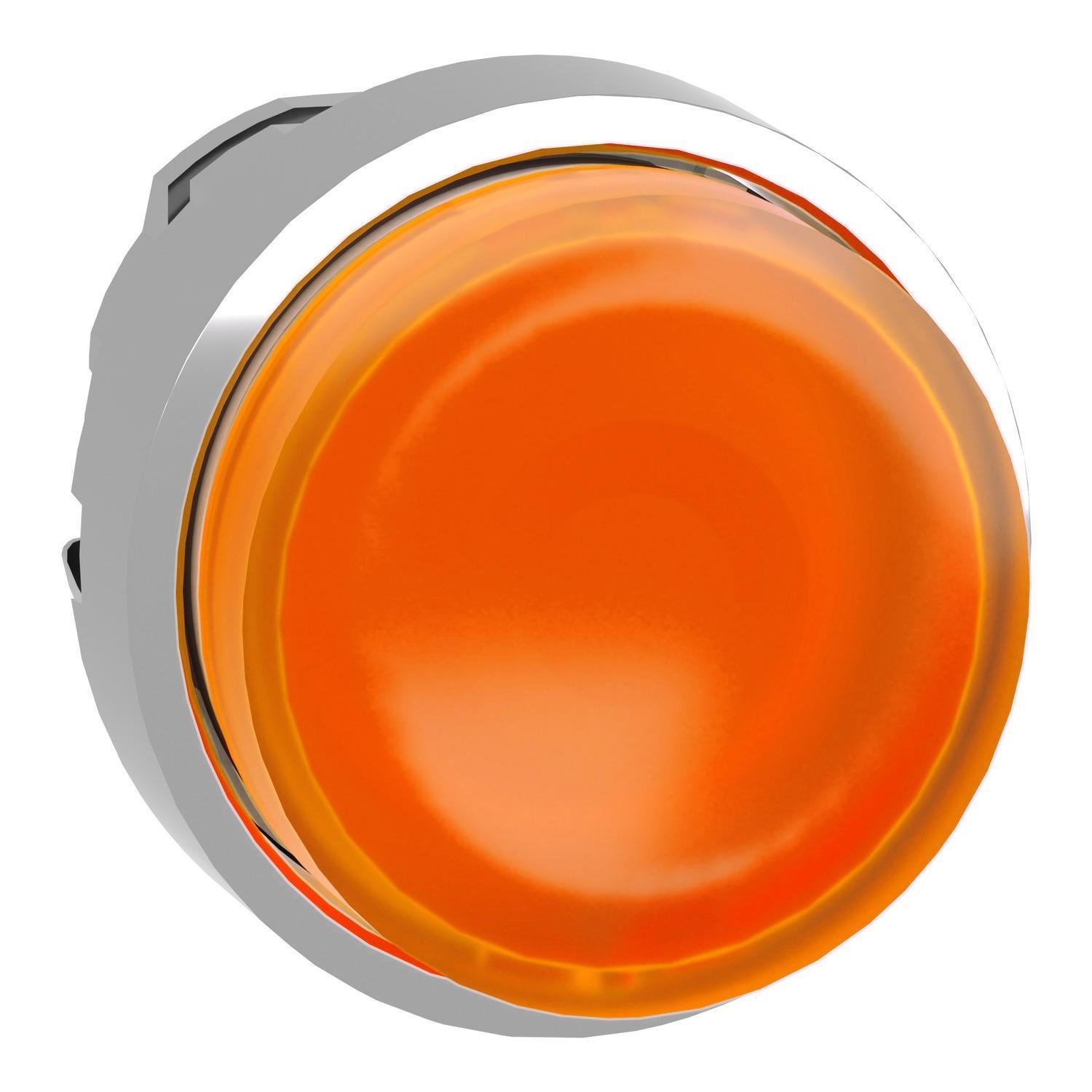

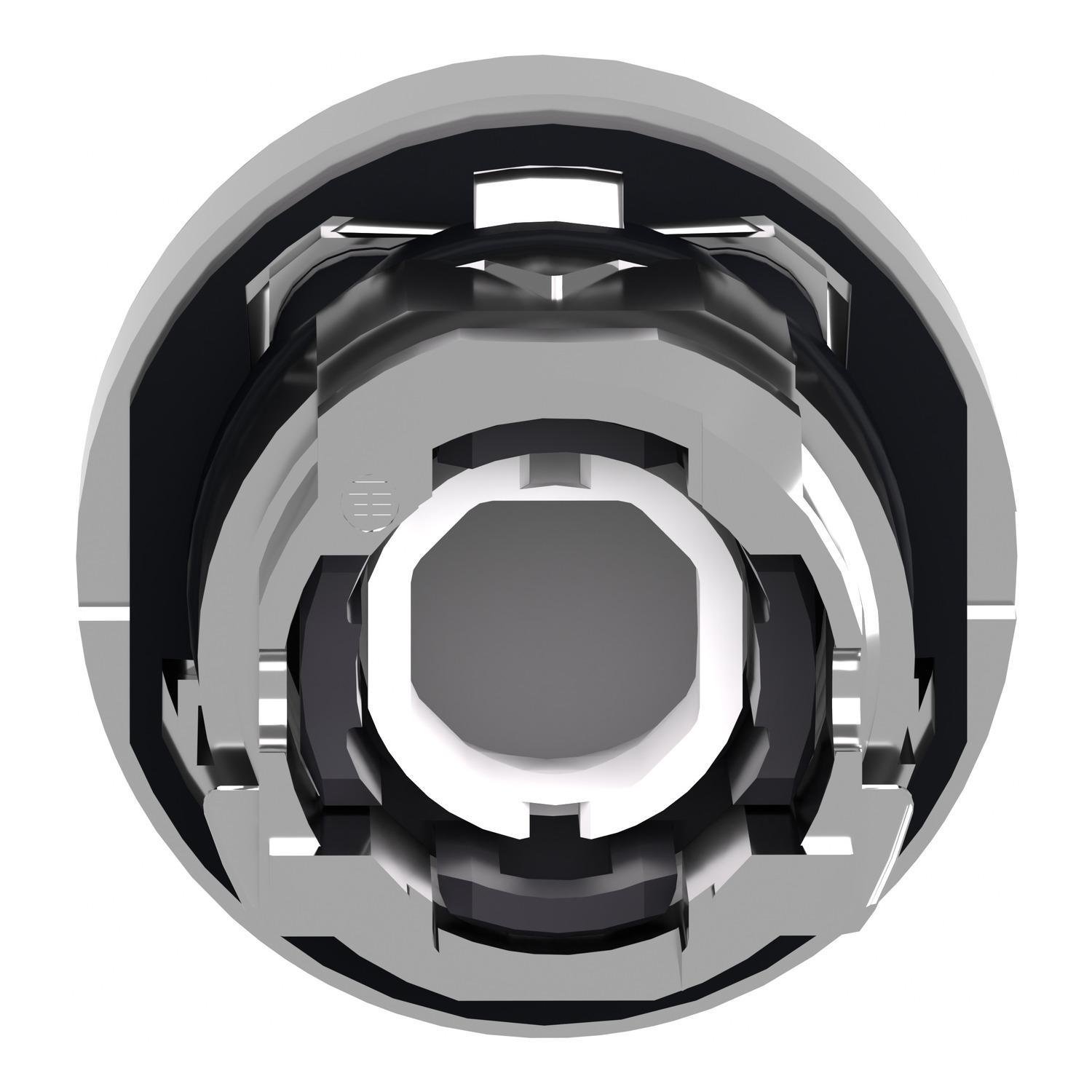

Picture of ZB4BW153 - Head for illuminated push button, Harmony XB4, metal, orange projecting, 22mm, universal LED, spring return, plain lens Picture of ZB4BW153 - Head for illuminated push button, Harmony XB4, metal, orange projecting, 22mm, universal LED, spring return, plain lens
Picture of ZB4BW153 - Head for illuminated push button, Harmony XB4, metal, orange projecting, 22mm, universal LED, spring return, plain lens Picture of ZB4BW153 - Head for illuminated push button, Harmony XB4, metal, orange projecting, 22mm, universal LED, spring return, plain lens
Picture of ZB4BW153 - Head for illuminated push button, Harmony XB4, metal, orange projecting, 22mm, universal LED, spring return, plain lens Picture of ZB4BW153 - Head for illuminated push button, Harmony XB4, metal, orange projecting, 22mm, universal LED, spring return, plain lens
Picture of ZB4BW153 - Head for illuminated push button, Harmony XB4, metal, orange projecting, 22mm, universal LED, spring return, plain lens Picture of ZB4BW153 - Head for illuminated push button, Harmony XB4, metal, orange projecting, 22mm, universal LED, spring return, plain lens
Picture of ZB4BW153 - Head for illuminated push button, Harmony XB4, metal, orange projecting, 22mm, universal LED, spring return, plain lens Picture of ZB4BW153 - Head for illuminated push button, Harmony XB4, metal, orange projecting, 22mm, universal LED, spring return, plain lens
Schneider Electric

ZB4BW153 - Head for illuminated push button, Harmony XB4, metal, orange projecting, 22mm, universal LED, spring return, plain lens

Item Code: 671702
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZB4BW153

Document
Document
Document
Document
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB4, plain lens illuminated projecting orange button head operates with a spring return / impulse mechanism. This illuminated button head for universal LED provides a versatile interface for controlling your machines. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is clearly distinguishable visually at a distance thanks to clear color and by touch due to projecting element, minimizing errors in machine control. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. It provides high brightness for easy identification of function and operation mode, even in brightly lit environments.

Specifications

Weight

0.06lb

Height

1.7mm

Width

1.79mm

Length

2.18mm

AD All Features

Compatible with universal LED block to be used for all colors

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

OPERATOR H PUSHBUTTON 22 MM DIA RND MET

AD Item Features 01

Compatible with universal LED block to be used for all colors

AD Item Features 02

Improved color intensity and brightness

AD Item Features 03

Quick and easy assembly and disassembly

AD Item Features 04

Robustness to withstand harsh environments

AD Item Features 05

Large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.7000

AD Package Height UOM

IN

AD Package Length

2.1800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

4.2800

AD Package Volume UOM

cu-in

AD Package Weight

0.0600

AD Package Weight UOM

LB

AD Package Width

1.7900

AD Package Width UOM

IN

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Color

Spec 1 Attribute Value

Orange

Spec 2 Attribute

Material

Spec 2 Attribute Value

Metal

Spec 3 Attribute

Series

Spec 3 Attribute Value

ZB4

Spec 4 Attribute

Shape

Spec 4 Attribute Value

Round

Spec 5 Attribute

Size

Spec 5 Attribute Value

22 mm Dia

Spec 6 Attribute

Type

Spec 6 Attribute Value

Illuminated
