Schneider Electric

ZB4BW643 - Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

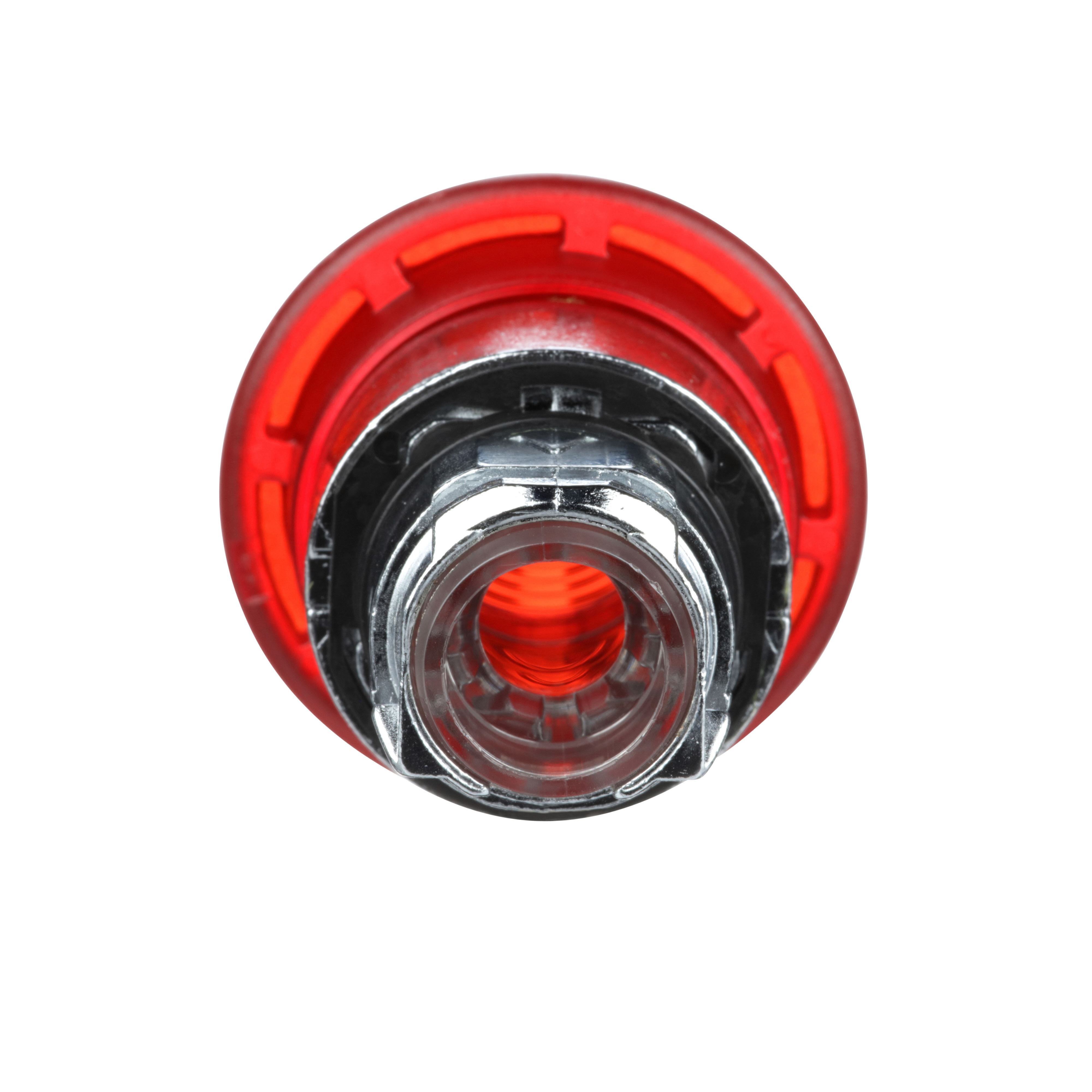

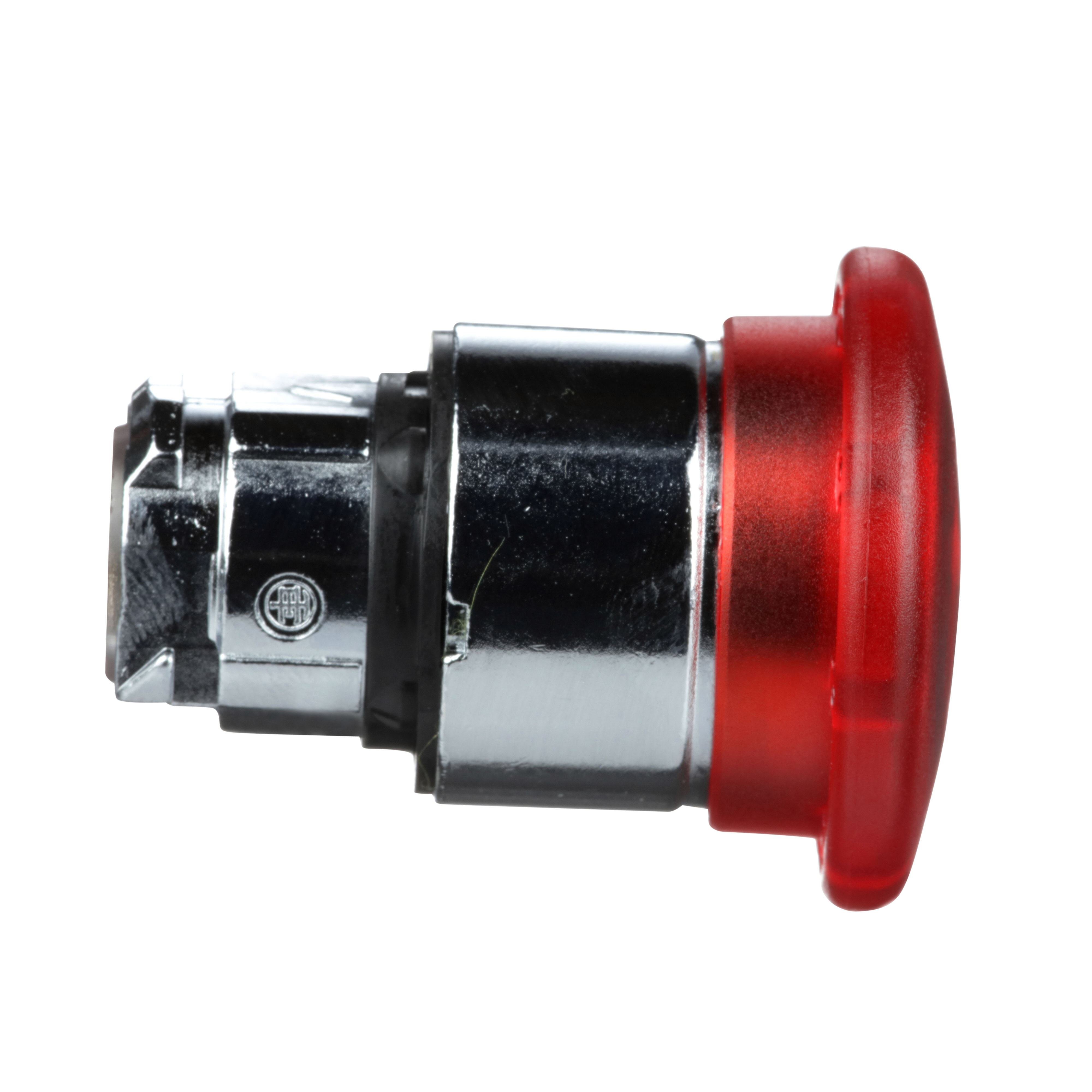

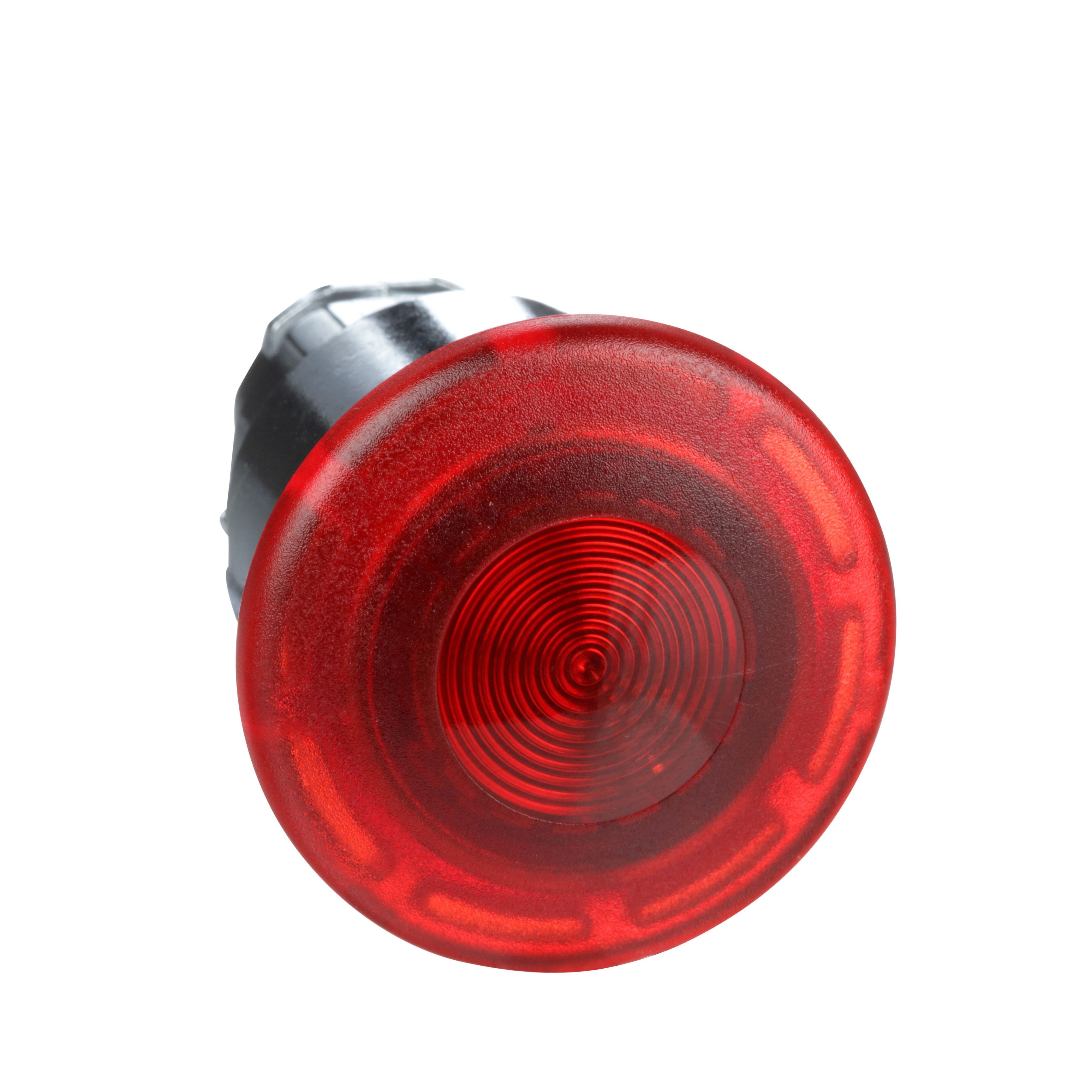

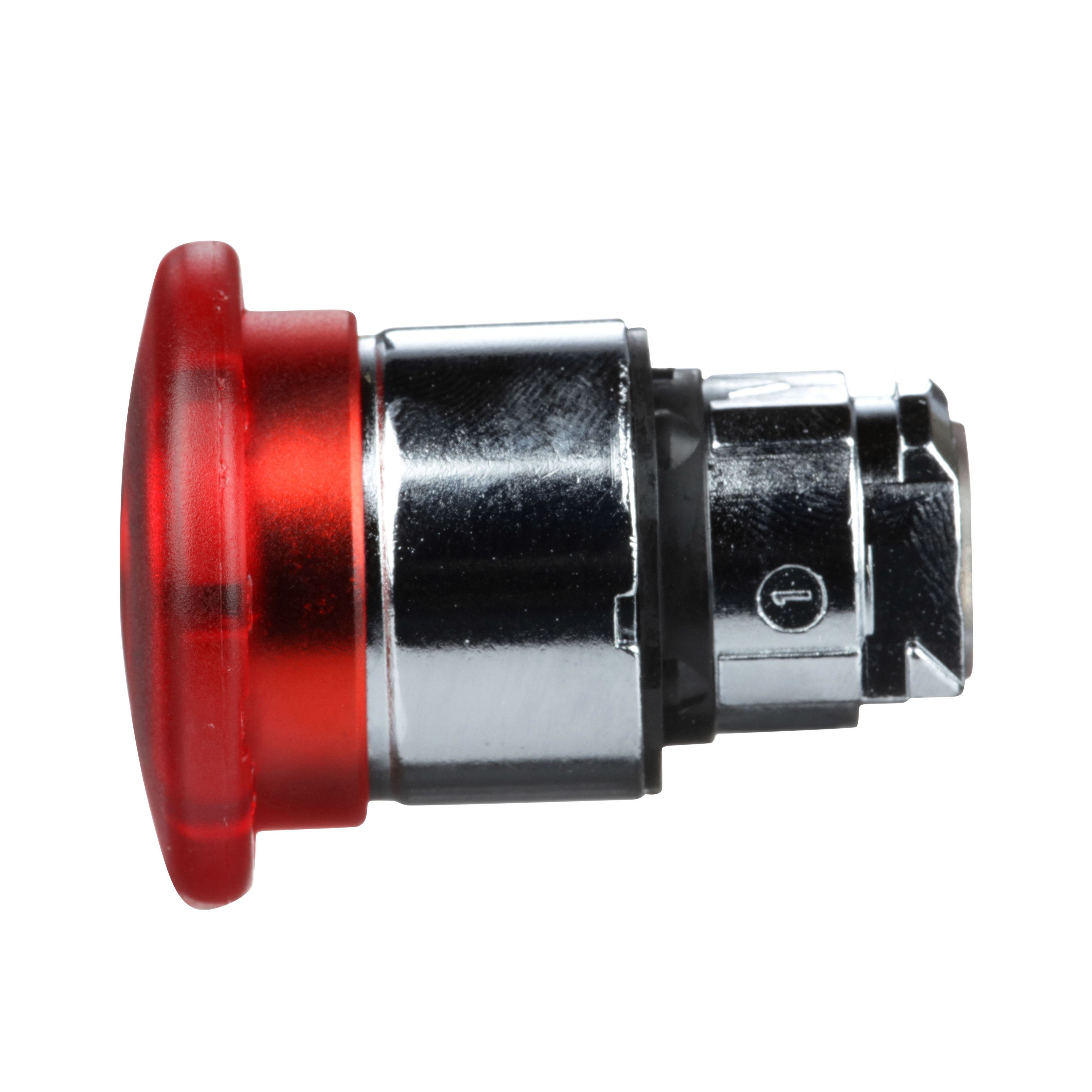

Picture of ZB4BW643 - Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull Picture of ZB4BW643 - Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull
Picture of ZB4BW643 - Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull Picture of ZB4BW643 - Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull
Picture of ZB4BW643 - Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull Picture of ZB4BW643 - Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull
Picture of ZB4BW643 - Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull Picture of ZB4BW643 - Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull
Picture of ZB4BW643 - Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull Picture of ZB4BW643 - Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull
Schneider Electric

ZB4BW643 - Head for illuminated emergency switching off push button, Harmony XB4, metal, red mushroom 40mm, 22mm, universal LED, push-pull

Item Code: 71423
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZB4BW643

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This illuminated 40mm mushroom shape push button head for universal LED is part of of the range diameter 22mm, Harmony XB4. It is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to its illuminated head. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.12lb

Height

2.3mm

Width

2.03mm

Length

2.18mm

AD All Features

Compatible with universal LED block to be used for all colors

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

OPERATOR PUSHBUTTON ILLUMINATED 22MM R

AD Item Features 01

Compatible with universal LED block to be used for all colors

AD Item Features 02

Improved color intensity and brightness

AD Item Features 03

Quick and easy assembly and disassembly

AD Item Features 04

Robustness to withstand harsh environments

AD Item Features 05

Large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height

2.3000

AD Package Height UOM

IN

AD Package Length

2.1800

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

7.3600

AD Package Volume UOM

cu-in

AD Package Weight

0.1200

AD Package Weight UOM

LB

AD Package Width

2.0300

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/kSLYD1dXJVc

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Bezel/Housing

Spec 1 Attribute Value

Chromium Plated Metal

Spec 10 Attribute

Temperature Rating

Spec 10 Attribute UOM

deg C

Spec 10 Attribute Value

-40 To 70

Spec 11 Attribute

Type

Spec 11 Attribute Value

Emergency Stop

Spec 2 Attribute

Color

Spec 2 Attribute Value

Red

Spec 3 Attribute

Contact Mode

Spec 3 Attribute Value

Maintained/Pull-Unlatch

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1/2/3/4/4X/13/IP65/IP69/IP66/IP69K

Spec 5 Attribute

Lamp Type

Spec 5 Attribute Value

Led

Spec 6 Attribute

Mounting Type

Spec 6 Attribute Value

Panel

Spec 7 Attribute

Operator Type

Spec 7 Attribute Value

Mushroom head

Spec 8 Attribute

Series

Spec 8 Attribute Value

ZB4

Spec 9 Attribute

Size

Spec 9 Attribute UOM

MM

Spec 9 Attribute Value

22
