Schneider Electric

ZB4BZ009 - Harmony, 22mm Push Button, XB4B operators, metal mounting collar for electrical blocks

Category Push Buttons, Pilot Lights, Selector Switches & Accessories

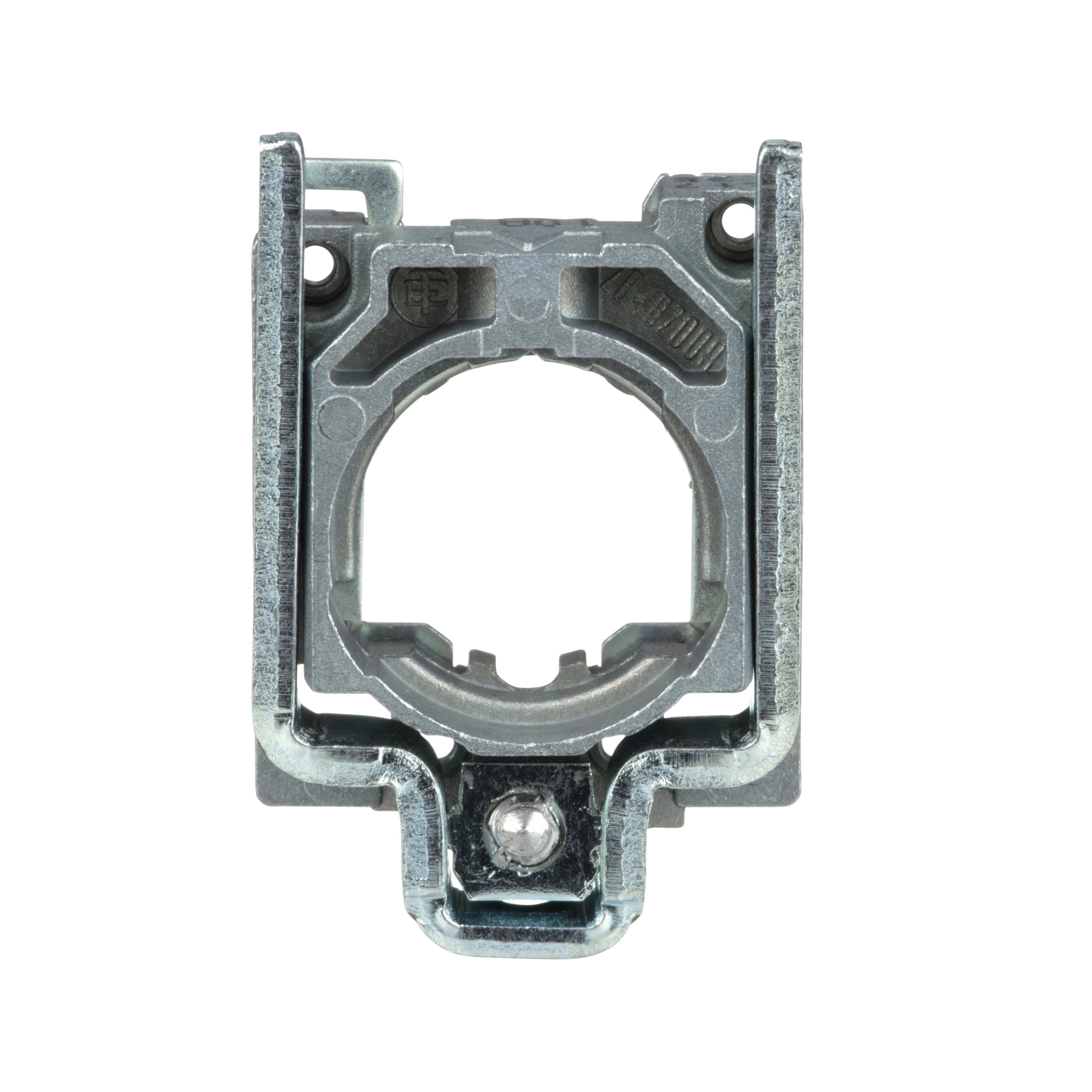

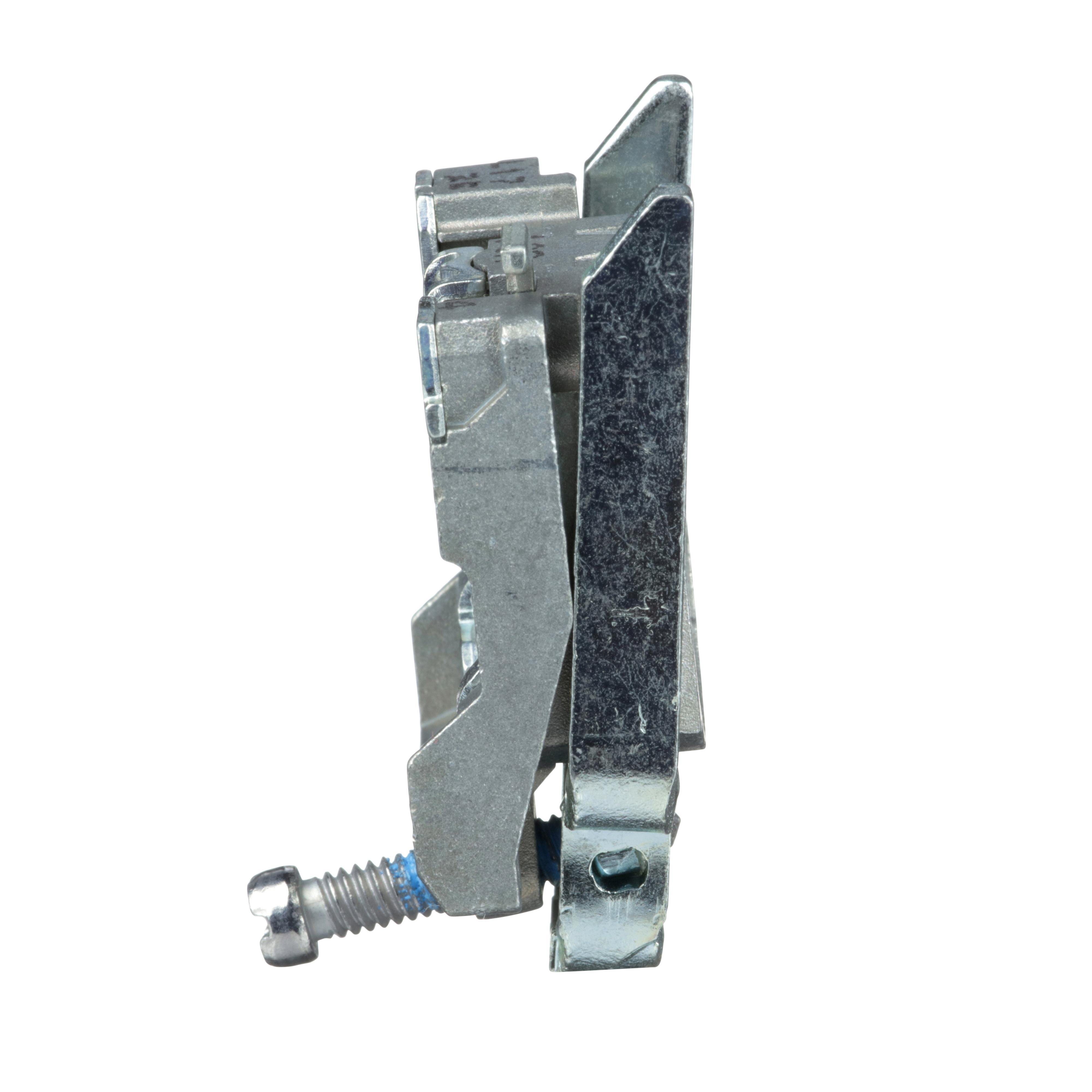

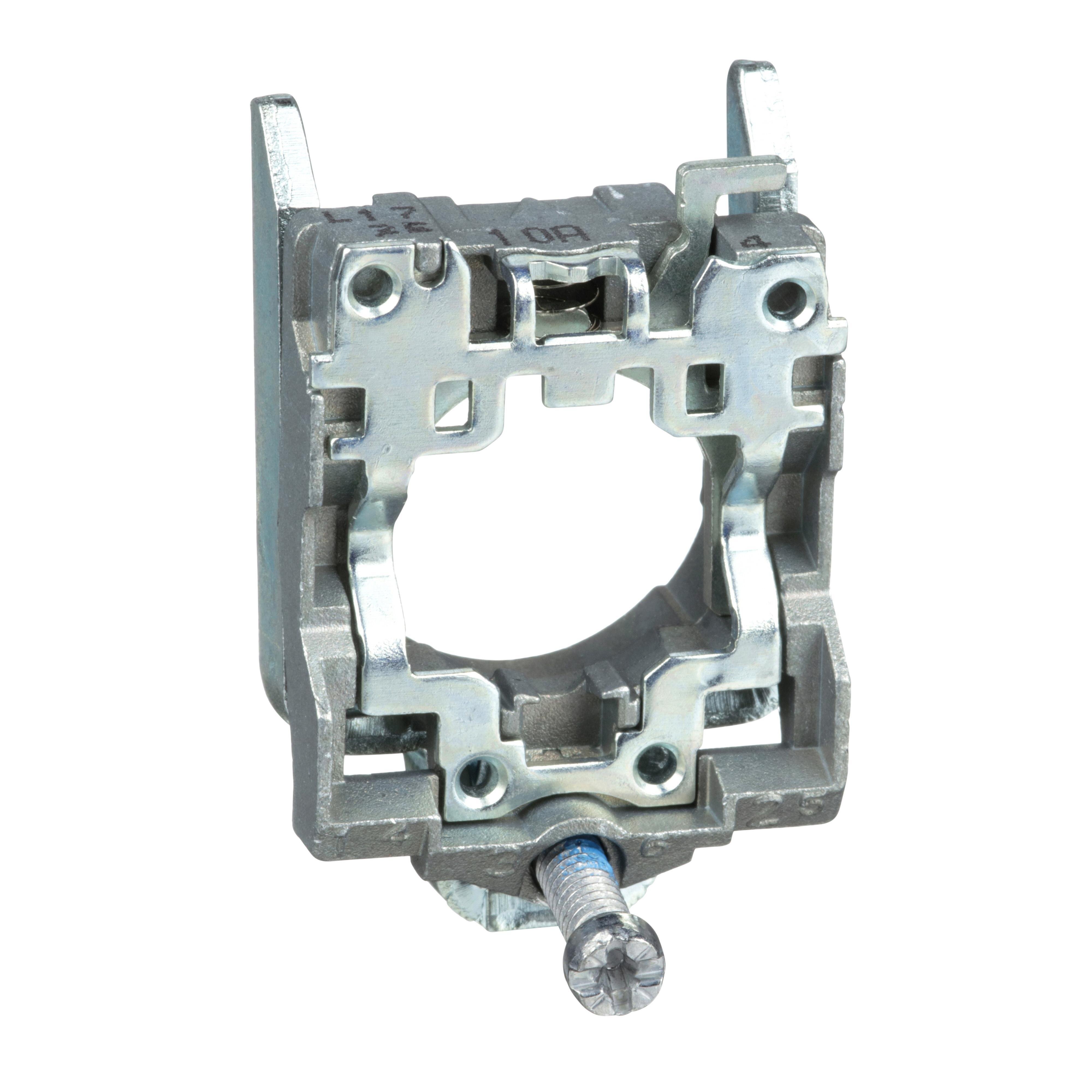

Picture of ZB4BZ009 - Harmony, 22mm Push Button, XB4B operators, metal mounting collar for electrical blocks Picture of ZB4BZ009 - Harmony, 22mm Push Button, XB4B operators, metal mounting collar for electrical blocks
Picture of ZB4BZ009 - Harmony, 22mm Push Button, XB4B operators, metal mounting collar for electrical blocks Picture of ZB4BZ009 - Harmony, 22mm Push Button, XB4B operators, metal mounting collar for electrical blocks
Picture of ZB4BZ009 - Harmony, 22mm Push Button, XB4B operators, metal mounting collar for electrical blocks Picture of ZB4BZ009 - Harmony, 22mm Push Button, XB4B operators, metal mounting collar for electrical blocks
Picture of ZB4BZ009 - Harmony, 22mm Push Button, XB4B operators, metal mounting collar for electrical blocks Picture of ZB4BZ009 - Harmony, 22mm Push Button, XB4B operators, metal mounting collar for electrical blocks
Schneider Electric

ZB4BZ009 - Harmony, 22mm Push Button, XB4B operators, metal mounting collar for electrical blocks

Item Code: 18911
Category Push Buttons, Pilot Lights, Selector Switches & Accessories
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZB4BZ009

Document
Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.08lb

Width

1.17mm

Length

1.79mm

AD Application

For electrical block mounted on printed circuit board

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

US

AD Invoice Description

PILLAR FIXING COLLAR IP65 SURF MT MET

AD Item Features 01

Quick and easy assembly and disassembly

AD Item Features 02

Robustness to withstand harsh environments

AD Item Features 03

Various types of connection - screw clamp, connector, Faston connector or spring terminal

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

Large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

1.7900

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0800

AD Package Weight UOM

LB

AD Package Width

1.1700

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/fRFG1d6JH7Q

Brand

Square D

Category

PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES & ACCESSORIES

Spec 1 Attribute

Material

Spec 1 Attribute Value

Metal

Spec 2 Attribute

Specifications

Spec 2 Attribute Value

-25 to 70 deg C Operating, IP65, Surface Mount, 22 mm Pushbutton

Spec 3 Attribute

Suitable For Use With

Spec 3 Attribute Value

Harmony™ Electrical Block
