Schneider Electric

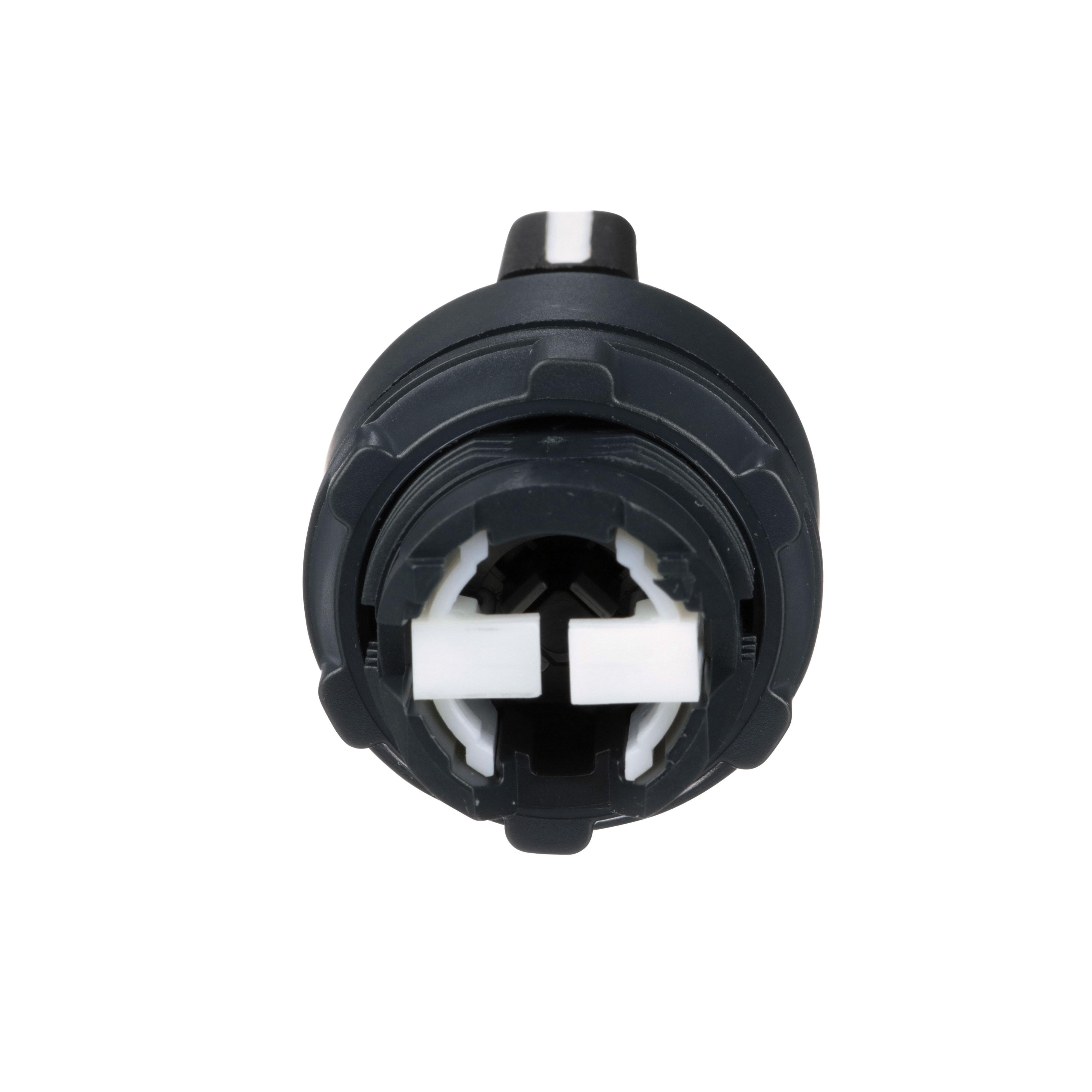

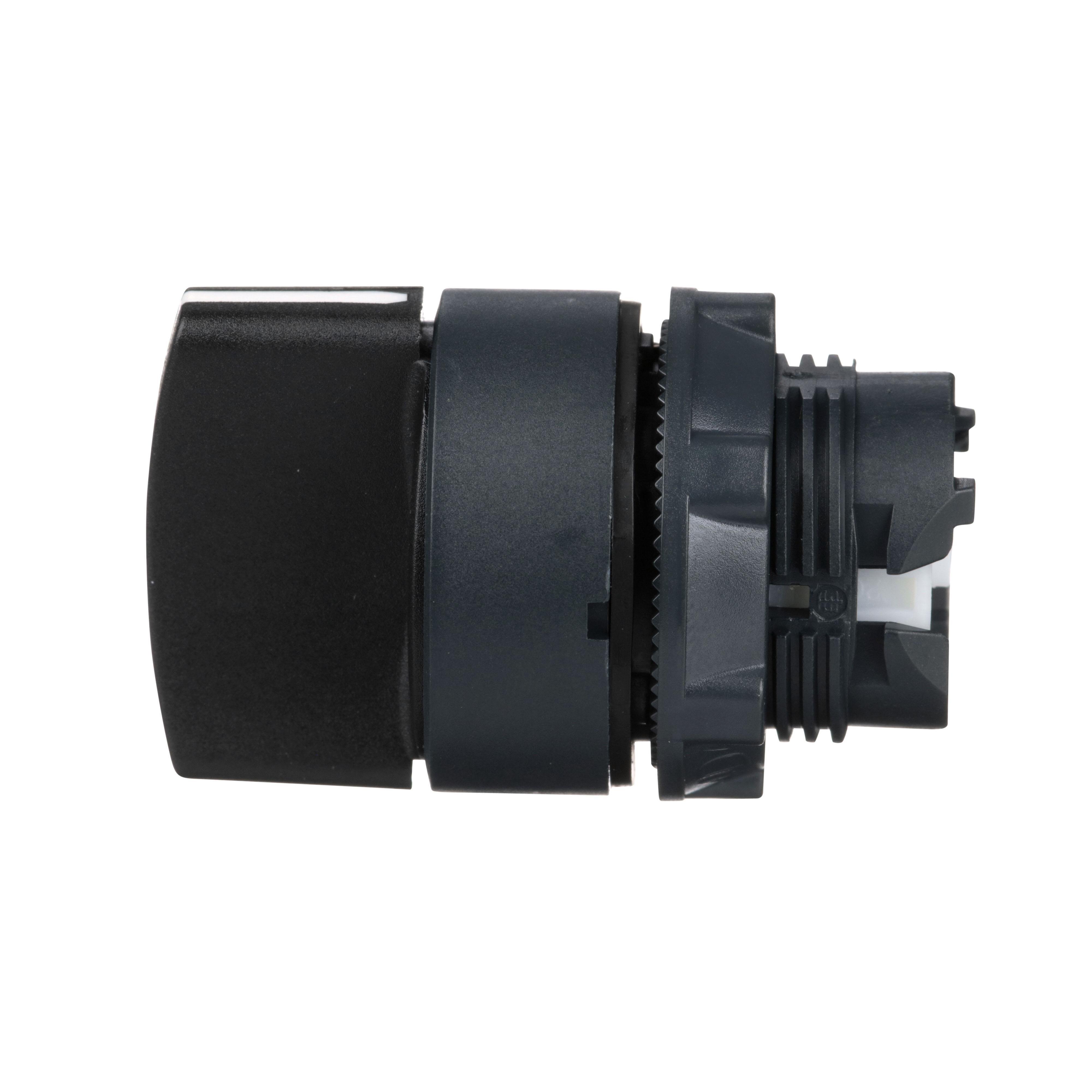

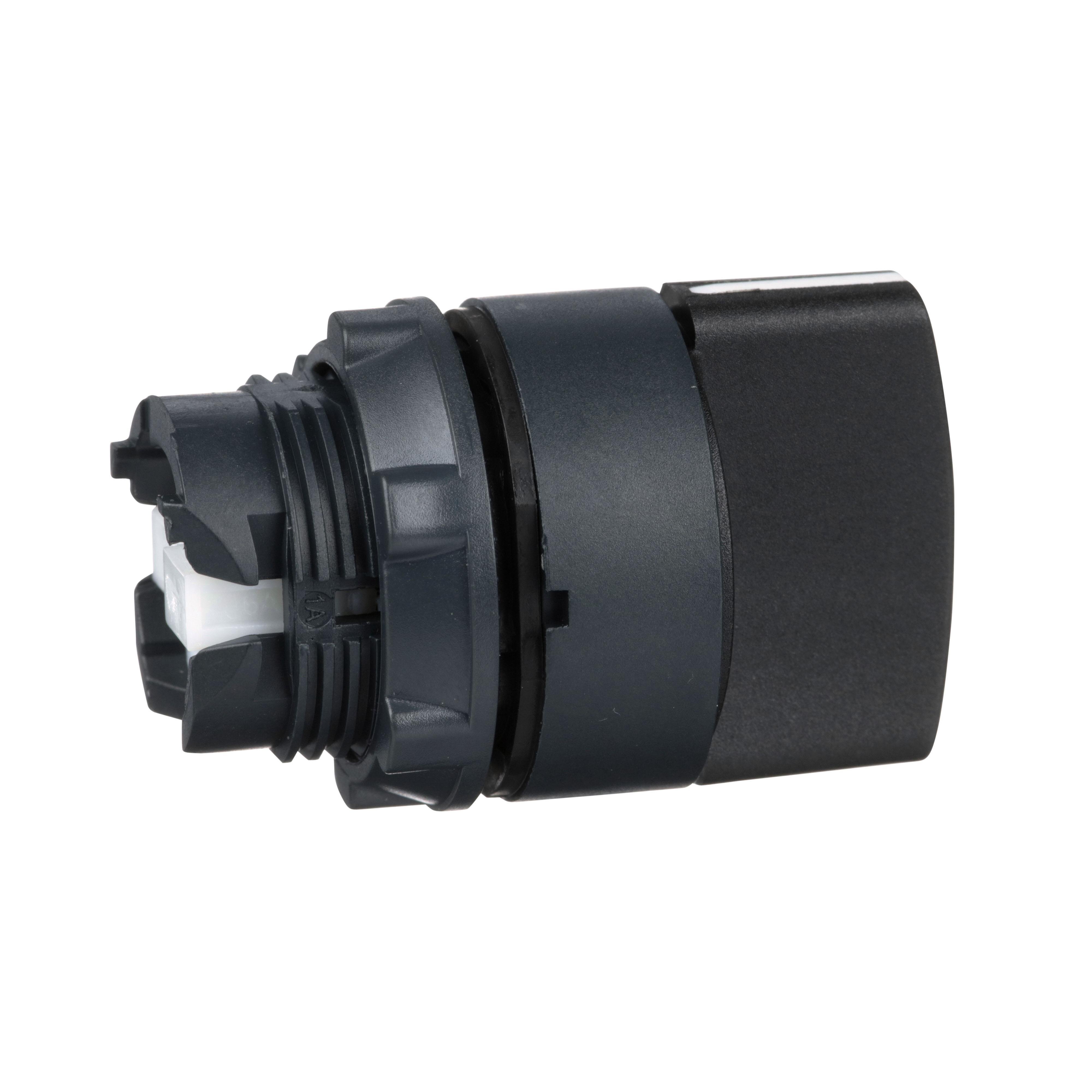

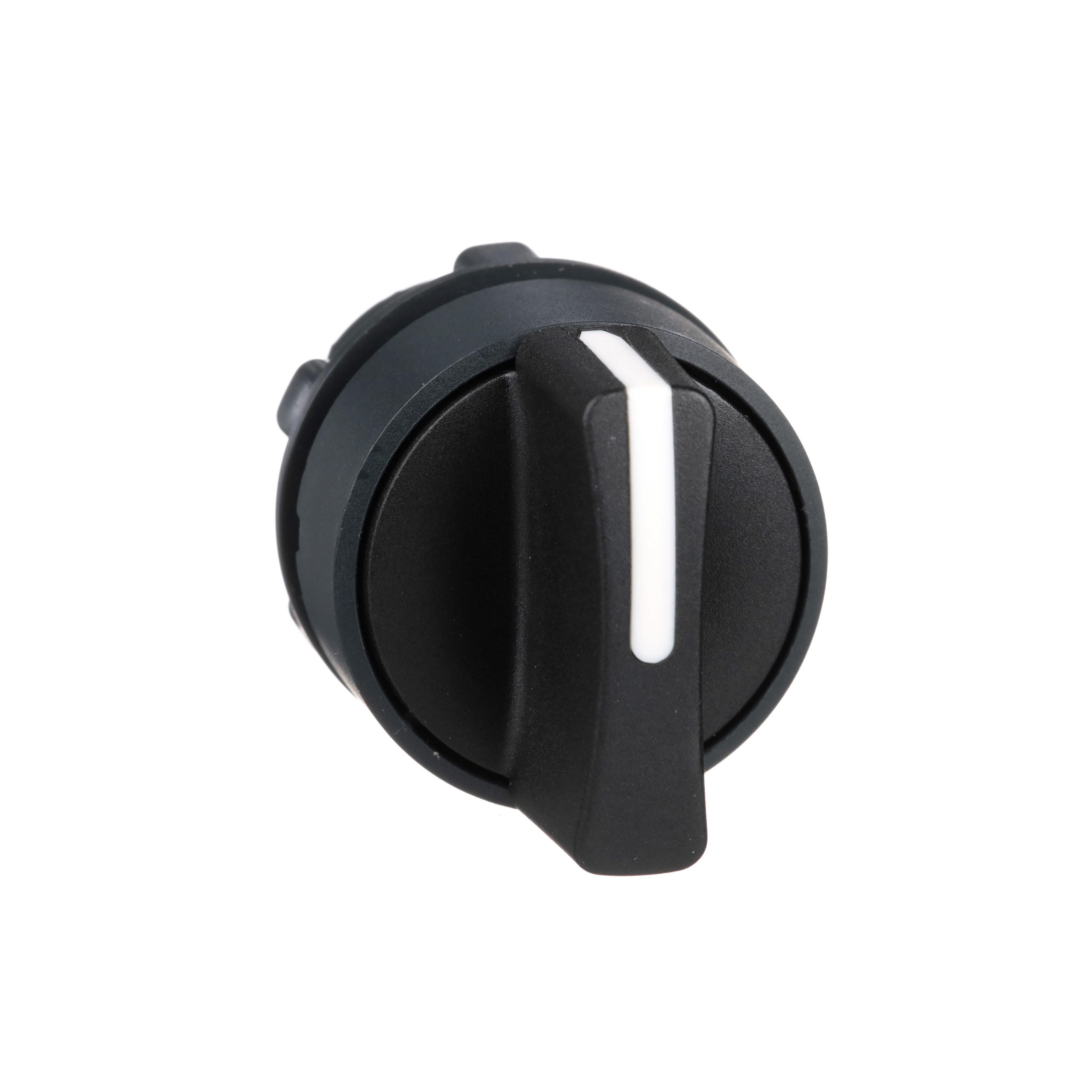

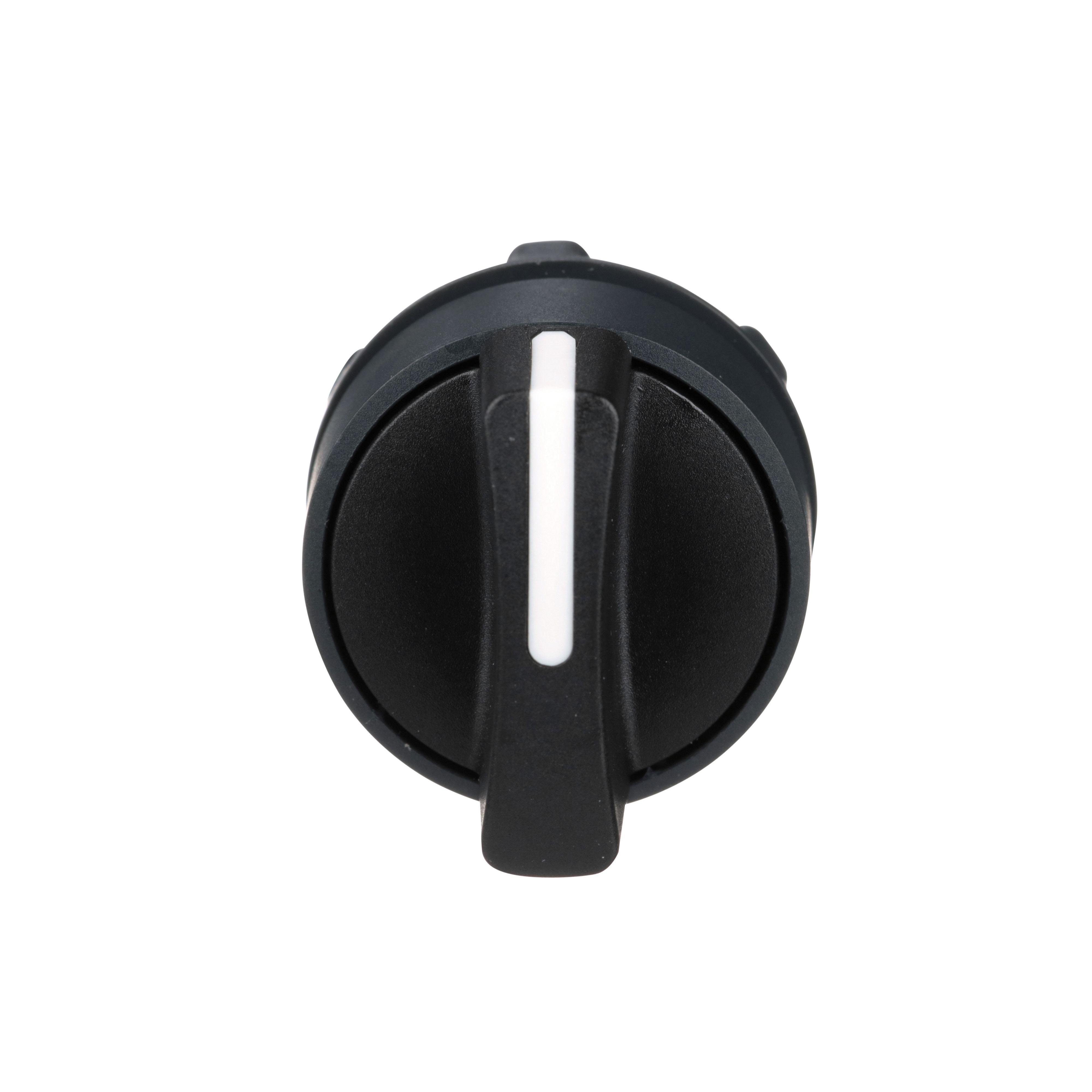

ZB5AD3 - Harmony, 22mm Push Button, selector switch operating head, 3 position, maintained, black, unmarked

Picture of ZB5AD3 - Harmony, 22mm Push Button, selector switch operating head, 3 position, maintained, black, unmarked Picture of ZB5AD3 - Harmony, 22mm Push Button, selector switch operating head, 3 position, maintained, black, unmarked
Picture of ZB5AD3 - Harmony, 22mm Push Button, selector switch operating head, 3 position, maintained, black, unmarked Picture of ZB5AD3 - Harmony, 22mm Push Button, selector switch operating head, 3 position, maintained, black, unmarked
Picture of ZB5AD3 - Harmony, 22mm Push Button, selector switch operating head, 3 position, maintained, black, unmarked Picture of ZB5AD3 - Harmony, 22mm Push Button, selector switch operating head, 3 position, maintained, black, unmarked
Picture of ZB5AD3 - Harmony, 22mm Push Button, selector switch operating head, 3 position, maintained, black, unmarked Picture of ZB5AD3 - Harmony, 22mm Push Button, selector switch operating head, 3 position, maintained, black, unmarked
Picture of ZB5AD3 - Harmony, 22mm Push Button, selector switch operating head, 3 position, maintained, black, unmarked Picture of ZB5AD3 - Harmony, 22mm Push Button, selector switch operating head, 3 position, maintained, black, unmarked
Schneider Electric

ZB5AD3 - Harmony, 22mm Push Button, selector switch operating head, 3 position, maintained, black, unmarked

Item Code: 18917
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZB5AD3

Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

Harmony 22 mm modular push buttons, selector switches, pilot lights are designed for industry. This range combines simplicity of setup, flexibility and a robust construction. An ingenious locking system consisting of a snap fit head and body that can be tightened with a single screw but still ensuring an easy and yet secure mounting. Harmony XB4/ZB4 are 22 mm chromium plated metal modular push buttons, selector switches and pilot lights connecting to fully metal mounting collar. The operators can be purchased as complete operators or various modules that can be assembled to meet the user’s specific requirement. Harmony XB5/ZB5 are 22 mm plastic modular push buttons, selector switches, pilot lights. The operator can have a round and square plastic bezel. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. The contacts can be used for low load electrical contact and high power applications. Shake proof connection screws make periodic retightening unnecessary. A complete set of accessories to provide a solution for applications where exposure to high pressure cleaning, dust and extreme temperatures is an everyday occurrence. These harmony 22mm push buttons are used by machine manufacturers (automotive, textiles, timber) and control system panel builders. Certified and approved for meeting requirements throughout all continents: EN/IEC, UL, NEMA, CSA, CCC, Gost, JIS and many more. They have UL and CE markings and have ratings up to IP66 and IP69K.

Specifications

Weight

0.05lb

Width

2.11mm

Length

2.3mm

AD 360 Spin URL

https://spin.adhq.com/Schneider%20Electric/ZB5AD3/ZB5AD3.spin

AD Alternative Part Number

7999395

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Document Caption 1

RoHS

AD Document Caption 2

Specification Sheet

AD EAN

3389110905069

AD Gtin

03389110905069

AD IDEA Index ID

7999395

AD Invoice Description

OPERATOR SW SEL NON-ILLUMINATED 22MM 3

AD Item Features 01

Quick and easy assembly and disassembly

AD Item Features 02

Robustness to withstand harsh environments

AD Item Features 03

With various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

A large set of accessories to customize your panels

AD Keywords

Harmony Square D ZB5AD3 Non-Illuminated Selector Switch Operator, 22 mm, Round Operator, 3 Positions, Black ; Schneider Electric ; Schneider Electric ; ZB5AD3 ; 785901354840 ; Non-Illuminated Selector Switch Operators

AD Manufacturer (Description)

Schneider Electric

AD Package Height UOM

IN

AD Package Length

2.3000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Weight

0.0500

AD Package Weight UOM

LB

AD Package Width

2.1100

AD Package Width UOM

IN

AD Part Number Keywords

ZB5AD3 ; 7999395 ; 785901354840 ; 78590135484 ; 03389110905069 ; 3389110905069

AD Video Links

https://www.youtube.com/embed/qOrWcETKQZg

Brand

Square D

Spec 1 Attribute

Bezel/Housing

Spec 1 Attribute Value

Plastic

Spec 10 Attribute

Throw

Spec 10 Attribute Value

45 deg Left/Center/Right

Spec 2 Attribute

Color

Spec 2 Attribute Value

Black

Spec 3 Attribute

Contact Mode

Spec 3 Attribute Value

Maintained

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1/2/3/4/4X/13/IP65/IP66

Spec 5 Attribute

Number of Positions

Spec 5 Attribute Value

3

Spec 6 Attribute

Operator Type

Spec 6 Attribute Value

Round

Spec 7 Attribute

Series

Spec 7 Attribute Value

ZB5

Spec 8 Attribute

Size

Spec 8 Attribute UOM

MM

Spec 8 Attribute Value

22

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg C

Spec 9 Attribute Value

-40 To 70
