Schneider Electric

ZB5AD5 - Head for selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, spring return to center

Category Relays, Push Buttons, Pilot Lights, Selector Switches

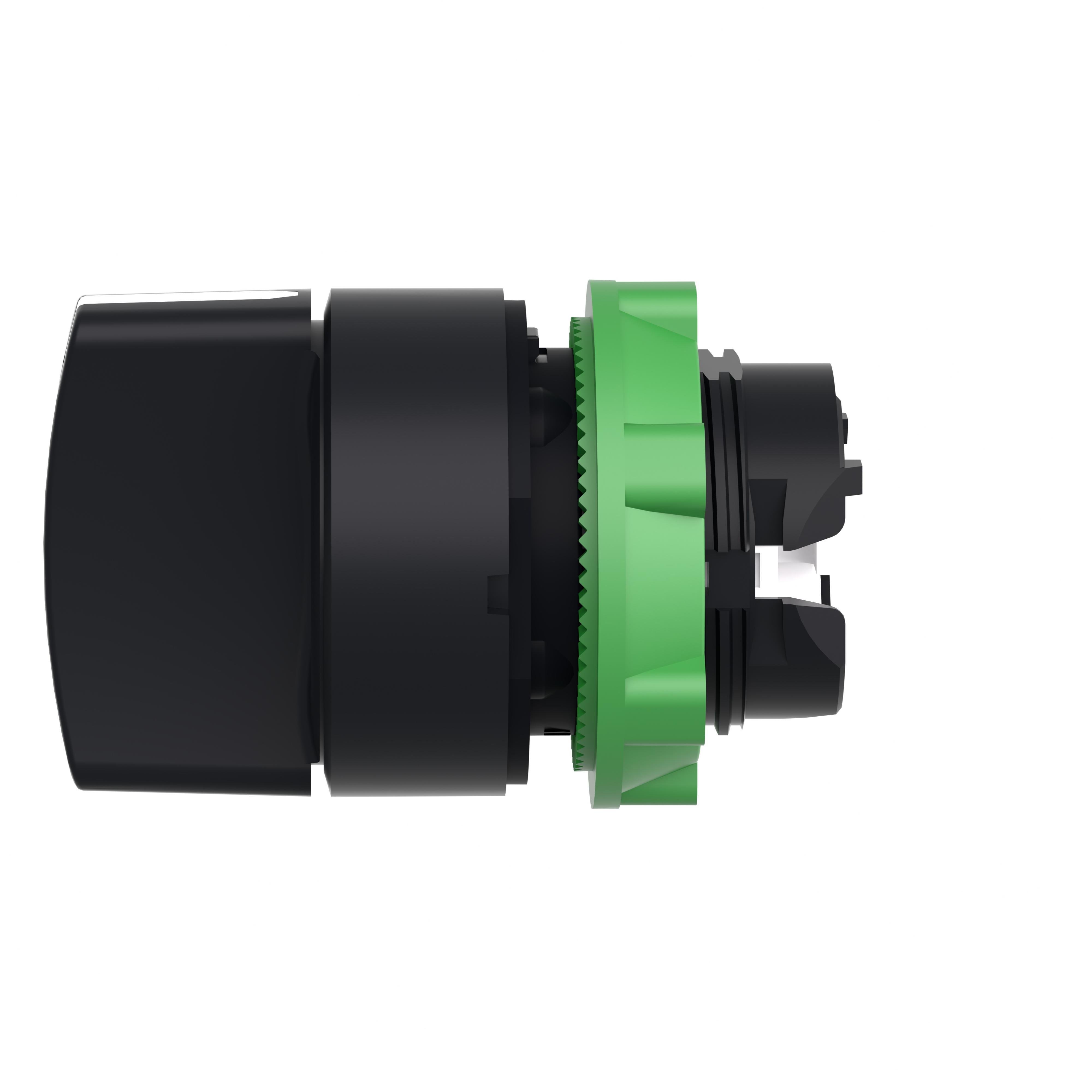

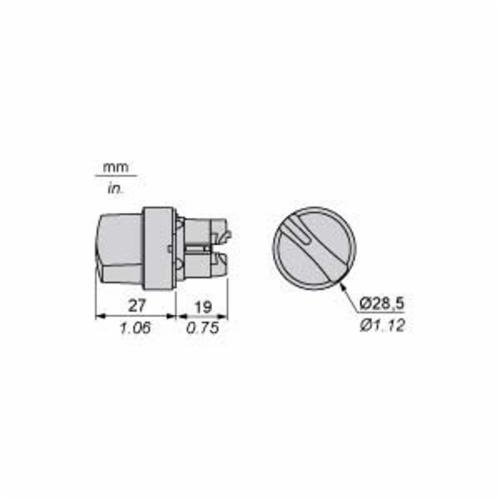

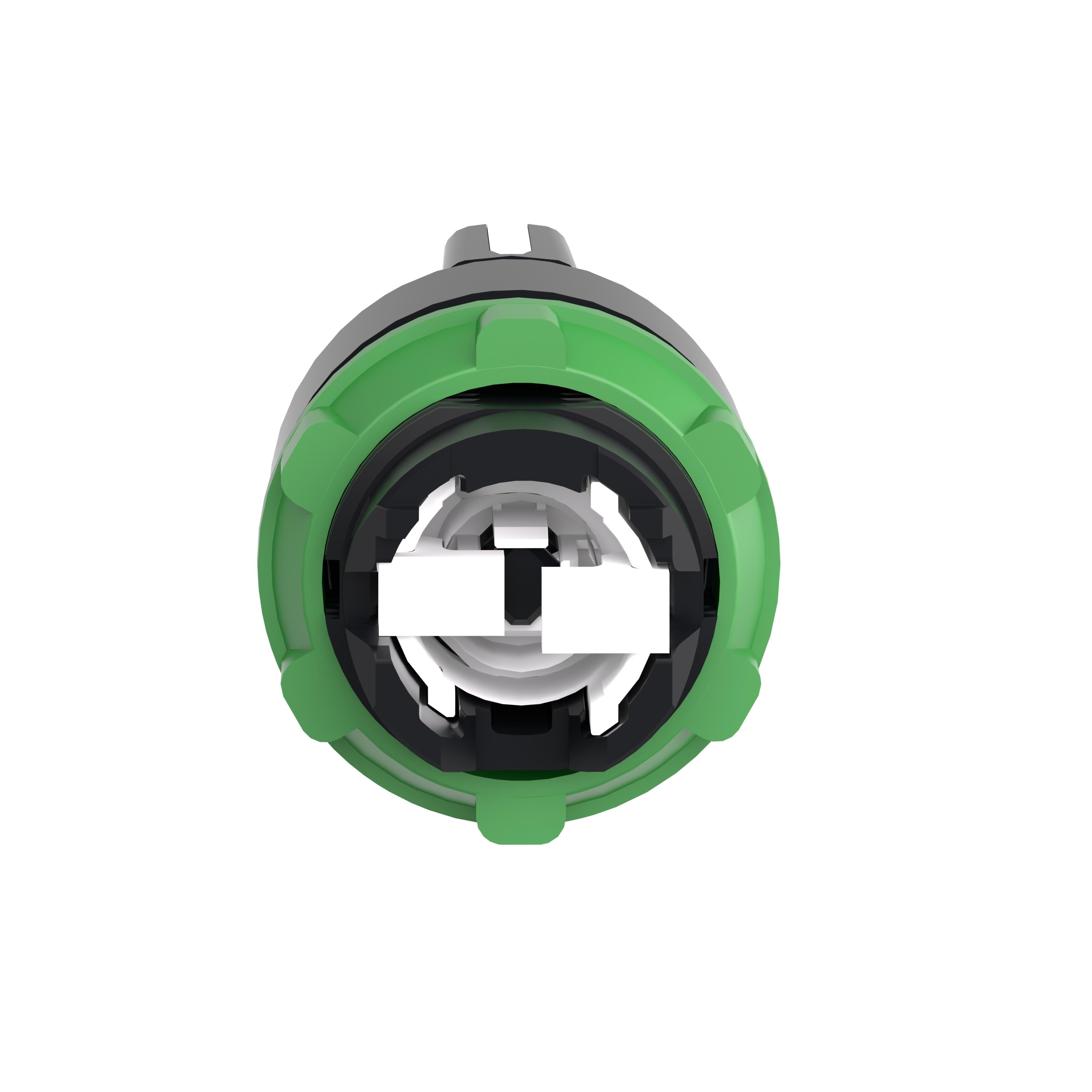

Picture of ZB5AD5 - Head for selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, spring return to center Picture of ZB5AD5 - Head for selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, spring return to center
Picture of ZB5AD5 - Head for selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, spring return to center Picture of ZB5AD5 - Head for selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, spring return to center
Picture of ZB5AD5 - Head for selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, spring return to center Picture of ZB5AD5 - Head for selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, spring return to center
Picture of ZB5AD5 - Head for selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, spring return to center Picture of ZB5AD5 - Head for selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, spring return to center
Picture of ZB5AD5 - Head for selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, spring return to center Picture of ZB5AD5 - Head for selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, spring return to center
Schneider Electric

ZB5AD5 - Head for selector switch, Harmony XB5, plastic, black, 22mm, 3 positions, spring return to center

Item Code: 538856
Category Relays, Push Buttons, Pilot Lights, Selector Switches
Manufacturer SCHNEIDER ELECTRIC
Manufacturer Ref ZB5AD5

Document
Document
Document
Watch video
Call for Availability
Add to Favorites
Compare

Description

This Harmony XB5, black selector switch head with standard handle has 3 positions, operates with spring return to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Specifications

Weight

0.05lb

Height

1mm

Width

2.11mm

Length

2.3mm

AD Brand (Description)

Schneider Electric

AD Country

USA

AD Country Of Origin

FR

AD Invoice Description

OPERATOR SW SEL NON-ILLUMINATED 22MM 3

AD Item Features 01

Quick and easy assembly and disassembly

AD Item Features 02

Robustness to withstand harsh environments

AD Item Features 03

With various types of connection - screw clamp, connector, Faston connector, spring terminal, or printed circuit board

AD Item Features 04

Excellent mechanical connection with operator head

AD Item Features 05

A large set of accessories to customize your panels

AD Manufacturer (Description)

Schneider Electric

AD Package Height

1.0000

AD Package Height UOM

IN

AD Package Length

2.3000

AD Package Length UOM

IN

AD Package Quantity

1

AD Package Volume

1.7000

AD Package Volume UOM

cu-in

AD Package Weight

0.0500

AD Package Weight UOM

LB

AD Package Width

2.1100

AD Package Width UOM

IN

AD Video Links

https://www.youtube.com/embed/phYL_MaZPwo

Brand

Square D

Category

RELAYS, PUSH BUTTONS, PILOT LIGHTS, SELECTOR SWITCHES

Spec 1 Attribute

Bezel/Housing

Spec 1 Attribute Value

Plastic

Spec 10 Attribute

Throw

Spec 10 Attribute Value

45 deg Left/Center/Right

Spec 11 Attribute

Type

Spec 11 Attribute Value

Non-Illuminated

Spec 2 Attribute

Color

Spec 2 Attribute Value

Black

Spec 3 Attribute

Contact Mode

Spec 3 Attribute Value

Momentary

Spec 4 Attribute

Enclosure Type

Spec 4 Attribute Value

NEMA 1/2/3/4/4X/13/IP65/IP66

Spec 5 Attribute

Number of Positions

Spec 5 Attribute Value

3

Spec 6 Attribute

Operator Type

Spec 6 Attribute Value

Knob

Spec 7 Attribute

Series

Spec 7 Attribute Value

ZB5

Spec 8 Attribute

Size

Spec 8 Attribute UOM

MM

Spec 8 Attribute Value

22

Spec 9 Attribute

Temperature Rating

Spec 9 Attribute UOM

deg F

Spec 9 Attribute Value

-40 To 158
